Tool cabinet

Tool cabinet

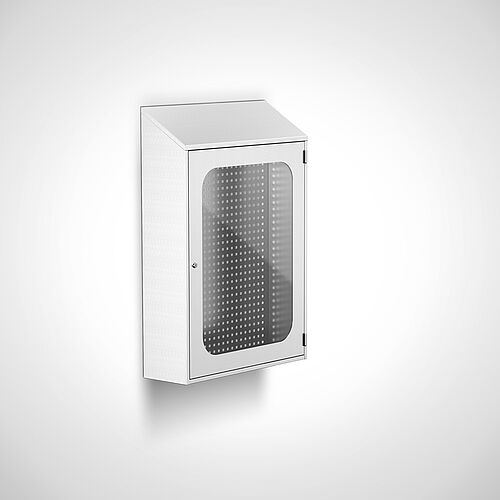

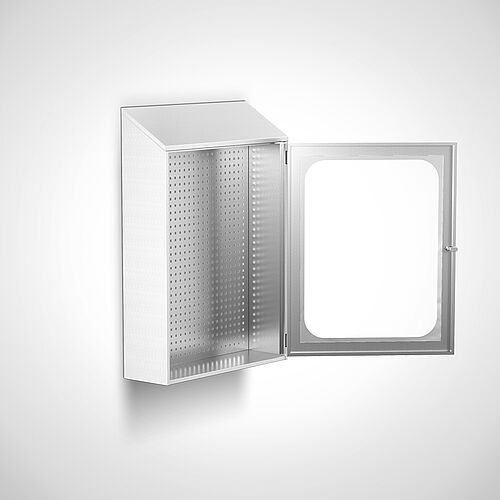

Tool cabinet made of stainless steel Type WZS-W 80/115 with 1 wing door, item no 44.20.04.20 Tool cabinet made of stainless steel Type WZS-W 80/115 with 1 wing door, item no 44.20.04.20
Tool cabinet made of stainless steel Type WZS-W 80/115 with 1 wing door, item no 44.20.04.20 Tool cabinet made of stainless steel Type WZS-W 80/115 with 1 wing door, item no 44.20.04.20

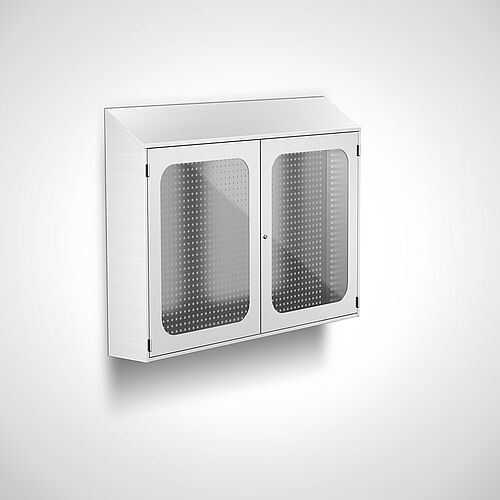

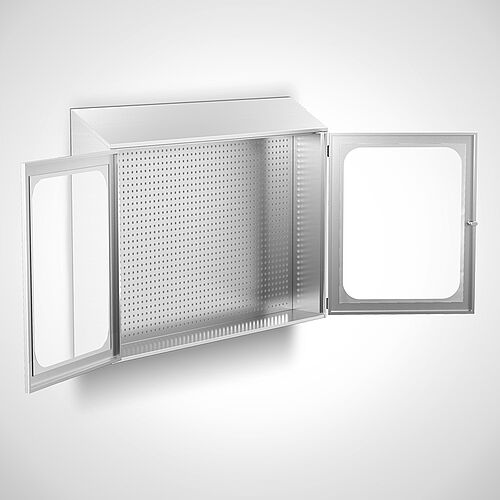

Tool cabinet made of stainless steel Type WZS-W 160/115 with 2 wing doors, item no 44.20.04.21 Tool cabinet made of stainless steel Type WZS-W 160/115 with 2 wing doors, item no 44.20.04.21
Tool cabinet made of stainless steel Type WZS-W 160/115 with 2 wing doors, item no 44.20.04.21 Tool cabinet made of stainless steel Type WZS-W 160/115 with 2 wing doors, item no 44.20.04.21

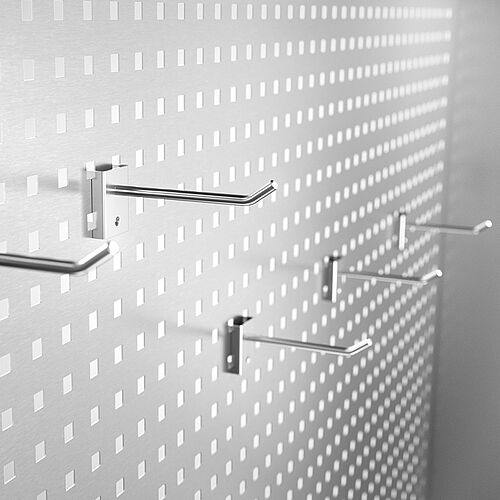

Tool cabinet: Interior rear panel with square perforations and optional brackets (single hooks) Tool cabinet: Interior rear panel with square perforations and optional brackets (single hooks)

Tool cabinet
Type WZS-W

Lockable wall-mounted organization system in stainless steel
  • 2 different cabinet versions
  • Permanently welded version made of stainless steel
  • Cabinet body closed on 3 sides
  • Version in 1.0 mm material thickness
  • With 1 or 2 hinged doors on the operating side
  • Doors lockable by means of a profile cylinder lock
  • Door(s) with polycarbonate pane, # 3 mm
    ADVANTAGE: Visible maintenance of organization
  • Interior rear panel with square perforations in 30/30 grid to accommodate optional brackets
  • Sloping roof, 190 mm higher at the rear
  • Total height: 960/1150 mm

TypeVersionWidth
in mm		Dimensions
W x D x H in mm		PDF
WZS-W 80/1151 Flügeltür800 mm800 x 250 x 960/115044.20.04.20
WZS-W 160/1152 Flügeltüren1600 mm1600 x 250 x 960/115044.20.04.21
Special dimensions
Holder (Ø3, Ø4, Ø5, Ø6, Ø7, Ø8, Ø9, Ø10, Ø11, Ø12, Ø13) for drill bits/hexagon socket wrenches Type SKH-11  44200384
Wire basket Type DRAK-G  44200377
Double hook Type DH-75, length: 75 mm  44200359
Double hook Typ DH-50, length: 50 mm  44200358
Double hook Typ DH-150, length: 150 mm  44200360
Hook for sockets/ spanners Type HNS  44200397
Tool holder Type WZH-SH 100  44200363
Tool holder Type WZH-SH 50  44200362
Tool holder Type WZH-SH 150  44200364
Double tool holder Type DWZH-SH 35  44200365
Double tool holder Type DWZH-SH 50  44200366
Holder (Ø3, Ø4, Ø5, Ø6, Ø7, Ø8, Ø12, Ø14, Ø18, Ø22, Ø26, Ø30) for drill bits/hexagon socket wrenches Type SKH-12  44200385
Double tool holder Type DWZH-SH 75  44200367
Double tool holder Type DWZH-SH 150  44200368
Tool holder with straight mandrel Type WZH-GD 35  44200405
Tool holder with straight mandrel Type WZH-GD 75  44200406
Tool holder with straight mandrel Type WZH-GD 125  44200407
Double tool holder with straight mandrel Type DWZH-GD 35  44200408
Double tool holder with straight mandrel Type DWZH-GD 75  44200409
Double tool holder with straight mandrel Type DWZH-GD 125  44200410
Tool clamp bracket, 1-fold Type WZK-6  44200435
Tool clamp bracket, 1-fold Type WZK-10  44200436
Holder (2x Ø3, 2x Ø4, 2x Ø5, 2x Ø6, 2x Ø7, 2x Ø8, 2x Ø12, 2x Ø14, 2x Ø18, 2x Ø22, 2x Ø26, 2x Ø30) for drill bits/hexagon socket wrenches Type SKH-24  44200386
Tool clamp bracket, 1-fold Type WZK-13  44200437
Tool clamp bracket, 1-fold Type WZK-16  44200438
Tool clamp bracket, 1-fold Type WZK-19  44200439
Tool clamp bracket, 2-fold Type DWZK-6  44200422
Tool clamp bracket, 2-fold Type DWZK-10  44200423
Tool clamp bracket, 2-fold Type DWZK-13  44200424
Tool clamp bracket, 2-fold Type DWZK-16  44200425
Tool clamp bracket, 2-fold Type DWZK-19  44200426
Retaining rail for open fronted storage box Type HSK-100, 100 mm lang  44200411
Retaining rail for open fronted storage box Type HSK-450, 450 mm lang  44200412
Holder, semicircular for cables/wires Type HH-D75  44200404
Retaining rail for open fronted storage box Type HSK-900, 900 mm lang  44200413
Base plate for perforated wall Type GP-30, 30 mm breit  44200414
Base plate for perforated wall Type GP-60, 60 mm breit  44200415
Tool holder, 3-fold, 150 mm hook Type WZH-3-fach  44200369
Tool holder, 6-fold, 90 mm (6-sided hooks) Type WZH-6-fach  44200370
Tool holder comb Type WZHK  44200402
Round bracket for perforated wall, Inner dimension 25 Type RH-25  44200387
Machine bracket for perforated, Inner dimension-Ø 40 Type MH-40  44200388
Machine bracket for perforated, Inner dimension-Ø 60 Type MH-60  44200389
Machine bracket for perforated, Inner dimension-Ø 80 Type MH-80  44200390
Storage shelf Type AF-18/12  44200380
Pliers holder for perforated, 35x20 mm Type ZH-35  44200392
Pliers holder for perforated, 40x50 mm Type ZH-40  44200393
Pliers holder for perforated, 50x75 mm Type ZH-50  44200394
Pliers holder for perforated, 55x20 mm Type ZH-55  44200395
Pliers holder for perforated, 75x20 mm Type ZH-75  44200396
Paper roll holder for perforated wall Type PRH-370  44200398
Disposable paper dispenser for perforated wall Type EPA-LW  44200400
Bucket drainer holder for perforated wall Type EAH-1  48000011
Magnetic holder for perforated wall Type MGH-30  44200429
Hook/ear protection suspension for perforated wall Type HL-EG/LW-2  44200428
Storage box Type AK-240  44200378
Document holder for perforated wall Type DHA-LW-DIN A4  44200431
Document holder for perforated wall Type DHA-LW-DIN A5  44200432
Single hook Type EH-W 90, radius: 90 mm-90° turned left  44200353
Single hook Type EH-50, radius: 50 mm  44200354
Single hook Type EH-80, radius: 80 mm  44200352
Single hook Type EH-100, radius: 100 mm  44200355
Single hook Type EH-120, radius: 120 mm  44200351
Single hook Type EH-150, radius: 150 mm  44200356
Single hook Type EH-200, radius: 200 mm  44200357
Single can holder Type DH-1  44200371
Storage box Type AK-450  44200379
Double can holder Type DH-2  44200372
3-way can holder Type DH-3  44200373
Storage compartement Type AF-36/12  44200381
Universal bracket Type HU-1  44200401
Holder for screwdriver Type HS-6  44200416
Holder for combination/open-end wrench Type HR-1  44200391
Hose holder Type SH-1  44200361
Holder, half-round Type HH-D75  44200361
Holder for measuring tools type MWH  44200383
Storage tray Type AW-390  44200374
Waste bin for perforated wall, 19 Liter Type ABH-K  44200433
Waste bin for perforated wall, 50 Liter Type ABH-G  44200434
Wire basket Type DRAK-K  44200376
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

No product in the Quick inquiry list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Delivery without accessories. Accessories are optionally available!

We manufacture individually according to customer requirements in your desired dimensions.



Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
