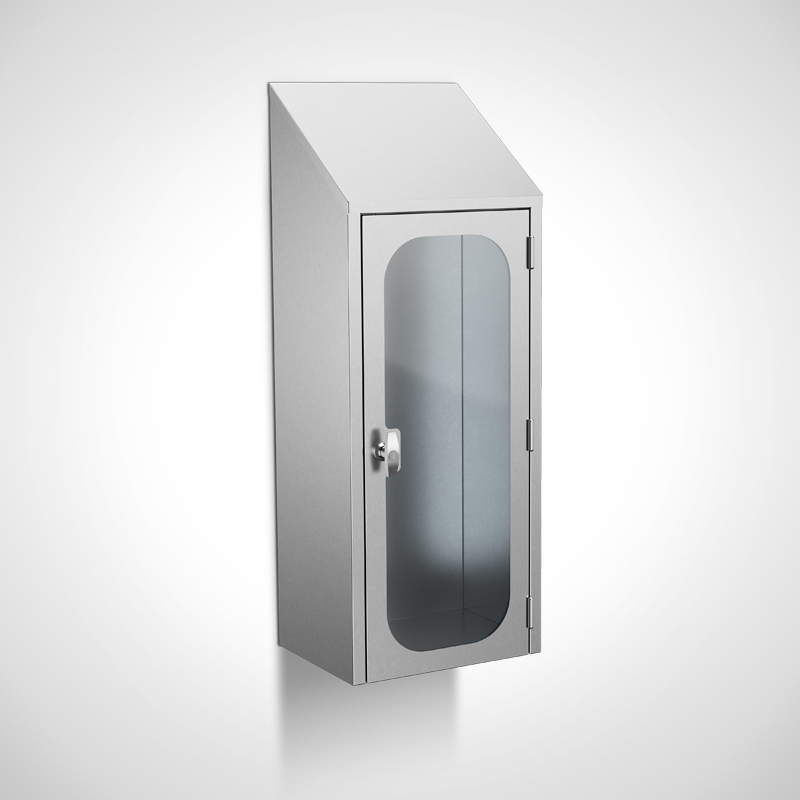

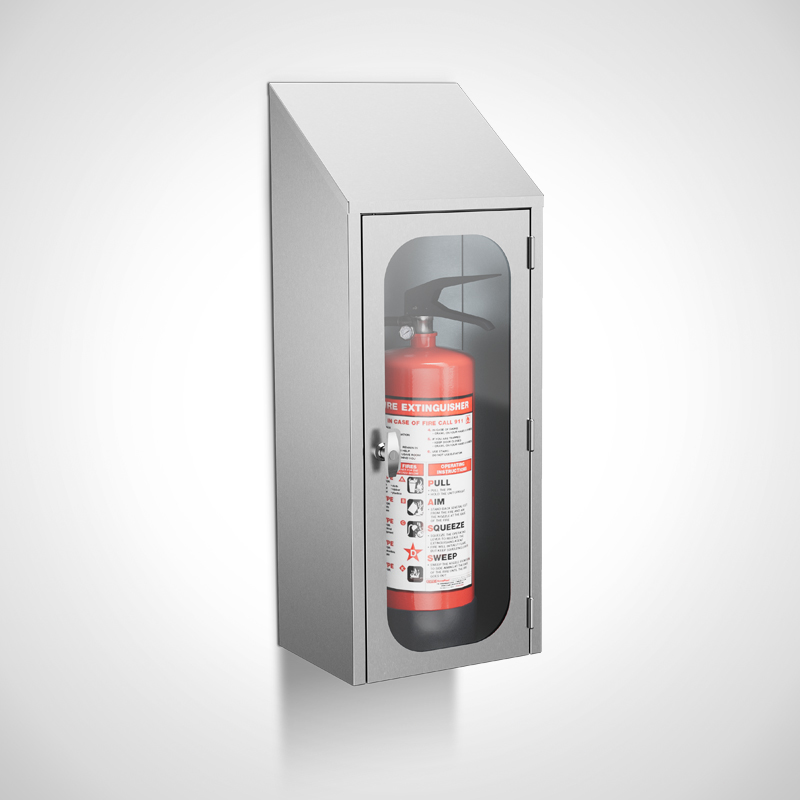

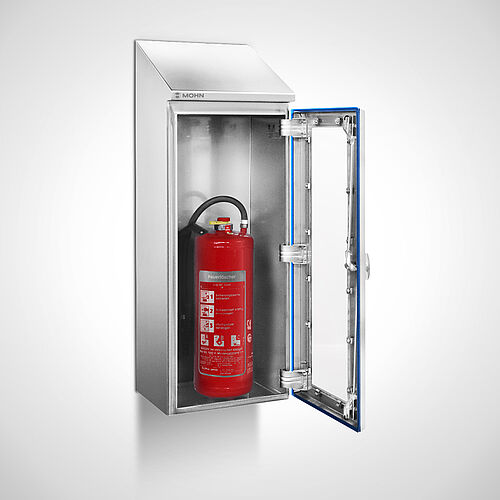

Fire extinguisher cabinet
type FLS-W Ecoline
For hygienic, splash-proof storage
- Welded stainless steel design
- Cabinet body closed on 3 sides, wall-mounted
- Version in 1 mm material thickness
- Integrated sloping roof (200 mm higher at the rear), 34° inclination
- Hinged door hinged on the right, mounted on pivot bolts
- Hinged door can be locked with practical toggle handle
- Door with integrated polycarbonate pane
- Capacity: 1 fire extinguisher 6 kg or 12 kg
- Without fire extinguisher sign - Fire protection sign according to ISO 7010
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
No product in the Quick inquiry list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Supplied without fire extinguisher and accessories.
We also manufacture customised products in your desired dimensions.
material
Stainless steel 18/10 material no. 1.4301.
The externally visible stainless steel sheet surfaces have a polished finish with grain 320.
The externally visible stainless steel profile surfaces have a uniform brushed finish.
Description
A stainless steel fire extinguisher cabinet offers reliable protection for fire extinguishers against harmful environmental influences such as dust, moisture and impact. Stainless steel is particularly hygienic, easy to clean and resistant to external influences, making it ideal for sectors such as the food, pharmaceutical and cosmetics industries. The storage of fire extinguishers in special cabinets ensures high durability and reliability and ensures that the fire extinguisher always remains ready for use.
In sensitive environments where an open fire extinguisher could spoil the overall aesthetic appearance - for example in laboratories, clean rooms or high-quality catering areas - the cabinet ensures discreet storage, while the fire extinguisher remains ready to hand at all times in an emergency.
Proper storage in a temperature range of 5 °C to 25 °C prevents damage to the extinguishing agent. Temperatures below 0 °C can cause fire extinguishers that are not frost-proof to malfunction. Above 50 °C, the risk of pressure changes in the fire extinguisher increases. The cabinet therefore contributes to the safe and protected storage of the extinguishing agent. The fire extinguisher cabinet is designed so that you have unhindered access to the fire extinguisher at all times.
Technical Data
| Light dimension w x d x h in mm | 330 x 250 x 780 (with the door open) |
|---|---|
| Protection class | IP65 according to EN60529 |
| Filling quantity | 1 fire extinguisher - for 6 kg to 12 kg |
| Dimension of the viewing window (w x h) | 240 x 720 mm |
