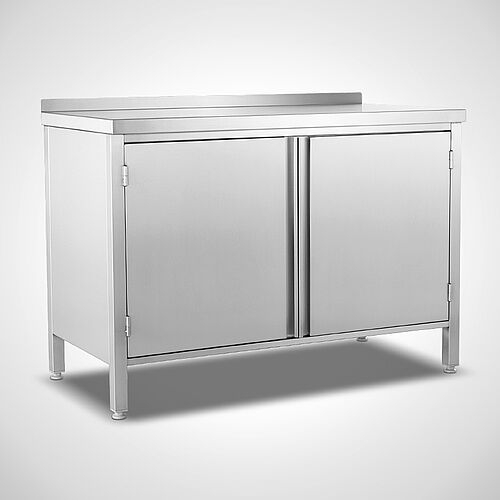

Work cupboards
Type AS-FZ
Work cupboards are applicable for all kinds of industry and product-ranges
- Fully-welded execution made of stainless steel 1.4301
- Cupboard body, closed on 3 sides, material thickness 1.0 mm
- Double-walled hinged doors on the operator side, Material thickness 1.0 mm
- Worktop in 1.5 mm material thickness
- Worktop, chamfered on 3 sides, rear 40 mm backsplash (gallery),
alternatively: smoothly chamfered on all sides - Work top underneath reinforced with hat profile
- Cupboard interior with 1 height-adjustable storage shelf (50 mm) in 1.0 mm material thickness
- Lower structure with stable square pipe frame construction (40x40x1.5 mm)
- 4 or 6 height-adjustable plastic screw feett (+/- 30 mm)
- From 2,500 mm length with 6 supporting feet
- Standard ground clearance: 150 mm
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
All dimensions in mm. Other designs on request!
MATERIAL
Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish.
Information
For cleanrooms we also deliver cupboard-interiors in very hygienic-executions H1, H2 or H3 according to DIN 18865-9
Options
- Corner work cupboards, open on the operator side on request
- Mobile version (2 fixed rollers and 2 castors with locking device), Ø125 mm, Art. No. 99.90.01.50
