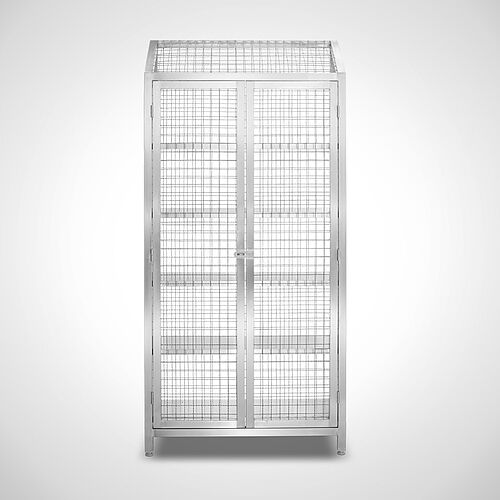

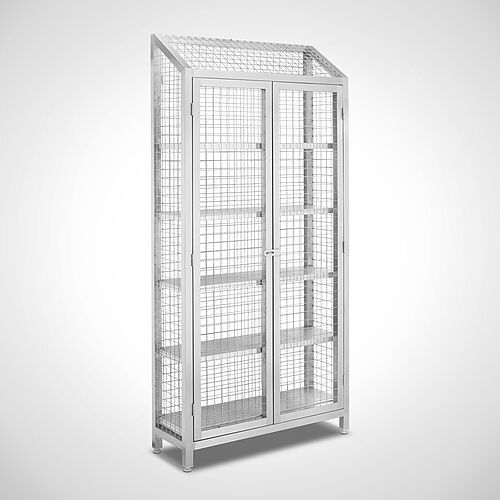

Wire grid cabinet, 2 wing doors
Wire grid cabinet, 2 wing doors
Storage cabinets
Type ASD-Gitter
wire grating cABINETS Universal usable - 4 storage shelves
- Covering of cupboard completely made of wire grid (mesh size 40 x 40 x 3,0 mm)
- Frame of cupboard made of stainless steel square tubes 40 x 40 mm
- Various versions available
- Sloping roof, 200 mm higher at the back made of wire grid
- With 2 straps on the back for stable wall mounting
- Operator side with 2 wing doors made of wire mesh
- Doors lockable with an on-site padlock

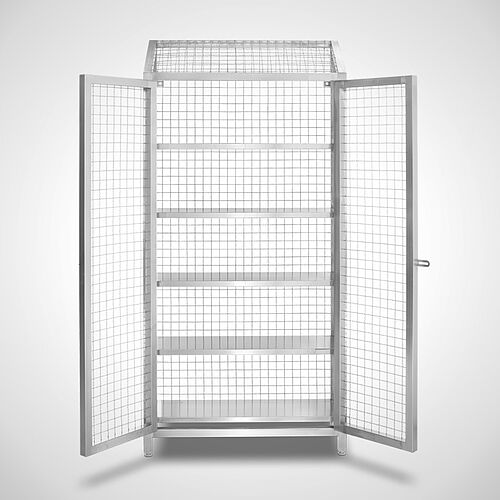

- Interior with 4 height-adjustable, closed shelves
- 4 height-adjustable plastic screw feet (+/- 30 mm)
- Standard ground clearance: 150 mm
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
No product in the Quick inquiry list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Other executions or dimensions on request.
Material
Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320 (storage shelves)
Corrugated grille made of stainless steel MW 40/40 x 3.0 mm
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish.
Options
- Stand, type STF-Highline, art. no. 99.87.01.48 instead of plastic screw-on feet
- 4 polyamide swivel castors, Ø 125 mm (2 with brakes), art. no. 99.90.01.51
- Internal linkage incl. lockable T-handle, art. no. 39.01.01.07
