type DRV-GS

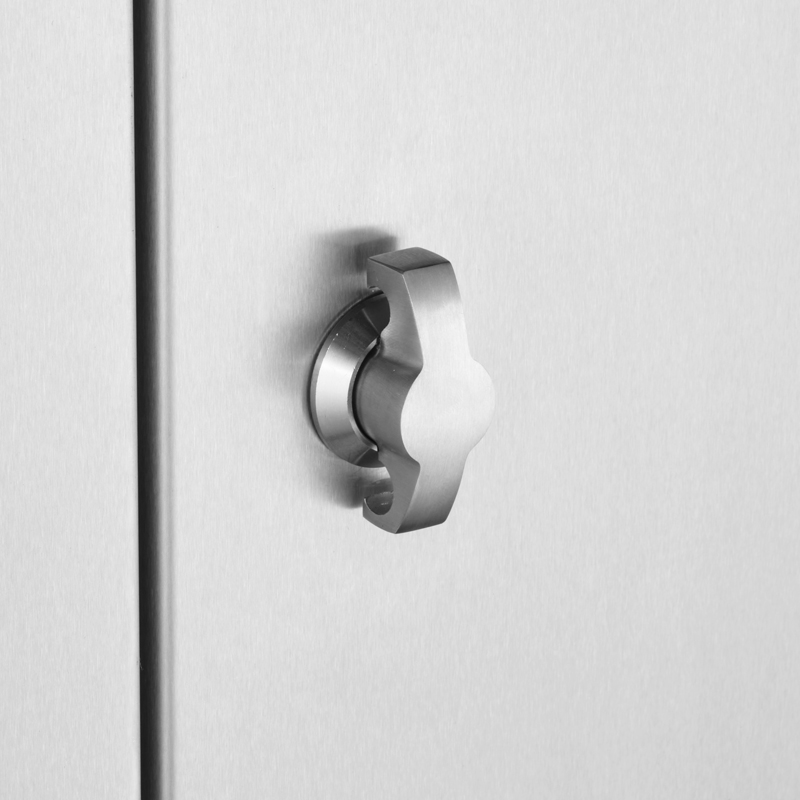

Twist lock for stainless steel cupboards
- Twist lock incl. stainless steel nut
- 3-point locking system possible
- Can be used for right or left door hinge
- Type of fastening in the housing: screwable
- Suitable for hole diameter: 9 mm + 6.5 mm
- Suitable for door thicknesses: from 1.5 mm to 8 mm
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
No product in the Quick inquiry list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
This item is not sold individually and can only be ordered as an option for the standing desk cabinets, filing cabinets, etc.
Please note that the tongue lock (1-point) or the tongue and rod lock (3-point) are not included in the scope of delivery!
MATERIAL
Made of stainless steel 1.4401 (AISI 316)
Remark
The 1.4401 stainless steel twist lock is the perfect solution when doors or flaps need to be reliably secured with a padlock on site. The Twist lock is designed for robust use and, thanks to protection class IP65, is also suitable for areas where dust or splash water are not an invitation.
Designed for door thicknesses from 1.50 to 8.00 mm, the toggle espagnolette can be used flexibly in different installation situations. The door hinge can be realised on the left or right. Depending on requirements, locking can be carried out using a tongue or rod drive - the choice is determined manually depending on the installation situation. A stainless steel nut is included in the scope of delivery or in the design, which ensures secure and stable installation.
Possible functional principle
- Rotation of the twist lock > Actuation of the optional latch bolt tongue (centre)
- Simultaneous driving of the rod drive on the square
- Two round rods run upwards and downwards in guides and lock in counterpieces/end hooks (optional)
