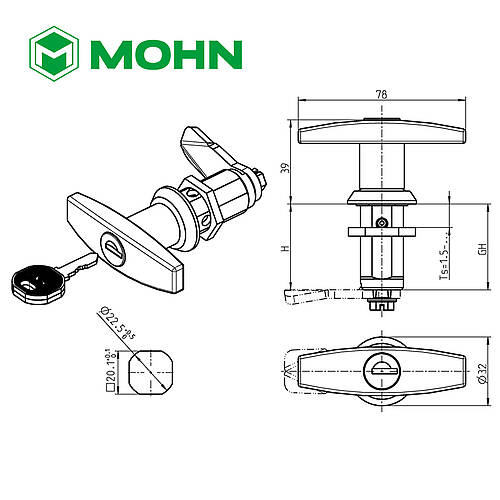

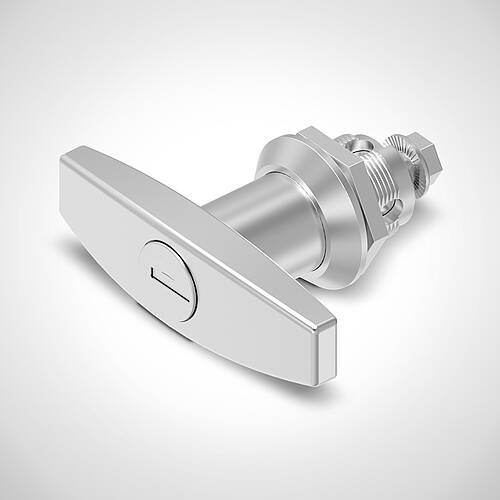

T-handle
type TG-x VA
robust T-handle lock for stainless steel cabinets

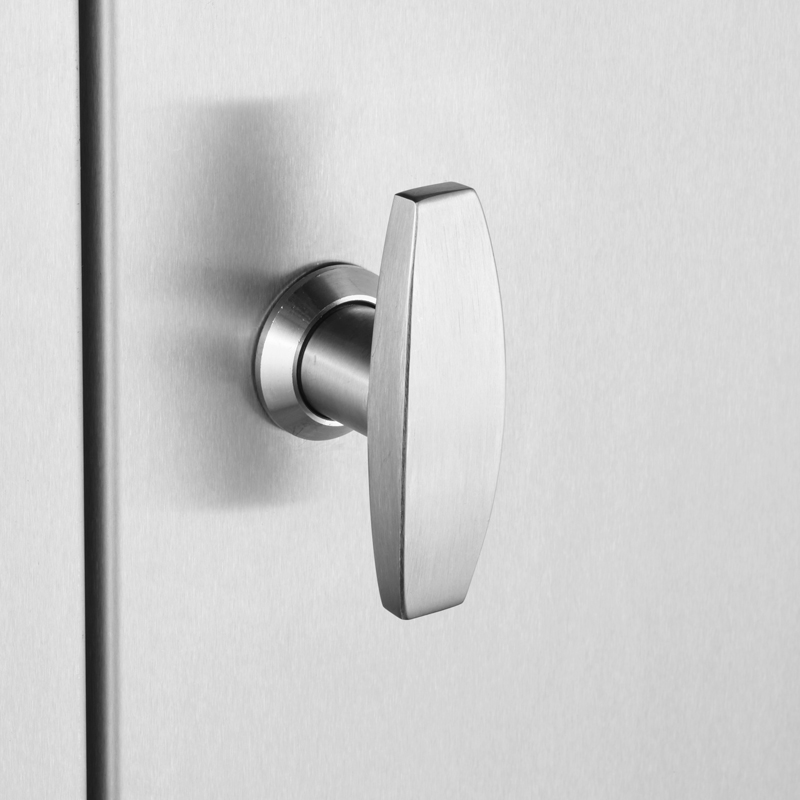

- T-shaped handle including stainless steel nut without sash lock
- 3-point lock system possible

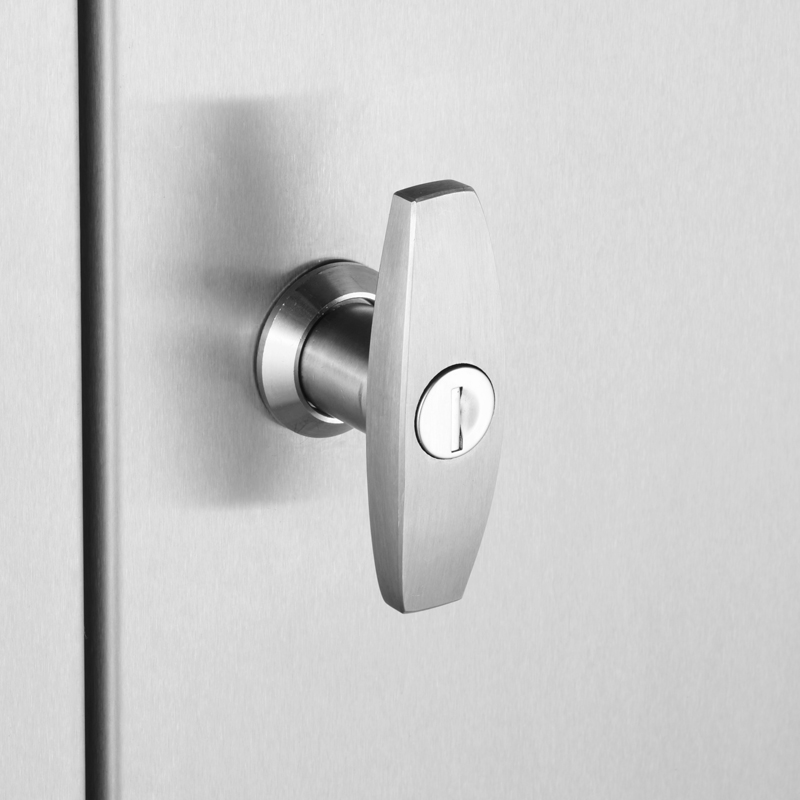

- Optionally with or without locking cylinder
- Round cylinder type with different locking options
- Can be used for right or left door hinge
- Type of fixing in the housing: screwable
- Suitable for hole diameter: 22.5 mm
- Suitable for door thicknesses: from 1.5 mm to 8 mm
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
No product in the Quick inquiry list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
This item is not sold separately and can only be ordered as an option for standing desk cabinets, storage cabinets, etc.
Please note that the tongue lock (1-point) or tongue and bar lock (3-point) are not included in the scope of delivery!
MATERIAL
Made from AISI 316 stainless steel
Description
Robust T-handle bolt for multiple locking of doors and flaps. In addition to the central locking tongue (optional – not included in delivery), the handle controls two additional locking points via round rods (optional – not included in delivery) at the top and bottom.
Result: even seal pressure across the entire door height and higher resistance to bending and break-ins.
Possible operating principle
- Rotation of the T-handle > activation of the with optional tongue lock (center)
- Simultaneous engagement of the rod drive on the square spindle
- Two round rods run up and down in guides and lock into counterparts/end hooks(optional)
- Opening/closing with key or insert (depending on version); key can be removed in both positions.
Technical Data
| Installation depth | 18 mm (without tongue lock = GH dimension) |
|---|
