Without doors

Without doors

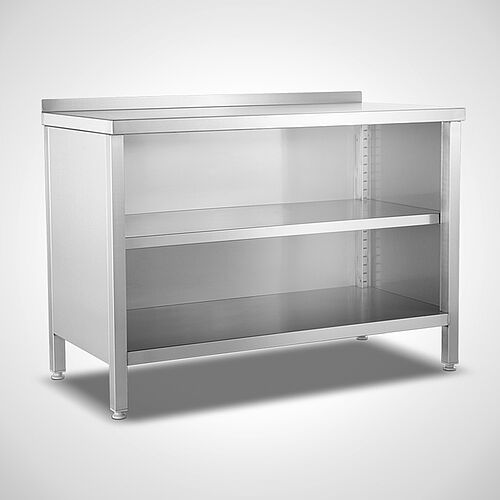

Stainless steel work cabinet type AS-OZ 120-60, art. no. 22.00.05.62, with rear upstand Stainless steel work cabinet type AS-OZ 120-60, art. no. 22.00.05.62, with rear upstand
Stainless steel work cabinet type AS-OZ 120-60, art. no. 22.00.05.62, without rear upstandStainless steel work cabinet type AS-OZ 120-60, art. no. 22.00.05.62, without rear upstand

Work cupboards
Type AS-OZ

Work cupboards are applicable for all kinds of industry and product-ranges

  • Fully-welded execution made of stainless steel 1.4301
  • Cupboard body, closed on 3 sides, material thickness 1.0 mm
  • Open on the operator side, without doors
  • Worktop in 1.5 mm material thickness
  • Worktop, chamfered on 3 sides, rear 40 mm backsplash (gallery),
    alternatively: smoothly chamfered on all sides
  • Work top underneath reinforced with hat profile
  • Cupboard interior with 1 height-adjustable storage shelf (50 mm) in 1.0 mm material thickness
  • Lower structure with stable square pipe frame construction (40x40x1.5 mm)
  • 4 or 6 height-adjustable plastic screw feett (+/- 30 mm)
  • From 2,500 mm length with 6 supporting feet
  • Standard ground clearance: 150 mm

TypeDepth
in mm		Dimensions
W x D x H in mm		PDF
Table depth: 600 mm
AS-OZ 100-60600 mm1000 x 600 x 85022.00.05.60
AS-OZ 110-60600 mm1100 x 600 x 85022.00.05.61
AS-OZ 120-60600 mm1200 x 600 x 85022.00.05.62
AS-OZ 130-60600 mm1300 x 600 x 85022.00.05.63
AS-OZ 140-60600 mm1400 x 600 x 85022.00.05.64
AS-OZ 150-60600 mm1500 x 600 x 85022.00.05.65
AS-OZ 160-60600 mm1600 x 600 x 85022.00.05.66
AS-OZ 170-60600 mm1700 x 600 x 85022.00.05.67
AS-OZ 180-60600 mm1800 x 600 x 85022.00.05.68
AS-OZ 190-60600 mm1900 x 600 x 85022.00.05.69
AS-OZ 200-60600 mm2000 x 600 x 85022.00.05.70
AS-OZ 210-60600 mm2100 x 600 x 85022.00.05.71
AS-OZ 220-60600 mm2200 x 600 x 85022.00.05.72
Table depth: 700 mm
AS-OZ 100-70700 mm1000 x 700 x 85022.00.05.73
AS-OZ 110-70700 mm1100 x 700 x 85022.00.05.74
AS-OZ 120-70700 mm1200 x 700 x 85022.00.05.75
AS-OZ 130-70700 mm1300 x 700 x 85022.00.05.76
AS-OZ 140-70700 mm1400 x 700 x 85022.00.05.77
AS-OZ 150-70700 mm1500 x 700 x 85022.00.05.78
AS-OZ 160-70700 mm1600 x 700 x 85022.00.05.79
AS-OZ 170-70700 mm1700 x 700 x 85022.00.05.80
AS-OZ 180-70700 mm1800 x 700 x 85022.00.05.81
AS-OZ 190-70700 mm1900 x 700 x 85022.00.05.82
AS-OZ 200-70700 mm2000 x 700 x 85022.00.05.83
AS-OZ 210-70700 mm2100 x 700 x 85022.00.05.84
AS-OZ 220-70700 mm2200 x 700 x 85022.00.05.85
Table depth: 800 mm
AS-OZ 100-80800 mm1000 x 800 x 85022.00.05.86
AS-OZ 110-80800 mm1100 x 800 x 85022.00.05.87
AS-OZ 120-80800 mm1200 x 800 x 85022.00.05.88
AS-OZ 130-80800 mm1300 x 800 x 85022.00.05.89
AS-OZ 140-80800 mm1400 x 800 x 85022.00.05.90
AS-OZ 150-80800 mm1500 x 800 x 85022.00.05.91
AS-OZ 160-80800 mm1600 x 800 x 85022.00.05.92
AS-OZ 170-80800 mm1700 x 800 x 85022.00.05.93
AS-OZ 180-80800 mm1800 x 800 x 85022.00.05.94
AS-OZ 190-80800 mm1900 x 800 x 85022.00.05.95
AS-OZ 200-80800 mm2000 x 800 x 85022.00.05.96
AS-OZ 210-80800 mm2100 x 800 x 85022.00.05.97
AS-OZ 220-80800 mm2200 x 800 x 85022.00.05.98
Special dimensions
Mobil version with 2 fixed and 2 swivel castors with brakes, Ø125 mm 99900150
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

All dimensions in mm. Other designs on request.



MATERIAL

Chrome-nickel steel 18/10 material no. 1.4301 manufactured.

The externally visible stainless steel sheet surfaces have the finish ground with grain 320.
The externally visible stainless steel profile surfaces, such as table legs, have a uniform brushed finish.



Information

For cleanrooms we also deliver cupboard-interiors in very hygienic-executions H1, H2 or H3 according to DIN 18865-9


Options

  • Corner work cupboards, open on the operator side on request
  • Mobile version (2 fixed rollers and 2 castors with locking device), Ø125 mm, Art. No. 99.90.01.50
