Corner cupboard
Corner cupboard
Corner cupboard

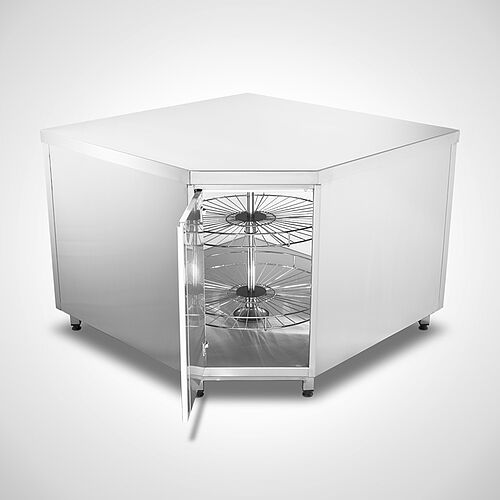

Type E-AS 120-120
Corner cupboards are applicable for all kinds of industry
- Fully-welded execution made of stainless steel 1.4301
- Cupboard body, closed on 4 sides
- On the operator side: 400 mm width double-walled hinged door
- Worktop, chamfered on 3 sides, rear 40 mm backsplash (gallery),
alternatively: smoothly chamfered on all sides - Work top underneath reinforced with hat profile
- Cupboard interior without height-adjustable storage shelf
- Lower structure with stable square pipe frame construction (40x40x1.5 mm)
- 5 height-adjustable plastic screw feett (+/- 30 mm)
- Standard ground clearance: 100 mm
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
All dimensions in mm. Other designs on request!
MATERIAL
Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish.
Option
- 2-tier rondel Ø 714 mm, chrome-plated design on request.
Reference Photos

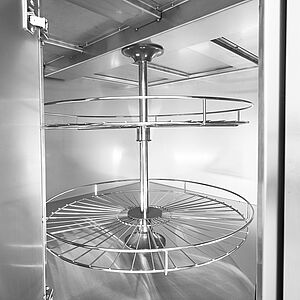

2-tier rondel Ø 714 mm, chrome-plated design on request, ID 21-61444
