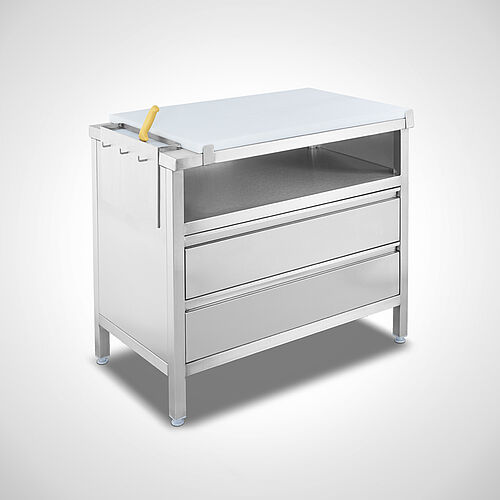

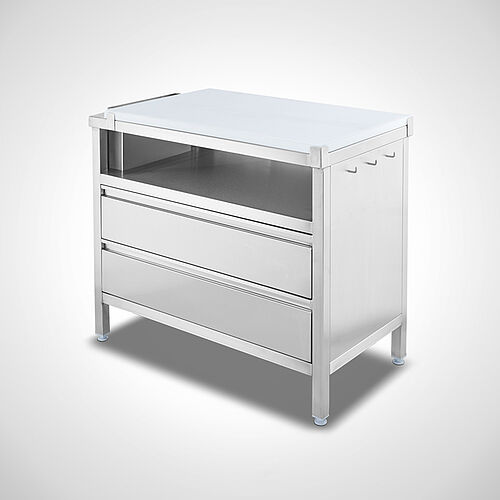

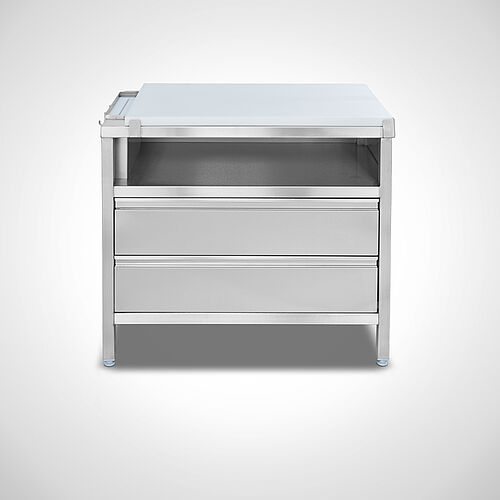

Drawer cabinet with knife holder
Type K-SCS-SON

for FISH AND MEAT industry universally applicable

  • Firmly welded execution made of stainless steel
  • Cabinet body closed on 3 sides, material thickness 1.0 mm
  • Plastic cutting plate (HDPE-500) in material thickness 30 mm
    inserted in angle profiles, stainless steel panel bevelled on all sides

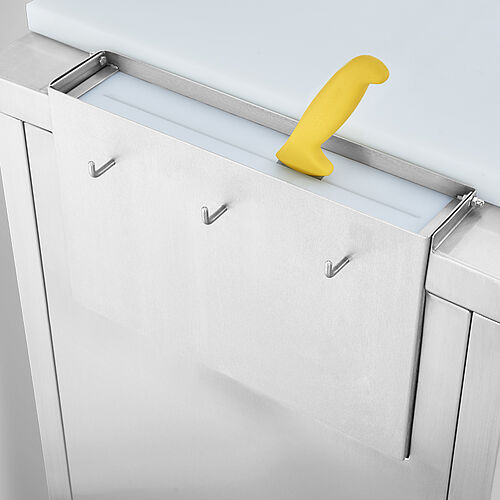

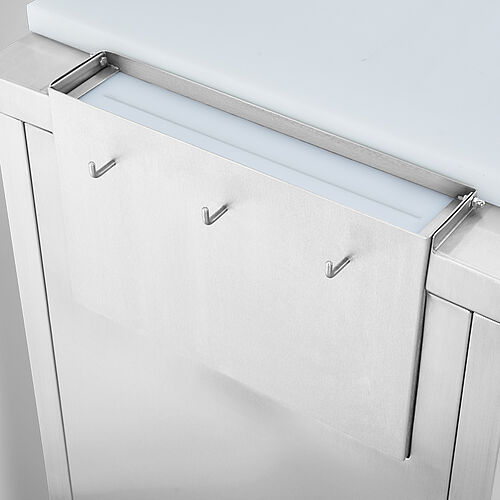

  •  Knife holder recessed in stainless steel construction on left-hand side

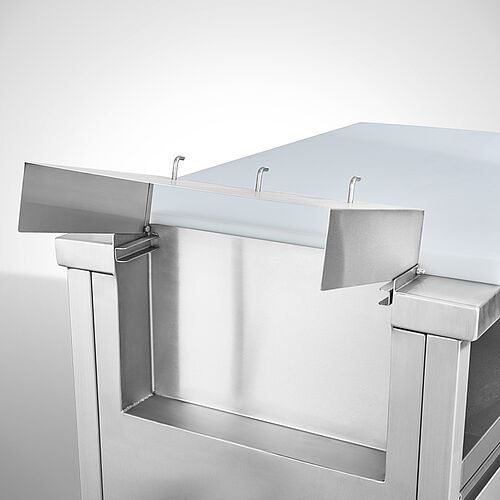

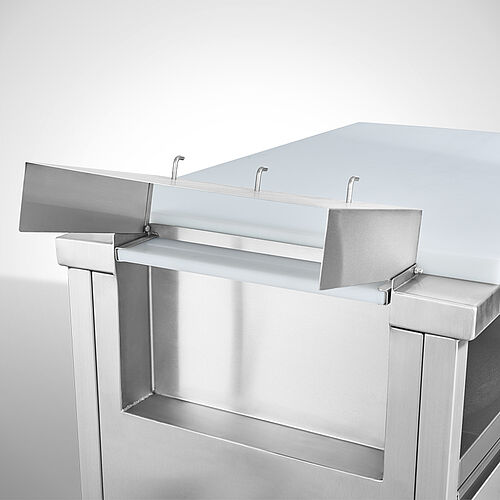

  • Foldable knife holder with removable PE cutting guard
  •  Open storage compartment below table top (H: 170 mm)

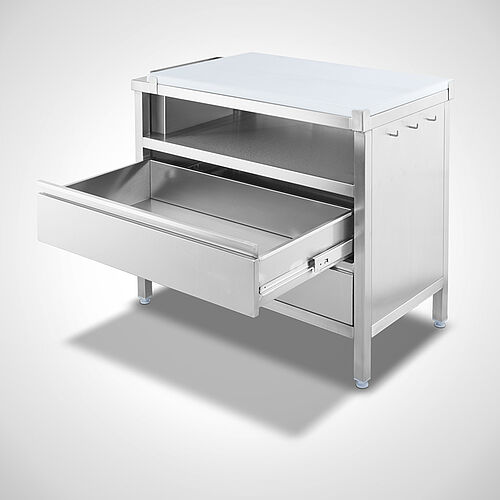

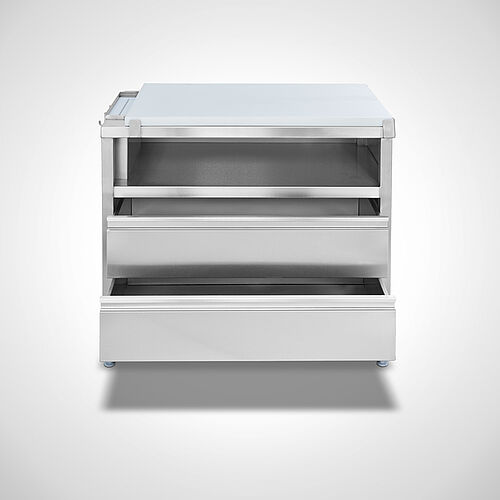

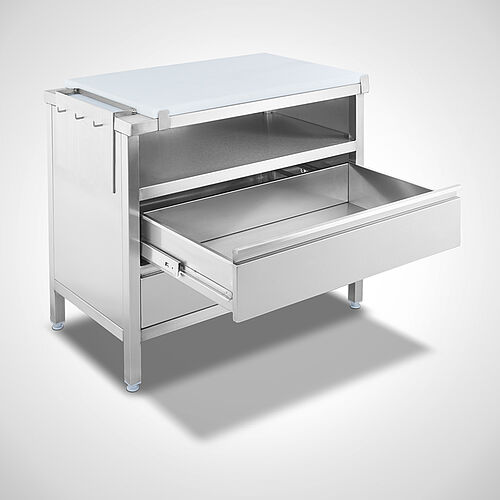

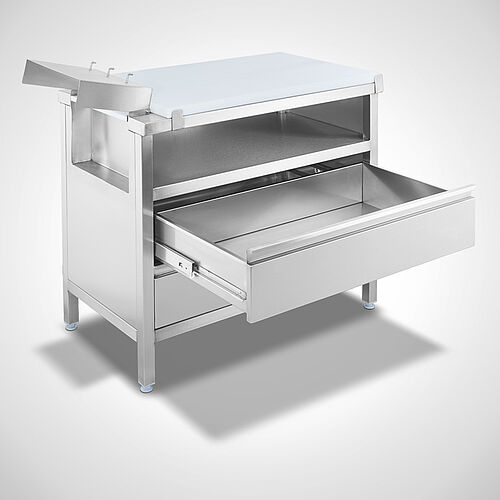

  • On the operating side with 2 drawers with full-extension runners
  • Drawer height: 200 mm, drawer width 900 mm
  • Lower structure with stable square pipe frame construction (40x40x1.5 mm)
  • Floor model: 4 height-adjustable (+/- 30 mm) plastic screw feet
  • Standard ground clearance: 150 mm

TypeVersionDimensions
W x D x H in mm
PDF
K-SCS-SON 100-602 drawers / HDPE-cutting plate1000 x 600 x 85020.00.11.13
Special dimensions
Drawer(s) INDIVIDUALLY lockable with a profile cylinder lock 99800287
Drawer(s) CENTRALLY lockable with a central profile cylinder lock 99800376
Mobil version with 2 fixed and 2 swivel castors with brakes, Ø125 mm 99900150
Retrofitting set “Expander” (2 fixed rollers and 2 castors with locking mechanism, for profile 40x40x1.5 mm 99900199
Hygienic Design castor set type HLR-SET 29100103
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

We manufacture individually according to customer requirements. Delivery without accessories (knives)



Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish.



Options

  • Drawers, lockable by means of profile cylinder lock
  • Drawer partitioning inside on request
