Hand disinfection with anti-panic turnstile "Ecoline"

Disinfection dispenser+Drop-Arm Turnstile
Type Desi-Control Droparm-1 "Ecoline"

DISINFECTION Dispenser with "ecoline" Drop-Arm turning lock

  • Tamper-proof 2-hand disinfectant dispenser
  • Version with base for floor mounting or wall-mounted
  • Optionally with passage direction right or left
  • Electrical version with "Ecoline" drop arm turnstile technology
  • Potential-free contact for coupling with, e.g. Fire alarm system
  • Turnstile return path: blocked, released using a button (or by an on-site impulse e.g. time recording)
  • Control: all times individually adjustable
  • Dosage of the application quantity adjustable
  • Including side can holder for 10 kg containers

TypeVersionDimensions
W x D x H in mm
PDF

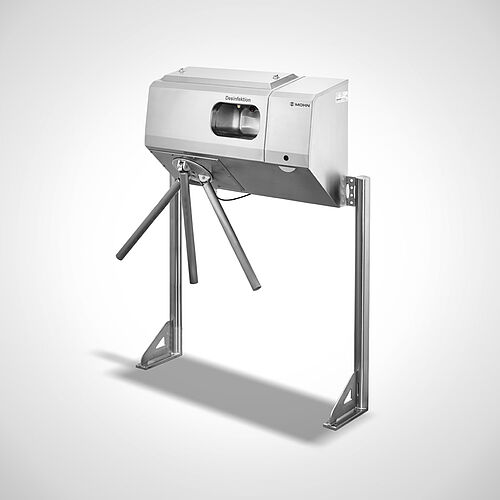

Desi-Control SR-DROPARM-1 Stand rack - Right-hand version1110 x 330/ 850 x 135011.10.07.78

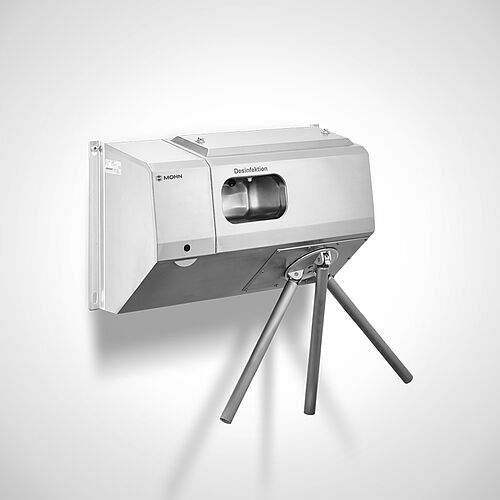

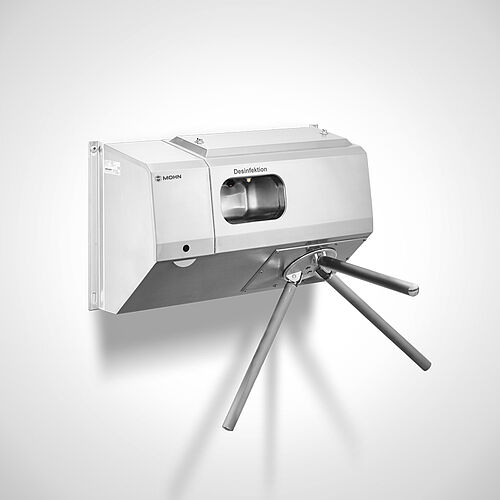

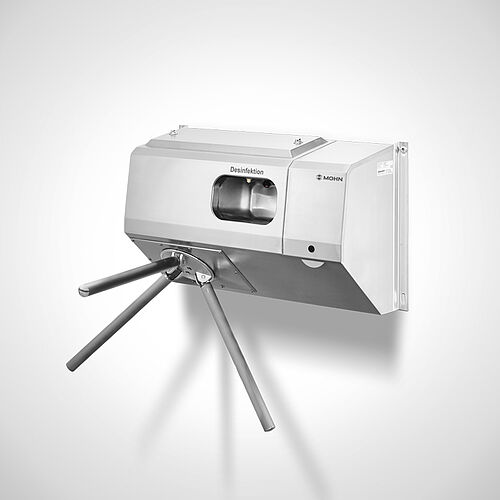

Desi-Control WR-DROPARM-1 Wall-mounted - Right-hand version880 x 330/ 880 x 51511.10.07.79

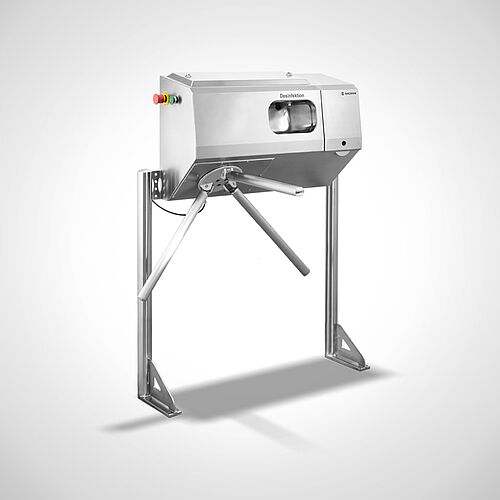

Desi-Control SL-DROPARM-1 Stand rack - Left-hand version1110 x 330/ 850 x 135011.10.07.80

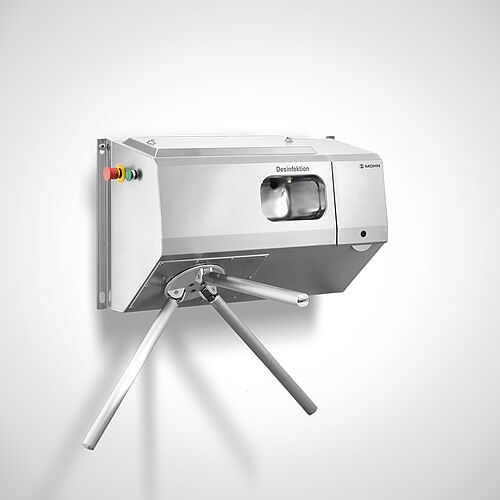

Desi-Control WL-DROPARM-1 Wall-mounted - Left-hand version880 x 330/ 880 x 51511.10.07.81
Special dimensions
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Delivery take place withoud accessories.



Material

Partly made of rustproof stainless steel 1.4301
Turnstile mechanism not made of stainless steel.



Description

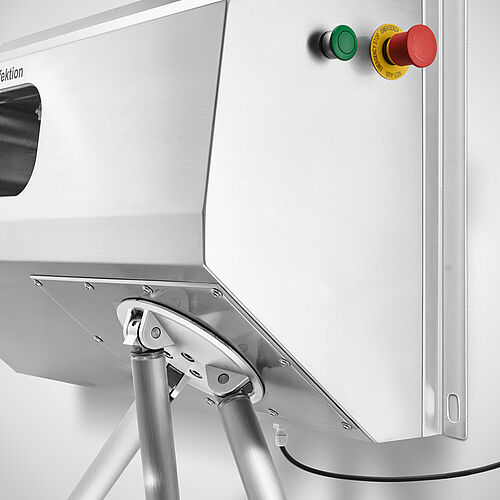

In the event of a fire - when the turnstile is connected to the on-site fire alarm system via the potential-free contact - or in the event of panic when the alarm-protected EMERGENCY STOP button is pressed, the top locking arm of the turnstile (drop arm) falls down and clears the passage.

The Droparm turnstile technology enables - in conjunction with an opposite, magnetically secured single-wing door type MFT - the implementation of escape routes, even in narrow aisles.

Technical Data

Power supply230 V /N/PE; 50/60 Hz
Operating voltage24 V, DC
Performance0,2 kW
