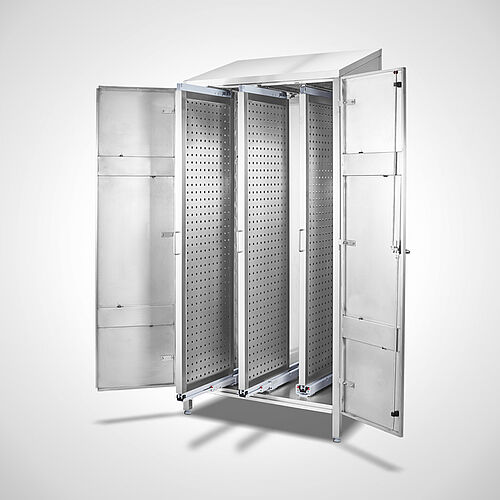

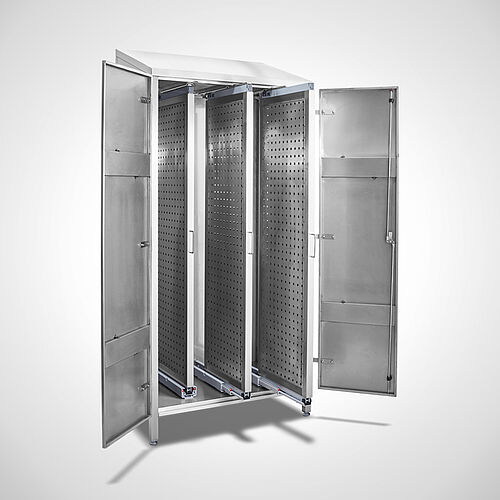

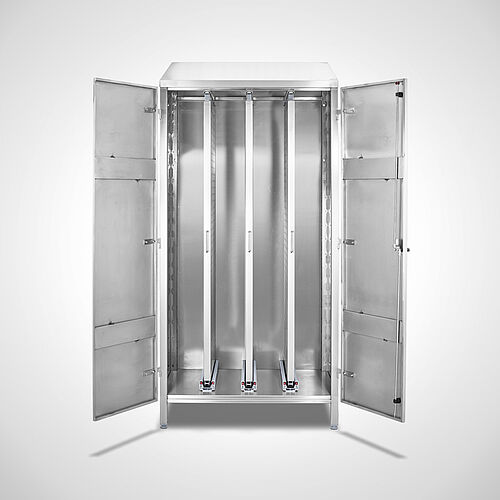

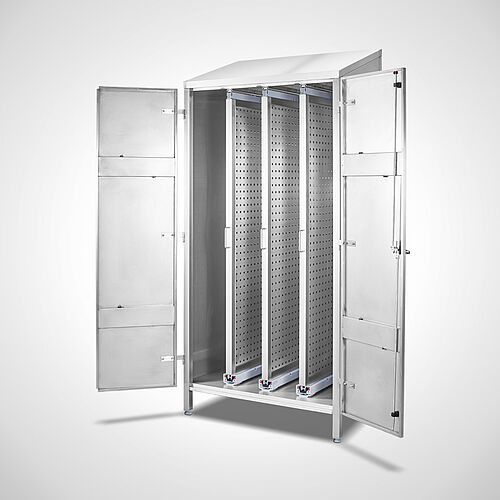

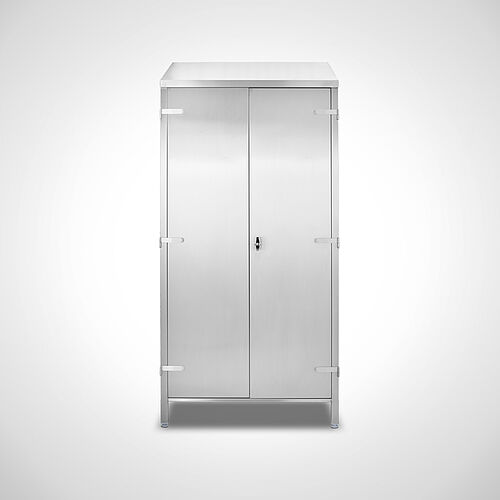

Cabinet with vertical extensions
Type VSD
applicable for all kinds of industry and product-ranges
- Fixed welded stainless steel version
- Cupboard body, closed on 3 sides
- Design in 1.0 mm material strength

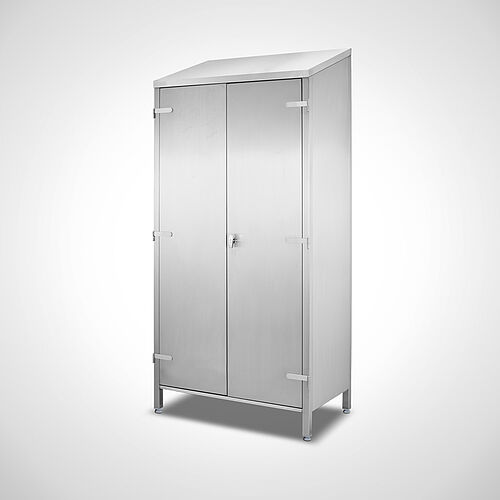

- Sloping roof, 200 mm higher at the back, in “Hygienic design“
- 2 revolving double-walled doors on the operator side, smooth fronts
- Doors without ventilation openings, opening angle over 200°
- Doors lockable by means of T-handle including profile cylinder lock

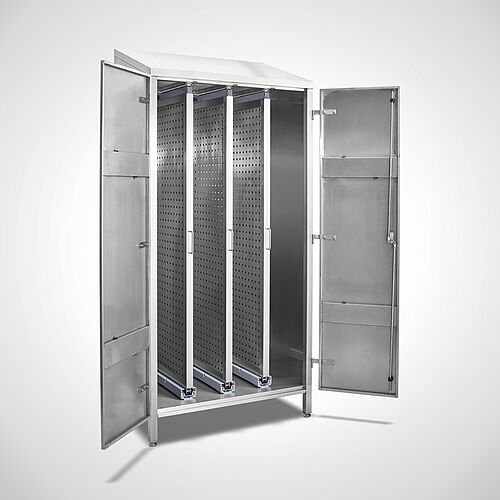

- Interior equipped with 3 perforated sheets with full extensions
- Perforated sheet wall with square holes 10 x 10 mm, hole spacing 30 mm

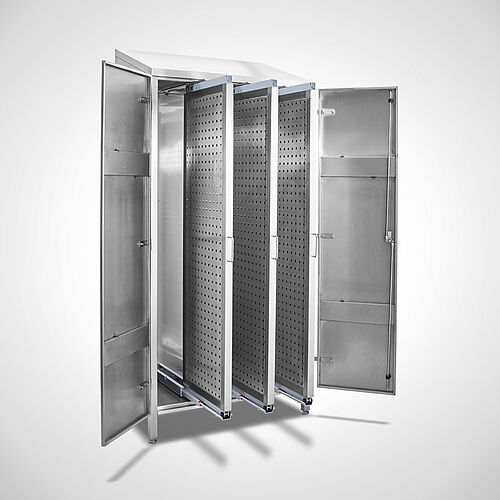

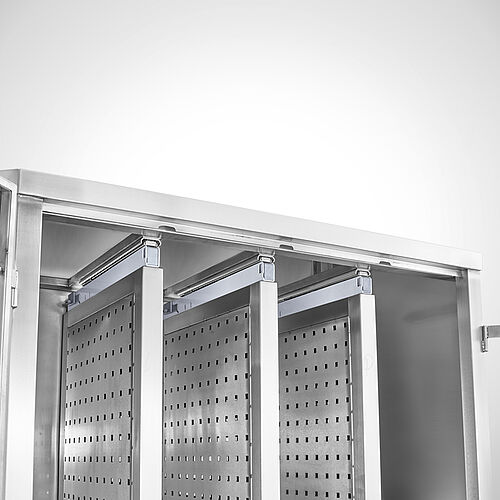

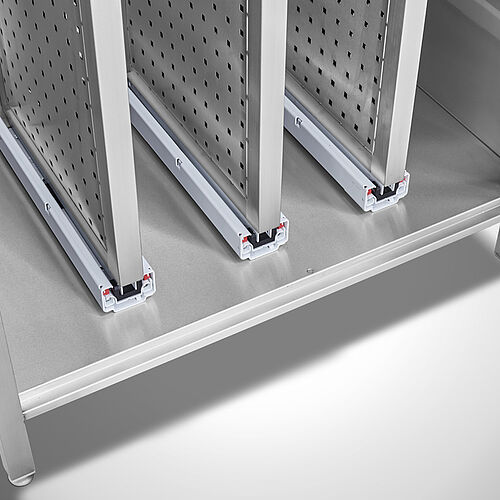

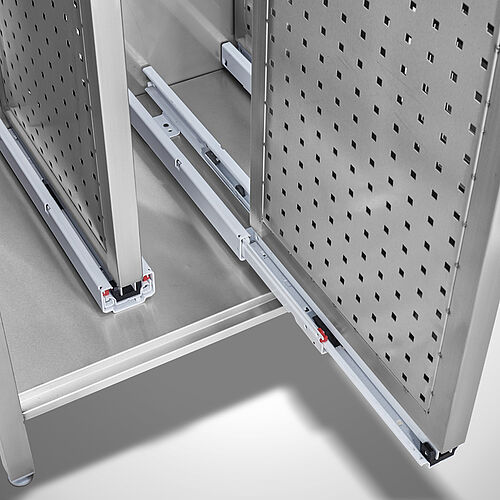

- 3 telescopic rail-guided vertical full extensions (steel coated)
- 4 height-adjustable plastic screw feet (+/- 30 mm)
- Standard ground clearance: 150 mm
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
We manufacture individually according to customer requirements.
Material
Made of chrome-nickel steel 18/10 material No. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish.
The telescopic rail-guided vertical full extensions are made of coated steel.
