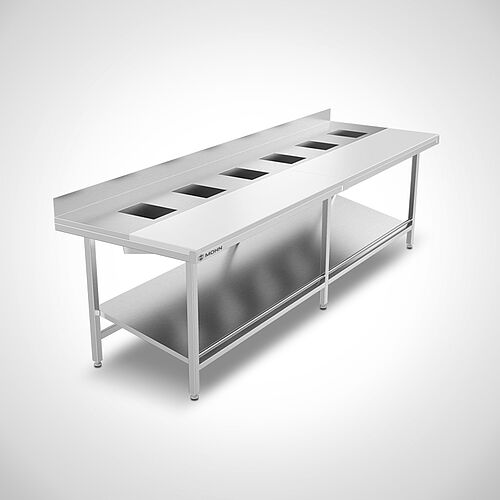

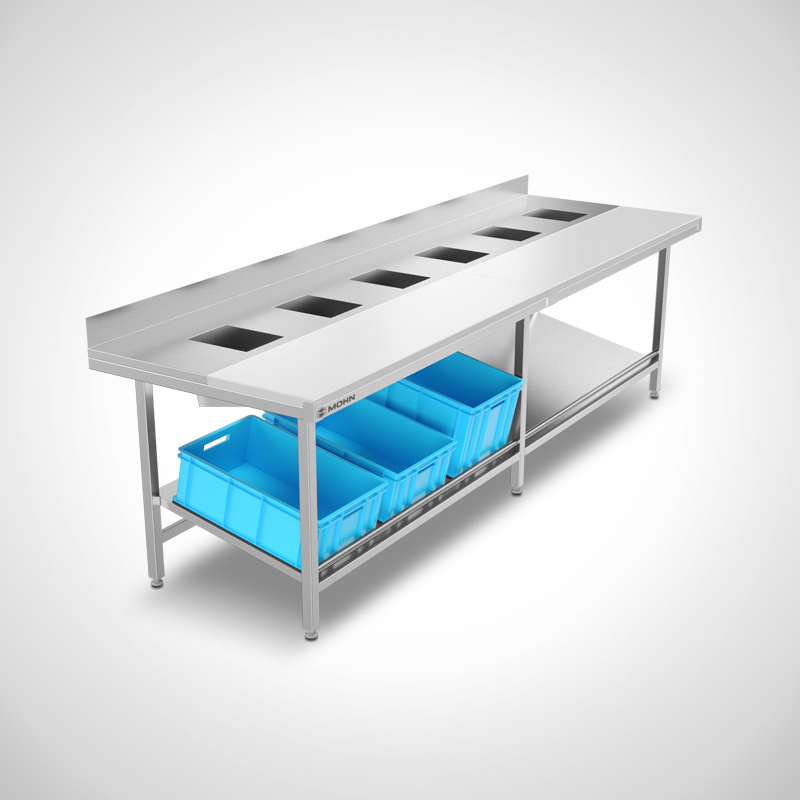

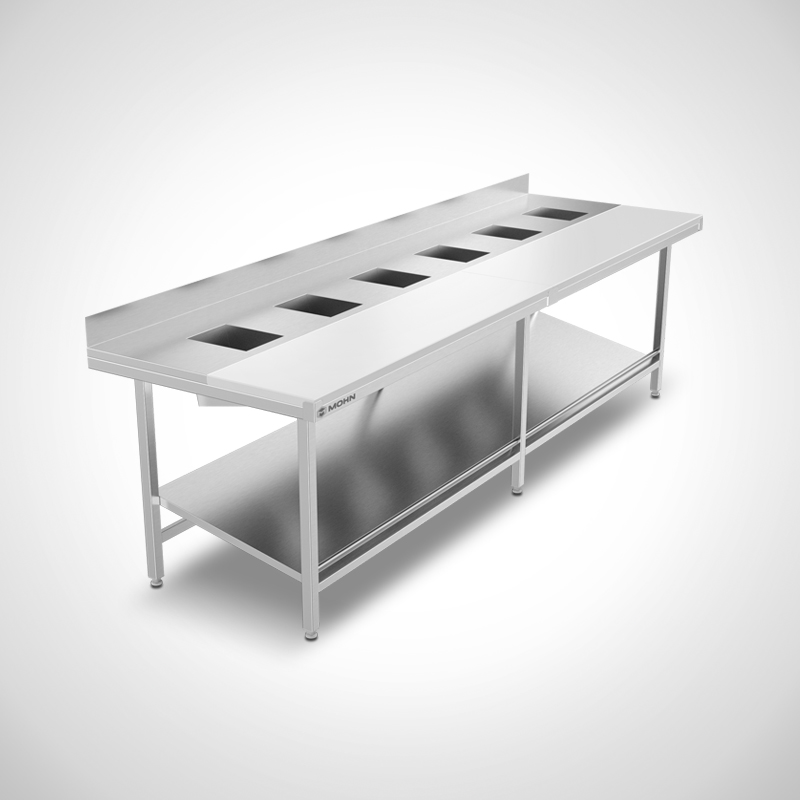

Butchering table, operated from one side

Disassembly / sorting table
Type ZST-1

Robust work table for slaughterhouses

  • Fully welded execution made of stainless steel
  • Stainless steel table top with rear 100 mm backsplash
  • 2 to 6 drop chutes with baffles
  • Centred, stainless steel table top in 2 mm material thickness, with: 2 incorporated steps in dimension (D 400 x T 30 mm)

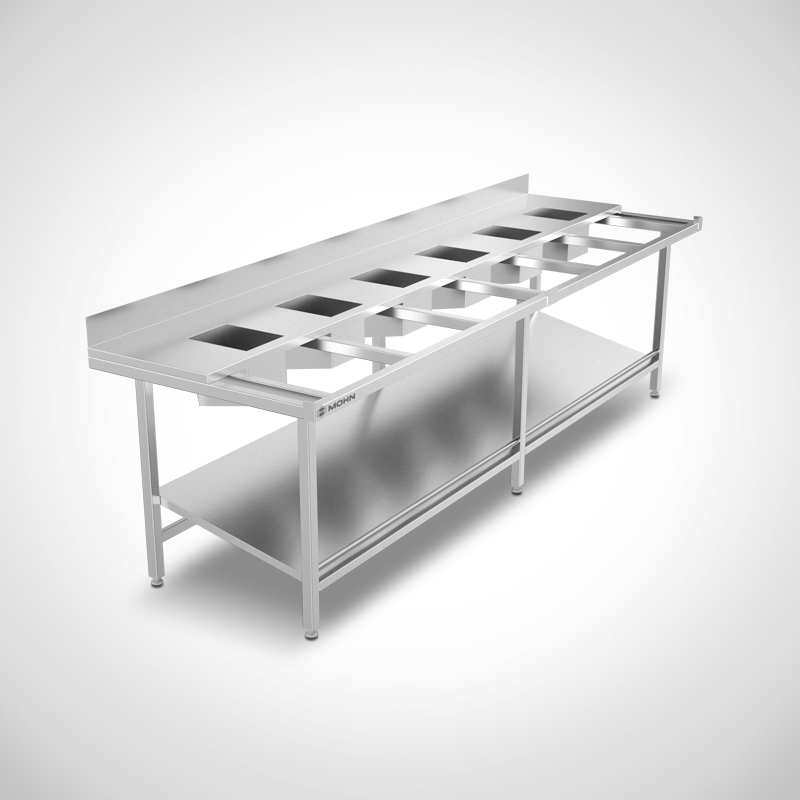

  • 2 cutting plates on the operator side (HDPE-500) inserted in stainless steel frame
  • Plastic cutting plate in 30 mm material thickness
  • Colour of the plastic cutting plate in white (standard); also available in red-brown without additional charge, or in blue, for example, against additional charge
  • Lower structure with stable square pipe frame construction (40x40x1.5 mm)
  • 1 intermediate shelf - welded in solidly, inclined downwards to the operator side inclined
  • Supporting feet, 100 mm shifted inwards on the side and back
  • With height-adjustable plastic screw feet (+/- 30 mm)
  • Standard ground clearance: 150 mm

TypeVersionDimensions
W x D x H in mm
PDF
ZST-1/ 120-902 Drop chutes1200 x 900 x 85020.00.22.96
ZST-1/ 160-903 Drop chutes1600 x 900 x 85020.00.22.97
ZST-1/ 200-904 Drop chutes2000 x 900 x 85020.00.22.98
ZST-1/ 240-905 Drop chutes2400 x 900 x 85020.00.22.99
ZST-1/ 300-906 Drop chutes3000 x 900 x 85020.00.23.00
Special dimensions
PE-cutting plate in colour red-brown 22000250
Table leg height adjustment "Easy"  21000886
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

All dimensions in mm. Other designs on request!



Material

Made of chrome-nickel steel 18/10 material No. 1.4301

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.

The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish


OptionS

  • Manual height adjustment (ERGO) on request
  • PE- cutting plate in colour red-brown, art.-no. 22.00.02.50
