HD-wall spacers

HD-wall spacers

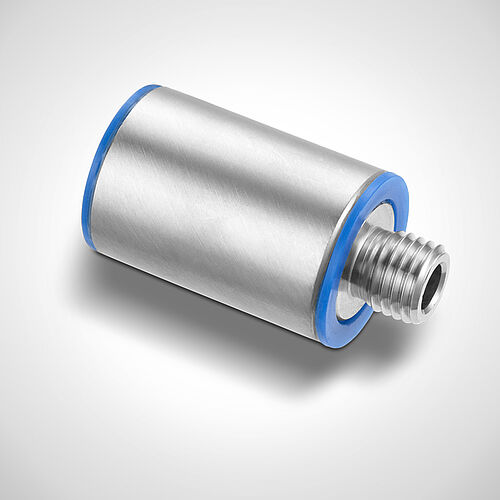

HD-wall spacer made of stainless steel Type HD-WA 50-R, art. no. 99.80.06.00 HD-wall spacer made of stainless steel Type HD-WA 50-R, art. no. 99.80.06.00

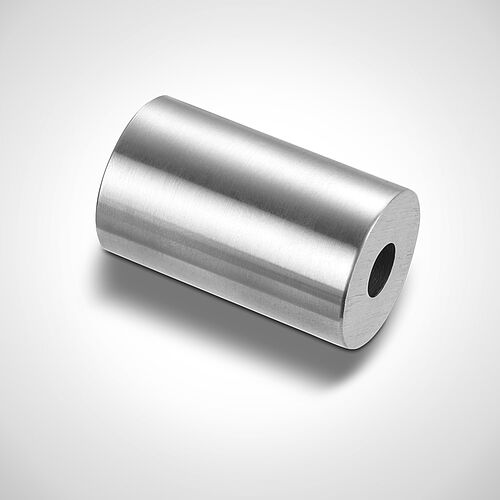

Wall spacer made of stainless steel Type HD-WA 50, art. no. 99.80.06.03 Wall spacer made of stainless steel Type HD-WA 50, art. no. 99.80.06.03
Wall spacer made of stainless steel Type HD-WA 100 D37 M12-M8, art. no. 99.80.06.02Wall spacer made of stainless steel Type HD-WA 100 D37 M12-M8, art. no. 99.80.06.02

HD-wall spacers
Type HD-WA

Provides space for the cleaning behind the housing as well

  • Hygienic design
  • Massive solid steel
  • Length: 50 or 100 mm
  • Diameter: 30,34 mm or 37 mm
  • Thread resp. hole Ø: 10 mm, centre

TypeDiameterLengthFixturePDF
HD-WA 50-R34 mm50 mmThread99.80.06.00
HD-WA 5030 mm50 mmHole Ø 10 mm99.80.06.03
HD-WA 100-D37-M12/M837 mm100 mmThread99.80.06.02
We manufacture individually according to customer requirements


Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Other dimensions on request



Material

Made of rustproof stainless steel 1.4301









Reference Photos

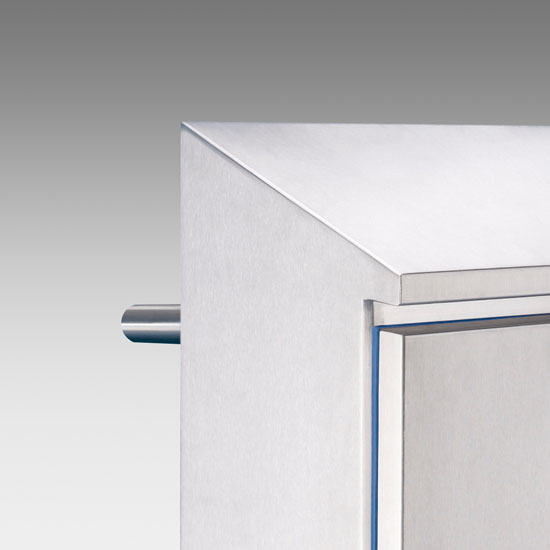

Wall-cupboard with HD-wall spacers ( 50 mm )
