Butchering table - custom made

Working and cutting table
Type AT-SON

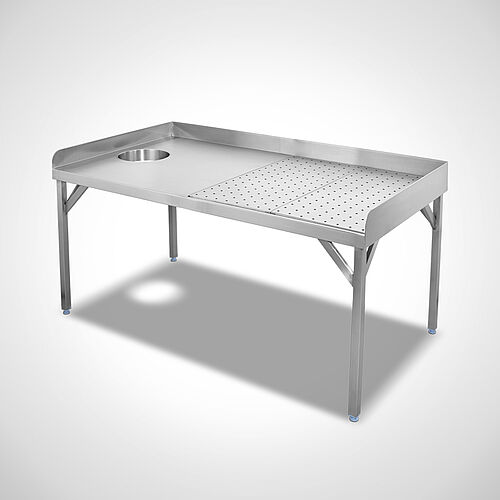

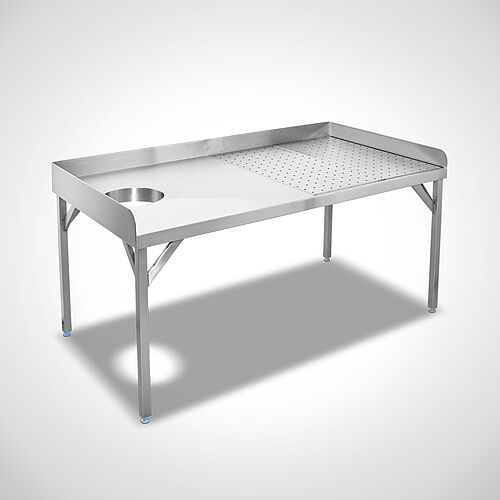

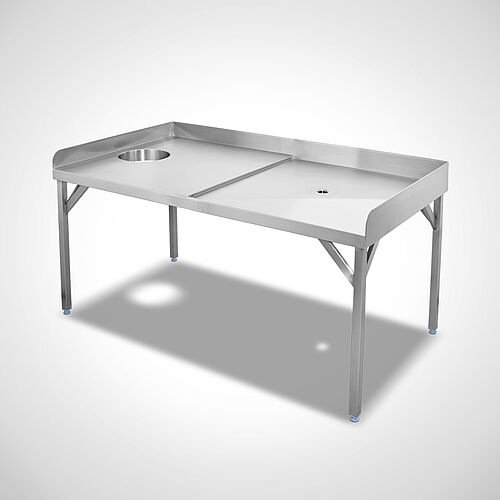

ROBUST WORK TABLE FOR THE CUTTING OF TURKEYS AND CHICKENS

  • Firmly welded design made of stainless steel
  • Table top with 1.5 mm material thickness, bevelled on the front side
  • Table top edged 100 mm on the left and right sides and at the rear

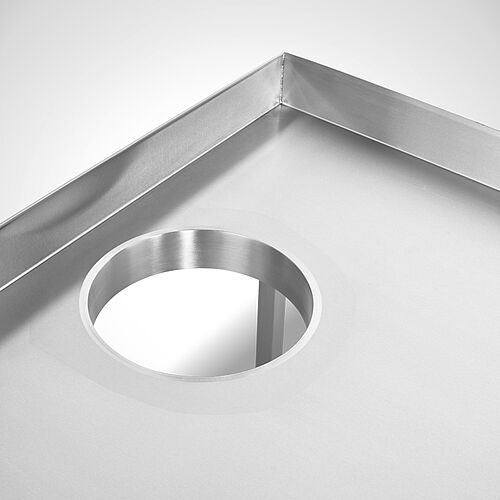

  • Table top on the left side with Ø 100 mm large drop chute

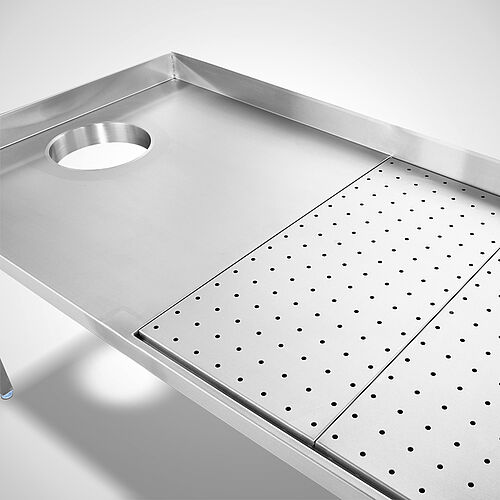

  • Table top on right side with 2 removable drip trays
  • Drip tray height 60 mm with hole Ø 10 mm
  • Table top on right side below drip trays with drain socket
  • Open substructure, each foot with 2 braces underneath tabletop
  • Sturdy square tube frame construction (40 x 40 x 1.5 mm)
  • 4 height-adjustable plastic feet for levelling, +/- 15 mm

TypeVersionDimensions
W x D x H in mm
PDF
AT-SON/ 190-100Left side: 1 Drop chute/ Right side: drip tray1900 x 1000 x 85022-63211
Special dimensions
Table leg height adjustment "Easy"  21000886
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

We manufacture other designs and dimensions according to customer requirements.



Material

Made of chrome-nickel steel 18/10 material No. 1.4301

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.

The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish




Options

  • Mobile, 2 fixed rollers and 2 castors with locking mechanism, article no. 99.90.01.50
  • Manual resp. electrical height-adjustable on request
