Filling table custom made
Filling table custom made

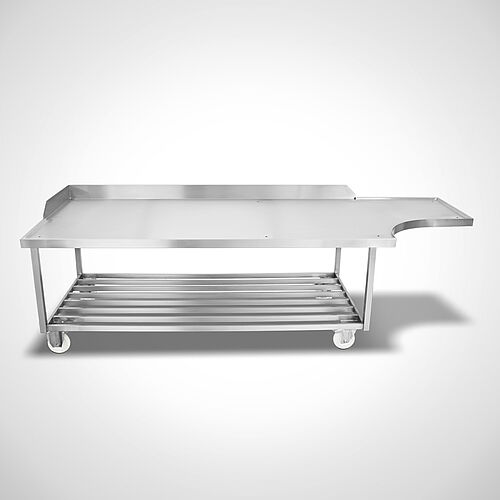

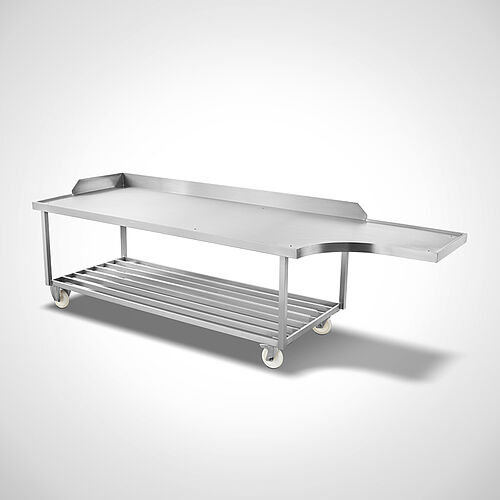

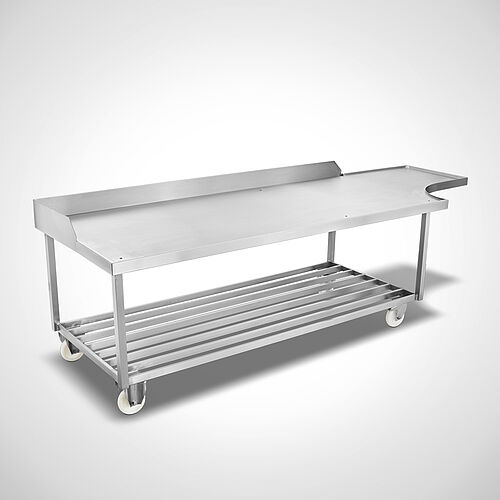

Filling table
Type FT-R custom made
FILLING-tables are applicable for all kinds of industry and product-ranges
- Firmly welded execution made of stainless steel
- Table top with 1.5 mm material thickness
- Table top partly with stainless steel beaded edge
- Table top on the left side from halfway and at the back over a length of 2300 mm with an upstand of 100 mm
- Tabletop on right-hand side with round notch of 700 x 400 mm
- Table top has a total of 7 drain holes (Ø 12.5 )
- Table top reinforced underneath with all-round square tube profile frame
- Substructure with1 storage grate, across - firmly welded in
- Mobile version (2 fixed and 2 swivel castors with brakes), Ø150 mm
- Castors made of white polyamide in stainless steel wheel housing
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
All dimensions in mm. Other executions o request!
Material
Made of chrome-nickel steel 18/10 material No. 1.4301
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish
Options
- Manual resp. electrical height-adjustable on request
