Disposable clothing storage cupboard -custom-made
Disposable clothing storage cupboard -custom-made

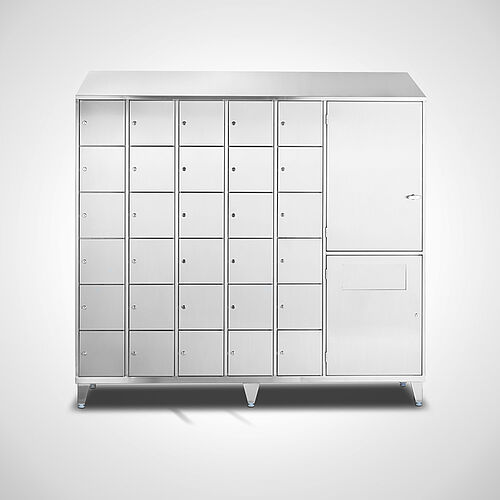

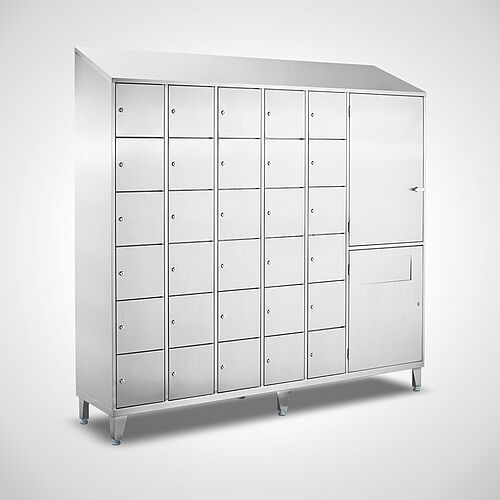

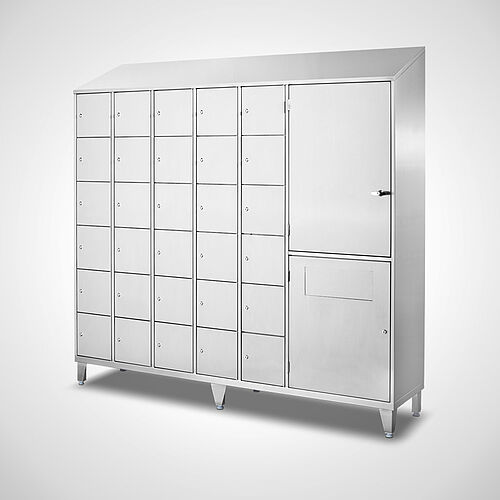

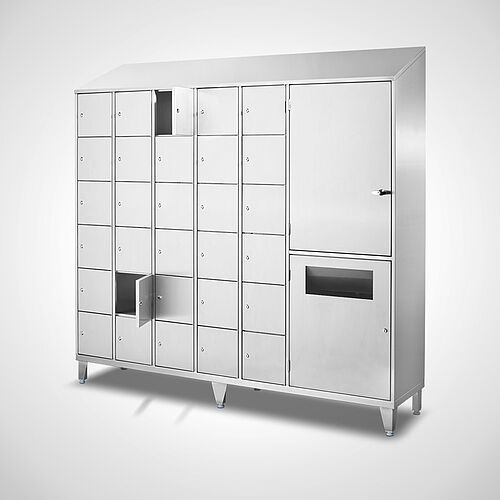

Compartment and disposable clothing cupboard
Type FS6-AF-VA-G SON
COMPARTMENT Cupboard FOR Disposable clothing for EVERY INDUSTRY
- Permanently welded version made of stainless steel
- Cabinet body closed on 3 sides
- Pitched roof, 200 mm higher at the rear in "hygienic design"
- Cabinet on left side designed as closed compartment cabinet
- 5 compartments in compartment width: 300mm / 6 compartments on top of each other
- Total capacity: 30 closed compartments
- Cabinet on the right-hand side designed as a dispensing cabinet for disposable clothing
- Top and bottom with single-walled, smooth doors
- Bottom door with waste chute
- Interior with pull-out bin liner holder for easy removal of bin liners
- 6 height-adjustable plastic screw feet (+/- 15 mm)
- Ground clearance: 150 mm
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
We manufacture individually according to customer requirements from stainless steel. We look forward to your enquiry.
MATERIAL
Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish.
Description
- Cabinet on the left-hand side designed as closed compartment cabinet:
- 5 compartments in compartment width: 300mm / 6 compartments on top of each other
- Total capacity: 30 closed compartments
- Compartments with smooth inner shelf
- Compartment doors single-walled, smooth without label frame
- Doors hinged on right, mounted in pivot pins
- Doors lockable with cylinder lock, incl. 2 keys
- Clear compartment dimensions: W 250 x D 480 x H 250 mm

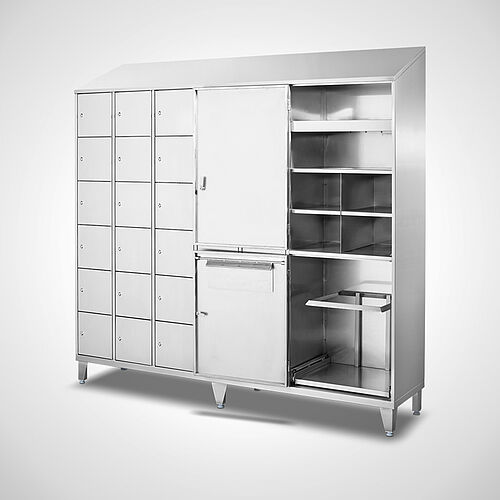

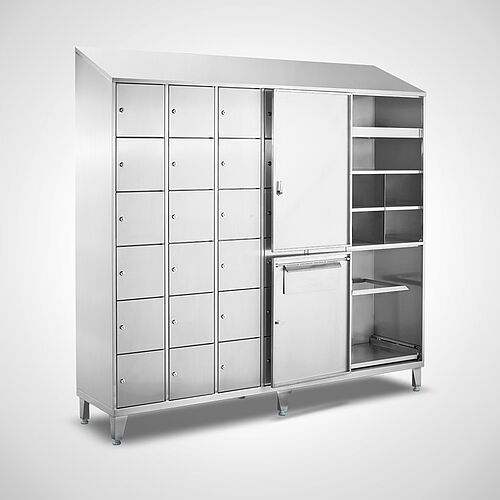

- Cabinet on the right-hand side designed as a dispensing cabinet for disposable clothing:
- Top and bottom with single-walled, smooth doors
- Doors hinged on left, mounted in pivot pins
- Top door lockable with cylinder lock, incl. 2 keys
- Top 2 full-width compartments suitable for cardboard boxes
- Underneath 4 compartments for outer packaging
- Bottom door with waste chute

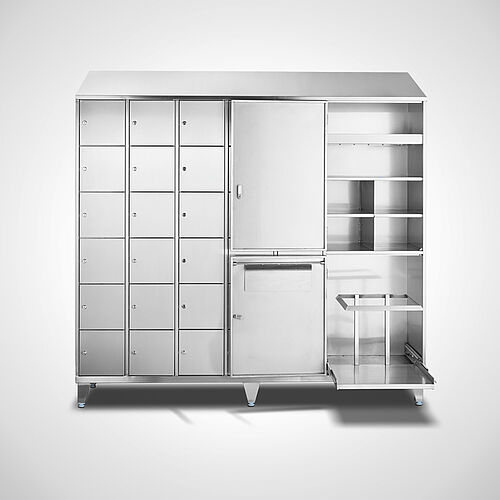

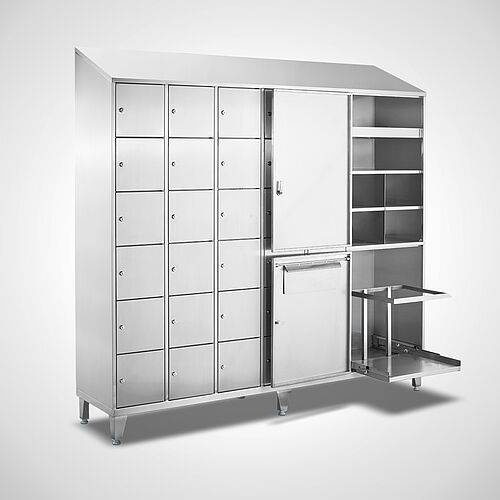

- Interior with pull-out bin liner holder for easy removal of bin liners
Compartment dimensions of the output cabinet (right side):
2 upper compartments: W 518 x D 480 x H 219 mm
Only the upper compartment has an upstand at the front: 40mm (prevents cardboard boxes from falling out)
4 compartments with clear dimensions of W 258 x D 480 x H 230 mm each without front upstand
Door at the bottom W 520 x H 700 mm with drop flap W 380 x H 150 mm
