double-winged doors/ 10 compartments
double-winged doors/ 10 compartments
Compartment cupboards
Type ASD-F
Also usable as a vesper cabinet or laundry cupboard
- Solid stainless steel construction
- Cupboard body, closed on 3 sides
- Version in 1.0 mm material thickness
- Pitched roof, 200 mm higher at the back, in “Hygienic-Design“
- 2 hinged doors on the operator side
- Hinged doors lockable by means of T-handle

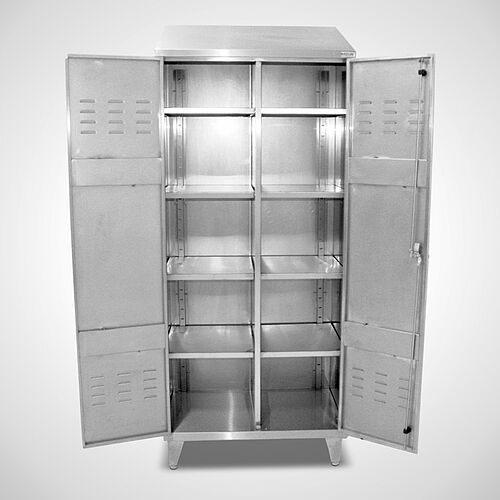

- Interior with 10 storage compartments, 8 height-adjustable compartment shelves
- Labelling strip for numbering / names
- 4 height-adjustable plastic screw feet (+/- 30 mm)
- Standard ground clearance: 150 mm
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Other versions resp. dimensions on request.
Material
Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as feet have a uniform brushed finish
Options
- 4 polyamide castors, Ø 125 mm (2 with stop), Article no. 99.90.01.50
- Highline version, Article no. 49.00.19.05
- Revolving door made of MACROLON, Article no. 49.00.19.07
