Spare parts

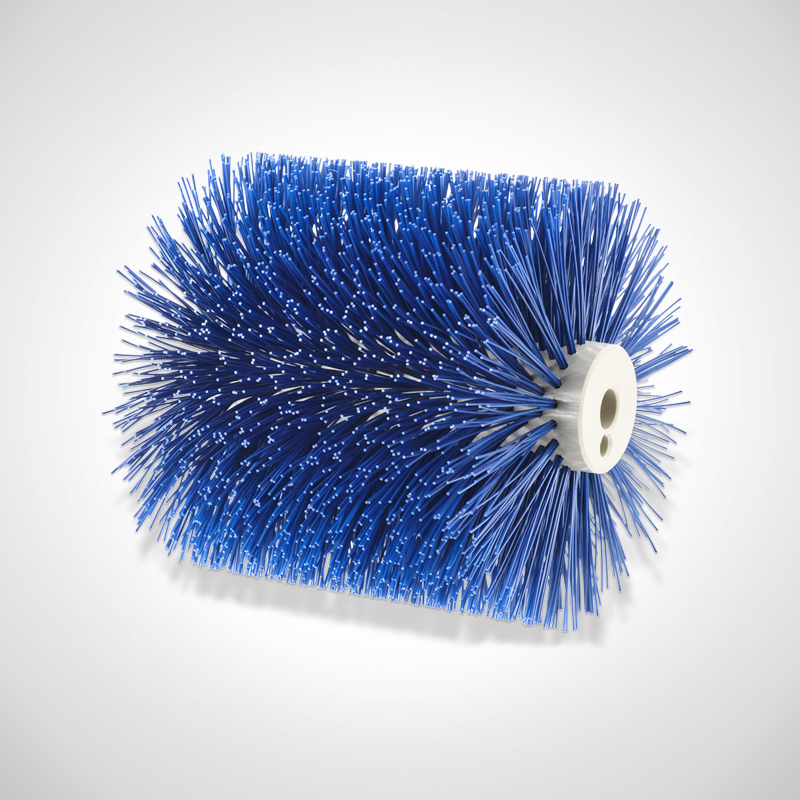

Brush roller for lateral boot shaft cleaning

- 300 mm body length
- 25/80/280 mm diameter
- 40 rows
- polyester
- Colour blue

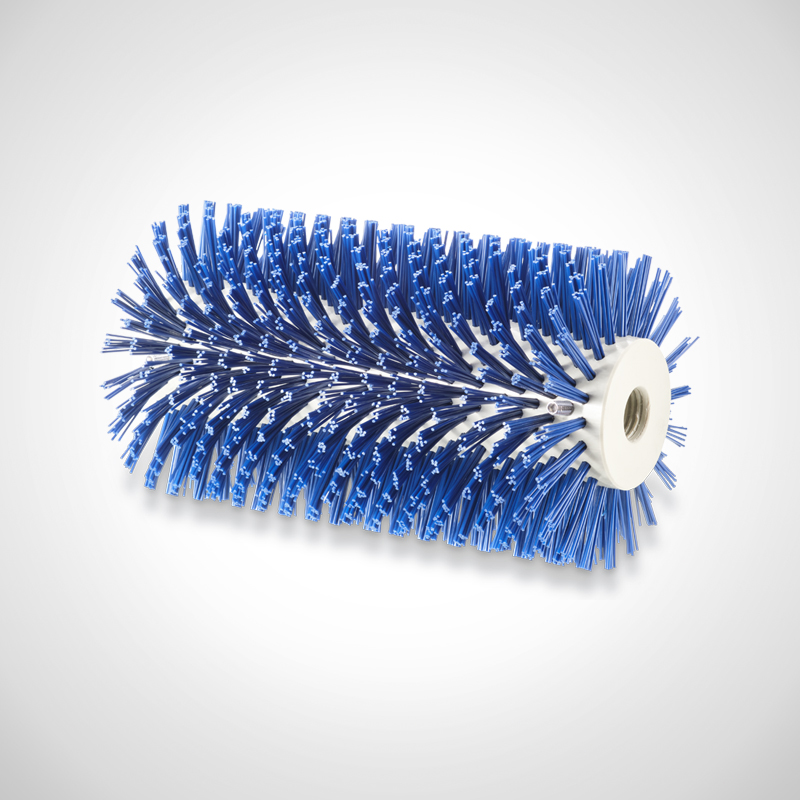

Brush roller - horizontally rotating - for sole cleaning (Boot Star)

Trimming: Nylon 1.5 mm
300 mm body length
25/80/170 Total diameter
42 rows
Colour: blue

for cleaning agent canisters

- Max. Operating pressure: 125 PSI

- Motor can be used left + right
(change of direction by
by customer conversion of the flange
easily and at short notice)
- Painted version

Technical data
- Voltage: 230/ 400V - 1.14 / 0.65 A
- Frequency: 50 Hz
- Protection class: IP 55
- RPM: 2780/70min-1
- Reduction ratio: 40:1
- Power: 0.25 kW

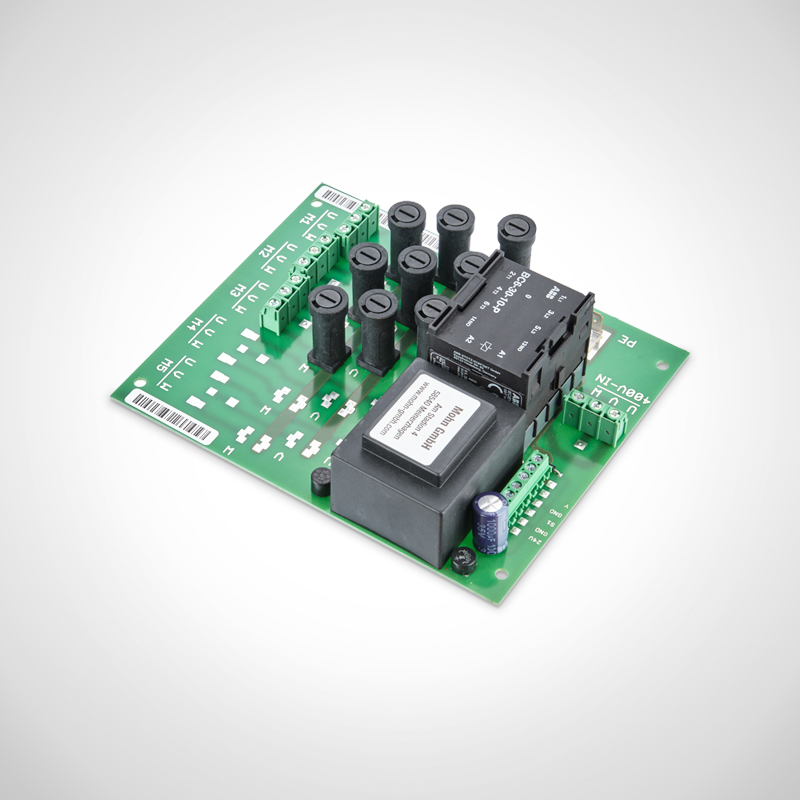

Uni-board for boot cleaning machine

Supply voltage 3x400 V/PE
3x3+1 fuse

- unlit
- Vandalism protected
- Operating temperature -20°C to 55°C

Technical data:
- Protection class IP65
- Switching voltage 48V DC
- Switching current (max.) 2A
- Bruflex Y-07 2x1
- VDE-Reg-No. 7507
- No. 85365011

- Coil design AKK
- Spigot angle 180°
- Function: de-energised closed
- Installation position: any
- Medium: water
- Flow direction: marked by arrow on housing
arrow on the housing
- Connections: Inlet - external thread G 3/4"
Outlet - grooved connection Ø 10.5 mm
- with steel flange

Test mark:
Standard versions: ÖVE/ VDE
(tested according to EN 60730)

Materials:
- Valve body: PA 6 30 % GF
- Core guide sleeve: PA 6.6 30 % GF
- Coil sheathing: heat-stabilised PA 6 with
with increased thermal conductivity
- Solenoid core and spring: stainless steel
- Diaphragm and flow regulator: EPDM
- Dirt strainer: POM
- Enamelled copper wire: Insulation class H
according to VDE 0530
