Spare parts

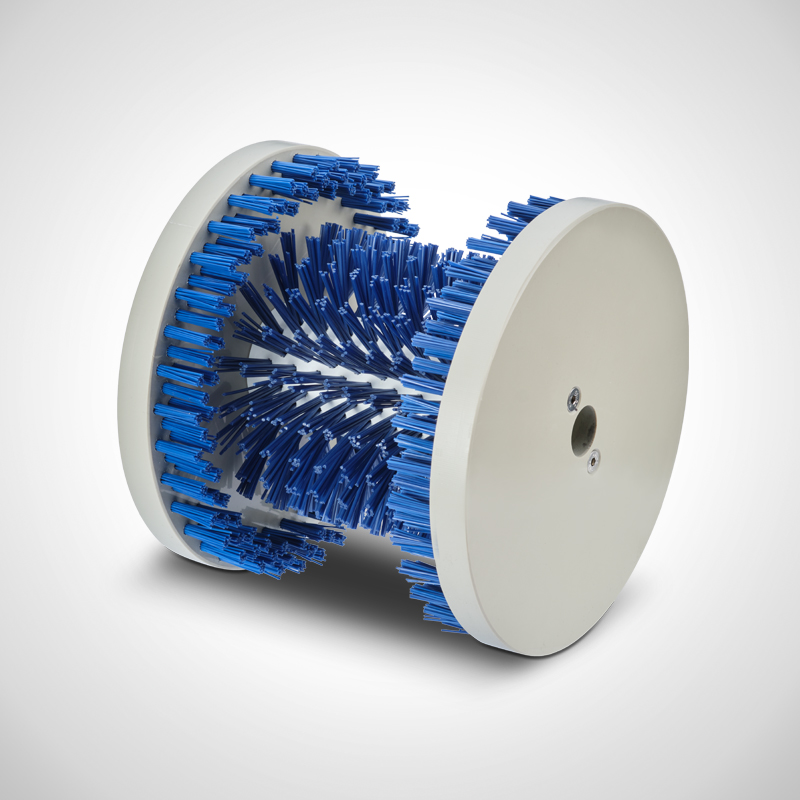

Brush roller with 2 externally mounted disc brushes
Complete set for sole cleaning systems type Solemaster

- roller body length: 160 mm
- disc diameter: 225mm
- centre bore: D: 25mm
- bristles started from outside
- 3 rows
- Colour of bristles: BLUE
- Bristle material: Nylon 1.5 mm
- Bristle length: 25mm
- Total height: 60mm
- WITHOUT shaft

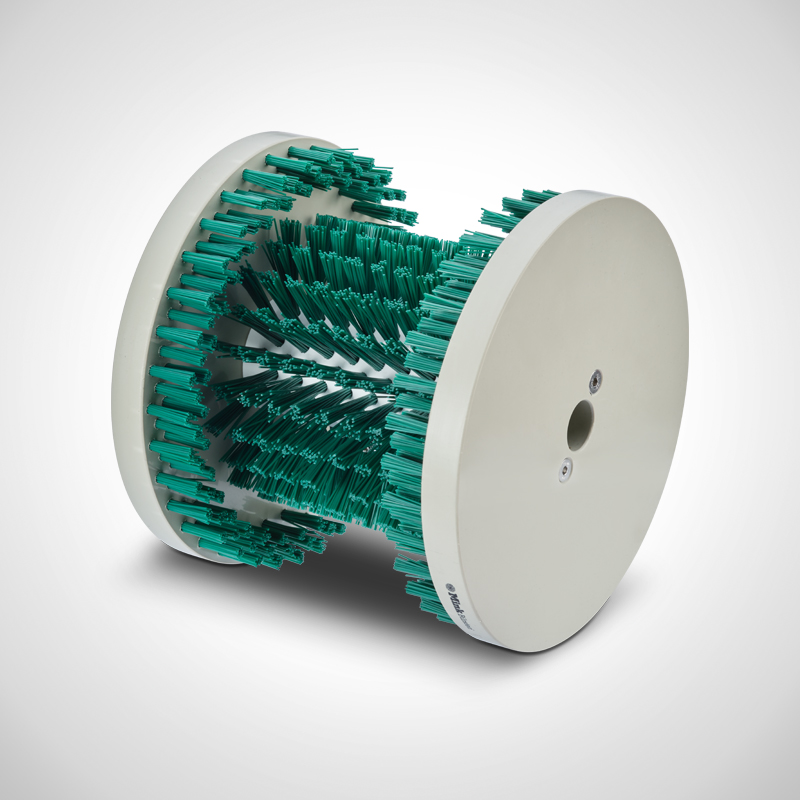

Brush roller with 2 externally mounted disc brushes
Complete set for sole cleaning systems type Solemaster

- roller body length: 160 mm
- disc diameter: 225mm
- centre bore: D: 25mm
- bristles started from outside
- 3 rows
- Colour of bristles: GREEN
- Bristle material: Nylon 1.0 mm
- Bristle length: 25mm
- Total height: 60mm
- WITHOUT shaft

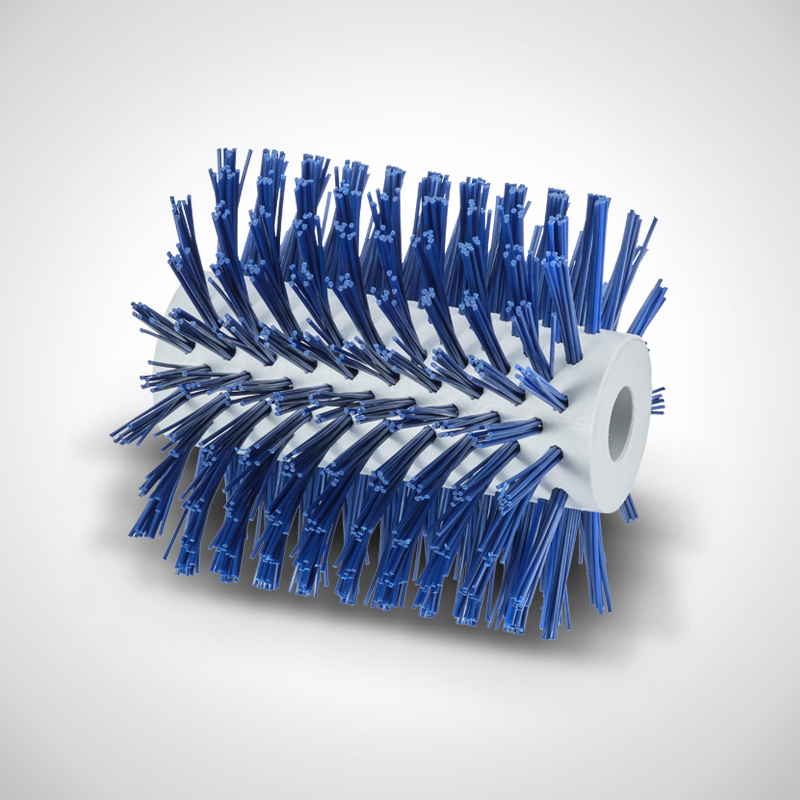

- Total diameter: 150 mm
- Body length: 160 mm
- Trim: Nylon 1.50 mm, colour: blue
- Bore: 2 5mm (continuous)
- core diameter: 60 mm
- without thread

for craft business machines and Sole-Master

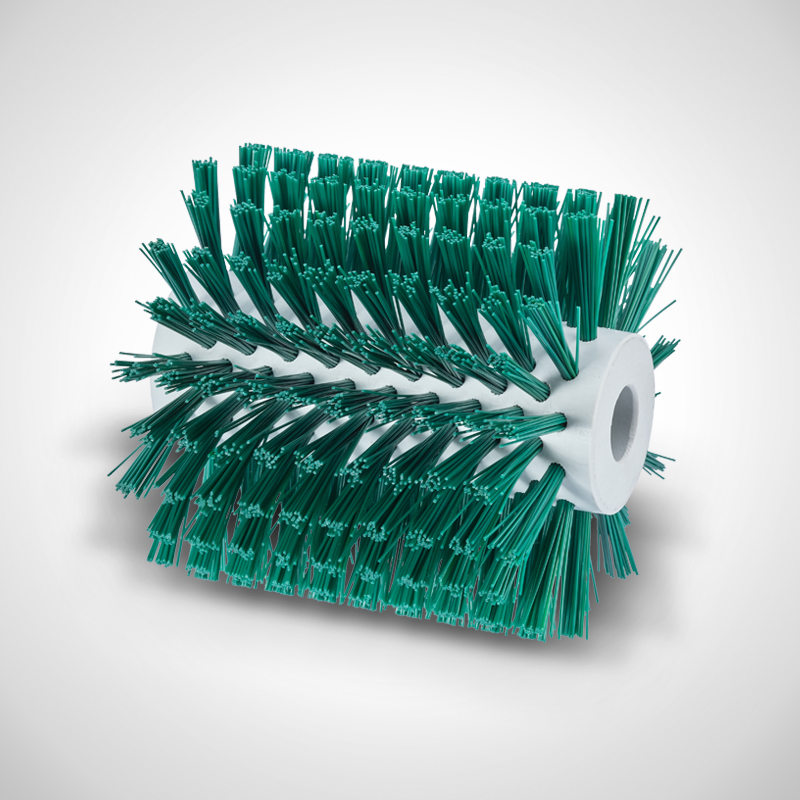

- total diameter: 150mm
- body length: 160 mm
- facing: nylon 1,0mm, color: GREEN
- Bore: 25mm (continuous)
- Core diameter: 60mm
- without thread

- in plate form
- disc diameter: 225 mm
- Centre bore: D: 25 mm
- bristle trimming started from the outside
- 3 rows
- Bristle material: nylon 1.0 mm, colour: BLUE
- bristle length: 25 mm
- Total height: 65 mm

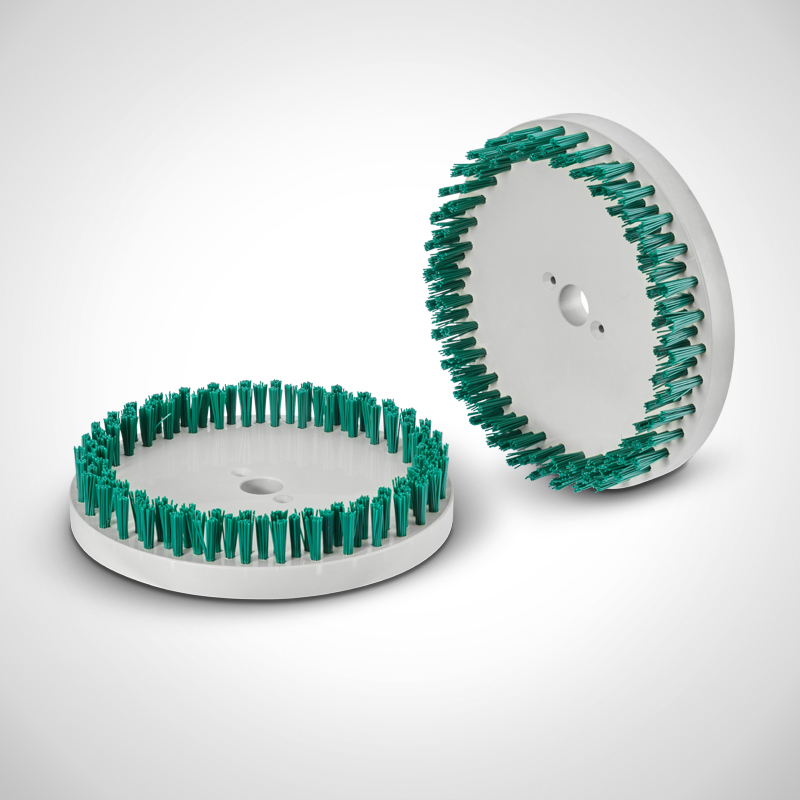

- in disc shape
- disc diameter: 225 mm
- Centre hole: D: 25 mm
- bristle trimming started from the outside
- 3 rows
- Bristle material: nylon 1.0 mm, colour: GREEN
- bristle length: 25 mm
- Total height: 65 mm

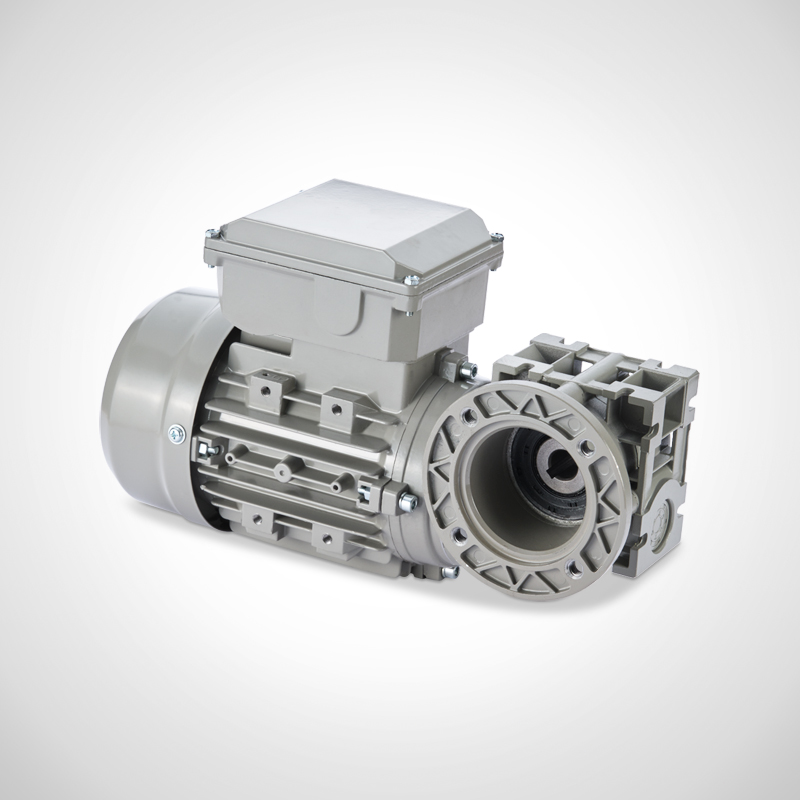

Worm geared motor
- Gearbox: MI 30 F B 10
- Motor: 7 JB63 M04
- painted version
- Motor and gearbox

TECHNICAL DATA:
Voltage: 230-1 ph - 1.57 A
Frequency: 50 Hz
Protection class: IP 55
RPM: 13585
Reduction ratio: 25:1
Power: 0.18 kW

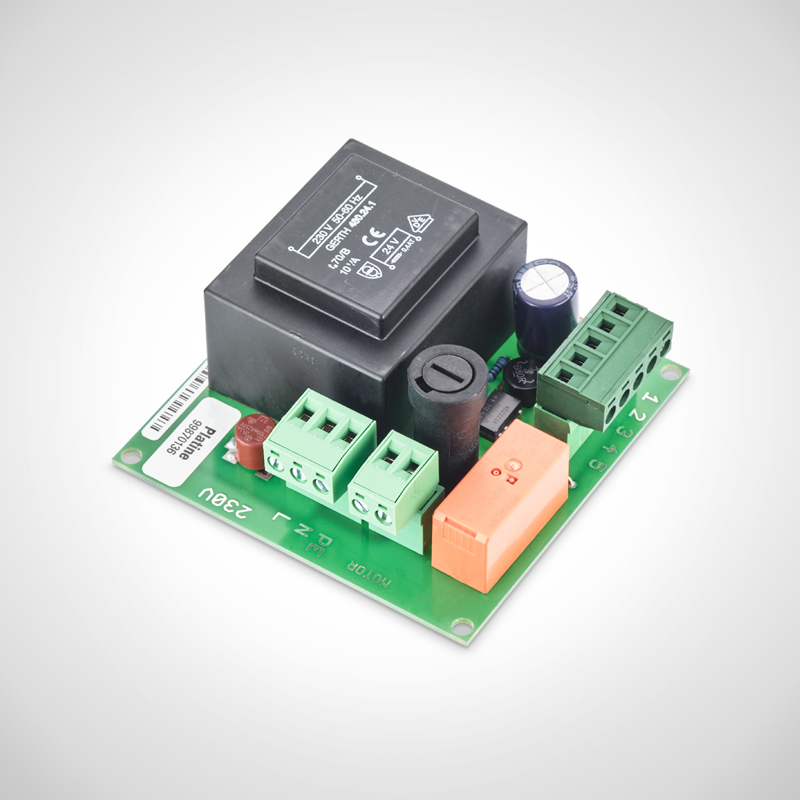

Control unit for sole cleaning machine

24V version
without housing!

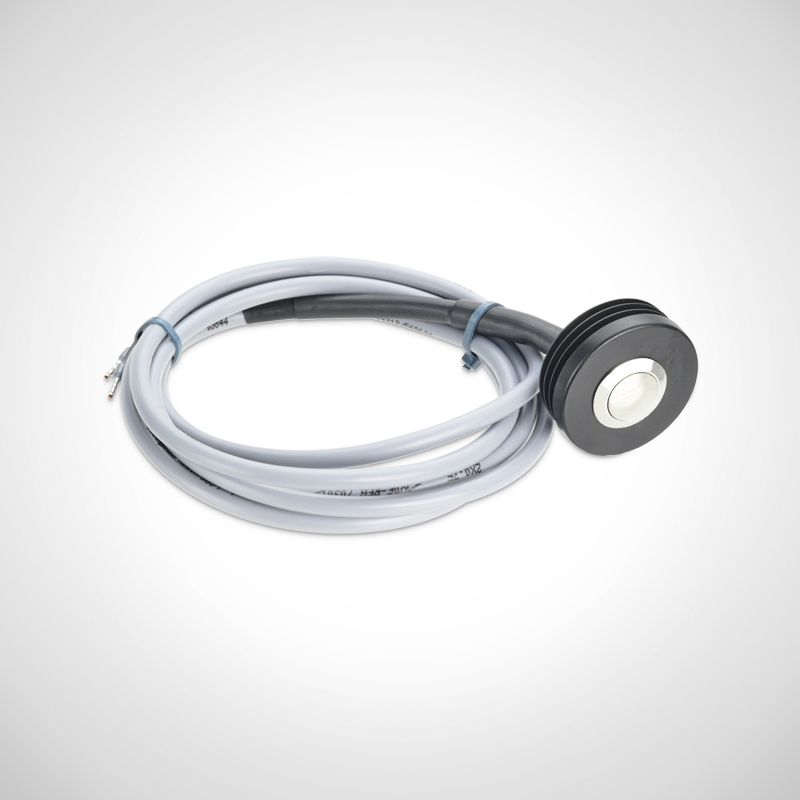

- unlit
- Vandalism protected
- Operating temperature -20°C to 55°C

Technical data:
- Protection class IP65
- Switching voltage 48V DC
- Switching current (max.) 2A
- Bruflex Y-07 2x1
- VDE-Reg-No. 7507
- No. 85365011

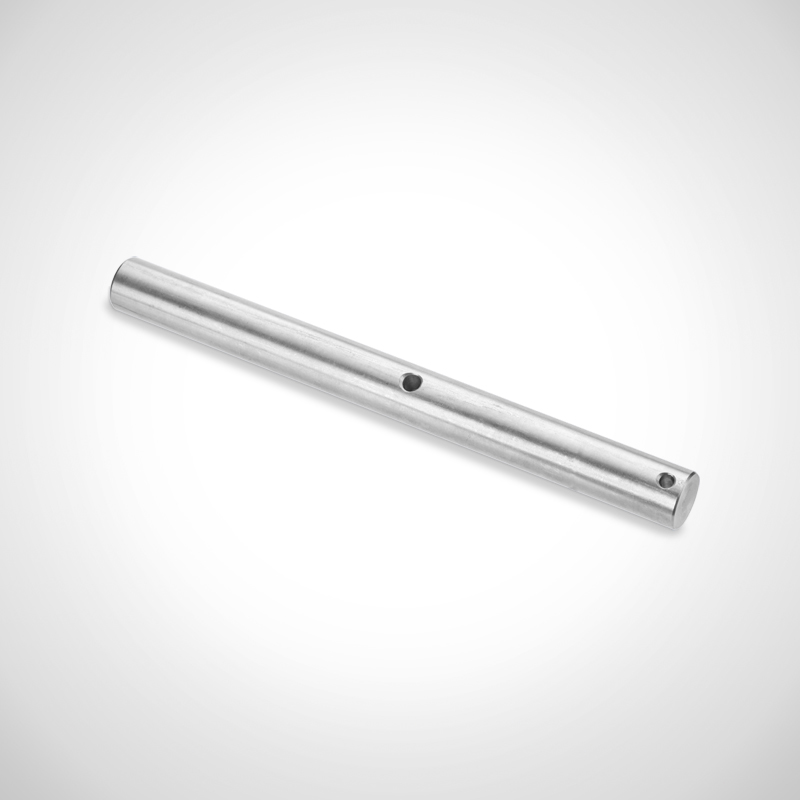

- ø25x268mm
- ø8x13mm
- Bore ø6,4mm
