Spare parts: Mohn GmbH

Bearing shaft, type LW-BW

Article-No. 98900002

- Drill hole (8.5 mm for grub screw)
must be made on site!

Dimensions: L 130 x D 25 mm

Brush roller type BW-G 195/700

Nylon trim

Article-No. 92100032

- 700 mm body length
- with dense field trimming
- 25/55/195 mm total diameter
- M 30 thread on one side
- Trimming: nylon 1.0 mm
- Colour: green
- without bearing shaft
- without cap screw

(Illustration shows brush roller, pre-assembled (optional) with cap screw and bearing shaft)

Service-Video: Changing the brush rollers
https://bit.ly/service-video_brush-rollers

Brush roller type BW-R 195/700

Nylon trim

Article-No. 99800803

- 700 mm body length
- with dense field trimming
- 25/55/195 mm total diameter
- M 30 thread on one side
- Trimming: nylon 1.5 mm !!!!
- Colour: red PA6
- without bearing shaft !
- without cap screw !

(Illustration shows brush roller, pre-assembled (optional) with cap screw and bearing shaft)

Service-Video: Changing the brush rollers
https://bit.ly/service-video_brush-rollers

Brush roller, type BW-B 195/700

Nylon trim

Article-No. 92000008

- Body length: 700 mm
- With dense field trimming
- 25/55/195 mm total diameter
- M 30 thread on one side
- Trimming: Nylon 1.5 mm
- Colour: blue
- Without bearing shaft
- Without cap screw

(Picture shows brush roller, pre-assembled (optional) with cap screw and bearing shaft)

Service-Video: Changing the brush rollers
https://bit.ly/service-video_brush-rollers

Cheese head screw, type ZS-M30x50

Article-No. 98900001

DIN 912-A2
for brush roller
- Drill hole (8.5 mm for grub screw)
must be made on site!

Contact element (Ö), type KE-NH 1

Article-No. 99800522

- Screw connection
- suitable for EMERGENCY STOP
- Mounting flange position 1
- 11-12; 21-22 (contact designation)

Drive shaft, type AW-2

made of 1.4301 stainless steel

Article-No. 98900005

- Motor side with groove for split pin
- with turned collar!
- External hexagon Brush side
- without split pin and disc

Dimensions: L 145 / D: 18.85 or 14.07 mm

Emergency stop button, type NHT-KB 1

Article-No. 99800530

- with contact block
- EMERGENCY STOP pushbutton
- with detent
- Installation Ø 22.3mm

Filter stopper, type FS

made of plastic

Article-No. 99870192

for suction lance type S-51/S-61
- Ø 24mm
- 0,5mm
- Colour: blue

Float, type SSB

Article-No. 99870193

For suction lance S-51/S-61

- Density 0.63

Dimensions: Ø30.0 x 18.5 x 14.0mm

Service-Video: Changing the float switch
https://bit.ly/service-video_float-switch

Flow rate regulator, type DFMR-TS 3/4

Housing: brass Ms 58

Article-No. 99800364

DN15 0.6-8l/min ECB

Nominal size: DN 15
Connection: 3/4" - 3/4" without screw connection
Display l/min: 0.6 - 8

Technical data:
Temperature range: up to max. 100°C
Operating pressure: 10 bar
Housing: brass Ms 58
Sight glass: Plastic
Sealings: EPDM
Measuring accuracy: +/- 5% of full scale value
Flow media: Drinking water, heating water
(with burnt anti-corrosion additives)

Geared motor, type GM-4

Aluminum housing

Article-No. 99800177

- Motor can be used left + right
(change of direction by
by customer conversion of the flange
easily and at short notice)
- Painted version

Technical data
- Voltage: 230/ 400V - 1.14 / 0.65 A
- Frequency: 50 Hz
- Protection class: IP 55
- RPM: 2780/70min-1
- Reduction ratio: 40:1
- Power: 0.25 kW

Grub screw, type MS-M8x30

made of stainless steel

Article-No. 98900065

- for fastening the cylinder head screw
to the brush roller of the pass-through
sole cleaning system

Inductive sensor, type SEI-T

made of plastic

Article-No. 99800214

- Switching distance: 5 mm
- Dimensions: 40 x 26 x 12 mm
- incl. 2m cable

Technical data:
- Operating voltage 10-30V DC
- DC 3-wire
- Protection class IP68
- Ambient temperature -25°C to 70°C

Service-Video: Brush start sensor adjustment
https://bit.ly/service-video_sensor-brush-start

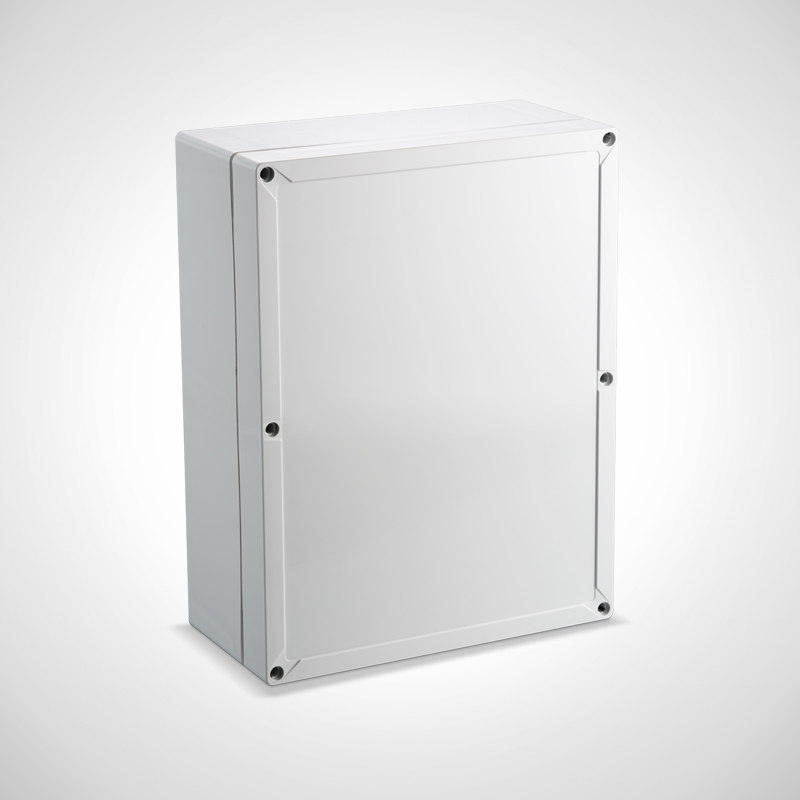

Junction box housing, type GEAB-1

made of plastic

Article-No. 99800591

IP67
Protection class II

Dimensions: 302x232x110mm

Main switch I(G), type HS-EA2/1

Article-No. 99800220

- with red rotary handle and yellow locking ring
- 3-pole
- 2 units
- EMERGENCY STOP function
- Lockable in 0 position
- Type identifier: T0
- Switching angle 90

Technical data
- Protection class: IP65
- Rated continuous current: lu = 20A
- Rated operating power AC-23A
- 50-60 Hz 400V: P = 5.5kW

Non-return valve, type RV-3/8

made of stainless steel/FKM

Article-No. 99870177

- Suitable for pass-through sole cleaning system

Application range:
Water (no steam), neutral, gaseous and liquid non-aggressive media, mineral oils, compressed air

Materials
Housing: stainless steel, spring: stainless steel, seal: FKM, valve: stainless steel

- Connection for 3/8" female thread on both sides
- Length: 55 mm
- Opening pressure: approx. 0.025 bar
- Temperature range: -20 to + 150°C

Peristaltic metering pump, type DOP-18

Plastic housing

Article-No. 93000072

- 24V version

Service-Video: Regulation of the dosing hose pump
https://bit.ly/service-video_dosingpump-regulation

Service-Video: Changing the hose of the dosing hose pump
https://bit.ly/service-video_hose-dosingpump

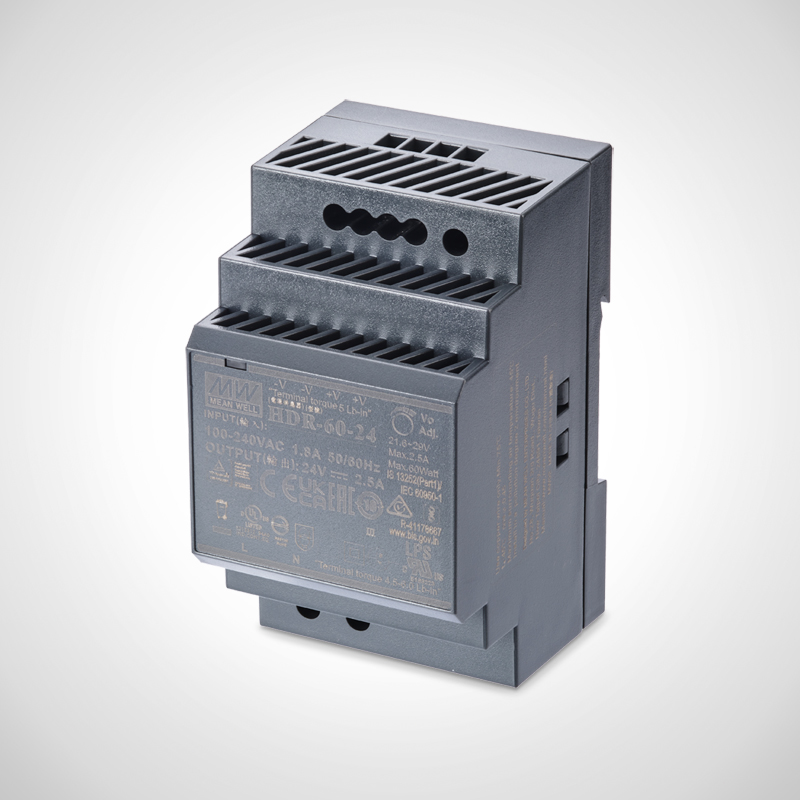

Power supply unit, type NTM-60/24

Article-No. 99870234

- 24 V switching power supply
- Connected load: 60 W
- Rated current: 2.5 A

Pressure spring, type DRF-DK

made of stainless steel 1.4301

Article-No. 99800258

For equipping spring pots. (Sole-Star)

d - wire thickness (mm): 5
De - outer coil Ø (mm): 37
D - centre coil Ø (mm): 32
Di - inner coil Ø (mm): 27
Lo - untensioned length (mm): 75
n - spring coils: 5.5
m - pitch: 12.73
sn - max. permissible spring travel (mm): 33.92
Ln - max. compressed length (mm): 41.08
Fn - max. force at Ln (N): 1049.88
R - spring rate (N/mm): 30.95
Dd - mandrel diameter (mm): 26.36
Dh - Sleeve diameter (mm): 38.02
G - Ground: yes
K - Kink-resistant: yes
M - Mass (g): 117.68

Protective ring, type SRB

made of plastic

Article-No. 99870191

for suction lance type S-51/S-61
- Colour: blue

Dimensions: Ø29.8 x Ø16.0 x 3.0 mm

Pump hose, type PS-DOP

Article-No. 93000073

for dosing hose pump 93000072.

Service-Video: Changing the hose of the dosing hose pump
https://bit.ly/service-video_hose-dosingpump

Reducing sleeve, type RMUF-3/8-3/4

Red brass

Article-No. 99800366

- 3/8 - 3/4

Siemens contactor, type SIS-1

Article-No. 99800217

- Spring-cage connection
- 24DC 3KW/400V

Siemens LOGO 8 with display, type SIL-3

Article-No. 99800209

Logic module 12/24V
with display
8 digital inputs
4 digital relay outputs

Width: 71.5 mm
Height: 90 mm
Depth: 60 mm

Service-Video: Changing the running times + venting the suction line
https://bit.ly/service-video_logo-control

Siemens overload relay, type SIR-1

Article-No. 99800216

- Spring balancer connection
- Direct attachment
- 1,1-1,6A

Solenoid valve, type MVR-24/1

Article-No. 19900170

- Medium: Water

Connections:
- Inlet: 3/4"
- Outlet: 3/8"
- with solenoid coil IP65
- with 2 mtr. connection cable
(ready installed)

Technical data
- Rated voltage: 24 V AC/ DC
- Protection class: IP 65

Spring cup left, type FDET-L

made of stainless steel 1.4301

Article-No. 99800259

Left version

consisting of:
- Stainless steel sheet 2.0 mm 91.5 x 91.5 mm
- Stainless steel pot Ø 48.3 x 2.5 L=30
- Incl. hexagon nut M8 A2-70
- Incl. threaded bolt M8 x 95 mm
- Incl. compression spring S Dz= 37 D=5 Z=7 H=78 mm

Spring cup right, type FDET-R

made of stainless steel 1.4301

Article-No. 99800260

Welded design!

Suction lance, type S-61/500

made of PVC/ PPU

Article-No. 99870194

- Length: 500 mm
- incl. canister lid DN61 (Ø inside 61 mm)
- incl. backflow preventer
- incl. fine filter
- 3m cable
- 1.5m PVC hose (8/6)

Thermostatic mixing valve, type TMV-HWB-3/4

Housing: Brass ECB

Article-No. 99810004

Keep mixing temperatures in hot water systems constant
and limit them.

Approvals / certificates
- KTW, W270, TÜV, ACS
- Connection: G 3/4", DN 15
with backflow preventer

Technical data:
- Adjustable temperature range: 20 - 50 °C
- Max. Operating pressure PB max: 10 bar
- Min. operating pressure PB min: 0.5 bar

Water connection, type WA-SO/HL-1

Article-No. 99800400

For Solestar Highline

Consisting of:
- Solenoid valve
- Flow rate regulator
- Non-return valve
- Reducing piece
- Reducing sleeve
