Spare parts
Find spare parts
Hygiene station
Check-In-Station I 1200 Highline | Right-hand version | Left-hand version

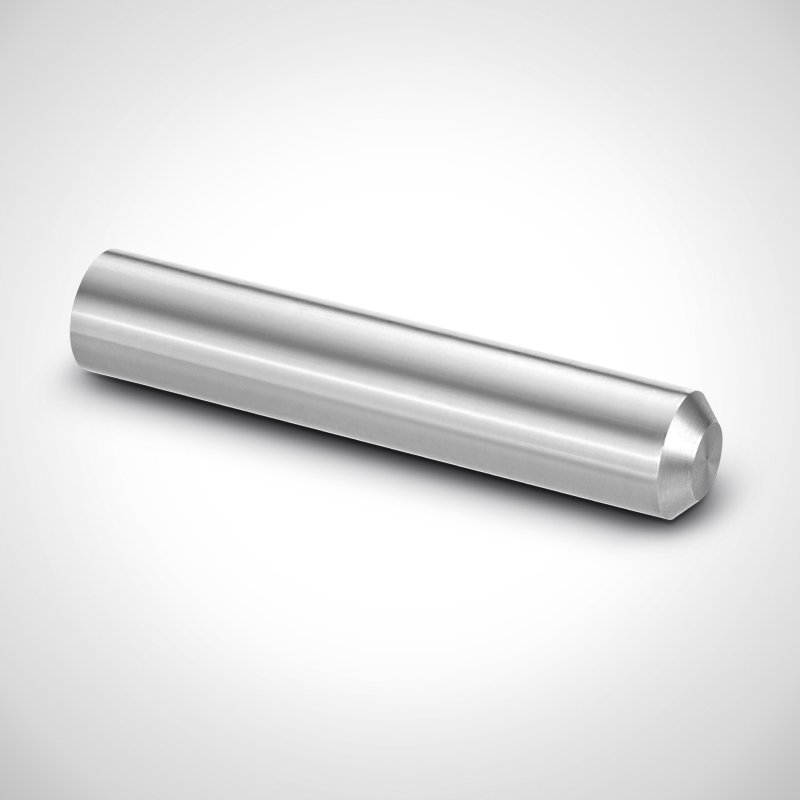

Bearing shaft, type LW-BW
Article-No. 98900002
- Drill hole (8.5 mm for grub screw)
must be made on site!
Dimensions: L 130 x D 25 mm
must be made on site!
Dimensions: L 130 x D 25 mm
Brush roller type BW-G 195/700
Nylon trim
Article-No. 92100032
- 700 mm body length
- with dense field trimming
- 25/55/195 mm total diameter
- M 30 thread on one side
- Trimming: nylon 1.0 mm
- Colour: green
- without bearing shaft
- without cap screw
(Illustration shows brush roller, pre-assembled (optional) with cap screw and bearing shaft)
Service-Video: Changing the brush rollers
https://bit.ly/service-video_brush-rollers
- with dense field trimming
- 25/55/195 mm total diameter
- M 30 thread on one side
- Trimming: nylon 1.0 mm
- Colour: green
- without bearing shaft
- without cap screw
(Illustration shows brush roller, pre-assembled (optional) with cap screw and bearing shaft)
Service-Video: Changing the brush rollers
https://bit.ly/service-video_brush-rollers

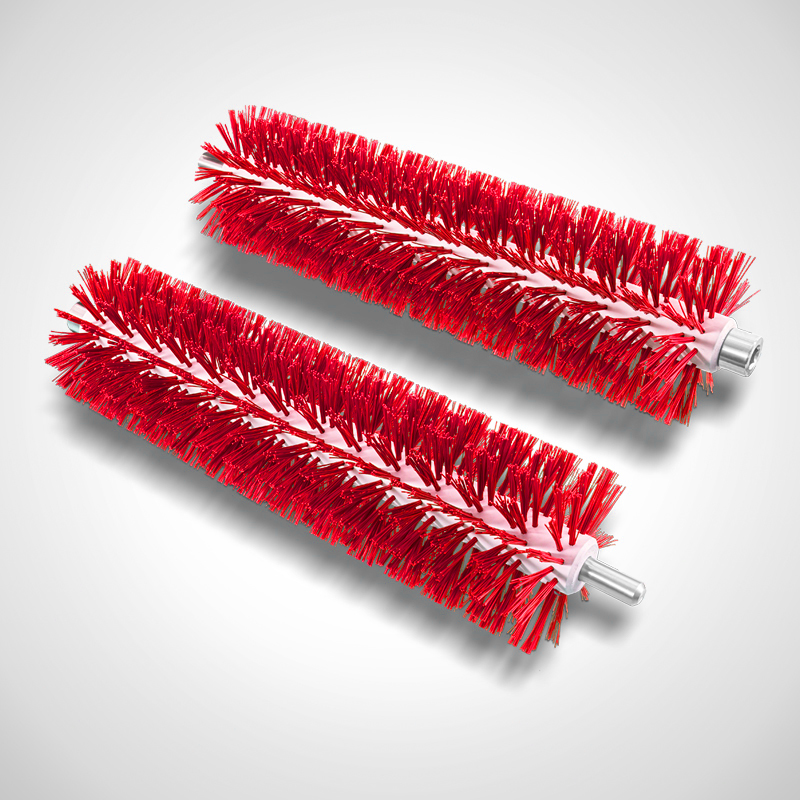

Brush roller type BW-R 195/700
Nylon trim
Article-No. 99800803
- 700 mm body length
- with dense field trimming
- 25/55/195 mm total diameter
- M 30 thread on one side
- Trimming: nylon 1.5 mm !!!!
- Colour: red PA6
- without bearing shaft !
- without cap screw !
(Illustration shows brush roller, pre-assembled (optional) with cap screw and bearing shaft)
Service-Video: Changing the brush rollers
https://bit.ly/service-video_brush-rollers
- with dense field trimming
- 25/55/195 mm total diameter
- M 30 thread on one side
- Trimming: nylon 1.5 mm !!!!
- Colour: red PA6
- without bearing shaft !
- without cap screw !
(Illustration shows brush roller, pre-assembled (optional) with cap screw and bearing shaft)
Service-Video: Changing the brush rollers
https://bit.ly/service-video_brush-rollers
Brush roller, type BW-B 195/700
Nylon trim
Article-No. 92000008
- Body length: 700 mm
- With dense field trimming
- 25/55/195 mm total diameter
- M 30 thread on one side
- Trimming: Nylon 1.5 mm
- Colour: blue
- Without bearing shaft
- Without cap screw
(Picture shows brush roller, pre-assembled (optional) with cap screw and bearing shaft)
Service-Video: Changing the brush rollers
https://bit.ly/service-video_brush-rollers
- With dense field trimming
- 25/55/195 mm total diameter
- M 30 thread on one side
- Trimming: Nylon 1.5 mm
- Colour: blue
- Without bearing shaft
- Without cap screw
(Picture shows brush roller, pre-assembled (optional) with cap screw and bearing shaft)
Service-Video: Changing the brush rollers
https://bit.ly/service-video_brush-rollers

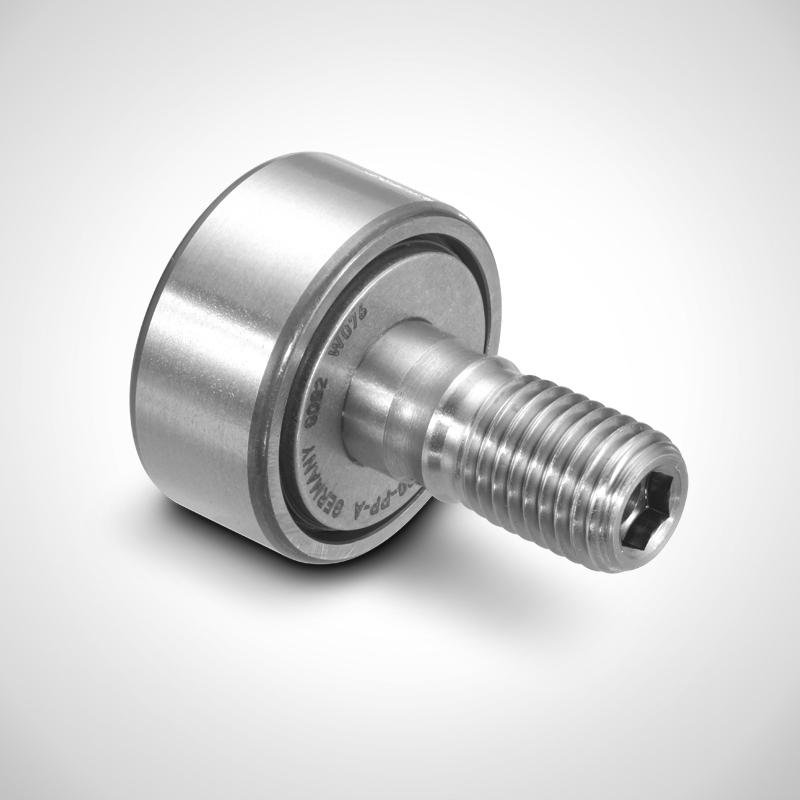

Cam roller bearing, type KRL-DK
Article-No. 39020001
Ball bearing for locking arm holder/ turnstile head
D: 30 mm
W: 15.2 mm
D: 30 mm
W: 15.2 mm

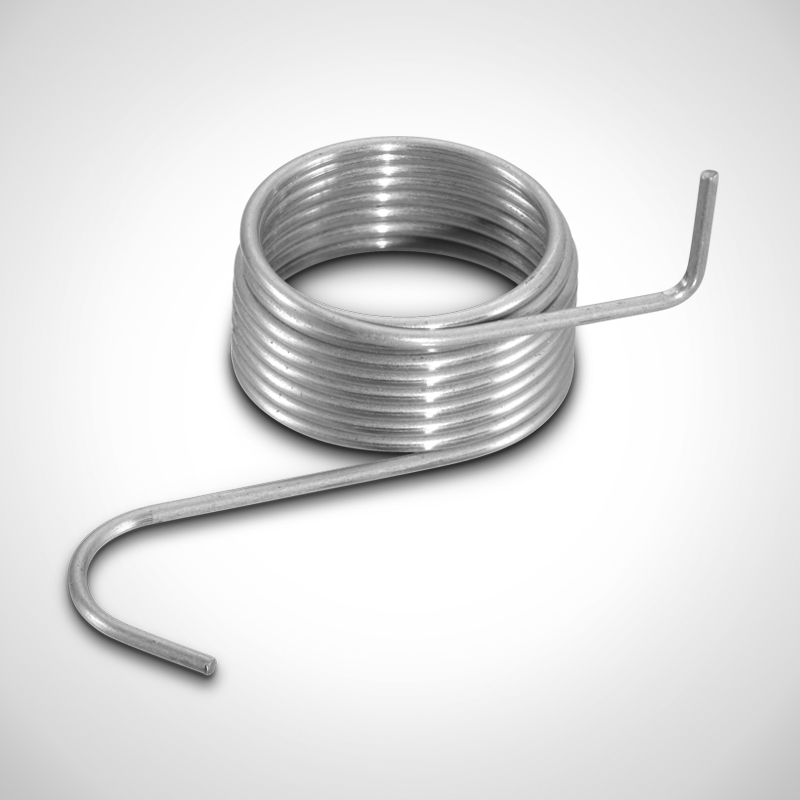

Cam spring, type NKF-DK H
Article-No. 39000169
for turnstile mechanism Highline

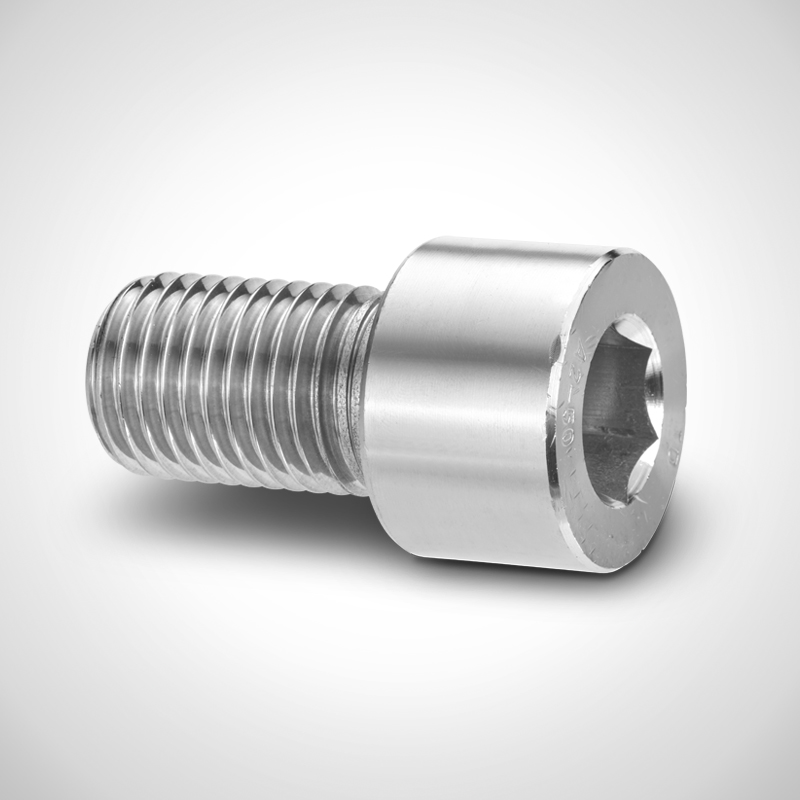

Cheese head screw, type ZS-M30x50
Article-No. 98900001
DIN 912-A2
for brush roller
- Drill hole (8.5 mm for grub screw)
must be made on site!
for brush roller
- Drill hole (8.5 mm for grub screw)
must be made on site!

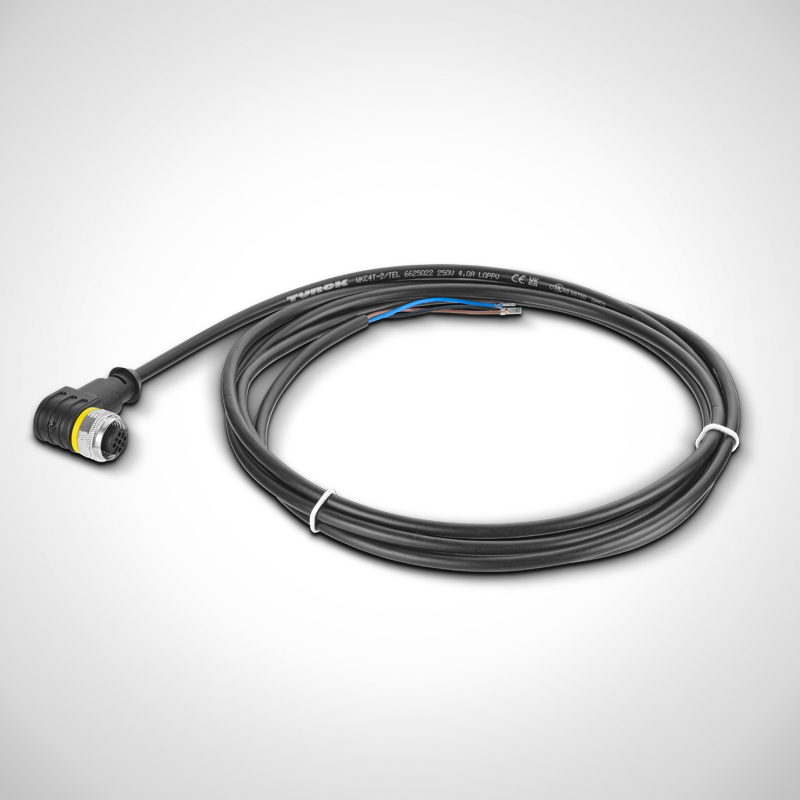

Connection cable 90°, type ASL-W90/2
Article-No. 99870167
- For sensor
- Connection: 4-pin,
- M12 plug;
- 250V AC; 4A
- angled plug (90°)
- Cable length: 2 m, PUR halogen-free
- Colour: black
- Connection: 4-pin,
- M12 plug;
- 250V AC; 4A
- angled plug (90°)
- Cable length: 2 m, PUR halogen-free
- Colour: black
_99800522_240812_800x800px.jpg "Contact element (Ö), type KE-NH 1")

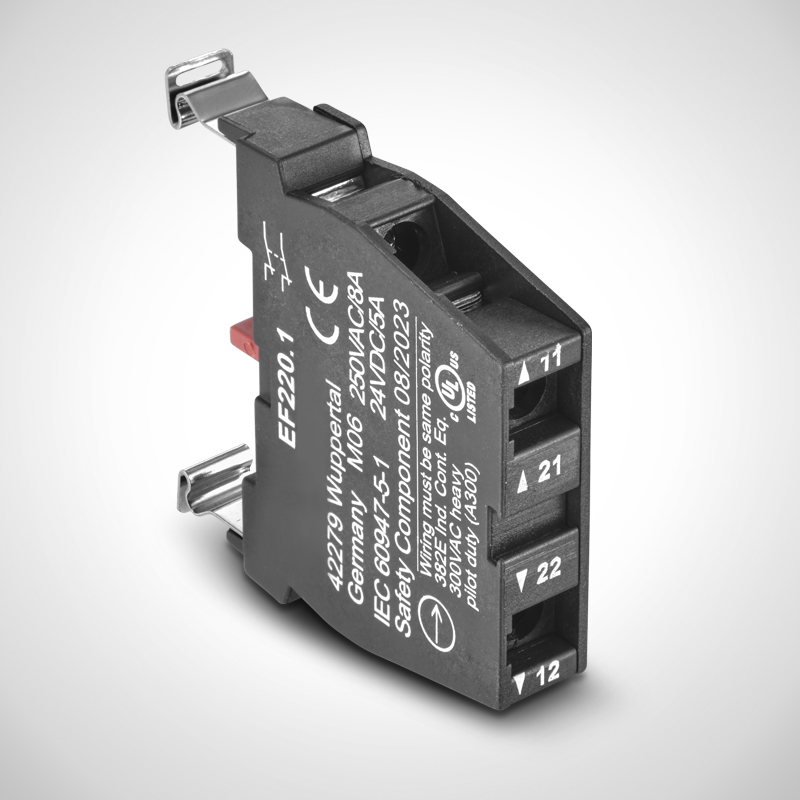

Contact element (Ö), type KE-NH 1
Article-No. 99800522
- Screw connection
- suitable for EMERGENCY STOP
- Mounting flange position 1
- 11-12; 21-22 (contact designation)
- suitable for EMERGENCY STOP
- Mounting flange position 1
- 11-12; 21-22 (contact designation)

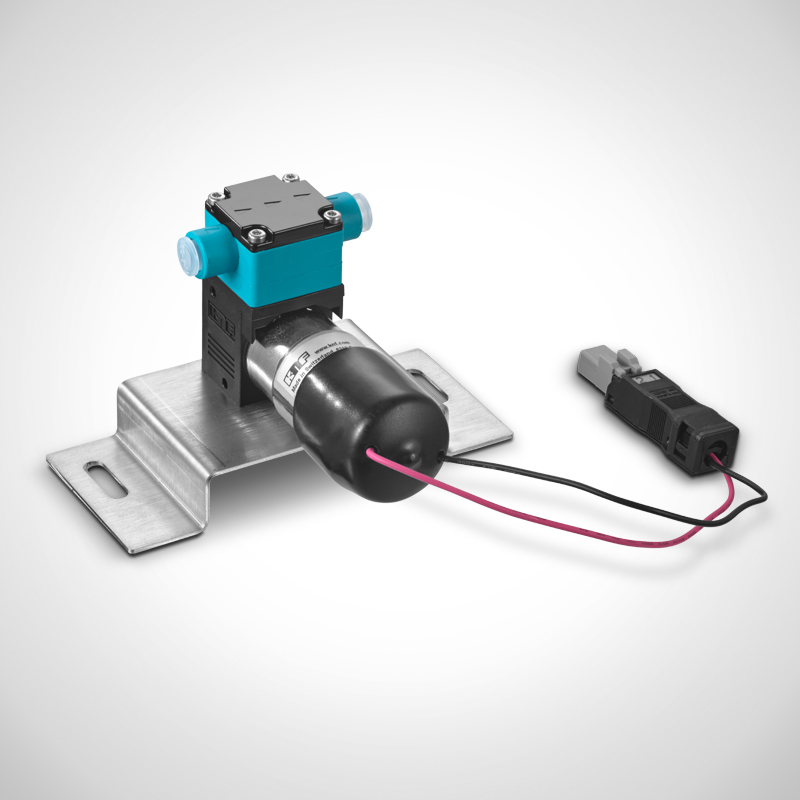

Dosing pump, type DDPE/24V
Article-No. 99870211
- M12 plug
- Stranded wires and pin assignment
- Head rotated 90' clockwise
- Suction head (self-priming): 3 mWS
- Pressure head: 10 mWS
- Delivery rate at 1 bar: approx. 600 ml/min.
(measured with water at 20'C)
- max. permissible medium temperature: +5'C - 80'C.
- max. permissible ambient temperature: +5 "C - 40'C
- Connection: G1/8" suction and pressure side
- incl. plug and retaining plate
Wetted parts:
- Head parts: PP
- Diaphragm: EPDM
- Valves: EPDM
Service-Video: Changing the dosing pump
https://bit.ly/service-video_dosing-pump
- Stranded wires and pin assignment
- Head rotated 90' clockwise
- Suction head (self-priming): 3 mWS
- Pressure head: 10 mWS
- Delivery rate at 1 bar: approx. 600 ml/min.
(measured with water at 20'C)
- max. permissible medium temperature: +5'C - 80'C.
- max. permissible ambient temperature: +5 "C - 40'C
- Connection: G1/8" suction and pressure side
- incl. plug and retaining plate
Wetted parts:
- Head parts: PP
- Diaphragm: EPDM
- Valves: EPDM
Service-Video: Changing the dosing pump
https://bit.ly/service-video_dosing-pump

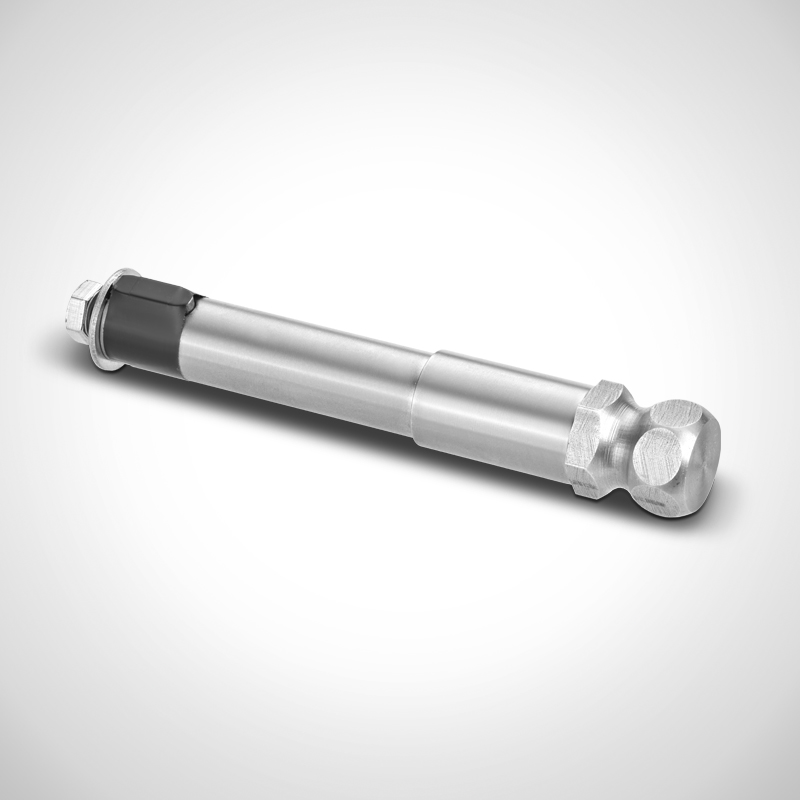

Drive shaft, type AW-2
made of 1.4301 stainless steel
Article-No. 98900005
- Motor side with groove for split pin
- with turned collar!
- External hexagon Brush side
- without split pin and disc
Dimensions: L 145 / D: 18.85 or 14.07 mm
- with turned collar!
- External hexagon Brush side
- without split pin and disc
Dimensions: L 145 / D: 18.85 or 14.07 mm

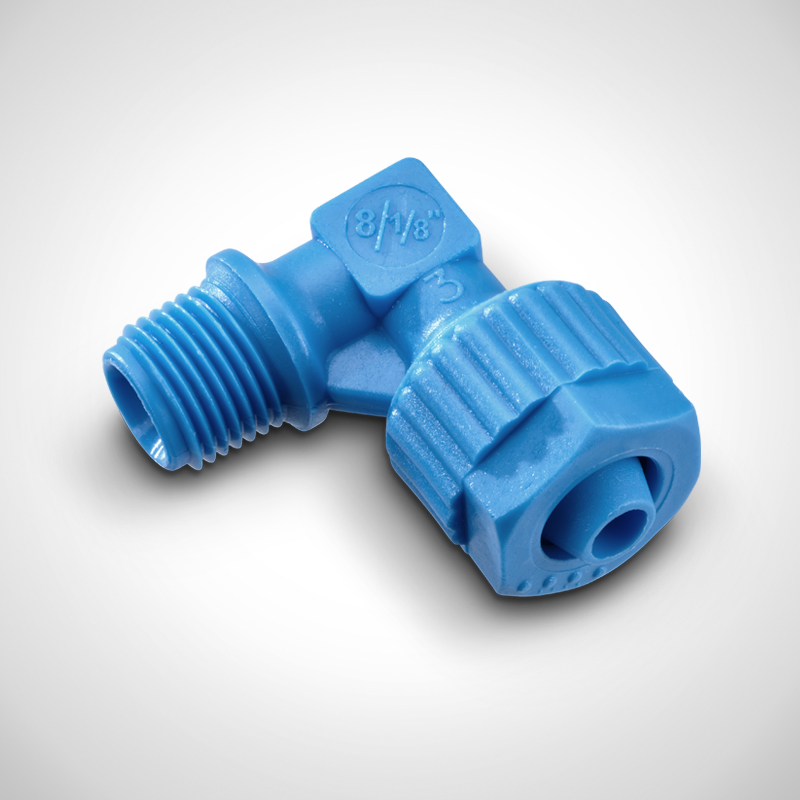

Elbow screw-in fitting, type W-ESV/P-1
made of polypropylene
Article-No. 39010046
- Thread 1/8"
- conical
- for hose Ø 8/6 mm
- blue plastic
Dimensions: 22.5 x 19 mm
- conical
- for hose Ø 8/6 mm
- blue plastic
Dimensions: 22.5 x 19 mm

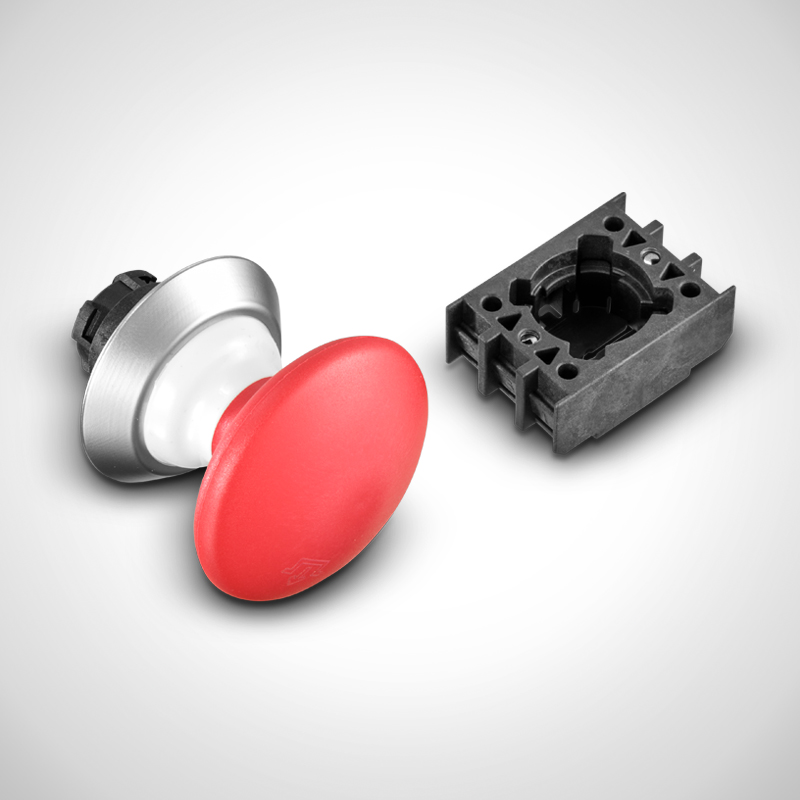

Emergency stop button, type NHT-KB 1
Article-No. 99800530
- with contact block
- EMERGENCY STOP pushbutton
- with detent
- Installation Ø 22.3mm
- EMERGENCY STOP pushbutton
- with detent
- Installation Ø 22.3mm

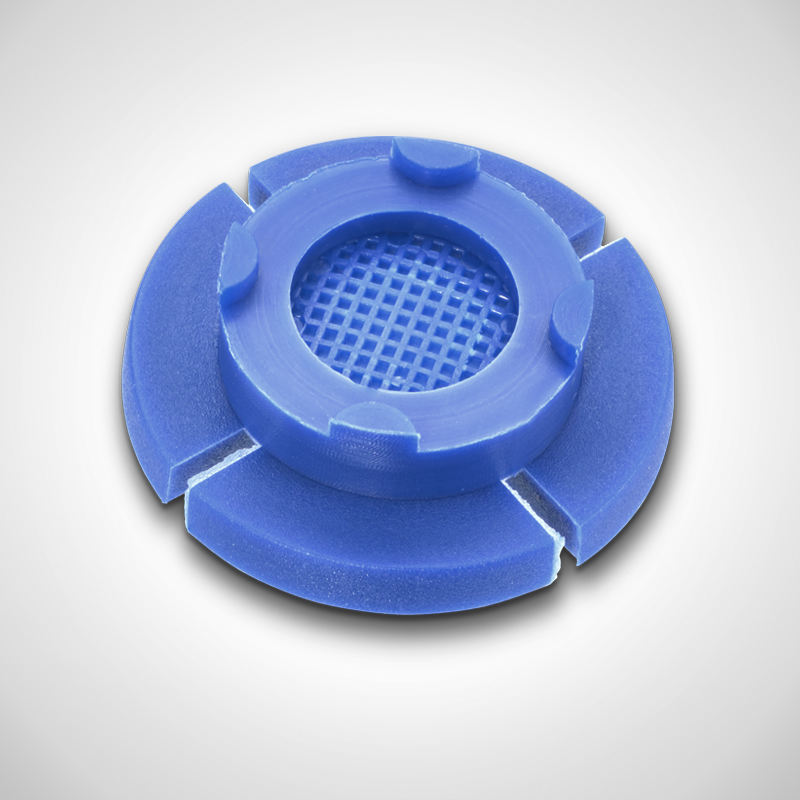

Filter stopper, type FS
made of plastic
Article-No. 99870192
for suction lance type S-51/S-61
- Ø 24mm
- 0,5mm
- Colour: blue
- Ø 24mm
- 0,5mm
- Colour: blue

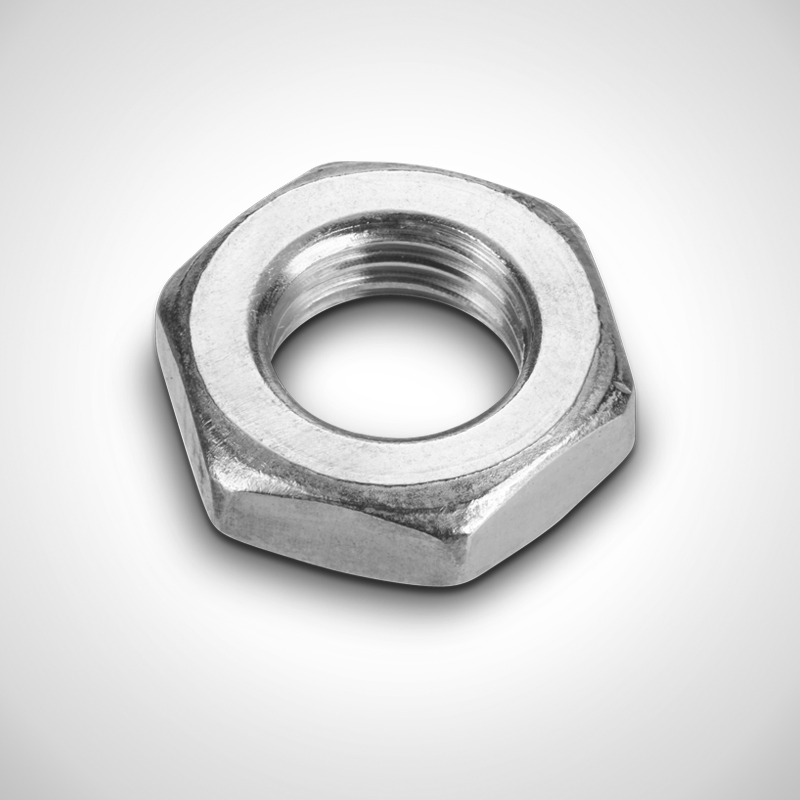

Flat nut, type FM-M12/1.5
Article-No. 39010152
Suitable for cam roller bearings
Hexagon nut, low
12,00 x 1,50
Form B, fine pitch thread A2
DIN 439
Hexagon nut, low
12,00 x 1,50
Form B, fine pitch thread A2
DIN 439

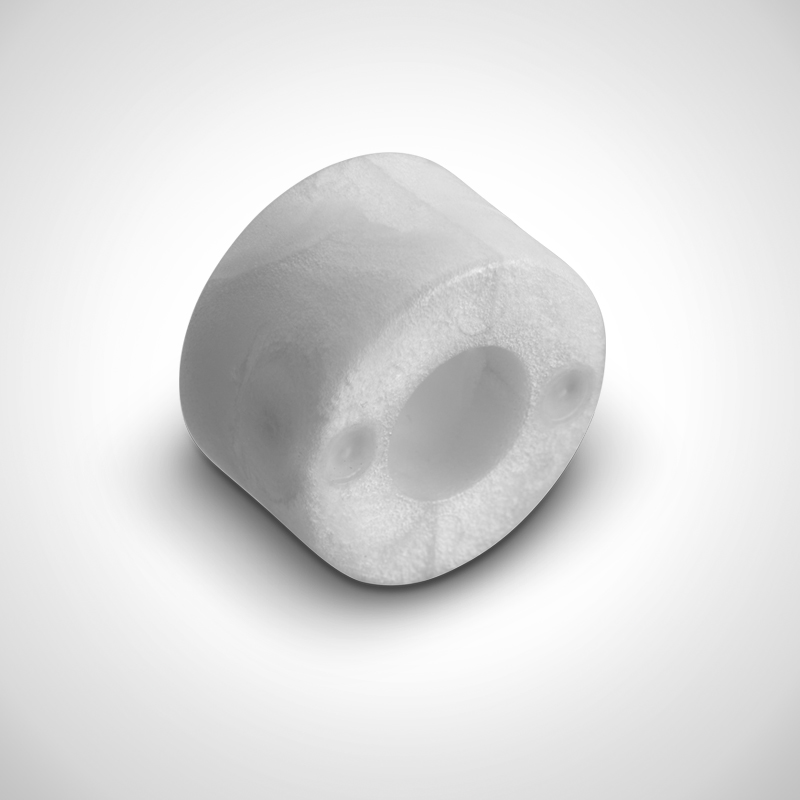

Float, type SSB
Article-No. 99870193
For suction lance S-51/S-61
- Density 0.63
Dimensions: Ø30.0 x 18.5 x 14.0mm
Service-Video: Changing the float switch
https://bit.ly/service-video_float-switch
- Density 0.63
Dimensions: Ø30.0 x 18.5 x 14.0mm
Service-Video: Changing the float switch
https://bit.ly/service-video_float-switch

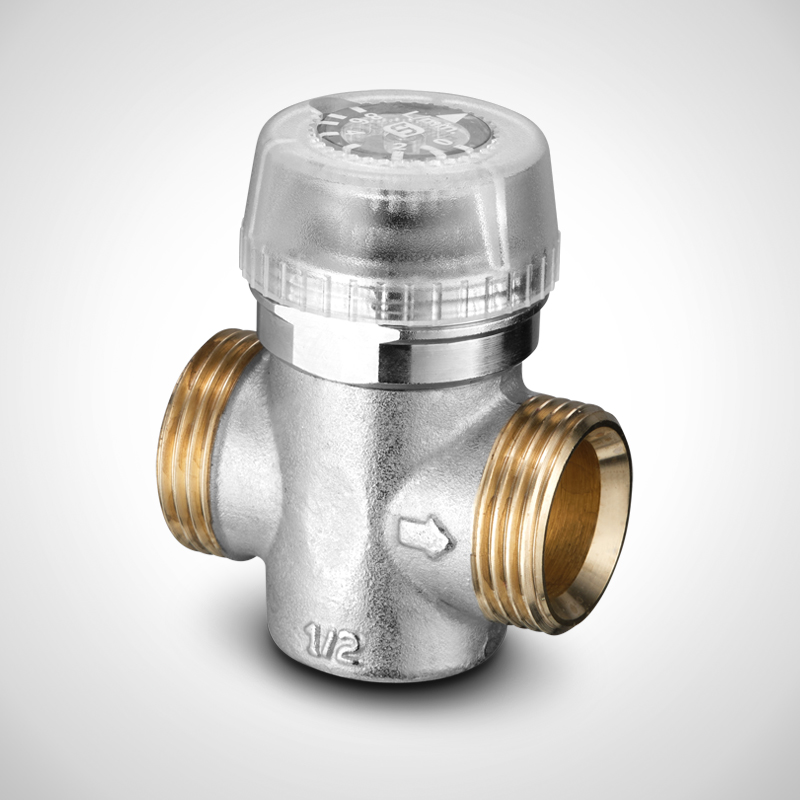

Flow rate regulator, type DFMR-TS 3/4
Housing: brass Ms 58
Article-No. 99800364
DN15 0.6-8l/min ECB
Nominal size: DN 15
Connection: 3/4" - 3/4" without screw connection
Display l/min: 0.6 - 8
Technical data:
Temperature range: up to max. 100°C
Operating pressure: 10 bar
Housing: brass Ms 58
Sight glass: Plastic
Sealings: EPDM
Measuring accuracy: +/- 5% of full scale value
Flow media: Drinking water, heating water
(with burnt anti-corrosion additives)
Nominal size: DN 15
Connection: 3/4" - 3/4" without screw connection
Display l/min: 0.6 - 8
Technical data:
Temperature range: up to max. 100°C
Operating pressure: 10 bar
Housing: brass Ms 58
Sight glass: Plastic
Sealings: EPDM
Measuring accuracy: +/- 5% of full scale value
Flow media: Drinking water, heating water
(with burnt anti-corrosion additives)

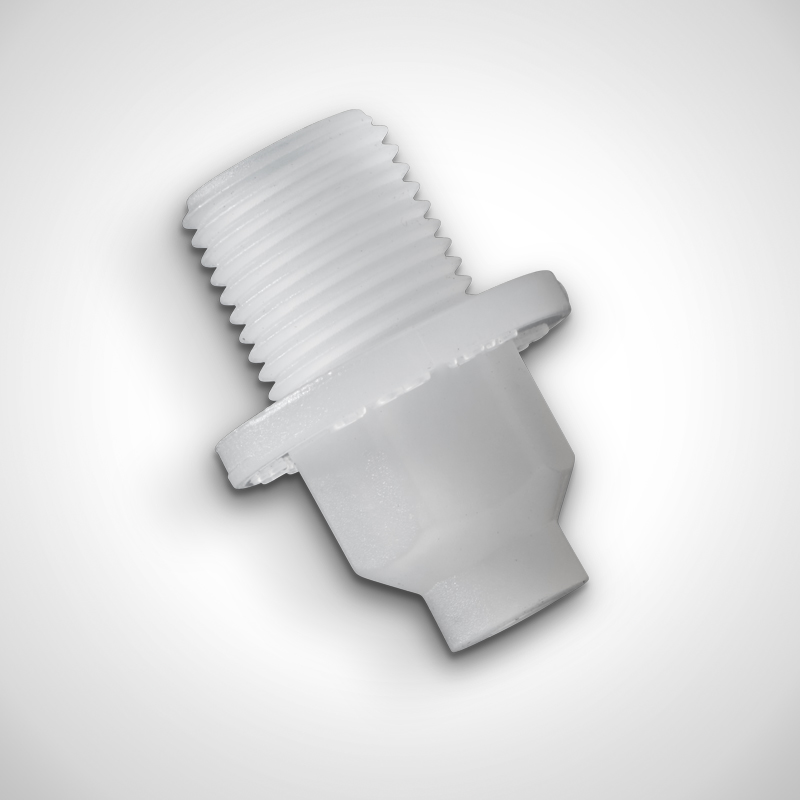

Full cone jet nozzle, type VD-1/8
made of PVDF, transparent
Article-No. 99870039
Dim.(mm): Diameter 15.9 x L 22.2 mm
6-kt 9,5mm
- Threaded connection (AG): 1/8"
- Size: 1.3
- Colour: transparent
- Outlet bore: 1.0 mm
- Volume flow (l/min) at 3 bar pressure: 0.97 mm
- Spray angle: 0.7 bar: 52°
1.5 bar: 65°
6.0 bar: 59°
- Operating temperature (at 7 bar): up to 150°C
The nozzle body has a hexagon and a collar for easy (dis)assembly.
6-kt 9,5mm
- Threaded connection (AG): 1/8"
- Size: 1.3
- Colour: transparent
- Outlet bore: 1.0 mm
- Volume flow (l/min) at 3 bar pressure: 0.97 mm
- Spray angle: 0.7 bar: 52°
1.5 bar: 65°
6.0 bar: 59°
- Operating temperature (at 7 bar): up to 150°C
The nozzle body has a hexagon and a collar for easy (dis)assembly.

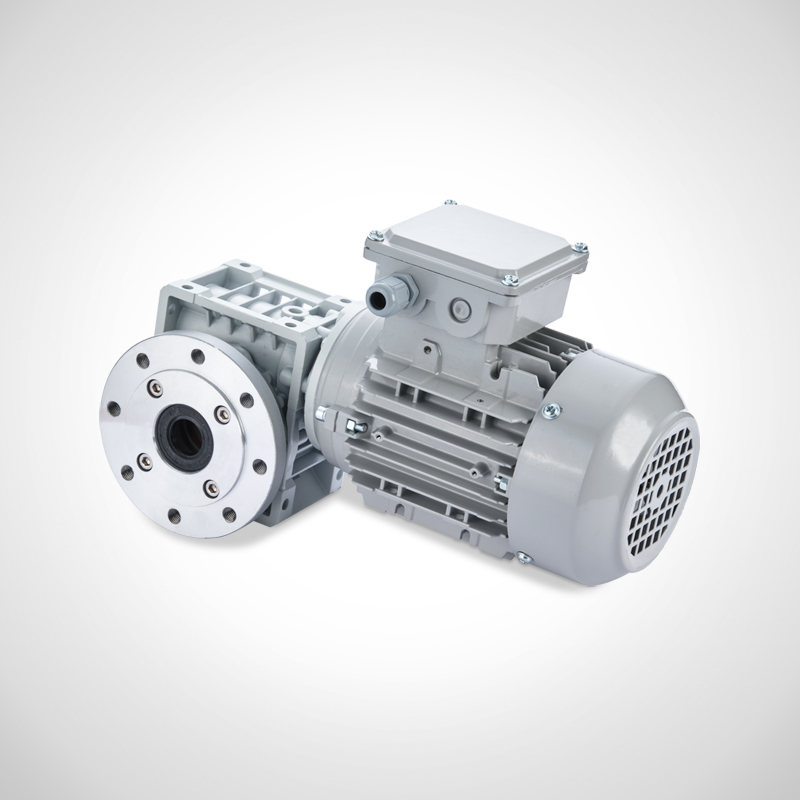

Geared motor, type GM-4
Aluminum housing
Article-No. 99800177
- Motor can be used left + right
(change of direction by
by customer conversion of the flange
easily and at short notice)
- Painted version
Technical data
- Voltage: 230/ 400V - 1.14 / 0.65 A
- Frequency: 50 Hz
- Protection class: IP 55
- RPM: 2780/70min-1
- Reduction ratio: 40:1
- Power: 0.25 kW
(change of direction by
by customer conversion of the flange
easily and at short notice)
- Painted version
Technical data
- Voltage: 230/ 400V - 1.14 / 0.65 A
- Frequency: 50 Hz
- Protection class: IP 55
- RPM: 2780/70min-1
- Reduction ratio: 40:1
- Power: 0.25 kW

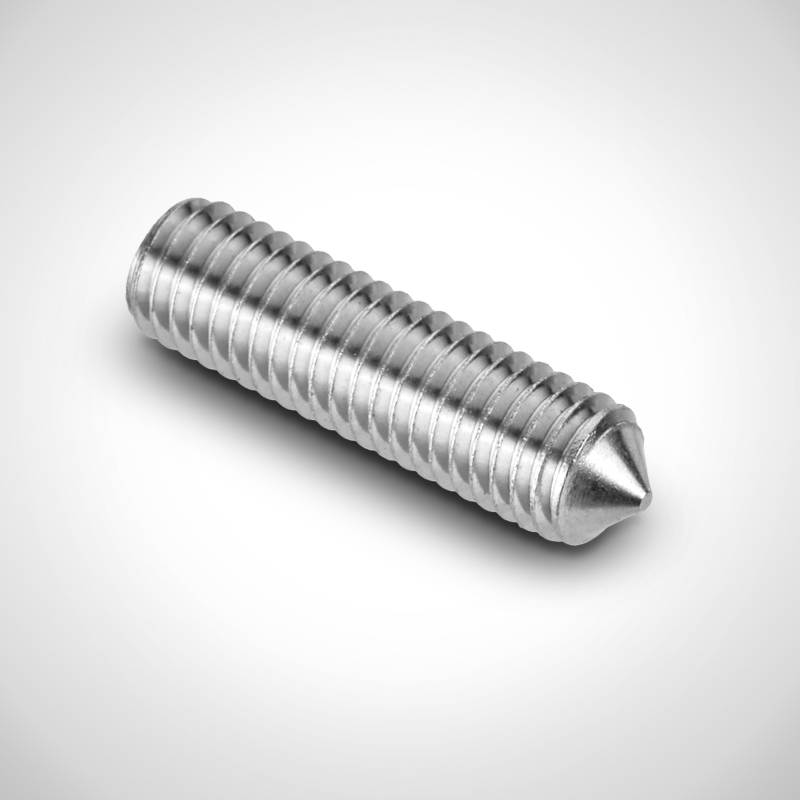

Grub screw, type MS-M8x30
made of stainless steel
Article-No. 98900065
- for fastening the cylinder head screw
to the brush roller of the pass-through
sole cleaning system
to the brush roller of the pass-through
sole cleaning system

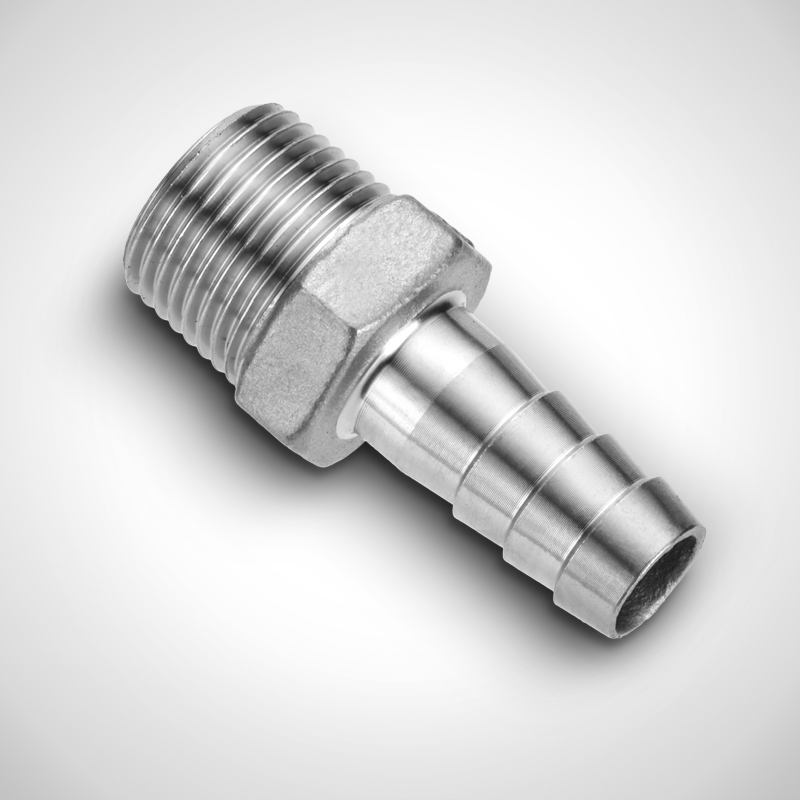

Hose nozzle, type SLT-E-2
made of stainless steel
Article-No. 39010110
- 3/8" AG
- Hose holder: Ø11mm
- Hose holder: Ø11mm

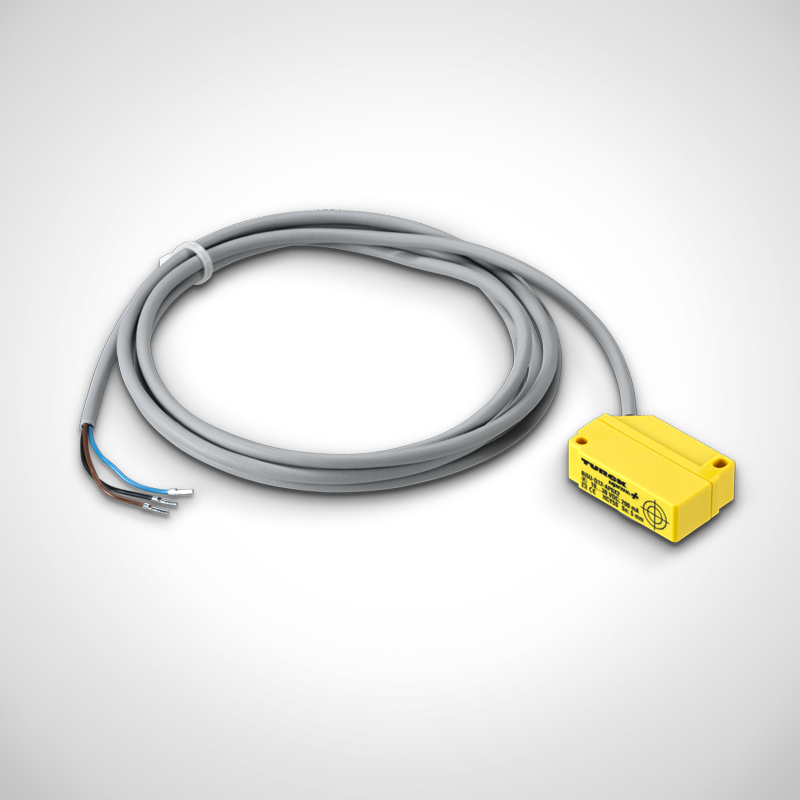

Inductive sensor, type SEI-T
made of plastic
Article-No. 99800214
- Switching distance: 5 mm
- Dimensions: 40 x 26 x 12 mm
- incl. 2m cable
Technical data:
- Operating voltage 10-30V DC
- DC 3-wire
- Protection class IP68
- Ambient temperature -25°C to 70°C
Service-Video: Brush start sensor adjustment
https://bit.ly/service-video_sensor-brush-start
- Dimensions: 40 x 26 x 12 mm
- incl. 2m cable
Technical data:
- Operating voltage 10-30V DC
- DC 3-wire
- Protection class IP68
- Ambient temperature -25°C to 70°C
Service-Video: Brush start sensor adjustment
https://bit.ly/service-video_sensor-brush-start

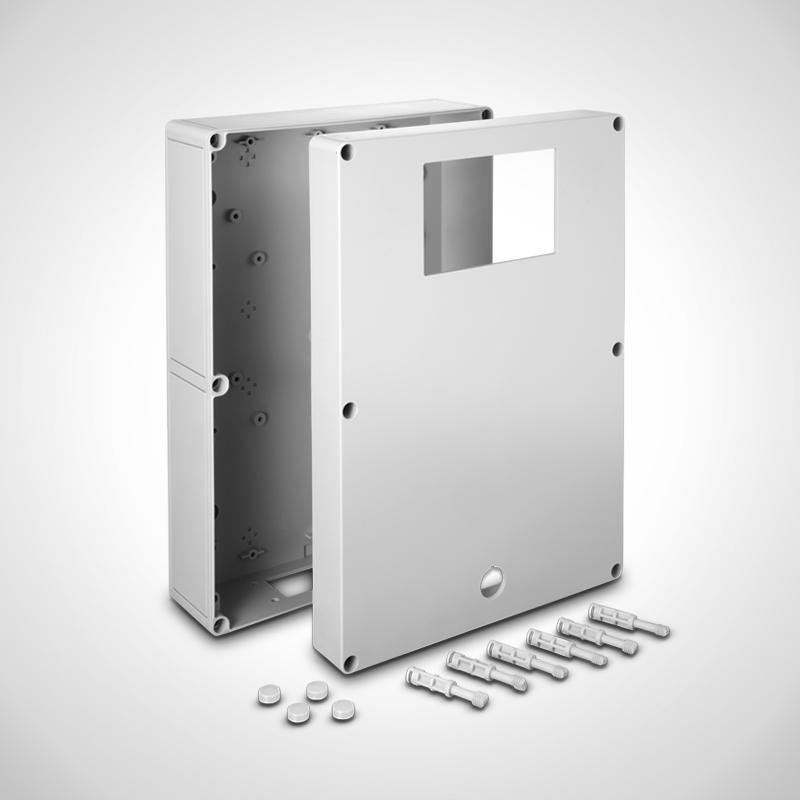

Junction box housing, type GEAB-4
Made of plastic
Article-No. 99800354
Empty housing for control units
- Display cut-out
- Drill hole for patch cable socket
- Protection class: IP66
Dimensions: W 360 x D 254 x H 111 mm
- Display cut-out
- Drill hole for patch cable socket
- Protection class: IP66
Dimensions: W 360 x D 254 x H 111 mm

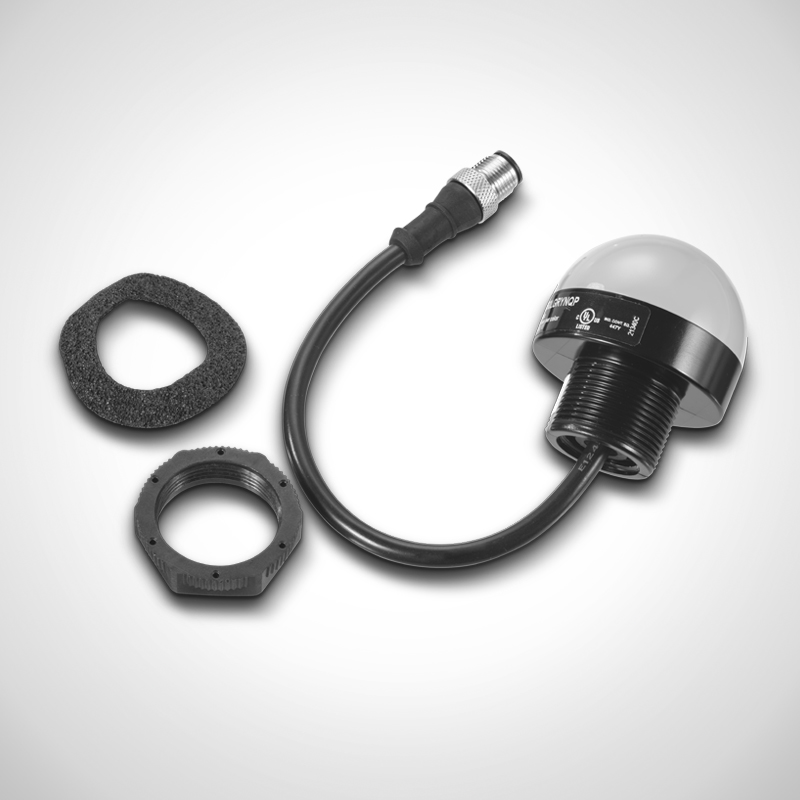

LED signal light, type SL-LED 3
Housing: plastic
Article-No. 99800564
Built-in signal light with three signal colours (3 in 1).
Supply voltage: 18 - 30 V dc
Lens colour: green, red, yellow
Mounting type: Surface mounting
Lamp type: LED
Base diameter: 50mm
Lamp included: Yes
Multifunction: Yes
Height: 69mm
Temperature min: -40°C
Temperature max: +50°C
Supply voltage: 18 - 30 V dc
Lens colour: green, red, yellow
Mounting type: Surface mounting
Lamp type: LED
Base diameter: 50mm
Lamp included: Yes
Multifunction: Yes
Height: 69mm
Temperature min: -40°C
Temperature max: +50°C

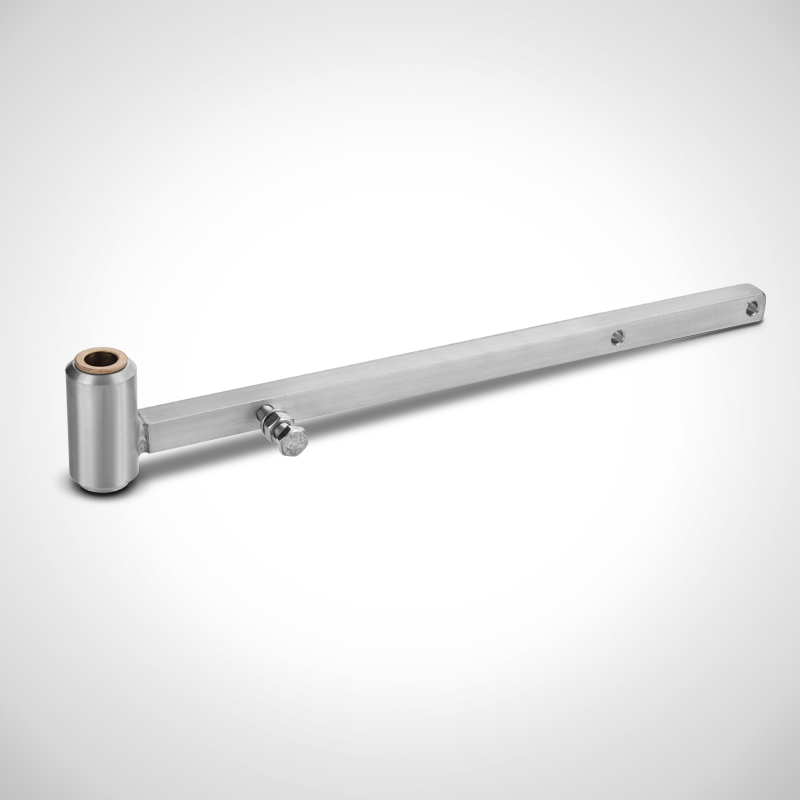

Levelling arm set, type AGA-DK
Article-No. 39000173
Set (assembled), consisting of:
1x decompression arm
1x PE strip black 95mm
Various spring washers, screws, nuts,
sleeves, bushes and washers
1x decompression arm
1x PE strip black 95mm
Various spring washers, screws, nuts,
sleeves, bushes and washers
_99800220_240623_links_800x800.jpg "Main switch I(G), type HS-EA2/1")

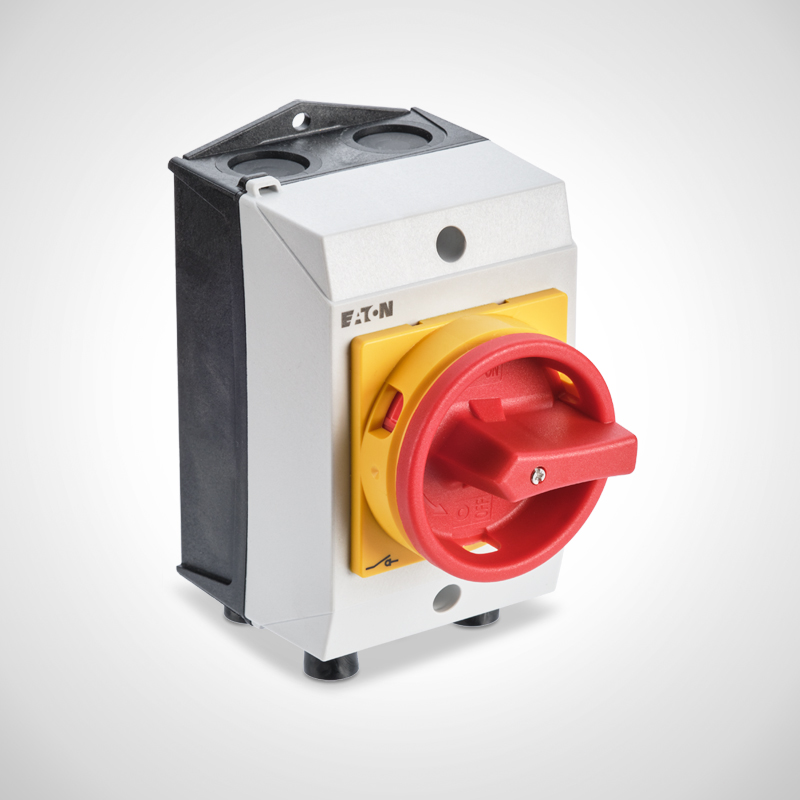

Main switch I(G), type HS-EA2/1
Article-No. 99800220
- with red rotary handle and yellow locking ring
- 3-pole
- 2 units
- EMERGENCY STOP function
- Lockable in 0 position
- Type identifier: T0
- Switching angle 90
Technical data
- Protection class: IP65
- Rated continuous current: lu = 20A
- Rated operating power AC-23A
- 50-60 Hz 400V: P = 5.5kW
- 3-pole
- 2 units
- EMERGENCY STOP function
- Lockable in 0 position
- Type identifier: T0
- Switching angle 90
Technical data
- Protection class: IP65
- Rated continuous current: lu = 20A
- Rated operating power AC-23A
- 50-60 Hz 400V: P = 5.5kW

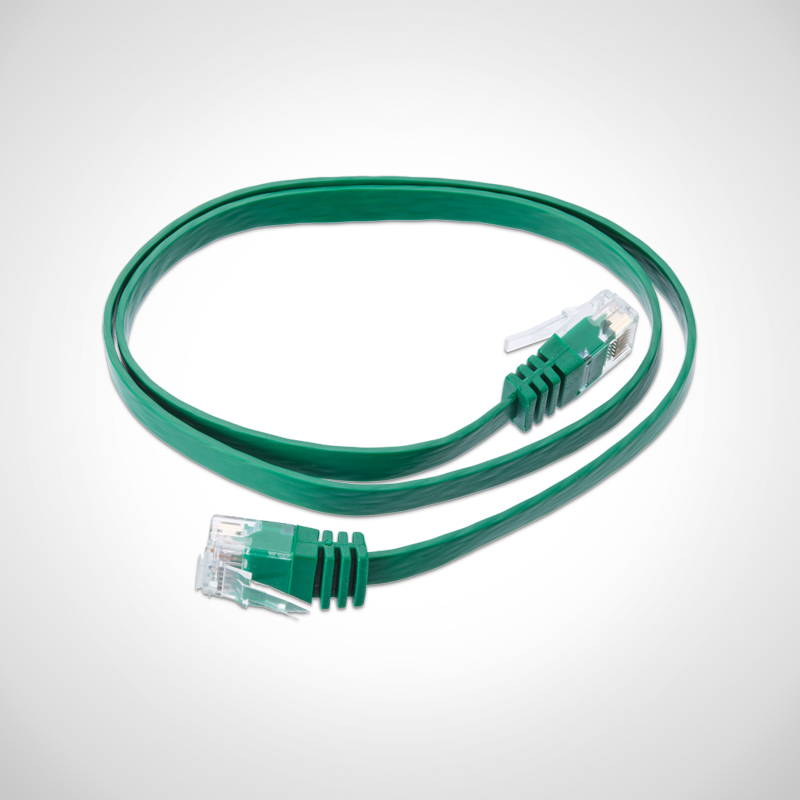

Network patch cable, type NW-P 500
Plastic - Inner conductor material: CU (copper)
Article-No. 99800246
- Length 500 mm
- Cat.6 UTP Slim flat patch cable RJ45 / LAN cable / network cable
- Flat ribbon patch cable extremely flexible and very thin for special applications.
- unshielded
- Twisted pair cable, U/UTP, 4x2xAWG32/7 (7 x 0.08 mm) CU
- 2 x RJ45 Western plugs (8-pin) with molded anti-kink sleeve and gold-plated contact surfaces
- Frequencies up to 250 MHz
- Outer jacket: 6.0 x 1.5 mm
- Color: green
- Cat.6 UTP Slim flat patch cable RJ45 / LAN cable / network cable
- Flat ribbon patch cable extremely flexible and very thin for special applications.
- unshielded
- Twisted pair cable, U/UTP, 4x2xAWG32/7 (7 x 0.08 mm) CU
- 2 x RJ45 Western plugs (8-pin) with molded anti-kink sleeve and gold-plated contact surfaces
- Frequencies up to 250 MHz
- Outer jacket: 6.0 x 1.5 mm
- Color: green

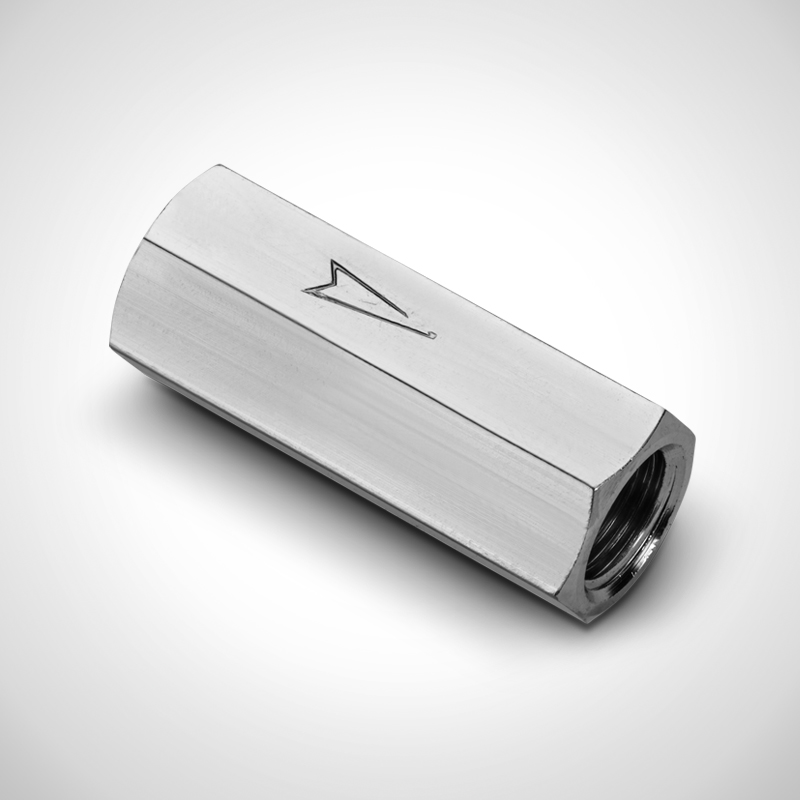

Non-return valve, type RV-1/8
Article-No. 99870038
- Thread G1/8
- Length: 34mm
- Operating pressure: 2-10 bar
- Opening pressure: 0.2 bar
- Flow rate: 900 Nl/min
- Temperature range: NBR: -10°C to +80°C,
FKM: -20°C to + 110°C
- Nominal size: G1/8 = 5.2mm
Service-Video: Replacing the non-return valve
https://bit.ly/service-video_non-return-valve
- Length: 34mm
- Operating pressure: 2-10 bar
- Opening pressure: 0.2 bar
- Flow rate: 900 Nl/min
- Temperature range: NBR: -10°C to +80°C,
FKM: -20°C to + 110°C
- Nominal size: G1/8 = 5.2mm
Service-Video: Replacing the non-return valve
https://bit.ly/service-video_non-return-valve
Non-return valve, type RV-3/8
made of stainless steel/FKM
Article-No. 99870177
- Suitable for pass-through sole cleaning system
Application range:
Water (no steam), neutral, gaseous and liquid non-aggressive media, mineral oils, compressed air
Materials
Housing: stainless steel, spring: stainless steel, seal: FKM, valve: stainless steel
- Connection for 3/8" female thread on both sides
- Length: 55 mm
- Opening pressure: approx. 0.025 bar
- Temperature range: -20 to + 150°C
Application range:
Water (no steam), neutral, gaseous and liquid non-aggressive media, mineral oils, compressed air
Materials
Housing: stainless steel, spring: stainless steel, seal: FKM, valve: stainless steel
- Connection for 3/8" female thread on both sides
- Length: 55 mm
- Opening pressure: approx. 0.025 bar
- Temperature range: -20 to + 150°C

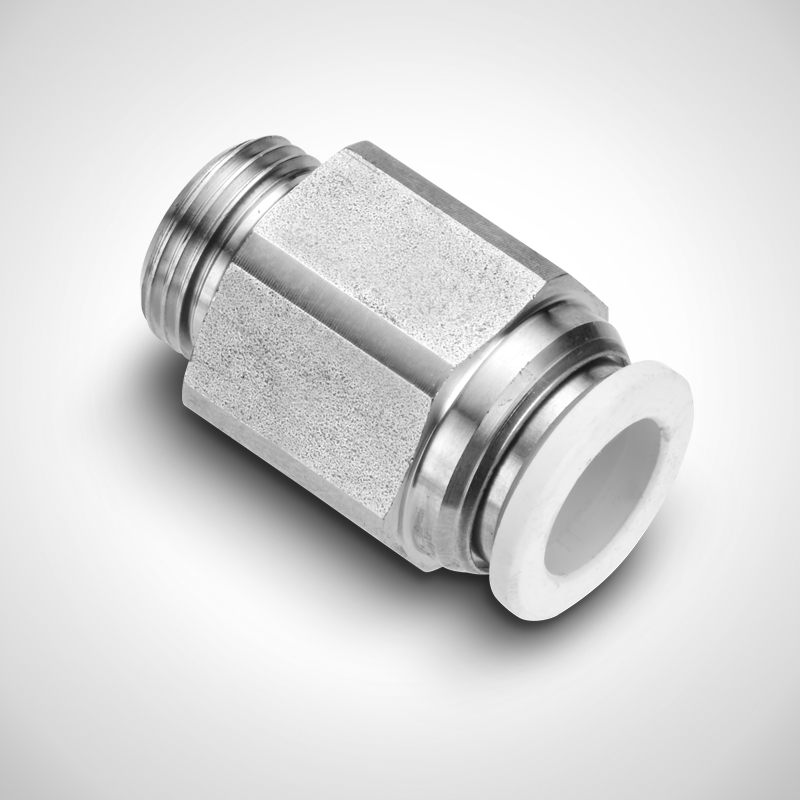

Non-return valve, type RV-R1
Article-No. 39010143
- 3/8"

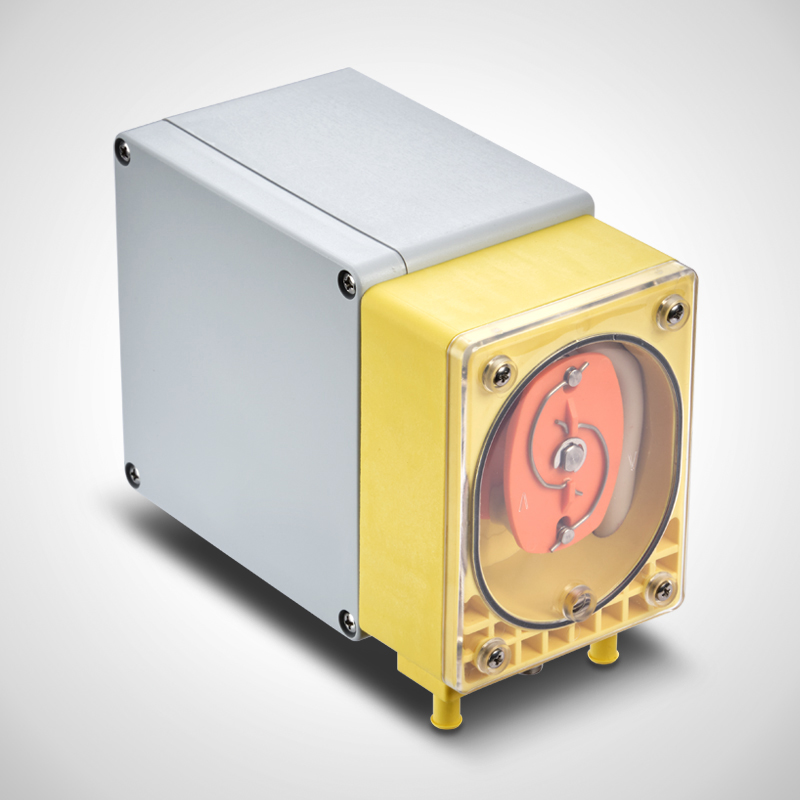

Peristaltic metering pump, type DOP-18
Plastic housing
Article-No. 93000072
- 24V version
Service-Video: Regulation of the dosing hose pump
https://bit.ly/service-video_dosingpump-regulation
Service-Video: Changing the hose of the dosing hose pump
https://bit.ly/service-video_hose-dosingpump
Service-Video: Regulation of the dosing hose pump
https://bit.ly/service-video_dosingpump-regulation
Service-Video: Changing the hose of the dosing hose pump
https://bit.ly/service-video_hose-dosingpump

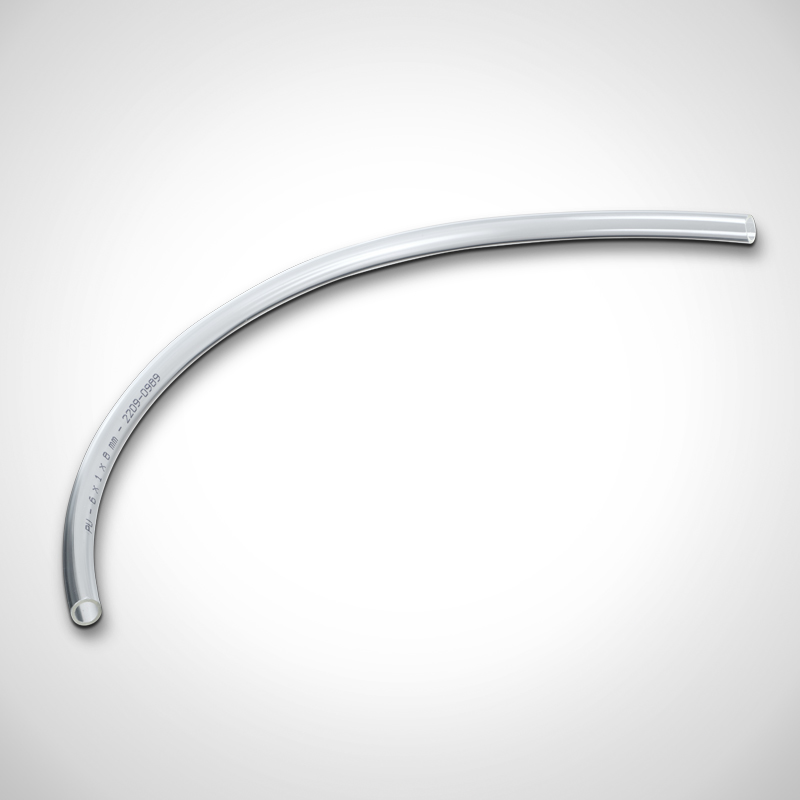

Plastic hose, type STSC-T 8/6
made of polyurethane
Article-No. 39010130
- transparent
- food-safe
- 8/6"
- food-safe
- 8/6"

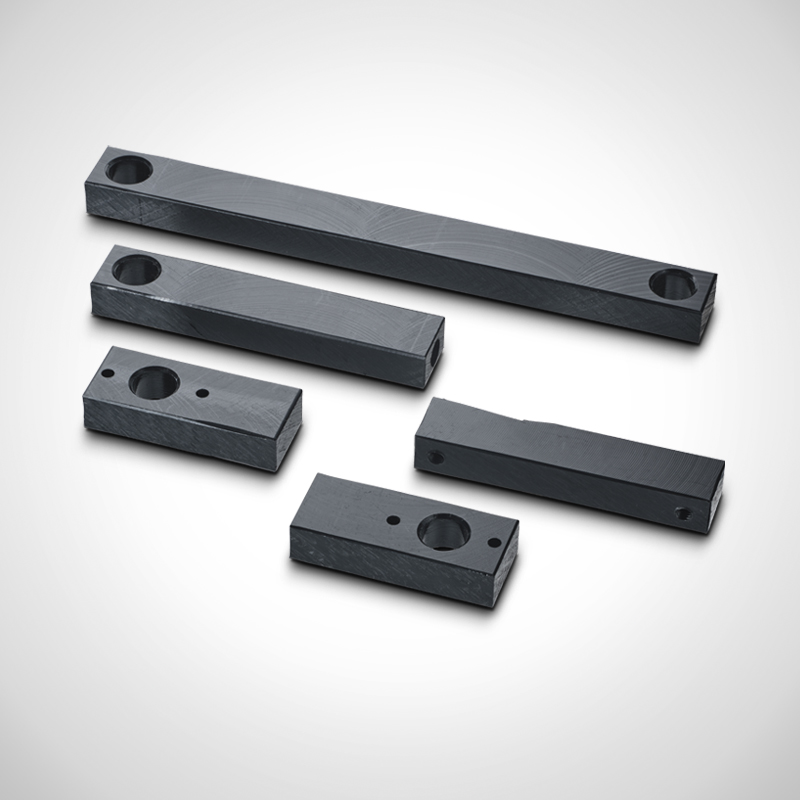

Plastic set, type KSS-DKM
made of plastic
Article-No. 99800244
for turnstile mechanism Highline
- 5-piece complete set
- made of black plastic
- 5-piece complete set
- made of black plastic

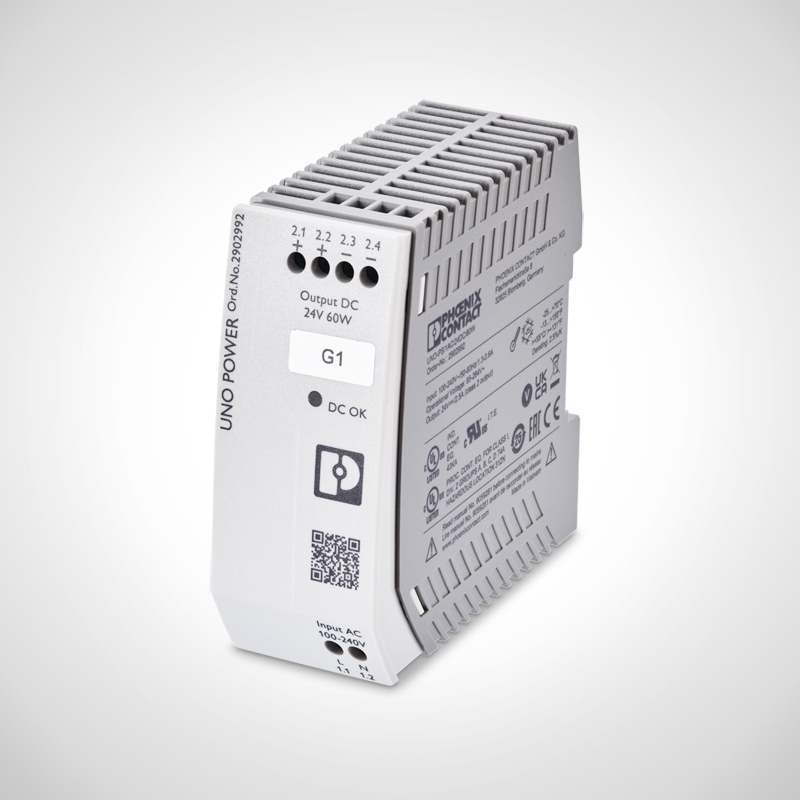

Power supply 24VDC/60W, type NTS-1
Article-No. 99870198
- DIN rail mounting
- Input: 1-phase
- Output: 24 V DC / 60 W
- Input: 1-phase
- Output: 24 V DC / 60 W

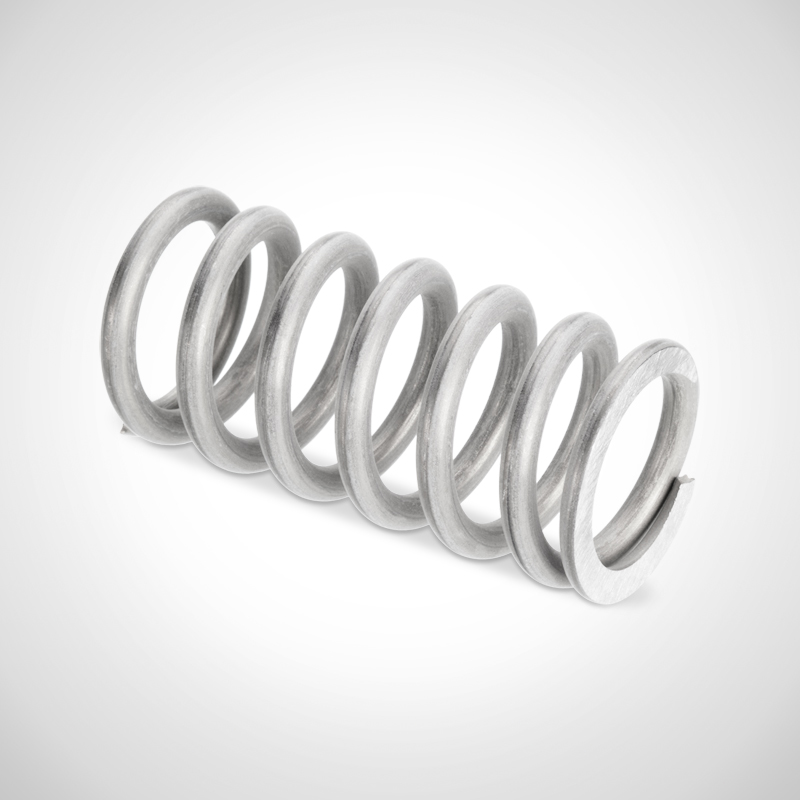

Pressure spring, type DRF-DK
made of stainless steel 1.4301
Article-No. 99800258
For equipping spring pots. (Sole-Star)
d - wire thickness (mm): 5
De - outer coil Ø (mm): 37
D - centre coil Ø (mm): 32
Di - inner coil Ø (mm): 27
Lo - untensioned length (mm): 75
n - spring coils: 5.5
m - pitch: 12.73
sn - max. permissible spring travel (mm): 33.92
Ln - max. compressed length (mm): 41.08
Fn - max. force at Ln (N): 1049.88
R - spring rate (N/mm): 30.95
Dd - mandrel diameter (mm): 26.36
Dh - Sleeve diameter (mm): 38.02
G - Ground: yes
K - Kink-resistant: yes
M - Mass (g): 117.68
d - wire thickness (mm): 5
De - outer coil Ø (mm): 37
D - centre coil Ø (mm): 32
Di - inner coil Ø (mm): 27
Lo - untensioned length (mm): 75
n - spring coils: 5.5
m - pitch: 12.73
sn - max. permissible spring travel (mm): 33.92
Ln - max. compressed length (mm): 41.08
Fn - max. force at Ln (N): 1049.88
R - spring rate (N/mm): 30.95
Dd - mandrel diameter (mm): 26.36
Dh - Sleeve diameter (mm): 38.02
G - Ground: yes
K - Kink-resistant: yes
M - Mass (g): 117.68

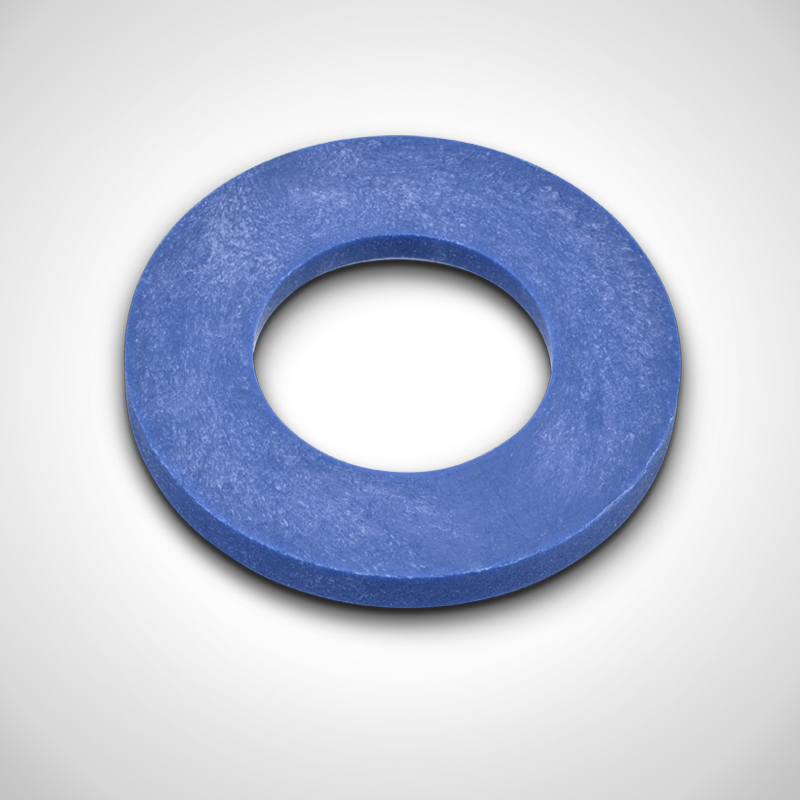

Protective ring, type SRB
made of plastic
Article-No. 99870191
for suction lance type S-51/S-61
- Colour: blue
Dimensions: Ø29.8 x Ø16.0 x 3.0 mm
- Colour: blue
Dimensions: Ø29.8 x Ø16.0 x 3.0 mm

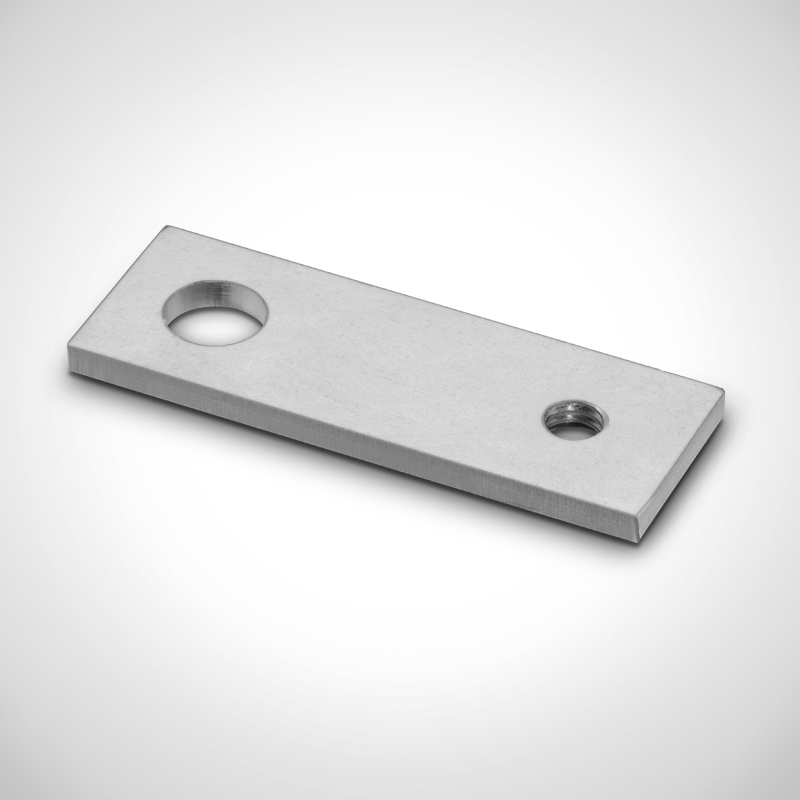

Pull lever turnstile lock, type ZHDK
made of 1.4301 stainless steel
Article-No. 39020020
For connecting the clevis (pull magnet) to the turnstile latch.
- S= 1.0 mm
(without bolts, spacer discs, lock washers and nuts)
- S= 1.0 mm
(without bolts, spacer discs, lock washers and nuts)

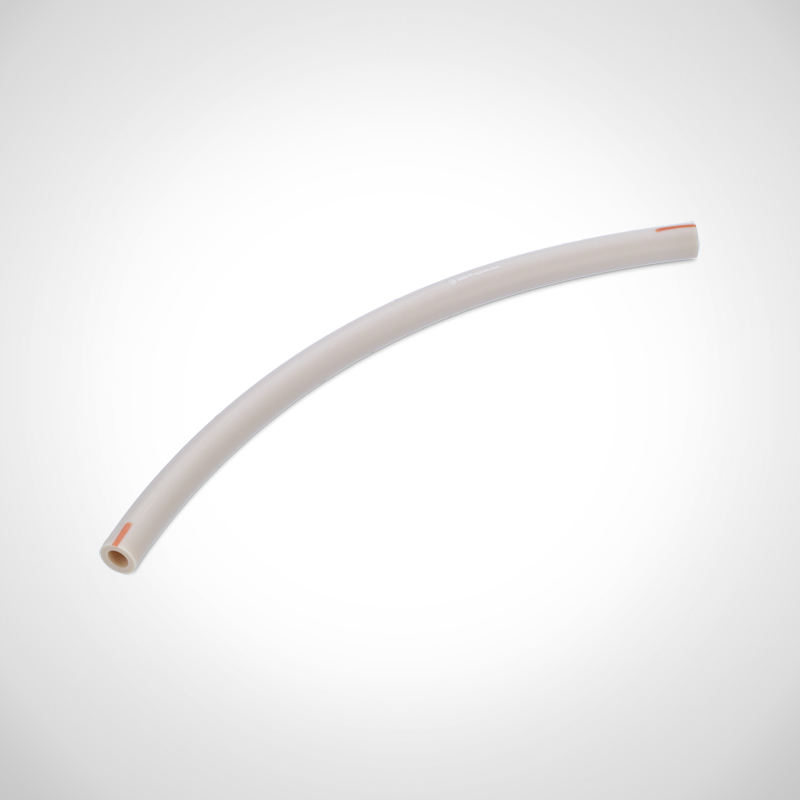

Pump hose, type PS-DOP
Article-No. 93000073
for dosing hose pump 93000072.
Service-Video: Changing the hose of the dosing hose pump
https://bit.ly/service-video_hose-dosingpump
Service-Video: Changing the hose of the dosing hose pump
https://bit.ly/service-video_hose-dosingpump

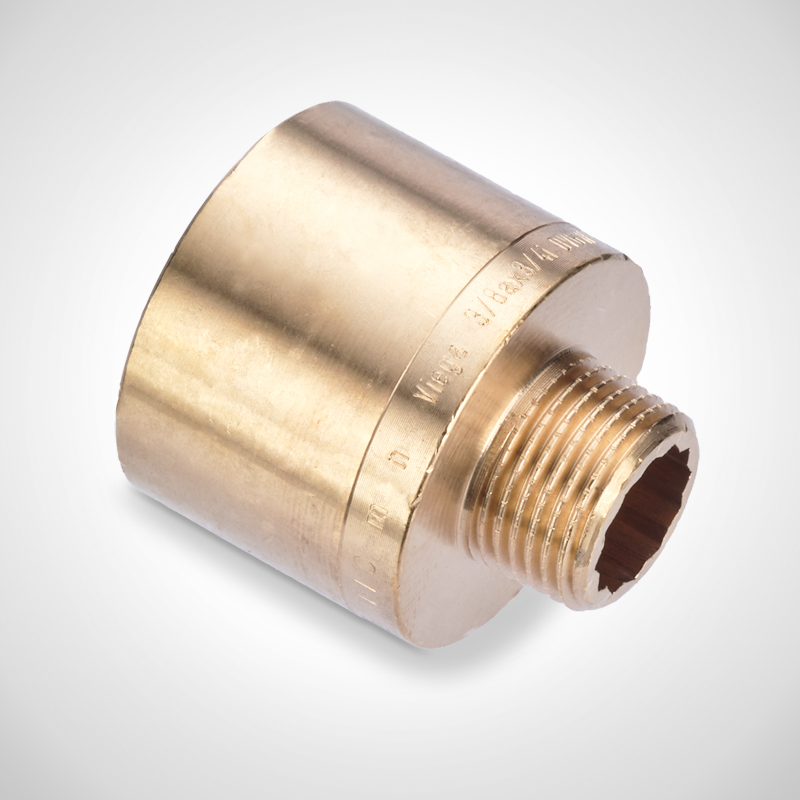

Reducer, type RZS-R-3/8
Material: Red brass
Article-No. 99800365
- 3/8" to 3/4"

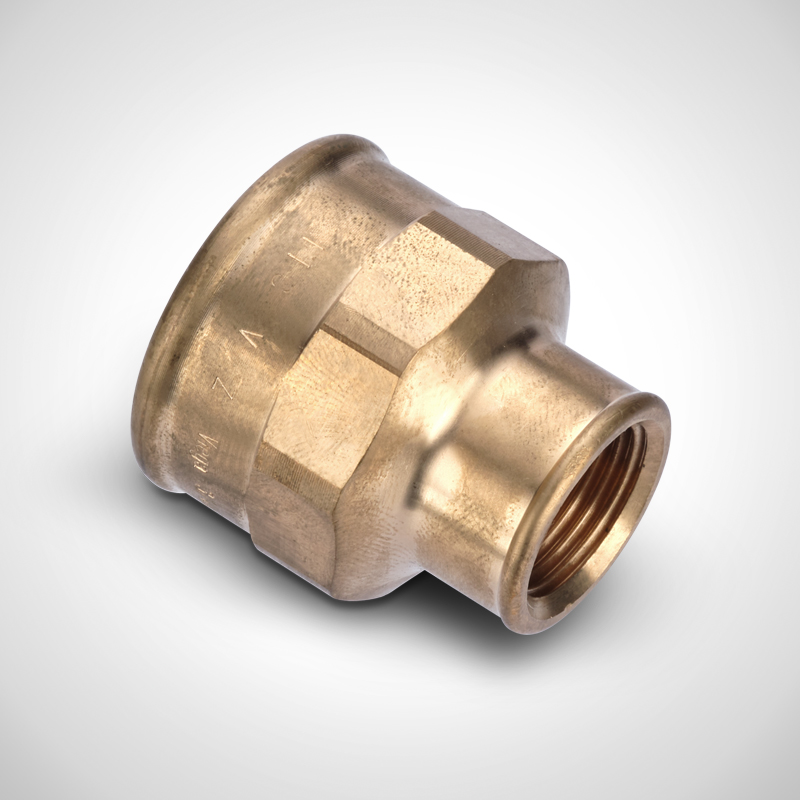

Reducing sleeve, type RMUF-3/8-3/4
Red brass
Article-No. 99800366
- 3/8 - 3/4

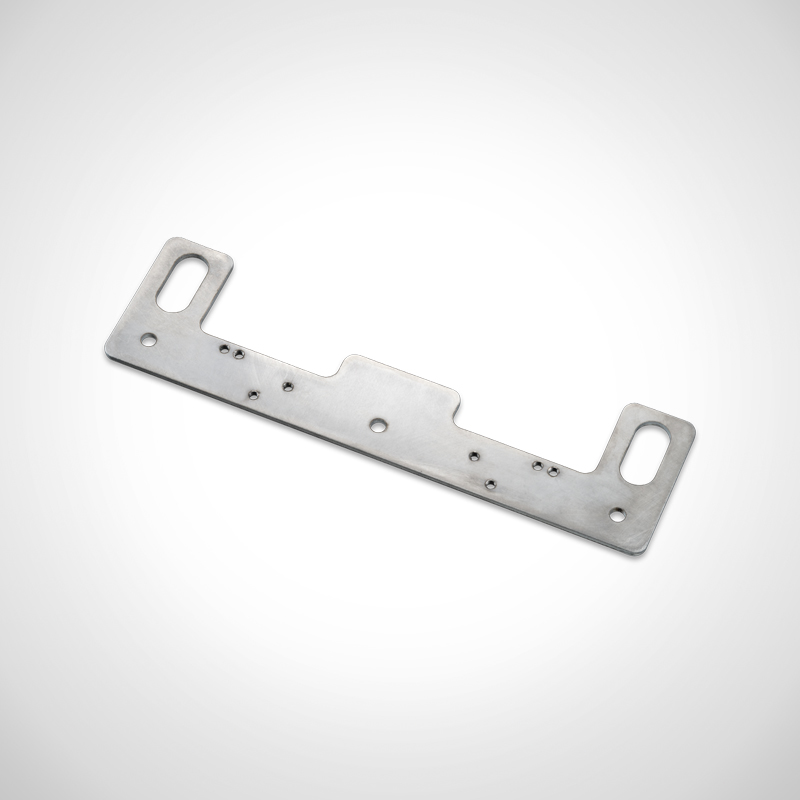

Retaining bridge for 2 microswitches
made of stainless steel
Article-No. 39020003
for mounting 2 microswitches
(12:3)
(12:3)

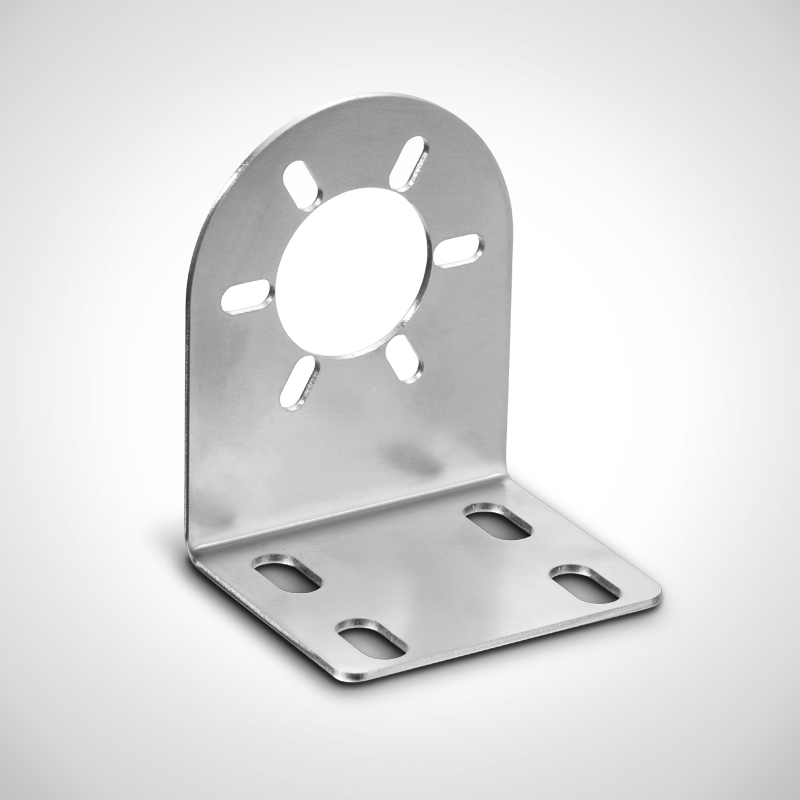

Retaining plate, type HBZM-DK H
made of 1.4301 stainless steel
Article-No. 39020012
- For attaching the pull magnet
to turnstile mechanism
- Can be used left/right
- S= 1.0 mm
to turnstile mechanism
- Can be used left/right
- S= 1.0 mm

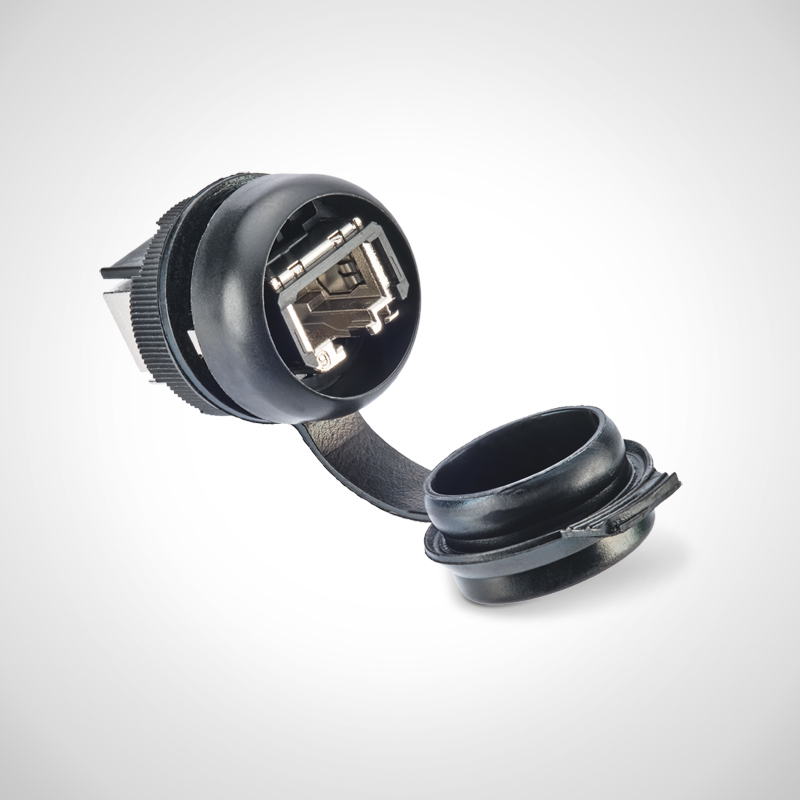

RJ45 coupling
Partly made of plastic
Article-No. 99870196
Insert for built-in housing
- Version: Plug
- Shielded: yes
- Category: 6
- Colour: black
- Version: Plug
- Shielded: yes
- Category: 6
- Colour: black

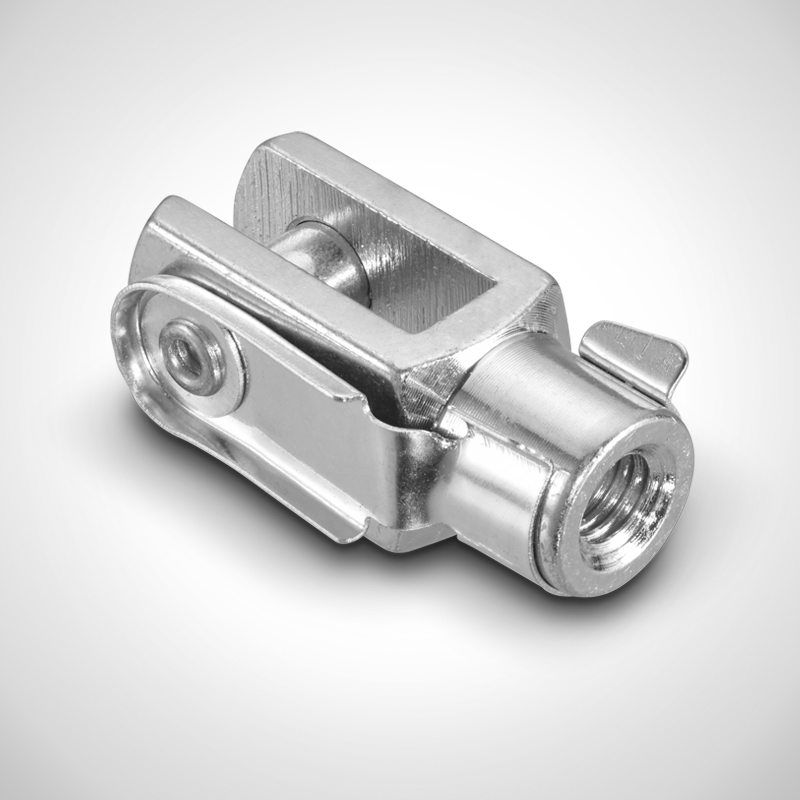

Rod clevis M8, type GBK-DK H
Galvanised steel
Article-No. 98900300
DIN 71752
- galvanised with spring hinge pin
- internal thread M8
- galvanised with spring hinge pin
- internal thread M8

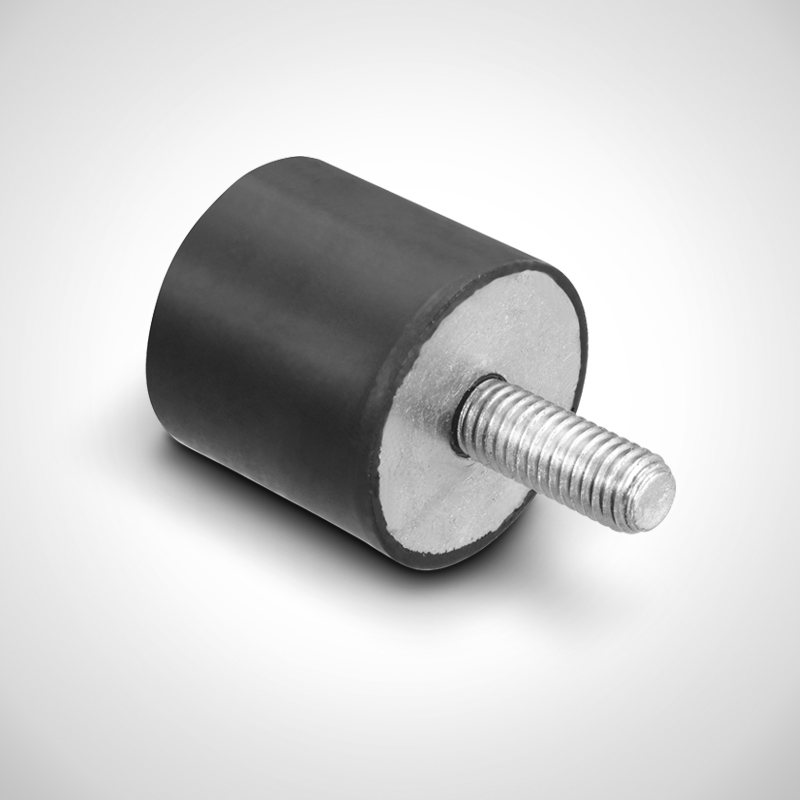

Rubber buffer/stopper, type GPS-DK
Article-No. 39000172
for turnstile mechanism Highline
30/28 mm, M8
55 Shore A
(pos. 6:8 according to exploded view)
30/28 mm, M8
55 Shore A
(pos. 6:8 according to exploded view)

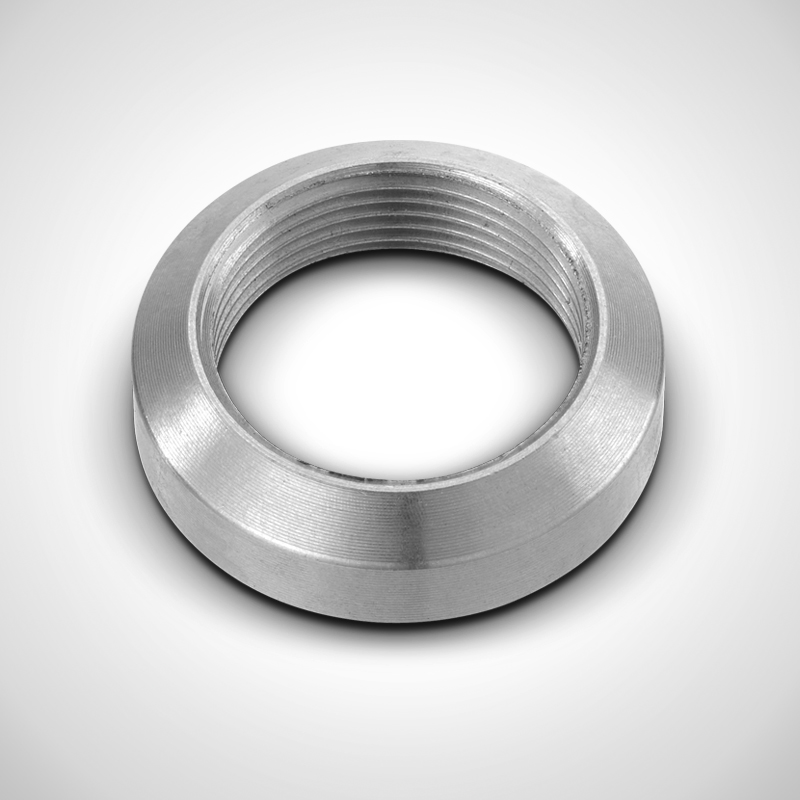

Sensor ring / union nut, type SRM
made of stainless steel 1.4301
Article-No. 99870219
- Size: M18x1

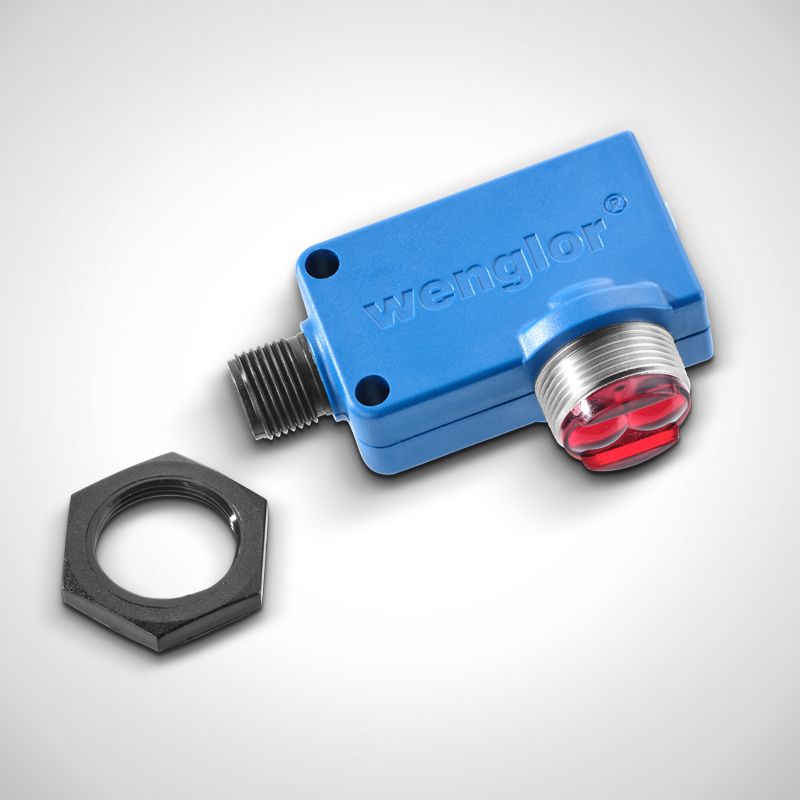

Sensor, type SWE-24/2
Material housing: plastic
Article-No. 99870140
- 24 V version
- Electronic background suppression
- Red light
- Teach-in, external teach-in
- Plug-in sensor
- Operating range/sensing range: 35...120 mm
- Supply voltage: 10...30 V DC
- Material housing: Plastic
- Type of light: Red light
- Protection class: IP 67
Service-Video: Range adjustment of the sensor
https://bit.ly/service-video_sensor-handdisinfection
- Electronic background suppression
- Red light
- Teach-in, external teach-in
- Plug-in sensor
- Operating range/sensing range: 35...120 mm
- Supply voltage: 10...30 V DC
- Material housing: Plastic
- Type of light: Red light
- Protection class: IP 67
Service-Video: Range adjustment of the sensor
https://bit.ly/service-video_sensor-handdisinfection

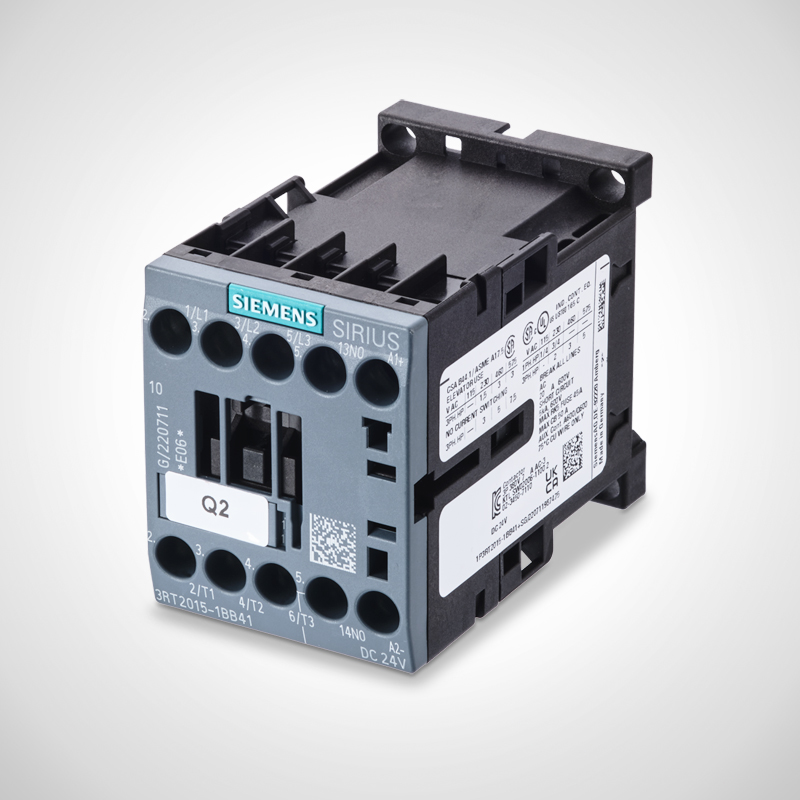

Siemens contactor, type SIS-1
Article-No. 99800217
- Spring-cage connection
- 24DC 3KW/400V
- 24DC 3KW/400V
Siemens LOGO 8 extension module 8, type SIL-E2
Article-No. 99800219
Logic module extension
Width: 71.5 mm
Height: 90 mm
Depth: 58 mm
Width: 71.5 mm
Height: 90 mm
Depth: 58 mm
Siemens LOGO 8 without display, type SIL-2
Article-No. 99800248
Logic module
Width: 71.5 mm
Height: 90 mm
Depth: 58 mm
Width: 71.5 mm
Height: 90 mm
Depth: 58 mm
Siemens LOGO TDE display, type SIL-1
Article-No. 99800270
- LCD with backlight
- Supply voltage: AC/DC
AC: 50/60HZ 20.4...26.4 V
DC: 10.2...28.8 V
- Supply voltage: AC/DC
AC: 50/60HZ 20.4...26.4 V
DC: 10.2...28.8 V

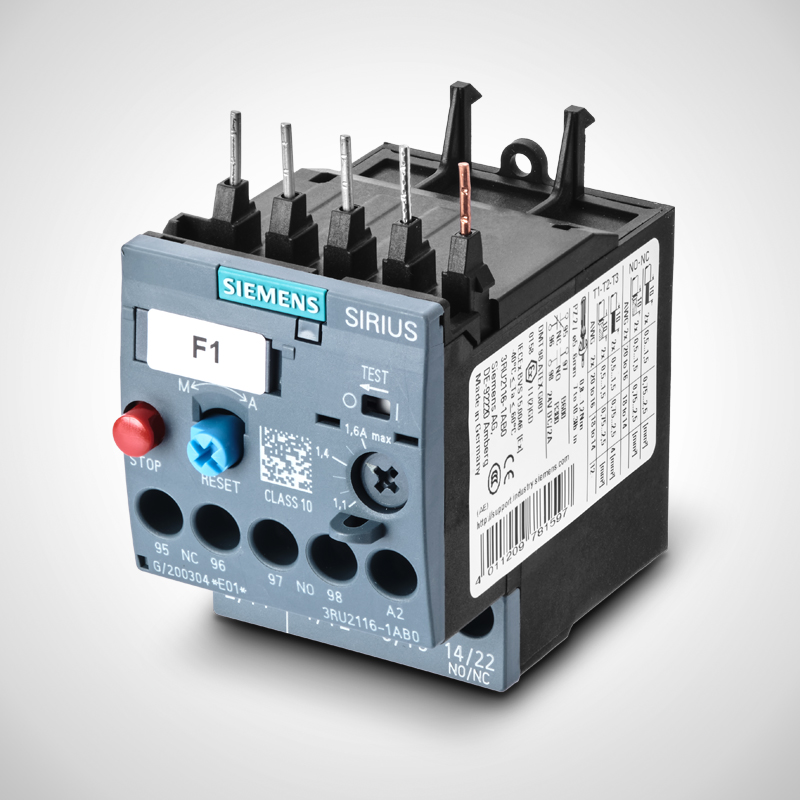

Siemens overload relay, type SIR-1
Article-No. 99800216
- Spring balancer connection
- Direct attachment
- 1,1-1,6A
- Direct attachment
- 1,1-1,6A

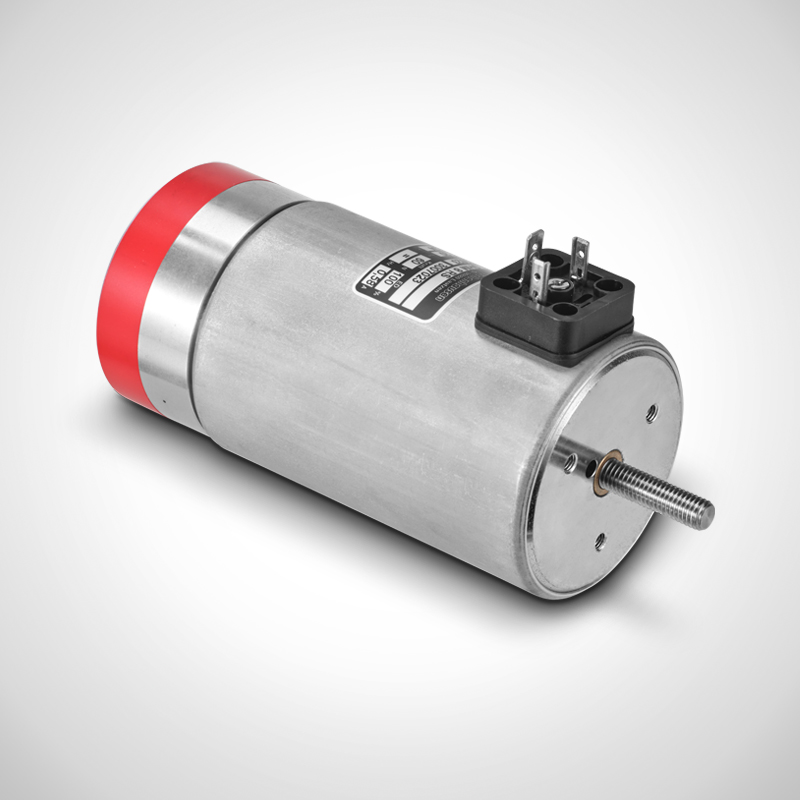

Solenoid coil, type MGH-4
Article-No. 99870212
- 24V DC
- High-performance magnet
- 100%
- incl. return spring
- High-performance magnet
- 100%
- incl. return spring

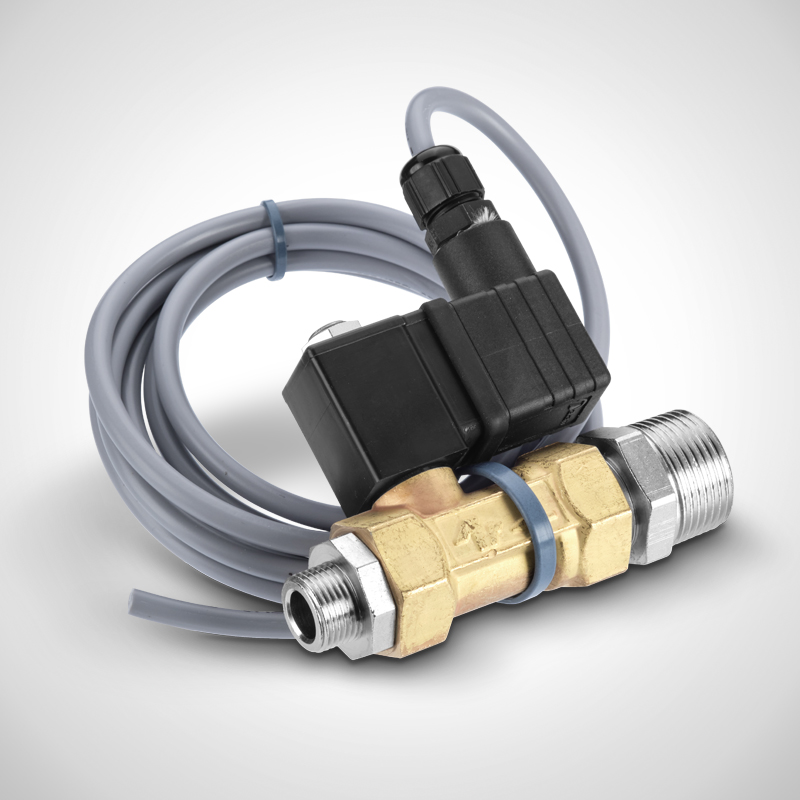

Solenoid valve, type MVR-24/1
Article-No. 19900170
- Medium: Water
Connections:
- Inlet: 3/4"
- Outlet: 3/8"
- with solenoid coil IP65
- with 2 mtr. connection cable
(ready installed)
Technical data
- Rated voltage: 24 V AC/ DC
- Protection class: IP 65
Connections:
- Inlet: 3/4"
- Outlet: 3/8"
- with solenoid coil IP65
- with 2 mtr. connection cable
(ready installed)
Technical data
- Rated voltage: 24 V AC/ DC
- Protection class: IP 65

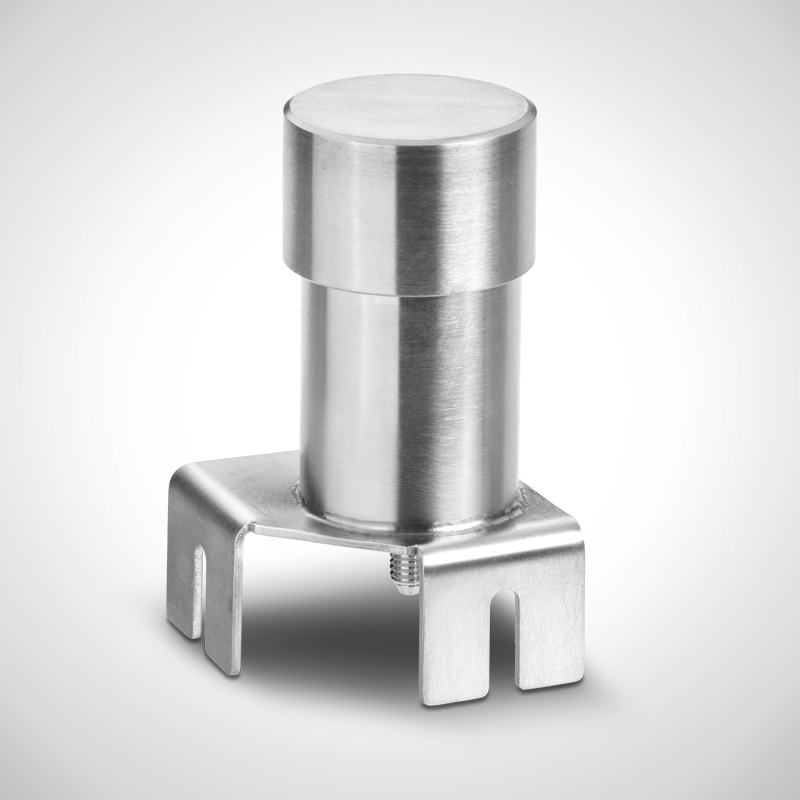

Spring cup left, type FDET-L
made of stainless steel 1.4301
Article-No. 99800259
Left version
consisting of:
- Stainless steel sheet 2.0 mm 91.5 x 91.5 mm
- Stainless steel pot Ø 48.3 x 2.5 L=30
- Incl. hexagon nut M8 A2-70
- Incl. threaded bolt M8 x 95 mm
- Incl. compression spring S Dz= 37 D=5 Z=7 H=78 mm
consisting of:
- Stainless steel sheet 2.0 mm 91.5 x 91.5 mm
- Stainless steel pot Ø 48.3 x 2.5 L=30
- Incl. hexagon nut M8 A2-70
- Incl. threaded bolt M8 x 95 mm
- Incl. compression spring S Dz= 37 D=5 Z=7 H=78 mm

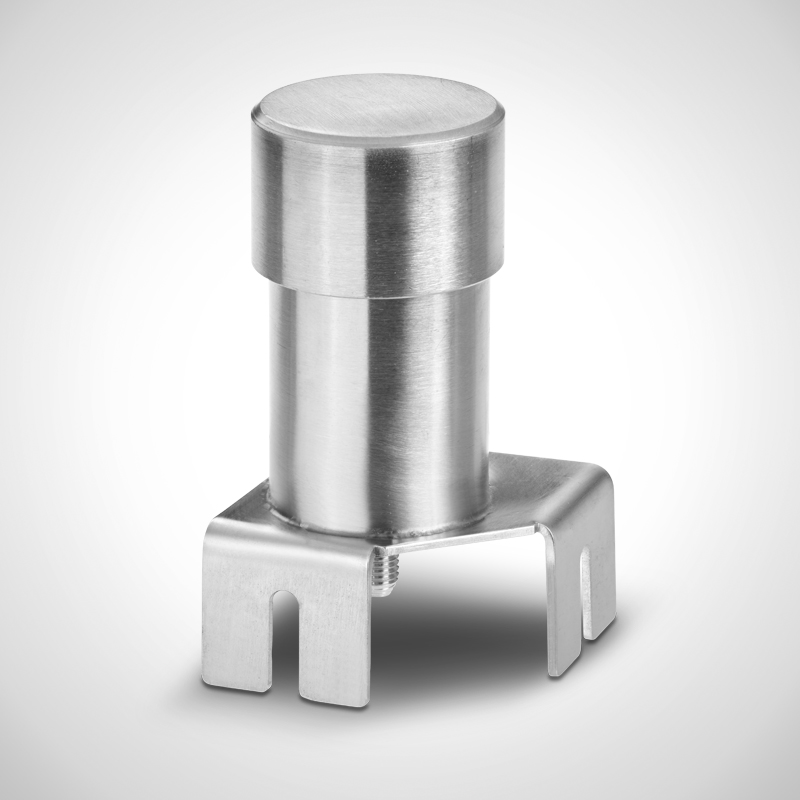

Spring cup right, type FDET-R
made of stainless steel 1.4301
Article-No. 99800260
Welded design!

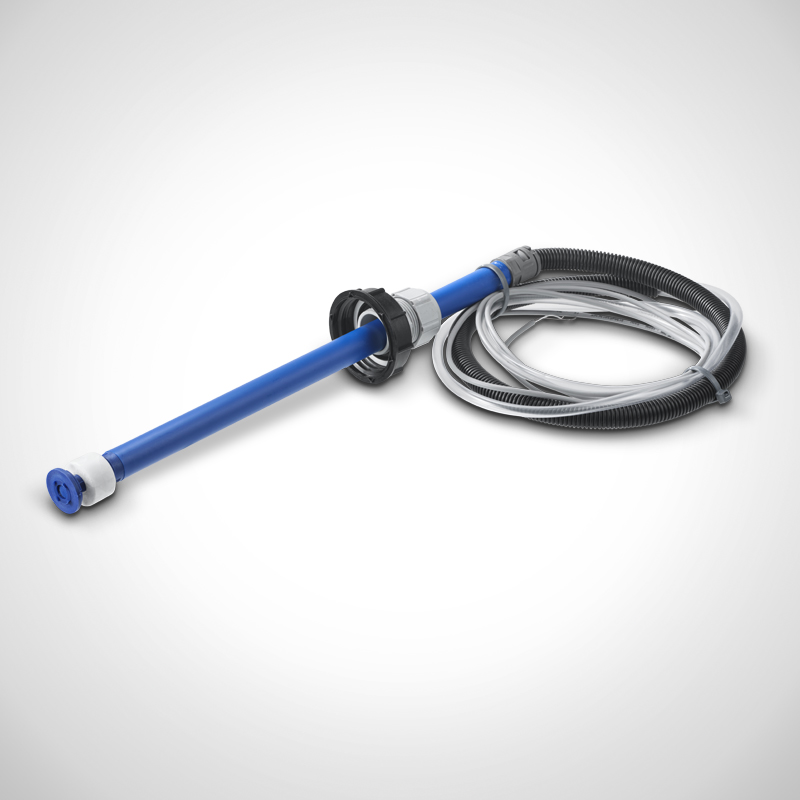

Suction lance, type S-51
Partly made of plastic
Article-No. 99870180
- 400mm
- incl. backflow preventer
- incl. fine filter
- 3m cable
- 2m hose (8/6)
- with small cover, DN51
- incl. backflow preventer
- incl. fine filter
- 3m cable
- 2m hose (8/6)
- with small cover, DN51

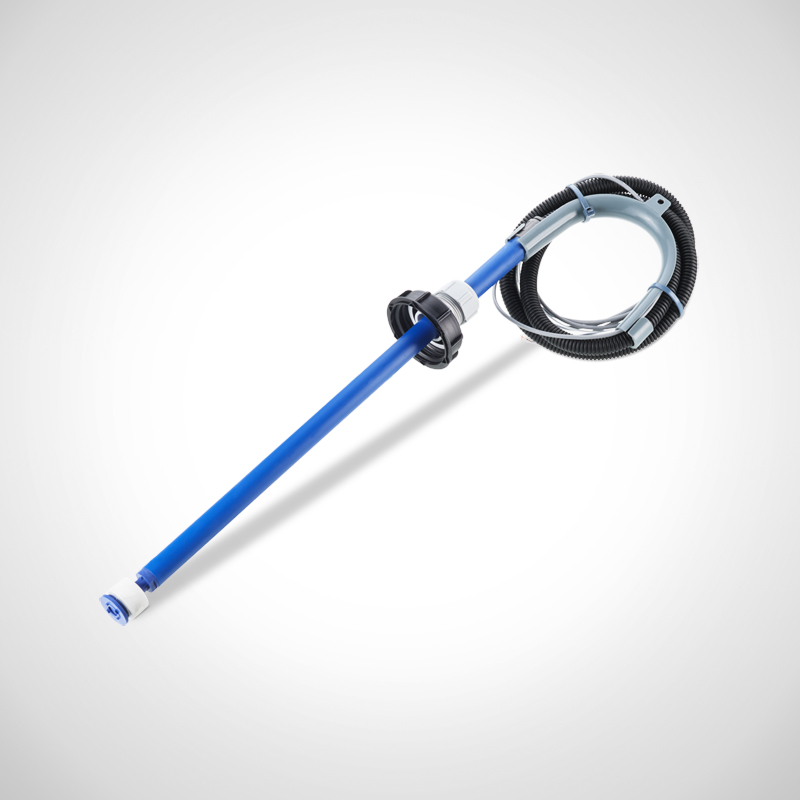

Suction lance, type S-61/500
made of PVC/ PPU
Article-No. 99870194
- Length: 500 mm
- incl. canister lid DN61 (Ø inside 61 mm)
- incl. backflow preventer
- incl. fine filter
- 3m cable
- 1.5m PVC hose (8/6)
- incl. canister lid DN61 (Ø inside 61 mm)
- incl. backflow preventer
- incl. fine filter
- 3m cable
- 1.5m PVC hose (8/6)

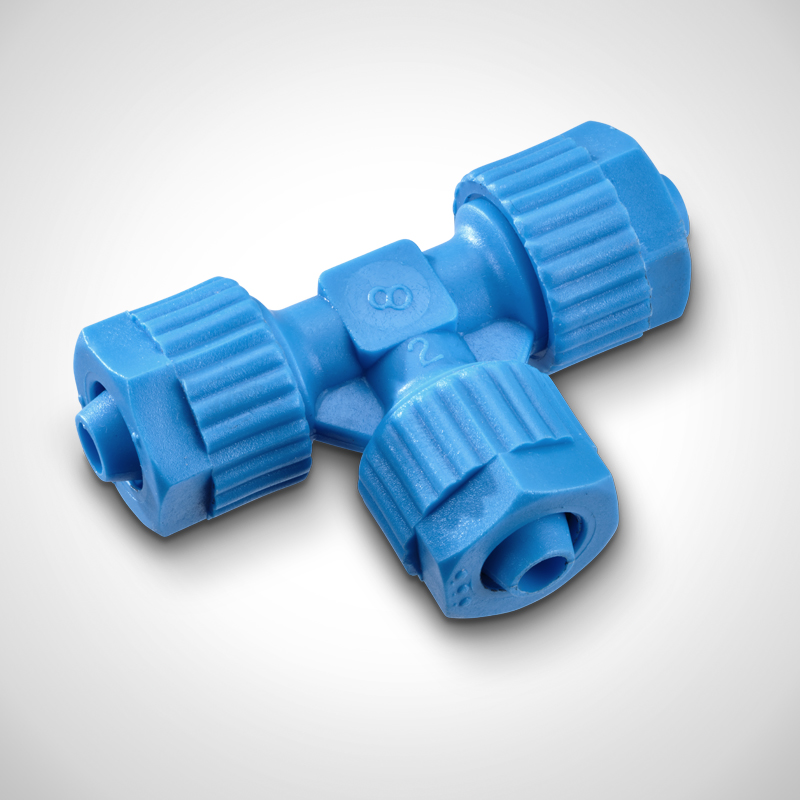

T-connector, type TV-1
made of polypropylene
Article-No. 39010048
- T-connector made of blue plastic
- for hose ø 8/6 mm
Dimensions: 45 x 27.5 mm
- for hose ø 8/6 mm
Dimensions: 45 x 27.5 mm

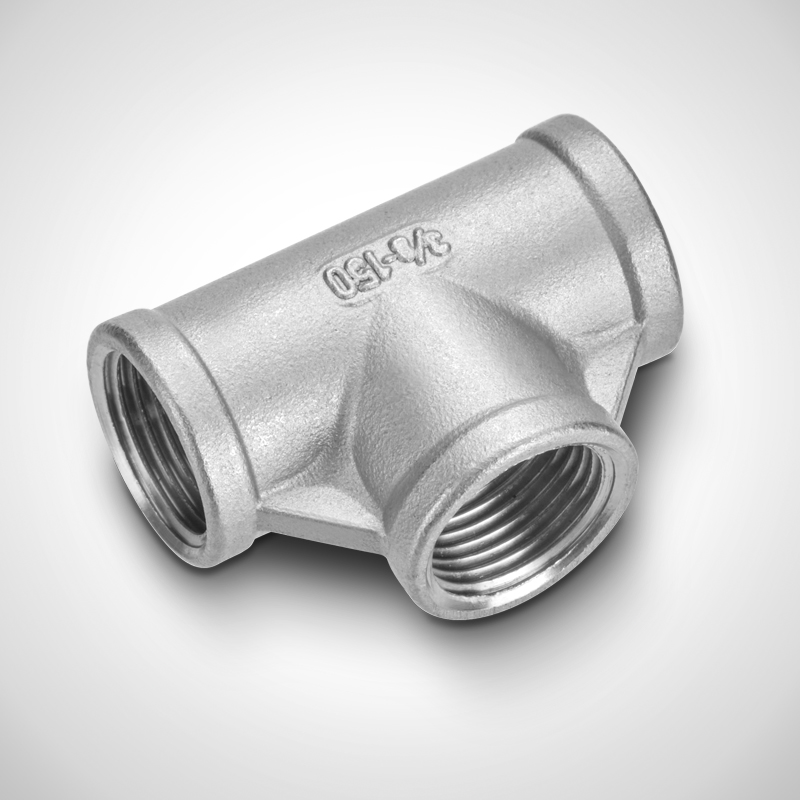

T-piece, type TST-E 3/8
made of stainless steel V4A
Article-No. 39010108
- Internal thread 3/8

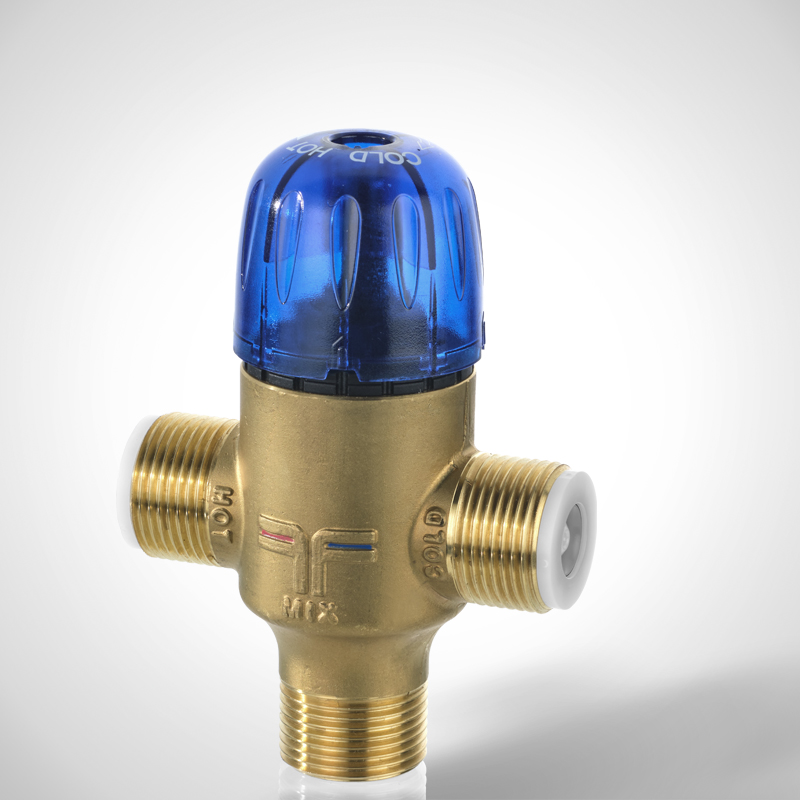

Thermostatic mixing valve, type TMV-HWB-3/4
Housing: Brass ECB
Article-No. 99810004
Keep mixing temperatures in hot water systems constant
and limit them.
Approvals / certificates
- KTW, W270, TÜV, ACS
- Connection: G 3/4", DN 15
with backflow preventer
Technical data:
- Adjustable temperature range: 20 - 50 °C
- Max. Operating pressure PB max: 10 bar
- Min. operating pressure PB min: 0.5 bar
and limit them.
Approvals / certificates
- KTW, W270, TÜV, ACS
- Connection: G 3/4", DN 15
with backflow preventer
Technical data:
- Adjustable temperature range: 20 - 50 °C
- Max. Operating pressure PB max: 10 bar
- Min. operating pressure PB min: 0.5 bar

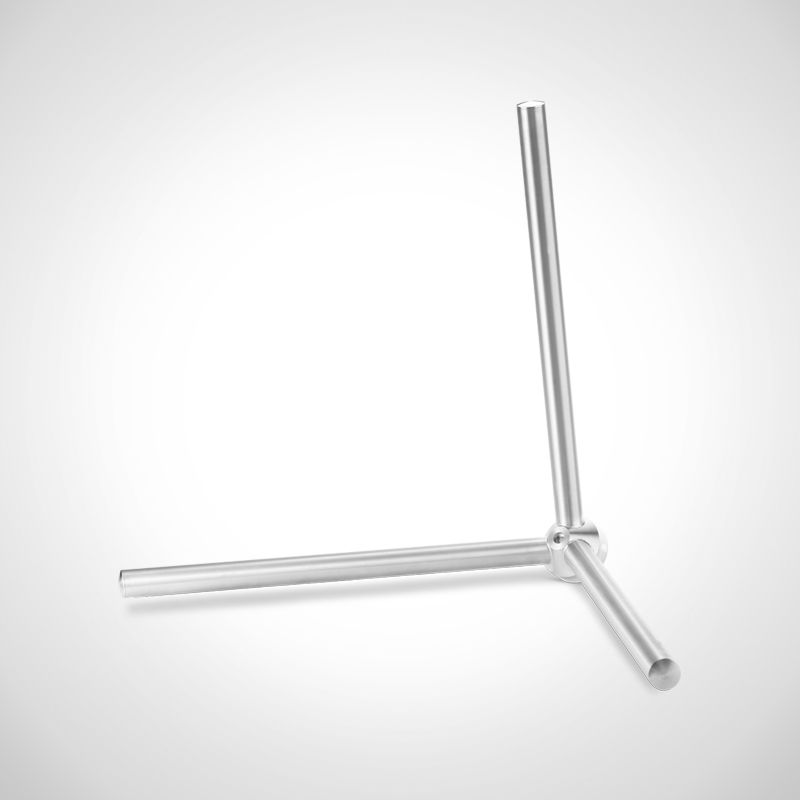

Turnstile head
made of 1.4301 stainless steel
Article-No. 39000204
for Highline turnstile mechanism
with 3 welded locking arms
with 3 welded locking arms

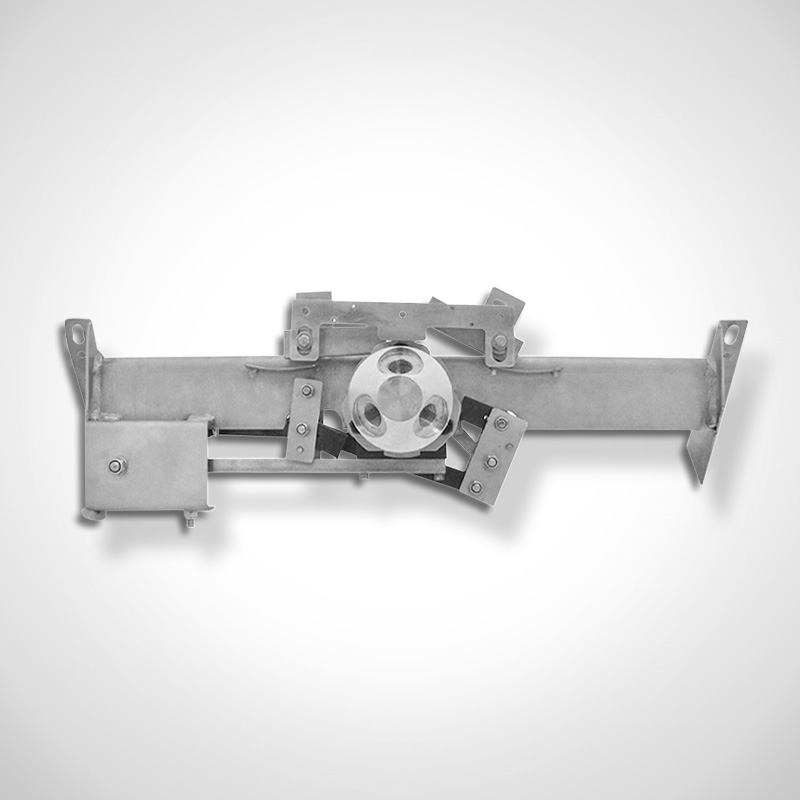

Turnstile mechanism, type DE-M1 A Highline
made of 1.4301 stainless steel
Article-No. 99800230
Overhauled turnstile mechanism
- Mechanical
- WITHOUT pull magnet, microswitch and locking arms
- all parts subject to mechanical stress are made entirely of 1.4301 stainless steel!!!
The delivery takes place in exchange for the
defective mechanics. If we do not receive the defective mechanism
not received back within 14 days or
if the mechanism cannot be repaired, you will be charged
additional costs will be charged to you.
- Mechanical
- WITHOUT pull magnet, microswitch and locking arms
- all parts subject to mechanical stress are made entirely of 1.4301 stainless steel!!!
The delivery takes place in exchange for the
defective mechanics. If we do not receive the defective mechanism
not received back within 14 days or
if the mechanism cannot be repaired, you will be charged
additional costs will be charged to you.
Turnstile mechanism, type DE-M1 Highline
made of 1.4301 stainless steel
Article-No. 99800231
Turnstile mechanism until construction period 12/2021
- Mechanical
- WITHOUT pull magnet, microswitch and locking arms
- All parts subject to mechanical stress are made entirely of 1.4301 stainless steel!
- Mechanical
- WITHOUT pull magnet, microswitch and locking arms
- All parts subject to mechanical stress are made entirely of 1.4301 stainless steel!

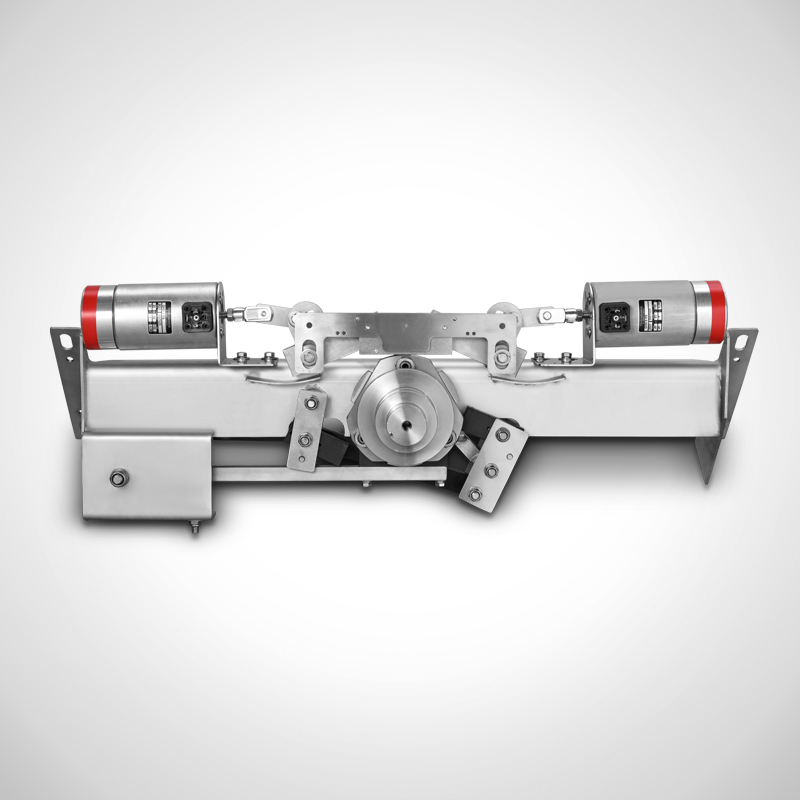

Turnstile mechanism, type DE-M2 Highline
made of 1.4301 stainless steel
Article-No. 99800430
Turnstile mechanism fromt construction period 1/2022
- Mechanical
- WITHOUT pull magnet, microswitch and locking arms
- All parts subject to mechanical stress are made entirely of 1.4301 stainless steel!
- Mechanical
- WITHOUT pull magnet, microswitch and locking arms
- All parts subject to mechanical stress are made entirely of 1.4301 stainless steel!

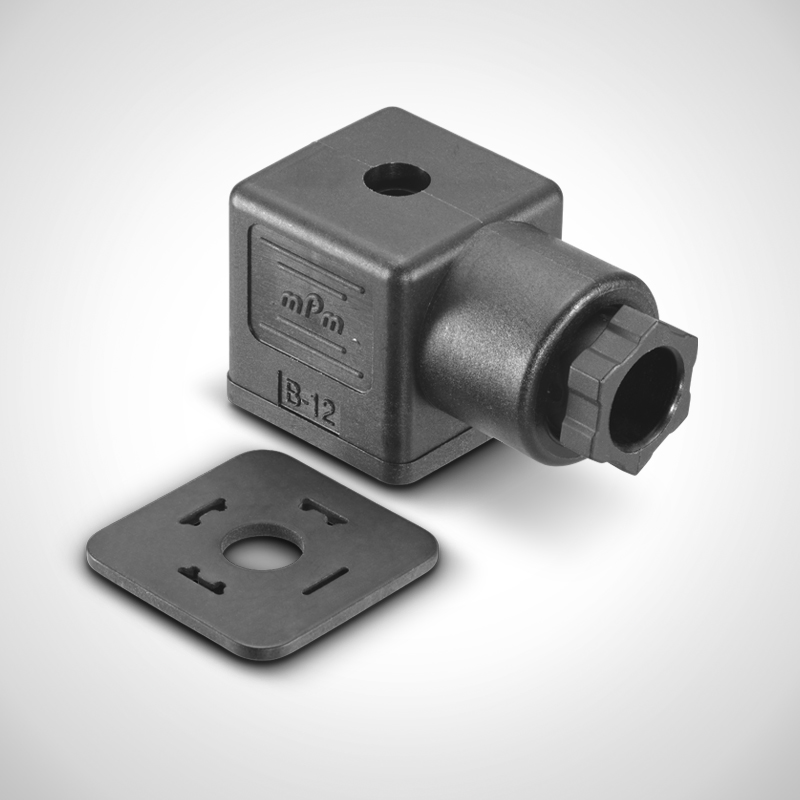

Valve plug, type VSZM
made of plastic
Article-No. 99871002
suitable for valve 19900339 and pull solenoid 99870212

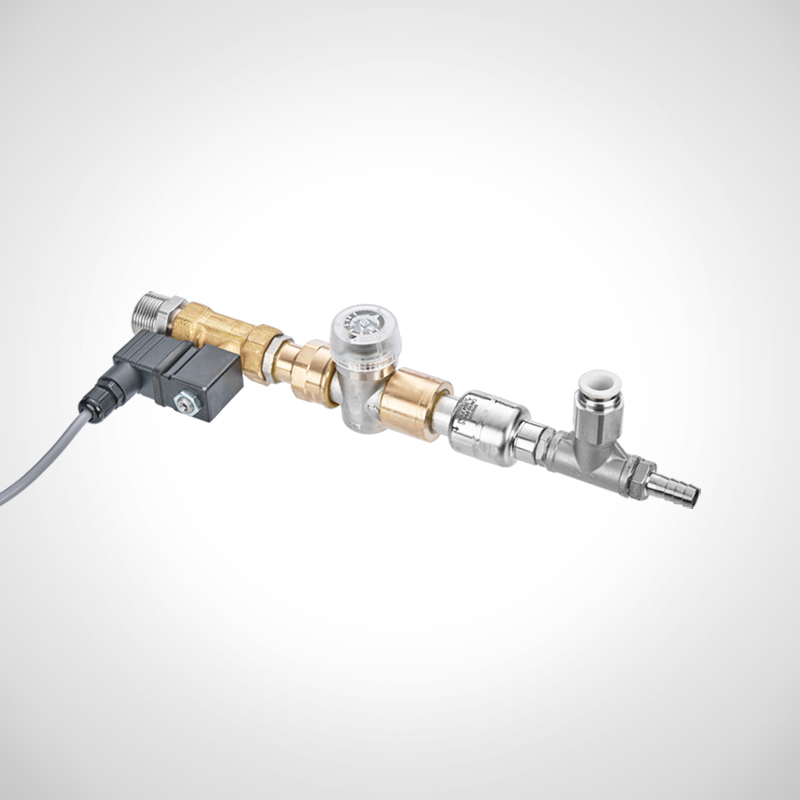

Water connection, type WA-SO/HL-1
Article-No. 99800400
For Solestar Highline
Consisting of:
- Solenoid valve
- Flow rate regulator
- Non-return valve
- Reducing piece
- Reducing sleeve
Consisting of:
- Solenoid valve
- Flow rate regulator
- Non-return valve
- Reducing piece
- Reducing sleeve
No article selected!
Please select at least one item by clicking a check mark in the gray box next to the item number.
