Check-In-Station II 2000 Ecoline | Right-hand version | Left-hand version
Bearing shaft, type LW-BW
Article-No. 98900002
- Drill hole (8.5 mm for grub screw)
must be made on site!
Dimensions: L 130 x D 25 mm
must be made on site!
Dimensions: L 130 x D 25 mm
Brush roller type BW-B 195/1600
Nylon trim
Article-No. 92100021
- 1600 mm body length
- with field trimming
- 25/55/195 mm total diameter
- M 30 thread on one side
- Trimming: nylon 1.5 mm
- Colour: blue
- without bearing shaft
- without cap screw
(Illustration shows brush roller, pre-assembled (optional) with cap screw and bearing shaft)
Service-Video: Changing the brush rollers
https://bit.ly/service-video_brush-rollers
- with field trimming
- 25/55/195 mm total diameter
- M 30 thread on one side
- Trimming: nylon 1.5 mm
- Colour: blue
- without bearing shaft
- without cap screw
(Illustration shows brush roller, pre-assembled (optional) with cap screw and bearing shaft)
Service-Video: Changing the brush rollers
https://bit.ly/service-video_brush-rollers

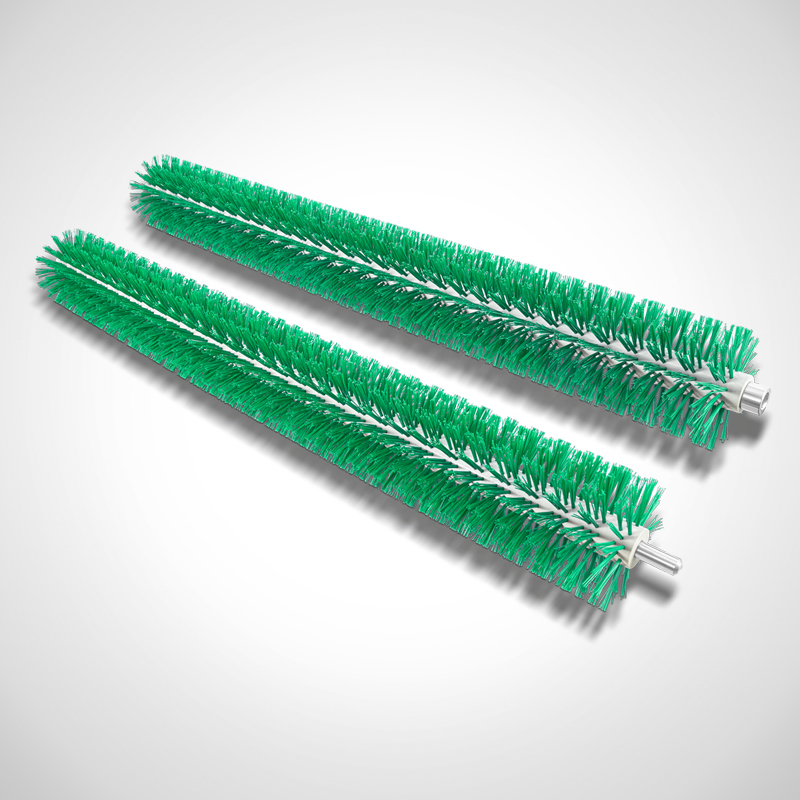

Brush roller type BW-G 195/1600
Nylon trim
Article-No. 92100034
- 1600 mm body length
- with field trimming
- 25/55/195 mm total diameter
- M 30 thread on one side
- Trimming: Nylon 1 mm !!!!
- Colour: green
- without bearing shaft !
- without cap screw !
(Picture shows brush roller, pre-assembled (optional) with cap screw and bearing shaft)
- with field trimming
- 25/55/195 mm total diameter
- M 30 thread on one side
- Trimming: Nylon 1 mm !!!!
- Colour: green
- without bearing shaft !
- without cap screw !
(Picture shows brush roller, pre-assembled (optional) with cap screw and bearing shaft)

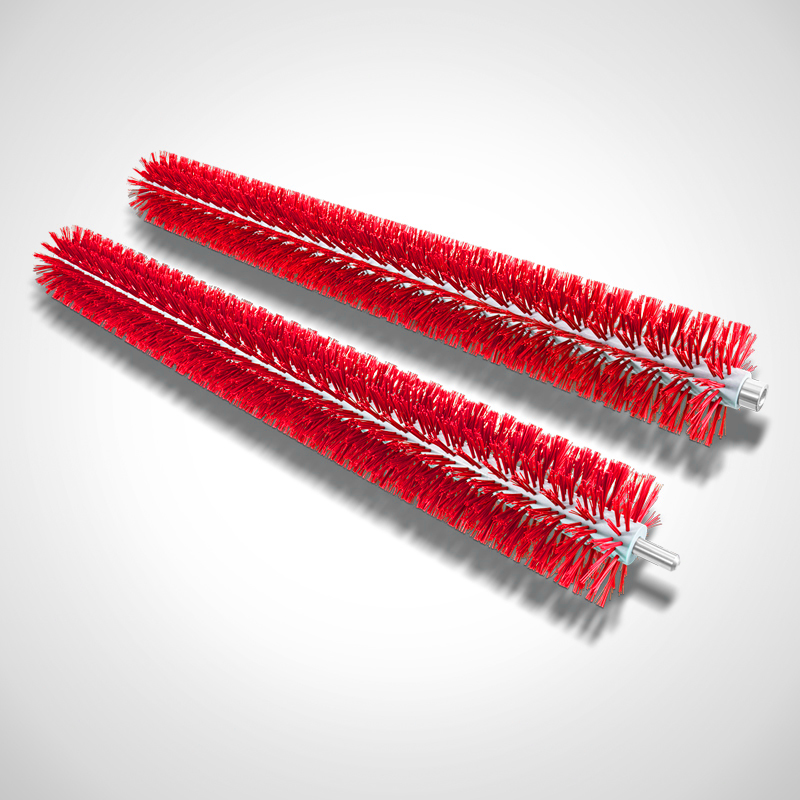

Brush roller type BW-R 195/1600
Nylon trim
Article-No. 99800805
- 1600 mm body length
- with dense field trimming
- 25/55/195 mm total diameter
- M 30 thread on one side
- Trimming: nylon 1.5 mm
- Colour: red PA6
- without bearing shaft
- without cap screw
(Illustration shows brush roller, pre-assembled (optional) with cap screw and bearing shaft)
Service-Video: Changing the brush rollers
https://bit.ly/service-video_brush-rollers
- with dense field trimming
- 25/55/195 mm total diameter
- M 30 thread on one side
- Trimming: nylon 1.5 mm
- Colour: red PA6
- without bearing shaft
- without cap screw
(Illustration shows brush roller, pre-assembled (optional) with cap screw and bearing shaft)
Service-Video: Changing the brush rollers
https://bit.ly/service-video_brush-rollers
Cheese head screw, type ZS-M30x50
Article-No. 98900001
DIN 912-A2
for brush roller
- Drill hole (8.5 mm for grub screw)
must be made on site!
for brush roller
- Drill hole (8.5 mm for grub screw)
must be made on site!
Connection cable 90°, type ASL-W90/2
Article-No. 99870167
- For sensor
- Connection: 4-pin,
- M12 plug;
- 250V AC; 4A
- angled plug (90°)
- Cable length: 2 m, PUR halogen-free
- Colour: black
- Connection: 4-pin,
- M12 plug;
- 250V AC; 4A
- angled plug (90°)
- Cable length: 2 m, PUR halogen-free
- Colour: black
Dosing pump, type DO-S6
Article-No. 99870207
for hand disinfection
- Connection: Internal thread G 1/8"
- Max. Pressure 2.7 bar +/- 15% (self-priming)
- Max. Delivery volume 1500 cm3/min +/- 10%
- Seal EPDM
- Max. Medium temperature: 35 °C
- Max. Ambient temperature: 60 °C
- Max. Switch-on time: 100% ED
Technical data
- 230 V~50 Hz
- Power: 35 watt
- Connection: Internal thread G 1/8"
- Max. Pressure 2.7 bar +/- 15% (self-priming)
- Max. Delivery volume 1500 cm3/min +/- 10%
- Seal EPDM
- Max. Medium temperature: 35 °C
- Max. Ambient temperature: 60 °C
- Max. Switch-on time: 100% ED
Technical data
- 230 V~50 Hz
- Power: 35 watt
Dosing unit, type DE-VE
made of polypropylene plastic
Article-No. 93000000
for cleaning agent canisters
- Max. Operating pressure: 125 PSI
- Max. Operating pressure: 125 PSI
Drive shaft, type AW-2
made of 1.4301 stainless steel
Article-No. 98900005
- Motor side with groove for split pin
- with turned collar!
- External hexagon Brush side
- without split pin and disc
Dimensions: L 145 / D: 18.85 or 14.07 mm
- with turned collar!
- External hexagon Brush side
- without split pin and disc
Dimensions: L 145 / D: 18.85 or 14.07 mm
Elbow screw-in fitting, type W-ESV/P-1
made of polypropylene
Article-No. 39010046
- Thread 1/8"
- conical
- for hose Ø 8/6 mm
- blue plastic
Dimensions: 22.5 x 19 mm
- conical
- for hose Ø 8/6 mm
- blue plastic
Dimensions: 22.5 x 19 mm
Full cone jet nozzle, type VD-1/8
made of PVDF, transparent
Article-No. 99870039
Dim.(mm): Diameter 15.9 x L 22.2 mm
6-kt 9,5mm
- Threaded connection (AG): 1/8"
- Size: 1.3
- Colour: transparent
- Outlet bore: 1.0 mm
- Volume flow (l/min) at 3 bar pressure: 0.97 mm
- Spray angle: 0.7 bar: 52°
1.5 bar: 65°
6.0 bar: 59°
- Operating temperature (at 7 bar): up to 150°C
The nozzle body has a hexagon and a collar for easy (dis)assembly.
6-kt 9,5mm
- Threaded connection (AG): 1/8"
- Size: 1.3
- Colour: transparent
- Outlet bore: 1.0 mm
- Volume flow (l/min) at 3 bar pressure: 0.97 mm
- Spray angle: 0.7 bar: 52°
1.5 bar: 65°
6.0 bar: 59°
- Operating temperature (at 7 bar): up to 150°C
The nozzle body has a hexagon and a collar for easy (dis)assembly.
Geared motor, type GM-4
Aluminum housing
Article-No. 99800177
- Motor can be used left + right
(change of direction by
by customer conversion of the flange
easily and at short notice)
- Painted version
Technical data
- Voltage: 230/ 400V - 1.14 / 0.65 A
- Frequency: 50 Hz
- Protection class: IP 55
- RPM: 2780/70min-1
- Reduction ratio: 40:1
- Power: 0.25 kW
(change of direction by
by customer conversion of the flange
easily and at short notice)
- Painted version
Technical data
- Voltage: 230/ 400V - 1.14 / 0.65 A
- Frequency: 50 Hz
- Protection class: IP 55
- RPM: 2780/70min-1
- Reduction ratio: 40:1
- Power: 0.25 kW
Grub screw, type MS-M8x30
made of stainless steel
Article-No. 98900065
- for fastening the cylinder head screw
to the brush roller of the pass-through
sole cleaning system
to the brush roller of the pass-through
sole cleaning system
Hose filter with non-return valve, type FF-RV 1
Article-No. 93000063
- Hose filter for liquid with integrated non-return valve for PVC suction hose
(pass-through sole cleaner or hand sanitiser)
(pass-through sole cleaner or hand sanitiser)
Insulating enclosure, type ISGE-11
Partly made of plastic
Article-No. 99800516
- For main switch with rotary actuation
- Protection class: IP54
- Integrated terminal for PE(N) connection
- 2 M25 cable entries pre-moulded
- INSULATED HOUSING
Dimensions: 129 x 85 x 124 mm
- Protection class: IP54
- Integrated terminal for PE(N) connection
- 2 M25 cable entries pre-moulded
- INSULATED HOUSING
Dimensions: 129 x 85 x 124 mm
Junction box housing, type GEAB-5
made of ABS plastic
Article-No. 99800498
for washing trough control.
- Empty housing
- with protection class IP66/IP67
- Ui=690V AC
- Ui=1000V DC
- Internal mounting points
- for standard indoor installations
- with quick-release fastener
- Box: ABS, grey
- Cover: polycarbonate
- transparent, smooth side panels
Dim. L: 202 x W 122 x H 90 mm
- Empty housing
- with protection class IP66/IP67
- Ui=690V AC
- Ui=1000V DC
- Internal mounting points
- for standard indoor installations
- with quick-release fastener
- Box: ABS, grey
- Cover: polycarbonate
- transparent, smooth side panels
Dim. L: 202 x W 122 x H 90 mm
LED signal light, type SL-LED 4
Polycarbonate hood/ stainless steel base
Article-No. 99800561
Built-in signal light with four signal colours.
- Recessed version
- Four-colour signal light with LED technology.
- Signal colours: red, yellow, green and blue (4 in 1)
- Light source: super bright LEDs.
- Service life: approx. 100,000 operating hours
Dimensions: Ø 60/85 mm, height 35 mm
Technical specifications:
Operating voltage: 24 V DC
switched 0 volts
Protection class: IP 65
Current consumption: RD = 30 mA, GN = 40 mA, YE = 30 mA
- Recessed version
- Four-colour signal light with LED technology.
- Signal colours: red, yellow, green and blue (4 in 1)
- Light source: super bright LEDs.
- Service life: approx. 100,000 operating hours
Dimensions: Ø 60/85 mm, height 35 mm
Technical specifications:
Operating voltage: 24 V DC
switched 0 volts
Protection class: IP 65
Current consumption: RD = 30 mA, GN = 40 mA, YE = 30 mA
Microprocessor control board, type HDE-07
Article-No. 99870122
For hand cleaning Soap-/Desi-Check
with coupling of continuous sole cleaning systems (Sole-Star) + hand sanitiser dispenser
with coupling of continuous sole cleaning systems (Sole-Star) + hand sanitiser dispenser
Microprocessor control board, type HDE-08
Article-No. 99870117
for pass-through sole cleaning systems
from year of construction 04/2012
(not compatible with older models!)
from year of construction 04/2012
(not compatible with older models!)
Microswitch limit switch, type MKS-DK E
Partly made of plastic
Article-No. 39020013
- 5A 250 V~
- Changeover contact, plug connection
- Lever mounted, R-47-long
- Changeover contact, plug connection
- Lever mounted, R-47-long
Motor protection switch, type MSS-S-2
Article-No. 99800316
- PKZM0-4 XTPR004BC1
- Rotary actuation
TECHNICAL DATA:
Voltage: 400V/50Hz/3ph
Rated motor power: 1.5kW
Rated continuous current: 4.0A
Overload release: 2.5 - 4.0 A
- Rotary actuation
TECHNICAL DATA:
Voltage: 400V/50Hz/3ph
Rated motor power: 1.5kW
Rated continuous current: 4.0A
Overload release: 2.5 - 4.0 A
Non-return valve, type RV-1/8
Article-No. 99870038
- Thread G1/8
- Length: 34mm
- Operating pressure: 2-10 bar
- Opening pressure: 0.2 bar
- Flow rate: 900 Nl/min
- Temperature range: NBR: -10°C to +80°C,
FKM: -20°C to + 110°C
- Nominal size: G1/8 = 5.2mm
Service-Video: Replacing the non-return valve
https://bit.ly/service-video_non-return-valve
- Length: 34mm
- Operating pressure: 2-10 bar
- Opening pressure: 0.2 bar
- Flow rate: 900 Nl/min
- Temperature range: NBR: -10°C to +80°C,
FKM: -20°C to + 110°C
- Nominal size: G1/8 = 5.2mm
Service-Video: Replacing the non-return valve
https://bit.ly/service-video_non-return-valve
Non-return valve, type RV-10
made of brown plastic
Article-No. 99870160
- Suitable for continuous sole cleaning machines
- for integration into the water hose
- Connection for hose Ø 10mm on both sides
- for integration into the water hose
- Connection for hose Ø 10mm on both sides
Plastic hose, type STSC-T 8/6
made of polyurethane
Article-No. 39010130
- transparent
- food-safe
- 8/6"
- food-safe
- 8/6"
Sensor, type SWE-24
Plastic housing
Article-No. 99870115
- 24 V version
- M18 reflex switch
- Operating range/sensing range: 500 mm
- Supply voltage: 10...30 V DC
- Connection: M12 plug, 4-pin
- PNP 200 mA
- M18 reflex switch
- Operating range/sensing range: 500 mm
- Supply voltage: 10...30 V DC
- Connection: M12 plug, 4-pin
- PNP 200 mA
Sensor, type SWE-24/2
Material housing: plastic
Article-No. 99870140
- 24 V version
- Electronic background suppression
- Red light
- Teach-in, external teach-in
- Plug-in sensor
- Operating range/sensing range: 35...120 mm
- Supply voltage: 10...30 V DC
- Material housing: Plastic
- Type of light: Red light
- Protection class: IP 67
Service-Video: Range adjustment of the sensor
https://bit.ly/service-video_sensor-handdisinfection
- Electronic background suppression
- Red light
- Teach-in, external teach-in
- Plug-in sensor
- Operating range/sensing range: 35...120 mm
- Supply voltage: 10...30 V DC
- Material housing: Plastic
- Type of light: Red light
- Protection class: IP 67
Service-Video: Range adjustment of the sensor
https://bit.ly/service-video_sensor-handdisinfection
Solenoid coil, type MGH-2
Article-No. 99870079
plus M push rod
Stroke: 8 mm, force: 4 N
ED 100%
24 V, 0.17 A
Stroke: 8 mm, force: 4 N
ED 100%
24 V, 0.17 A
Solenoid valve, type MV-230/1
made of plastic
Article-No. 19900012
- 1-fold
- Angled version
- DN 10
- Inlet: 3/4" AG
- Drain spout: 14 mm
Technical data:
- 230 V AC - 6W
- 100% ED
- Tu 60° C-Tm 25° C
- Tu 25° C-Tm 90° C
- Tu 60° C-Tm 90° C
- A.B. 3min. / 5 min.
- Angled version
- DN 10
- Inlet: 3/4" AG
- Drain spout: 14 mm
Technical data:
- 230 V AC - 6W
- 100% ED
- Tu 60° C-Tm 25° C
- Tu 25° C-Tm 90° C
- Tu 60° C-Tm 90° C
- A.B. 3min. / 5 min.
Solenoid valve, type MV-24/1
made of PA 6 30 % GF
Article-No. 19900024
- Coil design AKK
- Spigot angle 180°
- Function: de-energised closed
- Installation position: any
- Medium: water
- Flow direction: marked by arrow on housing
arrow on the housing
- Connections: Inlet - external thread G 3/4"
Outlet - grooved connection Ø 10.5 mm
- with steel flange
Test mark:
Standard versions: ÖVE/ VDE
(tested according to EN 60730)
Materials:
- Valve body: PA 6 30 % GF
- Core guide sleeve: PA 6.6 30 % GF
- Coil sheathing: heat-stabilised PA 6 with
with increased thermal conductivity
- Solenoid core and spring: stainless steel
- Diaphragm and flow regulator: EPDM
- Dirt strainer: POM
- Enamelled copper wire: Insulation class H
according to VDE 0530
- Spigot angle 180°
- Function: de-energised closed
- Installation position: any
- Medium: water
- Flow direction: marked by arrow on housing
arrow on the housing
- Connections: Inlet - external thread G 3/4"
Outlet - grooved connection Ø 10.5 mm
- with steel flange
Test mark:
Standard versions: ÖVE/ VDE
(tested according to EN 60730)
Materials:
- Valve body: PA 6 30 % GF
- Core guide sleeve: PA 6.6 30 % GF
- Coil sheathing: heat-stabilised PA 6 with
with increased thermal conductivity
- Solenoid core and spring: stainless steel
- Diaphragm and flow regulator: EPDM
- Dirt strainer: POM
- Enamelled copper wire: Insulation class H
according to VDE 0530
T-connector, type TV-1
made of polypropylene
Article-No. 39010048
- T-connector made of blue plastic
- for hose ø 8/6 mm
Dimensions: 45 x 27.5 mm
- for hose ø 8/6 mm
Dimensions: 45 x 27.5 mm
Tension spring type ZGF-DK E
Article-No. 39000174
for Ecoline turnstile mechanism
Thermostatic mixing valve, type TMV-SS-3/4
Dezincification-free brass housing, chrome-plated
Article-No. 99810002
- Insensitive to calcification
- Adjustable
- Max. Operating pressure: 10 bar
- Max. Inlet temperature: 90°C
- Temp. setting: +30°C - +48°C
- Certified according to EN 12165 CW617N
Dimensions: W 55 x H 95 mm
Technical data:
Connection: R 3/4"
- Adjustable
- Max. Operating pressure: 10 bar
- Max. Inlet temperature: 90°C
- Temp. setting: +30°C - +48°C
- Certified according to EN 12165 CW617N
Dimensions: W 55 x H 95 mm
Technical data:
Connection: R 3/4"
Turnstile mechanism type DE-M 1 Ecoline
made of 1.4301 stainless steel
Article-No. 99800234
- Complete mechanical turnstile unit
- WITHOUT pull magnet, microswitch and locking arms
(Image shows turnstile mechanism with optional pull magnets)
- WITHOUT pull magnet, microswitch and locking arms
(Image shows turnstile mechanism with optional pull magnets)
No article selected!
Please select at least one item by clicking a check mark in the gray box next to the item number.
