Wash basin Highline - Sensor actuation | Type WR-HL 2 | Type WR-HL 3 | Type WR-HL 4 | Type WR-HL 5 |

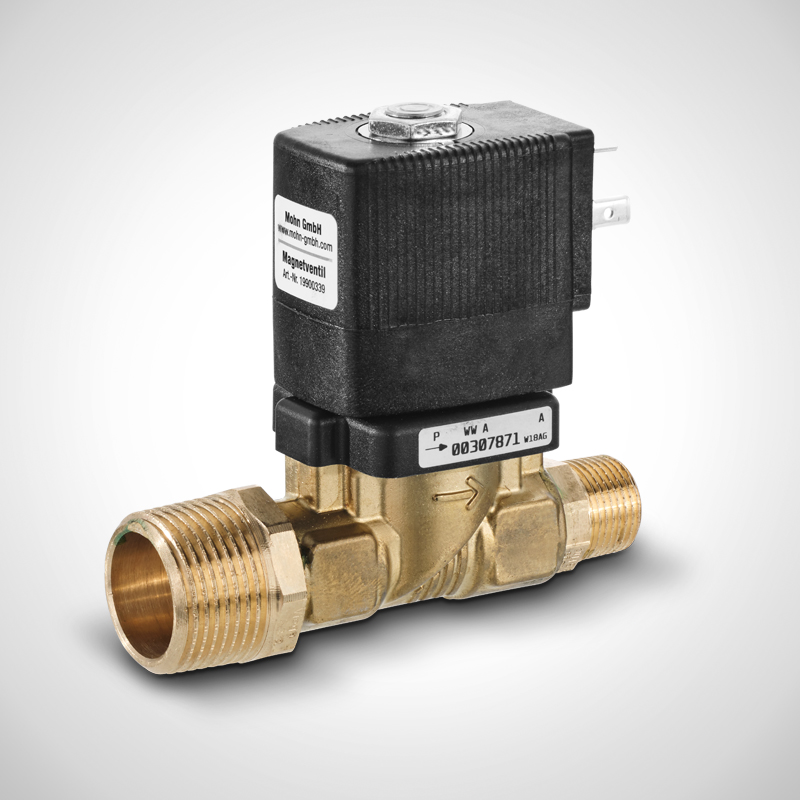

2/2-way solenoid valve, type MV-24/2-2
Made of brass
Article-No. 19900339
Servo-controlled
Nominal diameter: 10mm
Line connection: G 3/8 socket
Coil size: 32mm
Voltage: 24V
Frequency: Direct current
Power consumption: 8W
Pressure min.: 0.50 bar
Max. pressure: 10 bar
Medium temp. min.: -10 °C
Medium temp. max.: 80 °C
Ambient temp. min.: -10 °C
Ambient temp. max.: 55 °C
Nominal diameter: 10mm
Line connection: G 3/8 socket
Coil size: 32mm
Voltage: 24V
Frequency: Direct current
Power consumption: 8W
Pressure min.: 0.50 bar
Max. pressure: 10 bar
Medium temp. min.: -10 °C
Medium temp. max.: 80 °C
Ambient temp. min.: -10 °C
Ambient temp. max.: 55 °C

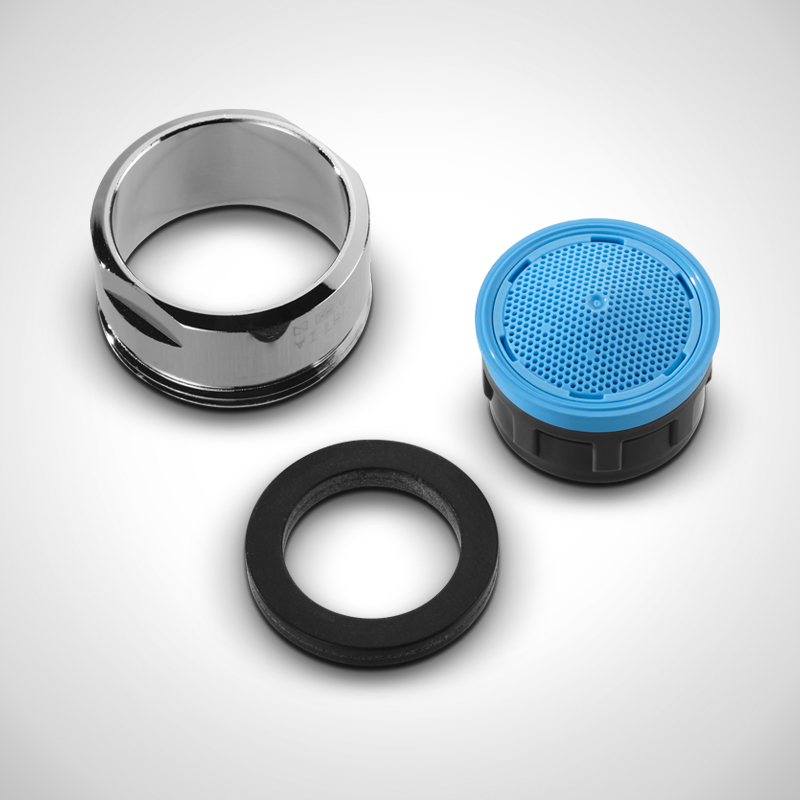

Aerator, type PER-M24/1
Partly made of rubber, brass, plastic
Article-No. 99870144
for wall outlet tap
- chrome-plated version
- External thread
- With seal
- With air intake
Aerators or jet regulators are located at the outlet of a sanitary fitting ("tap"), which shape the jet and ensure an even, splash-free flow of water.
At the same time, an aerated aerator saves water and energy costs.
- chrome-plated version
- External thread
- With seal
- With air intake
Aerators or jet regulators are located at the outlet of a sanitary fitting ("tap"), which shape the jet and ensure an even, splash-free flow of water.
At the same time, an aerated aerator saves water and energy costs.

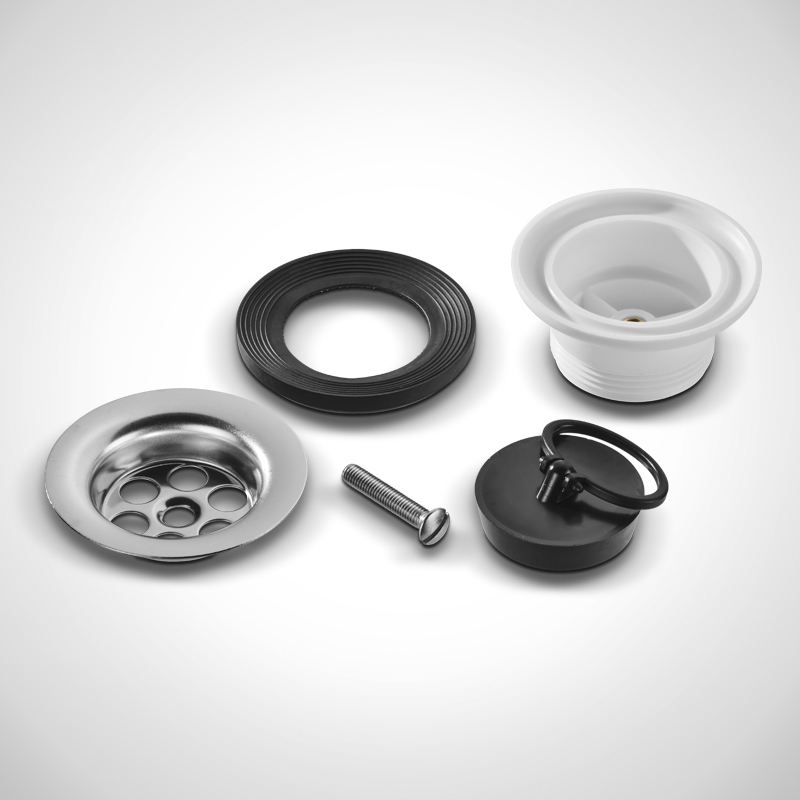

Drain valve plug valve, type ALV-S70
Partially made of plastic
Article-No. 99870131
- Plug valve HWB/WR
- 1 1/2” x 70 mm
- Made in Germany
- Incl. plug (key ring)
- Body h. 40 mm
- 1 1/2” x 70 mm
- Made in Germany
- Incl. plug (key ring)
- Body h. 40 mm

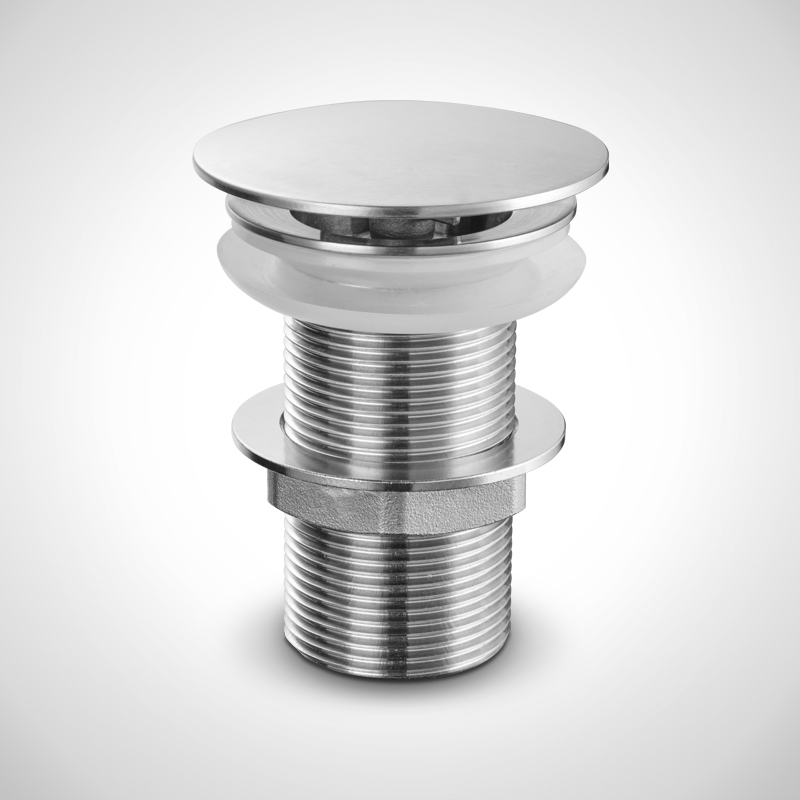

Drain valve, type ALV-AO
made of AISI 304 stainless steel
Article-No. 99870240
- the lid is permanently open
- Unscrewable lid
- WITHOUT overflow connection
- Matt brushed surface
- Lid: Ø73mm
- Threaded connection for siphons standardised 1 1/4"
- Extra long thread.
- Heavy premium quality approx. 453 grams
- incl. rubber seals
- Unscrewable lid
- WITHOUT overflow connection
- Matt brushed surface
- Lid: Ø73mm
- Threaded connection for siphons standardised 1 1/4"
- Extra long thread.
- Heavy premium quality approx. 453 grams
- incl. rubber seals

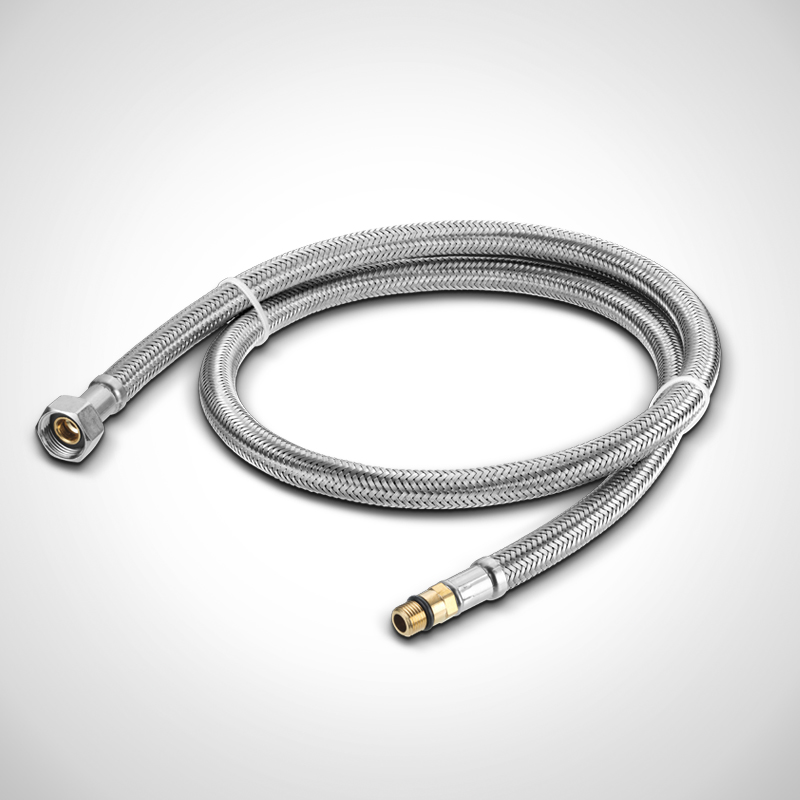

Flexible hose, type FS-1000-8
PE inner material - braiding: Stainless steel
Article-No. 99800265
For drinking water, approval according to DVGW, W543, KTW-A, W270
- Inner hose: PE (polyethylene)
- Nominal diameter: DN8 (OD: approx. 12.5 mm)
- Connection: 3/8" ÜM x M10x1 AG (short)
- Length: 1000 mm
- Connections: Nickel-plated brass
- Operating pressure: 10 bar
- Temperature: 90°C
Scope of delivery: ready for installation, including seals
- Inner hose: PE (polyethylene)
- Nominal diameter: DN8 (OD: approx. 12.5 mm)
- Connection: 3/8" ÜM x M10x1 AG (short)
- Length: 1000 mm
- Connections: Nickel-plated brass
- Operating pressure: 10 bar
- Temperature: 90°C
Scope of delivery: ready for installation, including seals

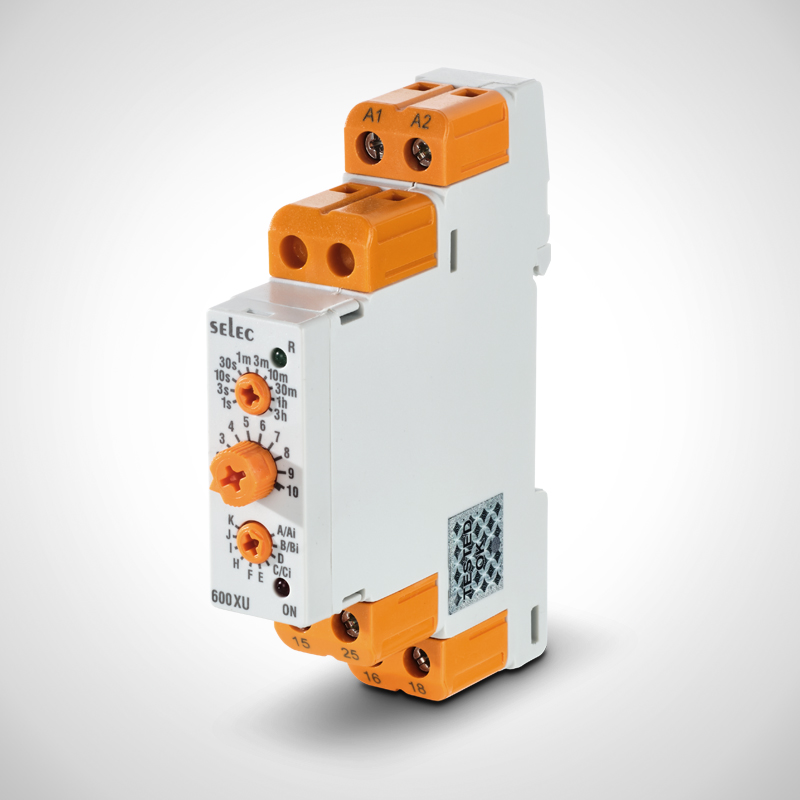

Multifunction time relay, type MFR-1
Made from self-extinguishing plastic
Article-No. 99800003
- ANALOG
- 13 time functions + 10 time ranges
- 20...240 V AC/12...240 V DC
- 1 x changeover contact, DIN rail mounting
Screw terminals
- IP20 connections/ IP40 housing
Function:
Response delay/switch-on wiper/indicator with pause start/indicator with pulse start/response-delayed pulse generator/release delay/response/release delay/pulse shaper (negative edge)/pulse shaper/retriggerable pulse shaper/toggle relay/adding response delay (negative edge/adding release delay)
- 13 time functions + 10 time ranges
- 20...240 V AC/12...240 V DC
- 1 x changeover contact, DIN rail mounting
Screw terminals
- IP20 connections/ IP40 housing
Function:
Response delay/switch-on wiper/indicator with pause start/indicator with pulse start/response-delayed pulse generator/release delay/response/release delay/pulse shaper (negative edge)/pulse shaper/retriggerable pulse shaper/toggle relay/adding response delay (negative edge/adding release delay)

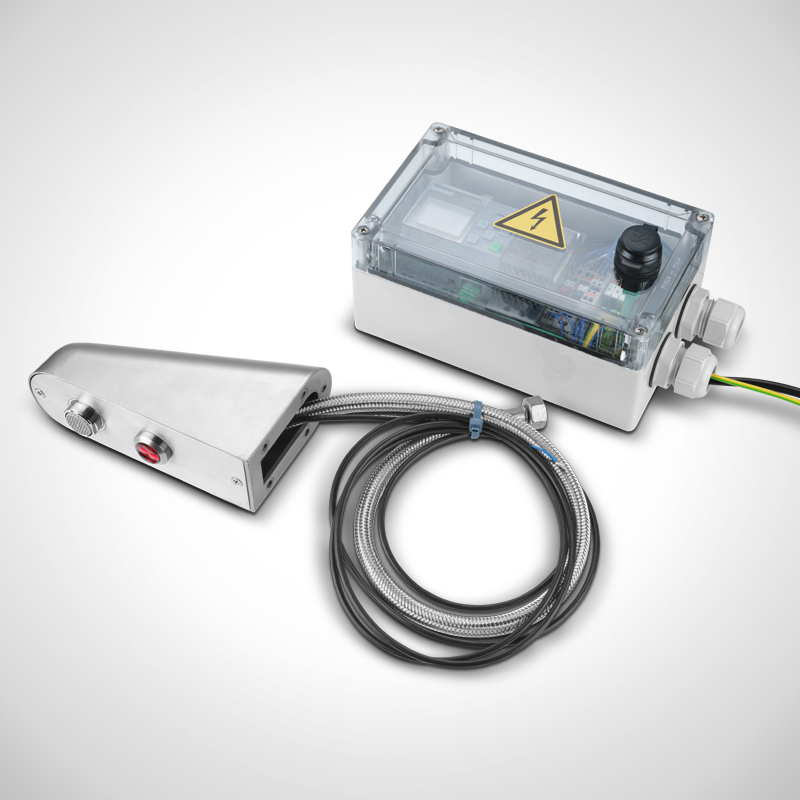

Outlet tap Highline, type AH-HL complete
Made of 1.4301 stainless steel
Article-No. 12000187
Suitable for hand wash basin HWB-HL 1 and wash trough WR-HL 2-5.
Total projection 159 mm
Light dimension up to sensor 61 mm
Clearance to aerator 109 mm
incl. aerator, sensor, flexible hose and sensor cable
incl. valve and thermostatic mixer
incl. control unit for 230VAC
Dimensions: W 57 x D 159 x H 98 mm
Total projection 159 mm
Light dimension up to sensor 61 mm
Clearance to aerator 109 mm
incl. aerator, sensor, flexible hose and sensor cable
incl. valve and thermostatic mixer
incl. control unit for 230VAC
Dimensions: W 57 x D 159 x H 98 mm

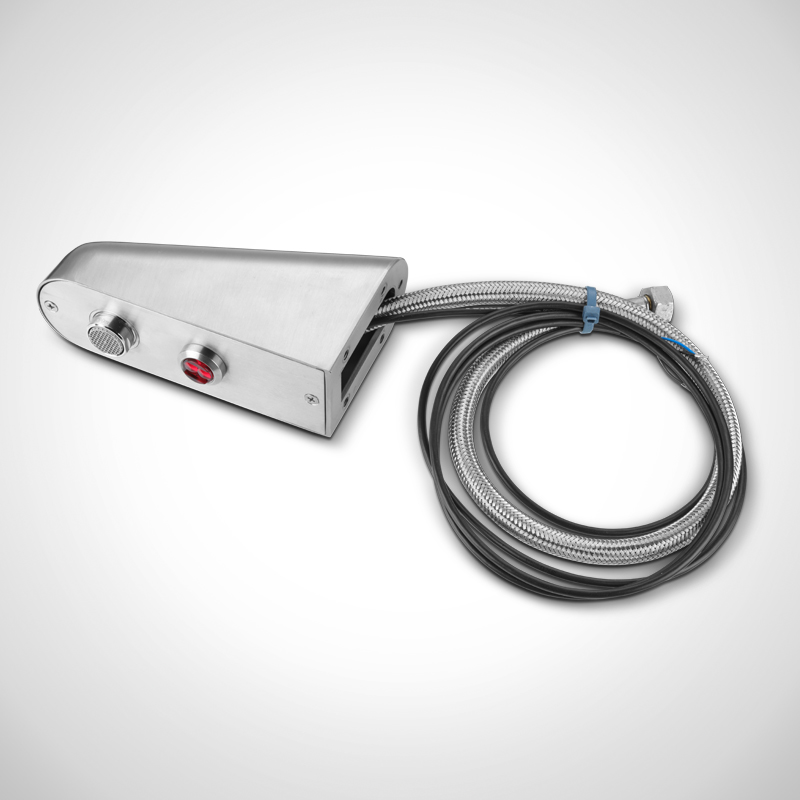

Outlet tap Highline, type AH-HL-2
Made of 1.4301 stainless steel
Article-No. 12000185
Suitable for hand wash basin HWB-HL 1 and wash trough WR-HL 2-5.
With sensor
Total projection 159 mm
Light dimension up to sensor 61 mm
Clearance to aerator 109 mm
incl. aerator, sensor, flexible hose and sensor cable
Dimensions: W 57 x D 159 x H 98 mm
With sensor
Total projection 159 mm
Light dimension up to sensor 61 mm
Clearance to aerator 109 mm
incl. aerator, sensor, flexible hose and sensor cable
Dimensions: W 57 x D 159 x H 98 mm

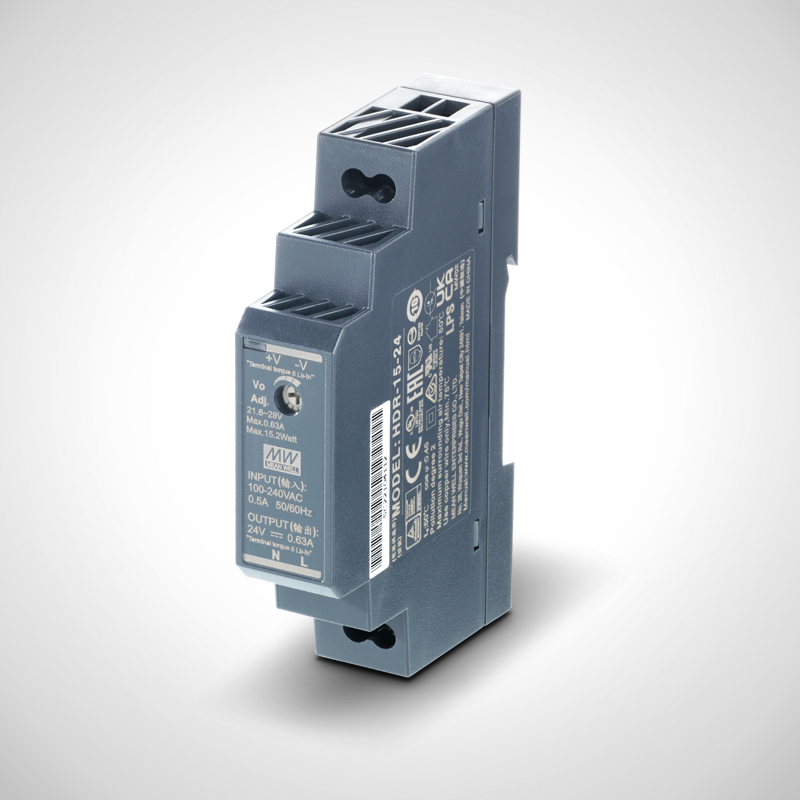

Power supply unit, type NTM-15/24
Plastic housing
Article-No. 99870233
Power: 15.2W
Secondary voltage: 24VDC
Single-phase, full-range input
Compact size, 1 TE (DIN EN43880)
Insulation class II
LPS
Adjustable output voltage
Low standby charging consumption (<0.3W)
Can be mounted on DIN top-hat rail TS-35 / 7.5 or 15
Secondary voltage: 24VDC
Single-phase, full-range input
Compact size, 1 TE (DIN EN43880)
Insulation class II
LPS
Adjustable output voltage
Low standby charging consumption (<0.3W)
Can be mounted on DIN top-hat rail TS-35 / 7.5 or 15

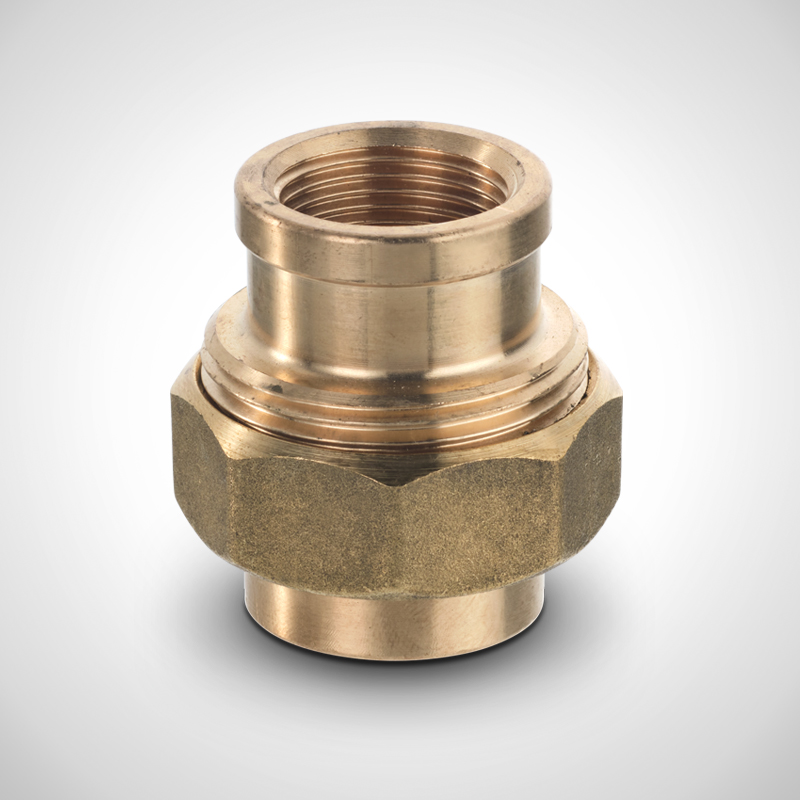

Screw connection, type VS-1
made of red brass
Article-No. 99800271
Red brass pipe fitting no. 3340 for
HWB-HL 1 conical sealing 3/4" I. I.
HWB-HL 1 conical sealing 3/4" I. I.

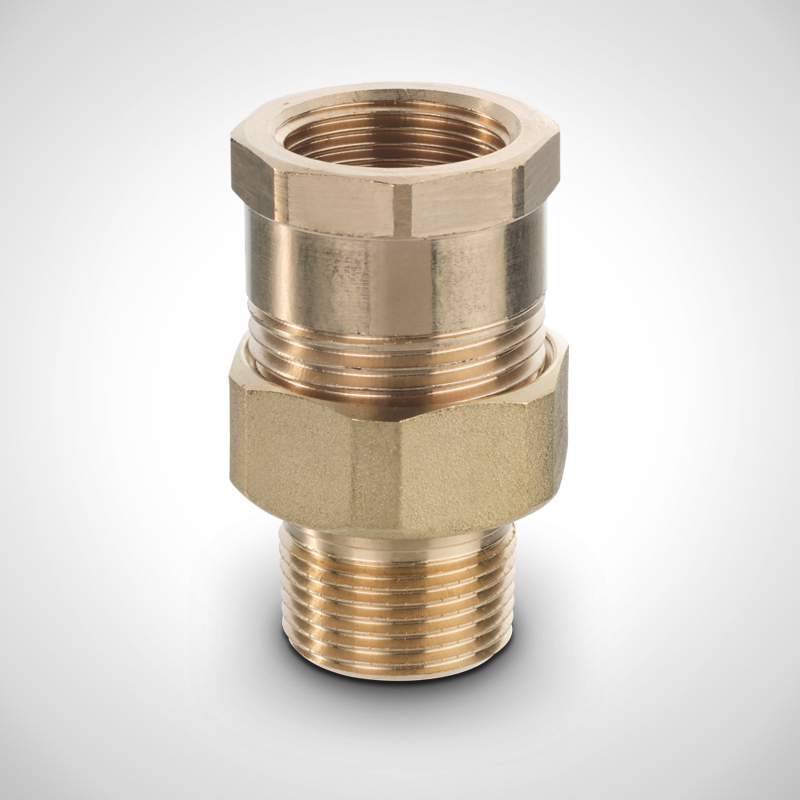

Screw connection, type VS-2
Made from Red brass
Article-No. 99800279
Red brass pipe fitting no. 3341 for
WR-HL 2-6 conical sealing 3/4" A. I.
WR-HL 2-6 conical sealing 3/4" A. I.
Sensor ring / union nut, type SRM
made of stainless steel 1.4301
Article-No. 99870219
- Size: M18x1
Siemens LOGO 8 with display, type SIL-3
Article-No. 99800209
Logic module 12/24V
with display
8 digital inputs
4 digital relay outputs
Width: 71.5 mm
Height: 90 mm
Depth: 60 mm
Service-Video: Changing the running times + venting the suction line
https://bit.ly/service-video_logo-control
with display
8 digital inputs
4 digital relay outputs
Width: 71.5 mm
Height: 90 mm
Depth: 60 mm
Service-Video: Changing the running times + venting the suction line
https://bit.ly/service-video_logo-control
Wash trough control unit, type STEI-7
Plastic housing
Article-No. 99800705
For wash basins (single and double)
- Complete incl. housing
- With Siemens LOGO control unit
- Complete incl. housing
- With Siemens LOGO control unit
