Soap-Control 1200 DUO Highline | 2-lane soap automat with turnstile
Cam roller bearing, type KRL-DK
Article-No. 39020001
Ball bearing for locking arm holder/ turnstile head
D: 30 mm
W: 15.2 mm
D: 30 mm
W: 15.2 mm
Cam spring, type NKF-DK H
Article-No. 39000169
for turnstile mechanism Highline
Connection cable 90°, type ASL-W90/2
Article-No. 99870167
- For sensor
- Connection: 4-pin,
- M12 plug;
- 250V AC; 4A
- angled plug (90°)
- Cable length: 2 m, PUR halogen-free
- Colour: black
- Connection: 4-pin,
- M12 plug;
- 250V AC; 4A
- angled plug (90°)
- Cable length: 2 m, PUR halogen-free
- Colour: black
Dosing pump, type DDPE/24V
Article-No. 99870211
- M12 plug
- Stranded wires and pin assignment
- Head rotated 90' clockwise
- Suction head (self-priming): 3 mWS
- Pressure head: 10 mWS
- Delivery rate at 1 bar: approx. 600 ml/min.
(measured with water at 20'C)
- max. permissible medium temperature: +5'C - 80'C.
- max. permissible ambient temperature: +5 "C - 40'C
- Connection: G1/8" suction and pressure side
- incl. plug and retaining plate
Wetted parts:
- Head parts: PP
- Diaphragm: EPDM
- Valves: EPDM
Service-Video: Changing the dosing pump
https://bit.ly/service-video_dosing-pump
- Stranded wires and pin assignment
- Head rotated 90' clockwise
- Suction head (self-priming): 3 mWS
- Pressure head: 10 mWS
- Delivery rate at 1 bar: approx. 600 ml/min.
(measured with water at 20'C)
- max. permissible medium temperature: +5'C - 80'C.
- max. permissible ambient temperature: +5 "C - 40'C
- Connection: G1/8" suction and pressure side
- incl. plug and retaining plate
Wetted parts:
- Head parts: PP
- Diaphragm: EPDM
- Valves: EPDM
Service-Video: Changing the dosing pump
https://bit.ly/service-video_dosing-pump
Elbow screw-in fitting, type W-ESV/P-1
made of polypropylene
Article-No. 39010046
- Thread 1/8"
- conical
- for hose Ø 8/6 mm
- blue plastic
Dimensions: 22.5 x 19 mm
- conical
- for hose Ø 8/6 mm
- blue plastic
Dimensions: 22.5 x 19 mm
Filter stopper, type FS
made of plastic
Article-No. 99870192
for suction lance type S-51/S-61
- Ø 24mm
- 0,5mm
- Colour: blue
- Ø 24mm
- 0,5mm
- Colour: blue
Flat nut, type FM-M12/1.5
Article-No. 39010152
Suitable for cam roller bearings
Hexagon nut, low
12,00 x 1,50
Form B, fine pitch thread A2
DIN 439
Hexagon nut, low
12,00 x 1,50
Form B, fine pitch thread A2
DIN 439
Float, type SSB
Article-No. 99870193
For suction lance S-51/S-61
- Density 0.63
Dimensions: Ø30.0 x 18.5 x 14.0mm
Service-Video: Changing the float switch
https://bit.ly/service-video_float-switch
- Density 0.63
Dimensions: Ø30.0 x 18.5 x 14.0mm
Service-Video: Changing the float switch
https://bit.ly/service-video_float-switch
Full cone jet nozzle, type VD-1/8
made of PVDF, transparent
Article-No. 99870039
Dim.(mm): Diameter 15.9 x L 22.2 mm
6-kt 9,5mm
- Threaded connection (AG): 1/8"
- Size: 1.3
- Colour: transparent
- Outlet bore: 1.0 mm
- Volume flow (l/min) at 3 bar pressure: 0.97 mm
- Spray angle: 0.7 bar: 52°
1.5 bar: 65°
6.0 bar: 59°
- Operating temperature (at 7 bar): up to 150°C
The nozzle body has a hexagon and a collar for easy (dis)assembly.
6-kt 9,5mm
- Threaded connection (AG): 1/8"
- Size: 1.3
- Colour: transparent
- Outlet bore: 1.0 mm
- Volume flow (l/min) at 3 bar pressure: 0.97 mm
- Spray angle: 0.7 bar: 52°
1.5 bar: 65°
6.0 bar: 59°
- Operating temperature (at 7 bar): up to 150°C
The nozzle body has a hexagon and a collar for easy (dis)assembly.
Inductive sensor, type SEI-T
made of plastic
Article-No. 99800214
- Switching distance: 5 mm
- Dimensions: 40 x 26 x 12 mm
- incl. 2m cable
Technical data:
- Operating voltage 10-30V DC
- DC 3-wire
- Protection class IP68
- Ambient temperature -25°C to 70°C
Service-Video: Brush start sensor adjustment
https://bit.ly/service-video_sensor-brush-start
- Dimensions: 40 x 26 x 12 mm
- incl. 2m cable
Technical data:
- Operating voltage 10-30V DC
- DC 3-wire
- Protection class IP68
- Ambient temperature -25°C to 70°C
Service-Video: Brush start sensor adjustment
https://bit.ly/service-video_sensor-brush-start

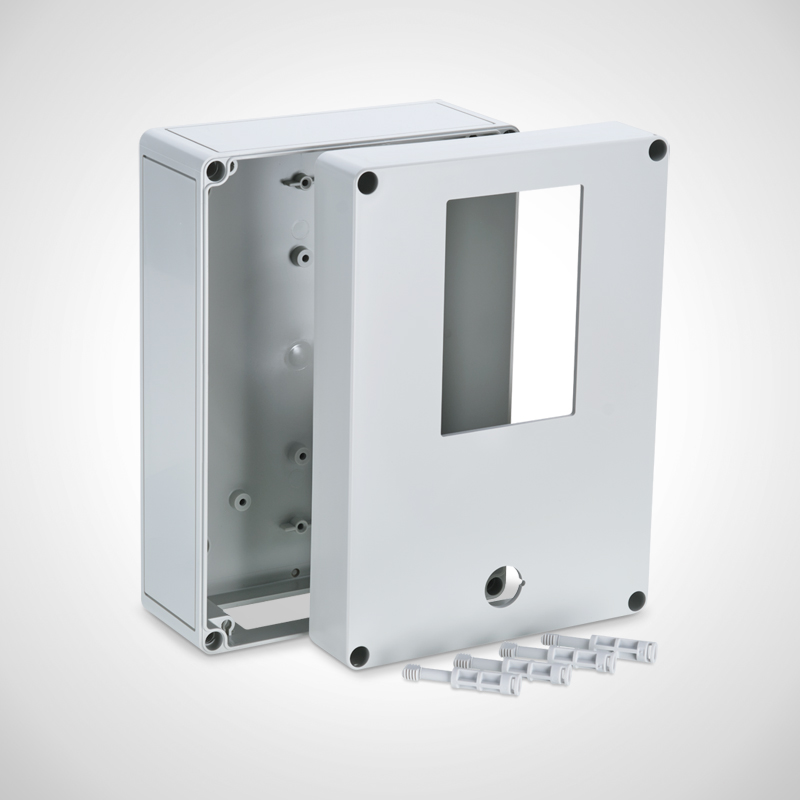

Junction box housing, type GEAB-2
Article-No. 99800355
Pre-stamped, L=254mm, W=180mm, H=111mm,
box + lid
Lid machined:
1x contour 119x78.5mm
1x through hole 22.5mm
Box machined:
Box side B
1x contour 112x36mm
4x through hole 5.5mm
box + lid
Lid machined:
1x contour 119x78.5mm
1x through hole 22.5mm
Box machined:
Box side B
1x contour 112x36mm
4x through hole 5.5mm
LED signal light, type SL-LED 3
Housing: plastic
Article-No. 99800564
Built-in signal light with three signal colours (3 in 1).
Supply voltage: 18 - 30 V dc
Lens colour: green, red, yellow
Mounting type: Surface mounting
Lamp type: LED
Base diameter: 50mm
Lamp included: Yes
Multifunction: Yes
Height: 69mm
Temperature min: -40°C
Temperature max: +50°C
Supply voltage: 18 - 30 V dc
Lens colour: green, red, yellow
Mounting type: Surface mounting
Lamp type: LED
Base diameter: 50mm
Lamp included: Yes
Multifunction: Yes
Height: 69mm
Temperature min: -40°C
Temperature max: +50°C
Levelling arm set, type AGA-DK
Article-No. 39000173
Set (assembled), consisting of:
1x decompression arm
1x PE strip black 95mm
Various spring washers, screws, nuts,
sleeves, bushes and washers
1x decompression arm
1x PE strip black 95mm
Various spring washers, screws, nuts,
sleeves, bushes and washers
Network patch cable, type NW-P 500
Plastic - Inner conductor material: CU (copper)
Article-No. 99800246
- Length 500 mm
- Cat.6 UTP Slim flat patch cable RJ45 / LAN cable / network cable
- Flat ribbon patch cable extremely flexible and very thin for special applications.
- unshielded
- Twisted pair cable, U/UTP, 4x2xAWG32/7 (7 x 0.08 mm) CU
- 2 x RJ45 Western plugs (8-pin) with molded anti-kink sleeve and gold-plated contact surfaces
- Frequencies up to 250 MHz
- Outer jacket: 6.0 x 1.5 mm
- Color: green
- Cat.6 UTP Slim flat patch cable RJ45 / LAN cable / network cable
- Flat ribbon patch cable extremely flexible and very thin for special applications.
- unshielded
- Twisted pair cable, U/UTP, 4x2xAWG32/7 (7 x 0.08 mm) CU
- 2 x RJ45 Western plugs (8-pin) with molded anti-kink sleeve and gold-plated contact surfaces
- Frequencies up to 250 MHz
- Outer jacket: 6.0 x 1.5 mm
- Color: green
Non-return valve, type RV-1/8
Article-No. 99870038
- Thread G1/8
- Length: 34mm
- Operating pressure: 2-10 bar
- Opening pressure: 0.2 bar
- Flow rate: 900 Nl/min
- Temperature range: NBR: -10°C to +80°C,
FKM: -20°C to + 110°C
- Nominal size: G1/8 = 5.2mm
Service-Video: Replacing the non-return valve
https://bit.ly/service-video_non-return-valve
- Length: 34mm
- Operating pressure: 2-10 bar
- Opening pressure: 0.2 bar
- Flow rate: 900 Nl/min
- Temperature range: NBR: -10°C to +80°C,
FKM: -20°C to + 110°C
- Nominal size: G1/8 = 5.2mm
Service-Video: Replacing the non-return valve
https://bit.ly/service-video_non-return-valve
Plastic hose, type STSC-T 8/6
made of polyurethane
Article-No. 39010130
- transparent
- food-safe
- 8/6"
- food-safe
- 8/6"
Plastic set, type KSS-DKM
made of plastic
Article-No. 99800244
for turnstile mechanism Highline
- 5-piece complete set
- made of black plastic
- 5-piece complete set
- made of black plastic

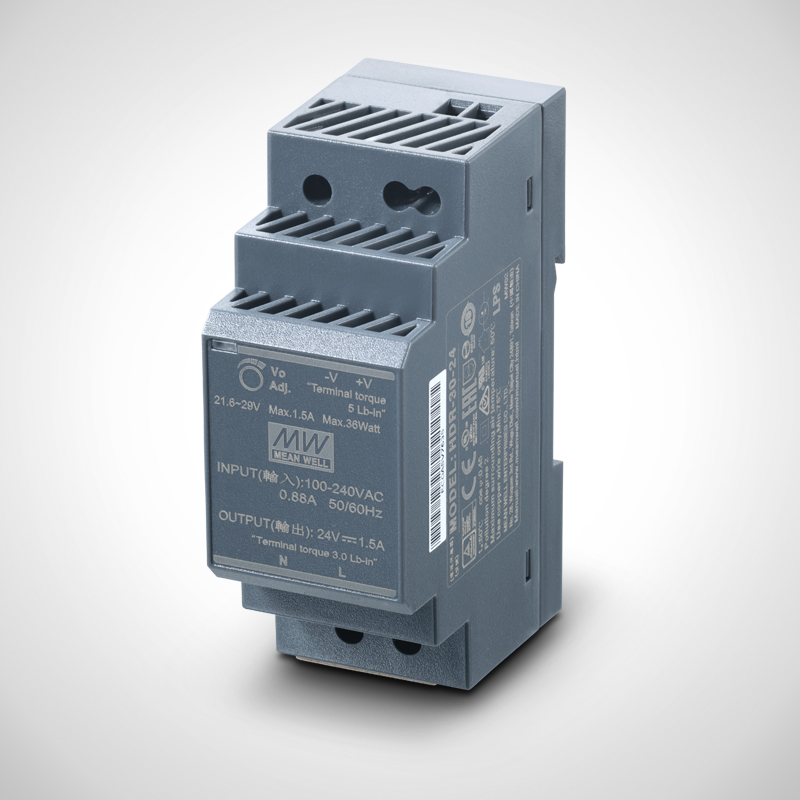

Power supply unit, type NTM-30/24
Plastic housing
Article-No. 99870199
Power: 36W
Secondary voltage: 24VDC
Single-phase, full-range input
Compact size, 2 TE (DIN EN43880)
Insulation class II
LPS
Adjustable output voltage
Low standby charging consumption (<0.3W)
Can be mounted on DIN top-hat rail TS-35 / 7.5 or 15
Secondary voltage: 24VDC
Single-phase, full-range input
Compact size, 2 TE (DIN EN43880)
Insulation class II
LPS
Adjustable output voltage
Low standby charging consumption (<0.3W)
Can be mounted on DIN top-hat rail TS-35 / 7.5 or 15
Protective ring, type SRB
made of plastic
Article-No. 99870191
for suction lance type S-51/S-61
- Colour: blue
Dimensions: Ø29.8 x Ø16.0 x 3.0 mm
- Colour: blue
Dimensions: Ø29.8 x Ø16.0 x 3.0 mm
Pull lever turnstile lock, type ZHDK
made of 1.4301 stainless steel
Article-No. 39020020
For connecting the clevis (pull magnet) to the turnstile latch.
- S= 1.0 mm
(without bolts, spacer discs, lock washers and nuts)
- S= 1.0 mm
(without bolts, spacer discs, lock washers and nuts)
Retaining bridge for 2 microswitches
made of stainless steel
Article-No. 39020003
for mounting 2 microswitches
(12:3)
(12:3)
Retaining plate, type HBZM-DK H
made of 1.4301 stainless steel
Article-No. 39020012
- For attaching the pull magnet
to turnstile mechanism
- Can be used left/right
- S= 1.0 mm
to turnstile mechanism
- Can be used left/right
- S= 1.0 mm
RJ45 coupling
Partly made of plastic
Article-No. 99870196
Insert for built-in housing
- Version: Plug
- Shielded: yes
- Category: 6
- Colour: black
- Version: Plug
- Shielded: yes
- Category: 6
- Colour: black
Rod clevis M8, type GBK-DK H
Galvanised steel
Article-No. 98900300
DIN 71752
- galvanised with spring hinge pin
- internal thread M8
- galvanised with spring hinge pin
- internal thread M8
Rubber buffer/stopper, type GPS-DK
Article-No. 39000172
for turnstile mechanism Highline
30/28 mm, M8
55 Shore A
(pos. 6:8 according to exploded view)
30/28 mm, M8
55 Shore A
(pos. 6:8 according to exploded view)
Sensor, type SWE-24/2
Material housing: plastic
Article-No. 99870140
- 24 V version
- Electronic background suppression
- Red light
- Teach-in, external teach-in
- Plug-in sensor
- Operating range/sensing range: 35...120 mm
- Supply voltage: 10...30 V DC
- Material housing: Plastic
- Type of light: Red light
- Protection class: IP 67
Service-Video: Range adjustment of the sensor
https://bit.ly/service-video_sensor-handdisinfection
- Electronic background suppression
- Red light
- Teach-in, external teach-in
- Plug-in sensor
- Operating range/sensing range: 35...120 mm
- Supply voltage: 10...30 V DC
- Material housing: Plastic
- Type of light: Red light
- Protection class: IP 67
Service-Video: Range adjustment of the sensor
https://bit.ly/service-video_sensor-handdisinfection

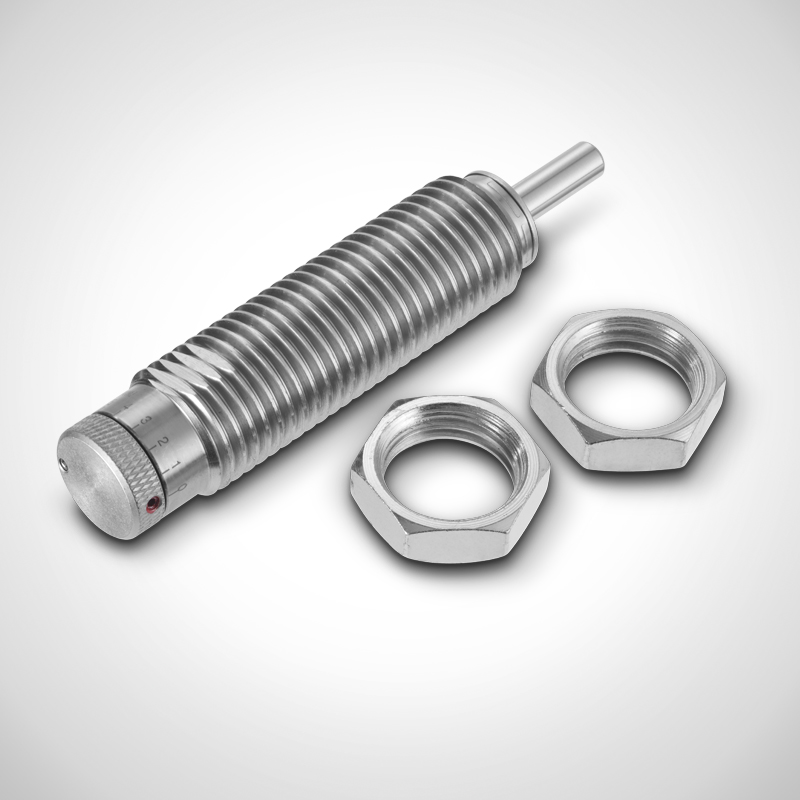

Shock absorber, type SD12-DKM
Article-No. 19910049
for turnstile mechanism Highline
- 12 levels adjustable
- Adjustable damper - nickel-plated
- 2 lock nuts incl.
- Adjustment range mass : 9 - 1230 kg
- Stroke: 25mm
- Max. Energy / stroke : 220 Nm
- Max. Energy / hour: 111,000 Nm
- Retraction force retracted: 33.0 N
- Return force extended: 15.0 N
- Thread continuous M27 x 3.0
- Overall external dimension : 126.5 mm
- Piston rod : Ø 8 mm
- Temperature range : -10 °C to +80 °C
- Weight / pc. : 0.37 kg
- 12 levels adjustable
- Adjustable damper - nickel-plated
- 2 lock nuts incl.
- Adjustment range mass : 9 - 1230 kg
- Stroke: 25mm
- Max. Energy / stroke : 220 Nm
- Max. Energy / hour: 111,000 Nm
- Retraction force retracted: 33.0 N
- Return force extended: 15.0 N
- Thread continuous M27 x 3.0
- Overall external dimension : 126.5 mm
- Piston rod : Ø 8 mm
- Temperature range : -10 °C to +80 °C
- Weight / pc. : 0.37 kg
Siemens LOGO 8 extension module 4, type SIL-E1
Article-No. 99800247
Logic module extension
Width: 35.5 mm
Height: 90 mm
Depth: 58 mm
Width: 35.5 mm
Height: 90 mm
Depth: 58 mm
Siemens LOGO 8 without display, type SIL-2
Article-No. 99800248
Logic module
Width: 71.5 mm
Height: 90 mm
Depth: 58 mm
Width: 71.5 mm
Height: 90 mm
Depth: 58 mm
Siemens LOGO TDE display, type SIL-1
Article-No. 99800270
- LCD with backlight
- Supply voltage: AC/DC
AC: 50/60HZ 20.4...26.4 V
DC: 10.2...28.8 V
- Supply voltage: AC/DC
AC: 50/60HZ 20.4...26.4 V
DC: 10.2...28.8 V
Solenoid coil, type MGH-4
Article-No. 99870212
- 24V DC
- High-performance magnet
- 100%
- incl. return spring
- High-performance magnet
- 100%
- incl. return spring
Suction lance, type S-51
Partly made of plastic
Article-No. 99870180
- 400mm
- incl. backflow preventer
- incl. fine filter
- 3m cable
- 2m hose (8/6)
- with small cover, DN51
- incl. backflow preventer
- incl. fine filter
- 3m cable
- 2m hose (8/6)
- with small cover, DN51
T-connector, type TV-1
made of polypropylene
Article-No. 39010048
- T-connector made of blue plastic
- for hose ø 8/6 mm
Dimensions: 45 x 27.5 mm
- for hose ø 8/6 mm
Dimensions: 45 x 27.5 mm
Turnstile head
made of 1.4301 stainless steel
Article-No. 39000204
for Highline turnstile mechanism
with 3 welded locking arms
with 3 welded locking arms
Turnstile mechanism, type DE-M1 A Highline
made of 1.4301 stainless steel
Article-No. 99800230
Overhauled turnstile mechanism
- Mechanical
- WITHOUT pull magnet, microswitch and locking arms
- all parts subject to mechanical stress are made entirely of 1.4301 stainless steel!!!
The delivery takes place in exchange for the
defective mechanics. If we do not receive the defective mechanism
not received back within 14 days or
if the mechanism cannot be repaired, you will be charged
additional costs will be charged to you.
- Mechanical
- WITHOUT pull magnet, microswitch and locking arms
- all parts subject to mechanical stress are made entirely of 1.4301 stainless steel!!!
The delivery takes place in exchange for the
defective mechanics. If we do not receive the defective mechanism
not received back within 14 days or
if the mechanism cannot be repaired, you will be charged
additional costs will be charged to you.
Turnstile mechanism, type DE-M1 Highline
made of 1.4301 stainless steel
Article-No. 99800231
Turnstile mechanism until construction period 12/2021
- Mechanical
- WITHOUT pull magnet, microswitch and locking arms
- All parts subject to mechanical stress are made entirely of 1.4301 stainless steel!
- Mechanical
- WITHOUT pull magnet, microswitch and locking arms
- All parts subject to mechanical stress are made entirely of 1.4301 stainless steel!
Turnstile mechanism, type DE-M2 Highline
made of 1.4301 stainless steel
Article-No. 99800430
Turnstile mechanism fromt construction period 1/2022
- Mechanical
- WITHOUT pull magnet, microswitch and locking arms
- All parts subject to mechanical stress are made entirely of 1.4301 stainless steel!
- Mechanical
- WITHOUT pull magnet, microswitch and locking arms
- All parts subject to mechanical stress are made entirely of 1.4301 stainless steel!
Valve plug, type VSZM
made of plastic
Article-No. 99871002
suitable for valve 19900339 and pull solenoid 99870212
No article selected!
Please select at least one item by clicking a check mark in the gray box next to the item number.
