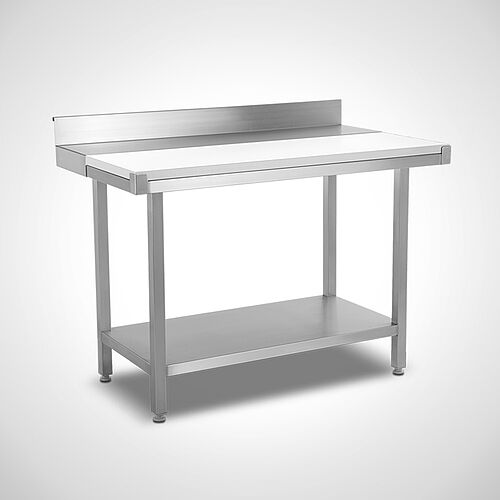

Stage-work table with intermediate floor and hdpe-plastic plate Type SAH-BStage-work table with intermediate floor and hdpe-plastic plate Type SAH-B

Stage-work table
Type SAH-B

Work-tables are applicable for all kinds of industry and product-ranges

  • Fully welded execution made of stainless steel
  • Stainless steel table top with rear 100 mm backsplash in 1.5 mm material thickness
  • Table top, underneath reinforced with surrounding square pipe profile frame
  • Incorporated step, dimension D 400 x S 30 mm
  • Plastic cutting plate (HDPE-500) on the front, inserted in stainless steel frame
  • Plastic cutting plate in 30 mm material thickness
  • Colour of the plastic cutting plate in white (standard); also available in red-brown without additional charge, or in blue, for example, against additional charge
  • Lower structure with stable square pipe frame construction (40x40x1.5 mm)
  • Lower structure with 1 intermediate shelf - welded in solidly
  • Supporting feet, 100 mm shifted inwards on the side and back
  • 4 height-adjustable plastic screw feet (+/- 30 mm)
  • Standard ground clearance: 150 mm

TypeDepth
in mm		Dimensions
W x D x H in mm		PDF
Table depth: 700 mm
SAH-B 120-70700 mm1200 x 700 x 85020.00.06.66
SAH-B 130-70700 mm1300 x 700 x 85020.00.06.67
SAH-B 140-70700 mm1400 x 700 x 85020.00.06.68
SAH-B 150-70700 mm1500 x 700 x 85020.00.06.69
SAH-B 160-70700 mm1600 x 700 x 85020.00.06.70
SAH-B 170-70700 mm1700 x 700 x 85020.00.06.71
SAH-B 180-70700 mm1800 x 700 x 85020.00.06.72
SAH-B 190-70700 mm1900 x 700 x 85020.00.06.73
SAH-B 200-70700 mm2000 x 700 x 85020.00.06.74
SAH-B 210-70700 mm2100 x 700 x 85020.00.06.75
SAH-B 220-70700 mm2200 x 700 x 85020.00.06.76
SAH-B 230-70700 mm2300 x 700 x 85020.00.06.77
SAH-B 240-70700 mm2400 x 700 x 85020.00.06.78
Table depth: 800 mm
SAH-B 120-80800 mm1200 x 800 x 85020.00.06.44
SAH-B 130-80800 mm1300 x 800 x 85020.00.06.45
SAH-B 140-80800 mm1400 x 800 x 85020.00.06.46
SAH-B 150-80800 mm1500 x 800 x 85020.00.06.47
SAH-B 160-80800 mm1600 x 800 x 85020.00.06.48
SAH-B 170-80800 mm1700 x 800 x 85020.00.06.49
SAH-B 180-80800 mm1800 x 800 x 85020.00.06.50
SAH-B 190-80800 mm1900 x 800 x 85020.00.06.51
SAH-B 200-80800 mm2000 x 800 x 85020.00.06.52
SAH-B 210-80800 mm2100 x 800 x 85020.00.06.53
SAH-B 220-80800 mm2200 x 800 x 85020.00.06.54
SAH-B 230-80800 mm2300 x 800 x 85020.00.06.55
SAH-B 240-80800 mm2400 x 800 x 85020.00.06.56
Table depth: 900 mm
SAH-B 120-90900 mm1200 x 900 x 85020.00.06.23
SAH-B 130-90900 mm1300 x 900 x 85020.00.06.24
SAH-B 140-90900 mm1400 x 900 x 85020.00.06.25
SAH-B 150-90900 mm1500 x 900 x 85020.00.06.26
SAH-B 160-90900 mm1600 x 900 x 85020.00.06.27
SAH-B 170-90900 mm1700 x 900 x 85020.00.06.28
SAH-B 180-90900 mm1800 x 900 x 85020.00.06.29
SAH-B 190-90900 mm1900 x 900 x 85020.00.06.30
SAH-B 200-90900 mm2000 x 900 x 85020.00.06.31
SAH-B 210-90900 mm2100 x 900 x 85020.00.06.32
SAH-B 220-90900 mm2200 x 900 x 85020.00.06.33
SAH-B 230-90900 mm2300 x 900 x 85020.00.06.34
SAH-B 240-90900 mm2400 x 900 x 85020.00.06.35
Special dimensions
PE-cutting plate in colour red-brown 22000250
Table leg height adjustment "Easy"  21000886
Foot type STF-Highline  99870148
Mobil version with 2 fixed and 2 swivel castors with brakes, Ø125 mm 99900150
Retrofitting set “Expander” (2 fixed rollers and 2 castors with locking mechanism), for profile 40 x 40 x 1.5 mm 99900199
Hygienic Design castor set type HLR-SET  29100103
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

 All dimensions in mm. Other executions on request.



Material

Made of chrome-nickel steel 18/10 material No. 1.4301

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish

Plastic cutting plate (HDPE-500) on the front, inserted in stainless steel frame.



Options

  • Drawers
  • Mobile version, Ø125 mm, art. no. 99.90.01.50
  • Manual resp. electrical height-adjustable table top on request

HDPE/ Food-safe (current)


Signal white

RAL 9003


Light grey

RAL 7035


Dusty grey

RAL 7037


Anthracite grey

RAL 7016


Signal black

RAL 9004


Traffic white

RAL 9016


Pure green

RAL 6037


Mint green

RAL 6029


Light blue

RAL 5012


Sky blue

RAL 5015


Rape yellow

RAL 1021


Pastel-orange

RAL 2003


Telemagenta

RAL 4010


Traffic red

RAL 3020


Red brown

RAL 3011

Granite-bright
Granite-bright

HDPE/ Food-safe (expiring colors)


Sulphur-yellow

RAL 1016


Signal green

RAL 6032


Telegrey

RAL 7046


Mouse-grey

RAL 7005

(While stocks last)

INFO The real colors could differ from the representations shown here
