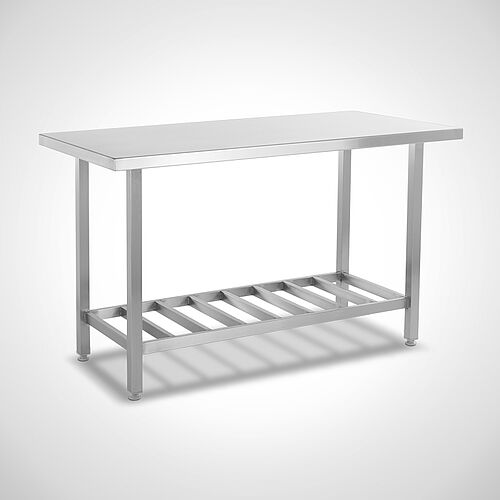

Work table Type ATFI-R-120-80, item no. 22.00.01.13Work table Type ATFI-R-120-80, item no. 22.00.01.13

Work table
Type ATFI-R

Work-tables are applicable for all kinds of industry and product-ranges

  • Fully welded execution made of stainless steel
  • Table top with 1,5 mm material thickness
  • Table top chamfered on all sides, as well as edged
  • Table top, underneath reinforced with surrounding square pipe profile frame
  • Lower structure with 1 storage grate, across - welded in solidly
  • Supporting feet, shifted inwards on the side and back
  • 4 resp. 6 height-adjustable plastic screw feet (+/- 30 mm)
    (from 2500 mm length with 6 feet)
  • Standard ground clearance: 150 mm

TypeDepth
in mm		Dimensions
W x D x H in mm		PDF
Table depth: 700 mm
ATFI-R 120-70700 mm1200 x 700 x 85022.00.03.03
ATFI-R 130-70700 mm1300 x 700 x 85022.00.03.04
ATFI-R 140-70700 mm1400 x 700 x 85022.00.03.05
ATFI-R 150-70700 mm1500 x 700 x 85022.00.03.06
ATFI-R 160-70700 mm1600 x 700 x 85022.00.03.07
ATFI-R 170-70700 mm1700 x 700 x 85022.00.03.08
ATFI-R 180-70700 mm1800 x 700 x 85022.00.03.09
ATFI-R 190-70700 mm1900 x 700 x 85022.00.03.10
ATFI-R 200-70700 mm2000 x 700 x 85022.00.03.11
ATFI-R 210-70700 mm2100 x 700 x 85022.00.03.12
ATFI-R 220-70700 mm2200 x 700 x 85022.00.03.13
ATFI-R 230-70700 mm2300 x 700 x 85022.00.03.14
ATFI-R 240-70700 mm2400 x 700 x 85022.00.03.15
Table depth: 800 mm
ATFI-R 120-80800 mm1200 x 800 x 85020.00.01.13
ATFI-R 130-80800 mm1300 x 800 x 85020.00.01.14
ATFI-R 140-80800 mm1400 x 800 x 85020.00.01.15
ATFI-R 150-80800 mm1500 x 800 x 85020.00.01.16
ATFI-R 160-80800 mm1600 x 800 x 85020.00.01.17
ATFI-R 170-80800 mm1700 x 800 x 85020.00.01.18
ATFI-R 180-80800 mm1800 x 800 x 85020.00.01.19
ATFI-R 190-80800 mm1900 x 800 x 85020.00.01.20
ATFI-R 200-80800 mm2000 x 800 x 85020.00.01.21
ATFI-R 210-80800 mm2100 x 800 x 85020.00.01.22
ATFI-R 220-80800 mm2200 x 800 x 85020.00.01.23
ATFI-R 230-80800 mm2300 x 800 x 85020.00.01.24
ATFI-R 240-80800 mm2400 x 800 x 85020.00.01.25
Table depth: 900 mm
ATFI-R 120-90900 mm1200 x 900 x 85022.00.03.76
ATFI-R 130-90900 mm1300 x 900 x 85022.00.03.77
ATFI-R 140-90900 mm1400 x 900 x 85022.00.03.78
ATFI-R 150-90900 mm1500 x 900 x 85022.00.03.79
ATFI-R 160-90900 mm1600 x 900 x 85022.00.03.80
ATFI-R 170-90900 mm1700 x 900 x 85022.00.03.81
ATFI-R 180-90900 mm1800 x 900 x 85022.00.03.82
ATFI-R 190-90900 mm1900 x 900 x 85022.00.03.83
ATFI-R 200-90900 mm2000 x 900 x 85022.00.03.84
ATFI-R 210-90900 mm2100 x 900 x 85022.00.03.85
ATFI-R 220-90900 mm2200 x 900 x 85022.00.03.86
ATFI-R 230-90900 mm2300 x 900 x 85022.00.03.87
ATFI-R 240-90900 mm2400 x 900 x 85022.00.03.88
Special dimensions
Foot type STF-Highline  99870148
Mobil version with 2 fixed and 2 swivel castors with brakes, Ø125 mm 99900150
Hygienic Design castor set type HLR-SET  29100103
Table leg height adjustment "Easy"  21000886
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

All Dimension in mm. Other designs on request



Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as feet have a uniform brushed finish.



Options

  • Drawers with partial pull-out made of rust-free stainless steel on request
  • Mobile version (2 trestle castors and 2 swivel castor), Ø125 mm, Art. no. 99.90.01.50
  • Manual resp. electrical height-adjustable on request
