Custom-made Double-stage work table
Custom-made Double-stage work table
Double-stage work table
Type DST-SON R ERGO

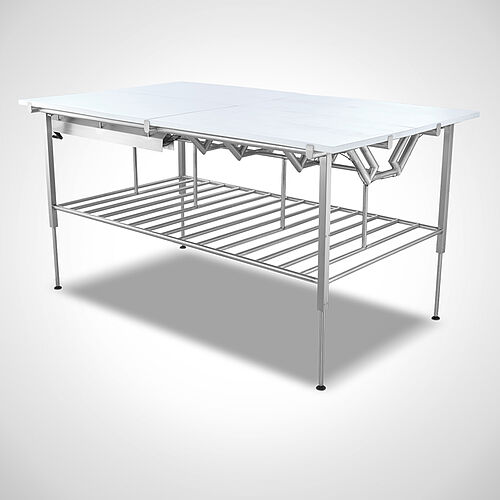

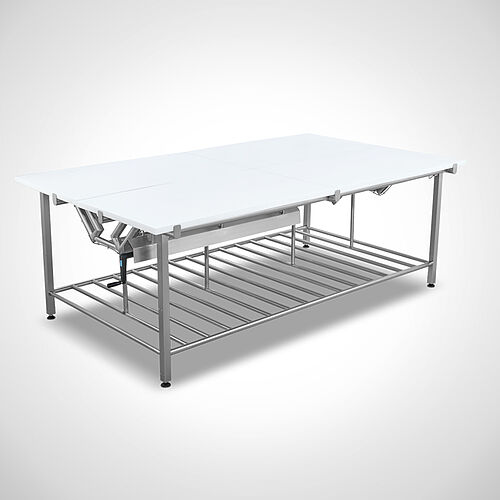

FUNCTIONAL, HEIGHT-ADJUSTABLE WORK TABLE with storage grate
- Fully welded "hygienic-design" execution made of stainless steel
- On the operator side, 2 cutting plates (HDPE-500) are inserted into the tubular profile frame
- 4 table leg profiles in stable square tubular frame construction (40 x 40 x 2 mm)

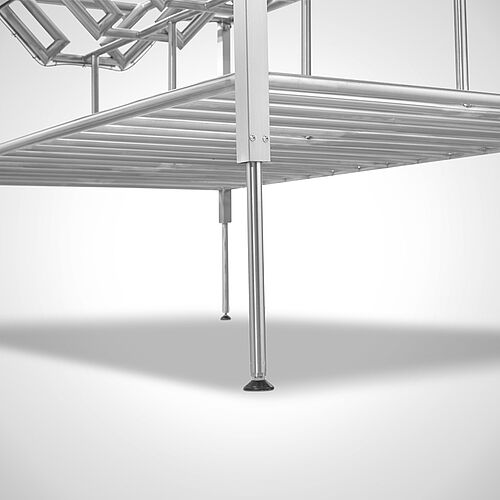

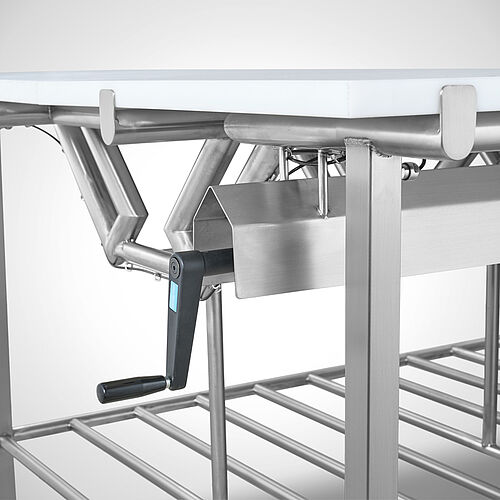

- Table leg height adjustment with manual crank actuation (foldable)
- Hydraulic pump with hand crank actuation with splash guard protected from moisture
- Maximum table height adjustment: 400 mm, lifting speed: 5 mm per crank turn
- Table substructure otherwise completely made of hygienic round tube profile (42.4 x 2 mm)

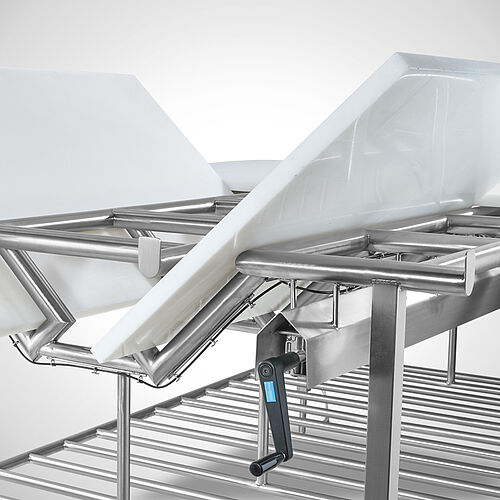

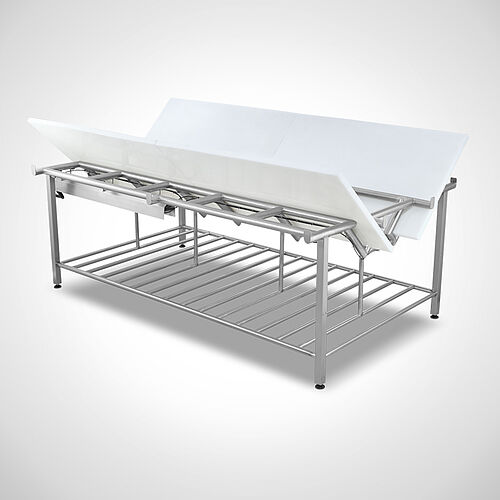

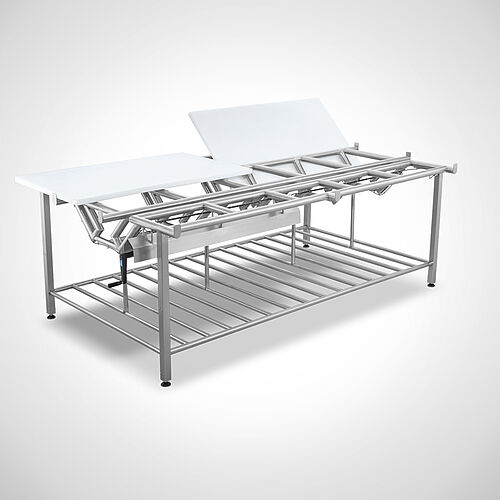

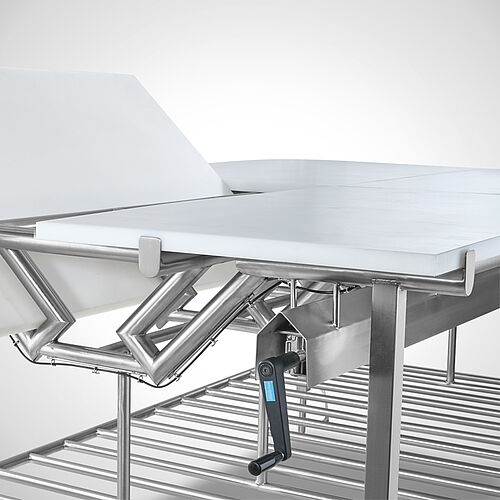

- Special device (manual inclination) for easy cleaning of the plastic table tops
- Substructure with storage grid made of profile tube 25 x 2 mm, transversely - firmly welded in
- Color of the plastic insert white (standard); Depth 700 mm x S 30 mm
- 4 adjustable feet made of solid rubber
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Other designs on request. We manufacture individually according to customer requirements
Material
Made of chrome-nickel steel 18/10 material No. 1.4301
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as Table legs have a uniform brushed finish
Square tubular frame construction (40 x 40 x 2 mm): 4 table leg profiles
Round tube profile construction (42.4 x 2 mm or 25 x 2 mm)
Table tops made of HDPE 500 plastic
HIGHLIGHTS
- Food safe
- Ergonomic work table (height adjustable)
- Special device for easy cleaning of the plastic table tops
- Hygienic design
- Very high load capacity
Options
- PE-plastic cutting plate in color red-brown, Article no.22.00.02.50
- Electric height adjustment (ERGO) on request
- Lower structure with storage grate, longitudinal on request
Technical Data
| Protection class | IP 20 |
|---|---|
| Loading capacity | 600 kg |
| Lifting speed | 5 mm per crank turn |
| Lifting height | 400 mm |
Downloads
HDPE/ Food-safe (current)
RAL 9003
RAL 7035
RAL 7037
RAL 7016
RAL 9004
RAL 9016
RAL 6037
RAL 6029
RAL 5012
RAL 5015
RAL 1021
RAL 2003
RAL 4010
RAL 3020
RAL 3011
HDPE/ Food-safe (expiring colors)
RAL 1016
RAL 6032
RAL 7046
RAL 7005
(While stocks last)
INFO The real colors could differ from the representations shown here
