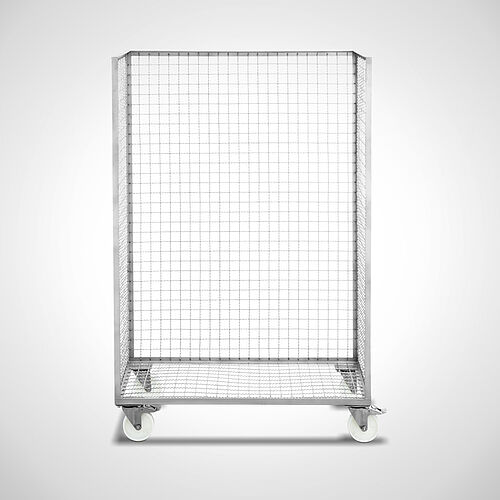

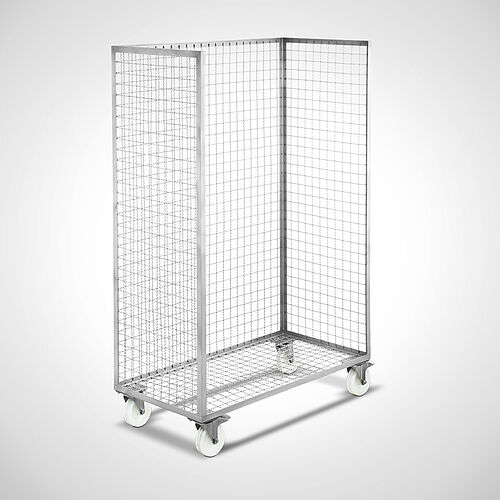

Storage trolley (corrugated mesh)

Storage trolley
Type LGW-WG SON

corrugated mesh TROLLEY FOR STORAGE

  • Stable, permanently welded design
  • Base frame made of angle profiles 25 x 25 x 3 mm
  • 3-sided and bottom made of 40 x 40 mm corrugated mesh
  • Removal / loading on an open long side
  • Mobile with 4 polyamide swivel castors, 2 with brakes (Ø 125 mm)
  • Wheel housing / carrier made of stainless steel

TypeVersionDimensions
W x D x H in mm
PDF
LGW-WG SON 100/501 long side open1000 x 500 x 151520-65467
Special dimensions
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Delivery without accessoires.



Material

Made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as square tubes have a uniform brushed finish
