Laundry output cupboard with feet

Laundry output cupboard with feet

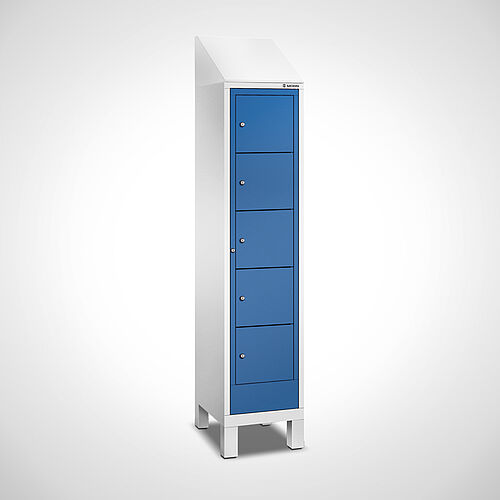

Laundry output cupboard Type WAS-AF-ST-EU-1-5 (5 compartments), art. no. 45.00.07.54 Laundry output cupboard Type WAS-AF-ST-EU-1-5 (5 compartments), art. no. 45.00.07.54

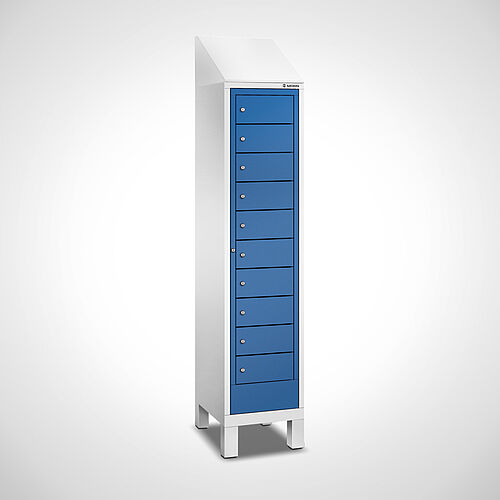

Laundry output cupboard Type WAS-AF-ST-EU-1-10 (10 compartments), art. no. 45.00.07.56 Laundry output cupboard Type WAS-AF-ST-EU-1-10 (10 compartments), art. no. 45.00.07.56
Laundry output cupboard Type WAS-AF-ST-EU-2-5 (10 compartments), art. no. 45.00.07.55 Laundry output cupboard Type WAS-AF-ST-EU-2-5 (10 compartments), art. no. 45.00.07.55

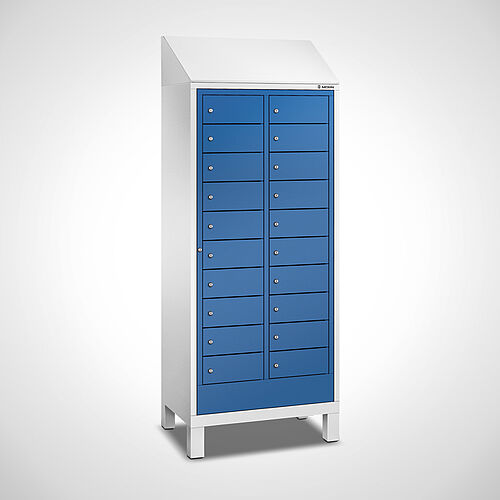

Laundry output cupboard Type WAS-AF-ST-EU-2-10 (20 compartments), art. no. 45.00.07.57 Laundry output cupboard Type WAS-AF-ST-EU-2-10 (20 compartments), art. no. 45.00.07.57

Laundry output cupboards
Type WAS-AF-ST-EU

Execution according to DIN 10524 and food hygiene regulation

  • Robust construction completely made of coated steel
  • 1 or 2 compartments with 5 or 10 overlying compartments
  • One central door with cylinder locking
    (for simple feeding of all compartments at once)
  • Compartment dimensions:
    • 5 doors each compartment: W 251 x D 475 x H 269 mm
    • 10 doors each compartment: W 295 x D 475 x H 126 mm
  • Smooth door, without label frame
  • Right hinged doors, mounted on pivot pins
  • Shelves and central door with cylinder locks incl. each 2 keys
  • With pitched roof attachment, 230 mm higher at the back
  • Smooth shelves for easy interior cleaning
  • Execution with 4 height-adjustable plastic feet
  • Ground clearance 150 mm

TypeCompartmentsDimension
of compartment		Dimensions
W x D x H in mm		ComparePDF
WAS-AF-ST-EU 1/55B 251 x T 475 x H 269 mm420 x 500 x 1850/ 205045.00.07.5445.00.07.54
WAS-AF-ST-EU 2/510 (2 x 5)B 251 x T 475 x H 269 mm810 x 500 x 1850/ 208045.00.07.5545.00.07.55
WAS-AF-ST-EU 1/1010B 295 x T 475 x H 126 mm420 x 500 x 1850/ 208045.00.07.5645.00.07.56
WAS-AF-ST-EU 2/1020 (2 x 10)B 295 x T 475 x H 126 mm810 x 500 x 1850/ 208045.00.07.5745.00.07.57


Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

0
8452
2263
8
Show Lightbox Compare
Comparedata

Material

Powder-coated steel sheet
