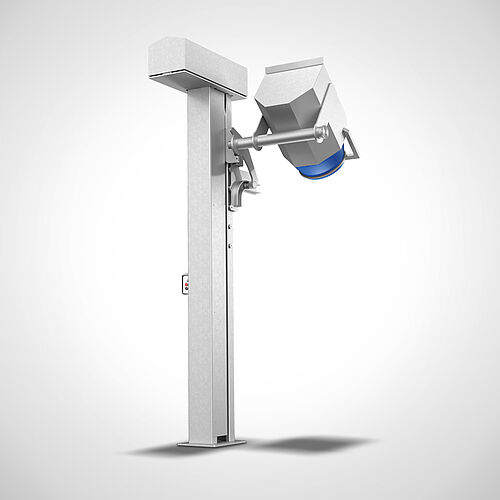

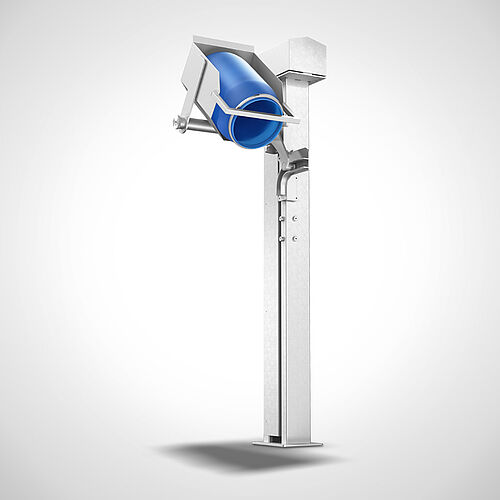

Lift + tilting device
Type HKV-F
Suitable for lifting and tilting of barrels
- Solid industrial execution guarenteed long-life
- Various tilting heights from 1.400 mm up to 4.100 mm available
- Tilting execution positions Type A or B respectively C-90° or D-90° available
- Stationary version or optional with chassis
- Payload according to customers`request
- High pressure cleaning resistant, safety class IP 65
- Mechanical safety precautions: Special chain break protection
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Special executions on request possible
Material
Nearly complete made of stainless steel 1.4301, microplasted stainless steel surface
Description
The execution of the lifting and tilting device is determined by the type and viscosity of the bulk material and, if necessary, extended by special chutes, hoppers, lift forks or lifting platforms. Thus, the tilting devices can be adapted for almost any application.
Up to a tipping height of 2300 mm, the lifting and tilting device can provided with a chassis.
Special drop safety
The fall arrester is made of stainless steel and consists of a 4 mm thick U-profile rail with rectangular fixing holes and a pressure spring activated 25 mm fork.
The fall protection comes into operation for breaking the chain, or if the chain sags. When that happens, the compression spring is released and the fork turns into the fixing holes and Brind the load to an immediate stop.
Unlike conventional lifting-tilting a service call is not necessary after initiation of mechanical safety device.
Executions of lifting and tilting devices
(Example with bin trolley)
Technical Data
| Power supply | 3x 400 V; 50 Hz |
|---|---|
| Performance | 15 strokes / h |
| Protection class | IP 65 |
| Loading capacity | on request |
| Lifting speed | 5 m/ min. |
| Tilt angle | 120° |
| Adjustability | 2 steps, each 150 mm (machine preset on maximum lifting height!) |
| Power rating | 0,75 kW |
