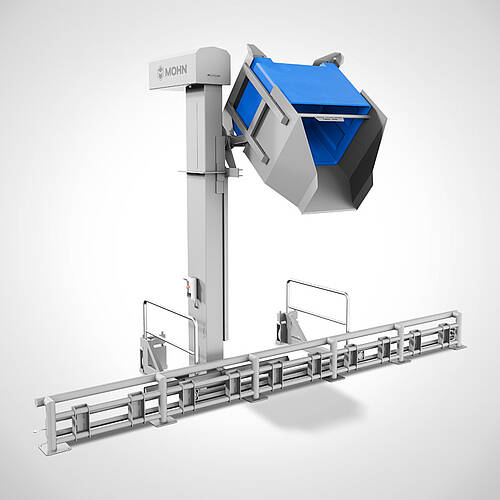

Lifting/tilting device
Type HKV-HBW SON with guide rail
with guide rail - for lifting and tilting standard trolleys
- Solid industrial execution guarenteed long-life
- Various tilting heights from 1.400 mm up to 2.300 mm available
- 2 tilting versions Type A or B available
- Including chassis with integrated chute (up to 2300 mm tipping height)
- Including stainless steel guide rail with railing protection in hygienic design
- Payload maximum 350 kg
- Dead man's control
- Hygienic design control box incl. operating elements on lifting column at ergonomic height
- Optical chain tension indicator
- High pressure cleaning resistant, safety class IP 65
- Mechanical safety precautions: Special chain break protection
- The safety cages is recommended from a tipping height of 2500 mm
- Standard execution: chain nickel-plated (16B-1)
- Highline execution: chain made oft stainless steel (NO relubrication of grease necessary + chemical resistant)
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Special solutions possible on request. Delivery without standard trolley.
MATERIAL
Nearly complete made of stainless steel 1.4301, microplasted stainless steel surface
Beschreibung
The execution of the lifting and tilting device is determined by the type and viscosity of the bulk material and, if necessary, extended by special chutes, hoppers, lift forks or lifting platforms. Thus, the tilting devices can be adapted for almost any application.
Up to a maximum tipping height of 2300 mm, the lifting and tilting device can provided with a chassis.
Special drop safety
The fall arrester is made of stainless steel and consists of a 4 mm thick U-profile rail with rectangular fixing holes and a pressure spring activated 25 mm fork.
The fall protection comes into operation for breaking the chain, or if the chain sags. When that happens, the compression spring is released and the fork turns into the fixing holes and Brind the load to an immediate stop.
Technical Data
| Power supply | 3x 400 V; 50 Hz |
|---|---|
| Performance | 0,75 kW (gearing motor) |
| Protection class | IP 65 |
| Loading capacity | 350 kg (incl. standard trolley) |
| Lifting speed | 5 m/ min. |
| Tilt angle | 120° |
| Adjustability | 2 steps, each 150 mm (Machine preset on maximum lifting height!) |
