Electric pallet truck
Electric pallet truck
Electrical pallet truck
Type EHW-1
ELECTRICAL HELPER FOR ERGONOMICALLY SAFE TRANSPORT.
- Made of high quality stainless steel (V4A)
- For transporting DIN 9797 containers / lifting and loading trolleys
- Including catch / bracket
- Electrically driven wheel
- Speed: 3-5 km / h, individually adjustable
- Including charger 4A / Y-cable for parallel charging
- Tiller head with horn and reversing emergency switch
- Lifting mechanism by foot
- Protection class: IP65
- Max. Load capacity: 400 kg
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Delivery takes place without lifting and loading trolleys. Technical changes reserved.
Material
Stainless steel 316L 1.4404 (V4A)
Swivel castor and fork castor made of plastic.
Comment
The battery life depends very much on the load, the number of start stops, the driving speed, the nature of the ground and any ramps to be driven. In order to give you rough reference values, please use the data from the following table.
| Using at a flat ground industry floor without any obstacles at 3km/h |
|
|
Weight | 1 Start max. range | How many Start & Stopp we can do with 5m distance between Start & Stopp |
100 (kg) | 25000 m | 3000 (15000m) |
200 (kg) | 12500 m | 1200 (6000m) |
300 (kg) | 8500 m | 650 (3250m) |
400 (kg) | 6400 m | 350 (1750m) |
500 (kg) | 5100 m | 270 (1350m) |
DESCRIPTION

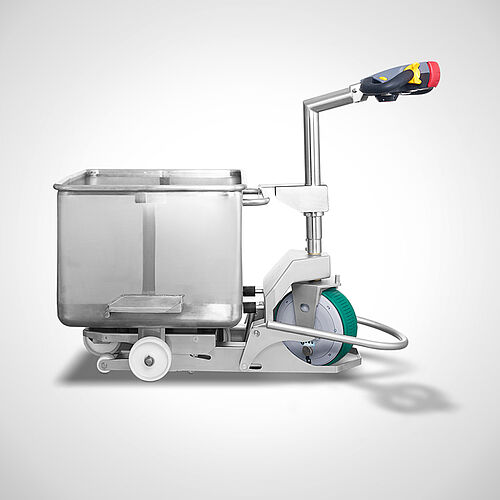

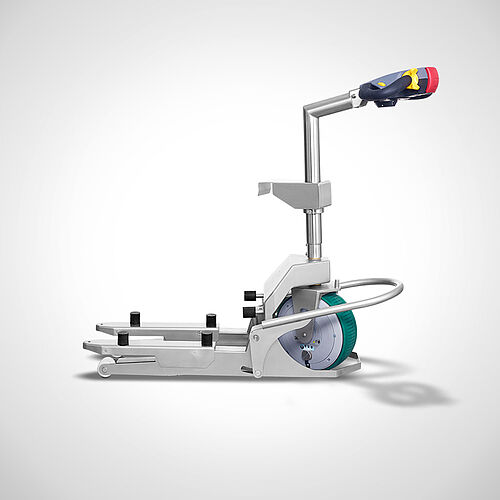

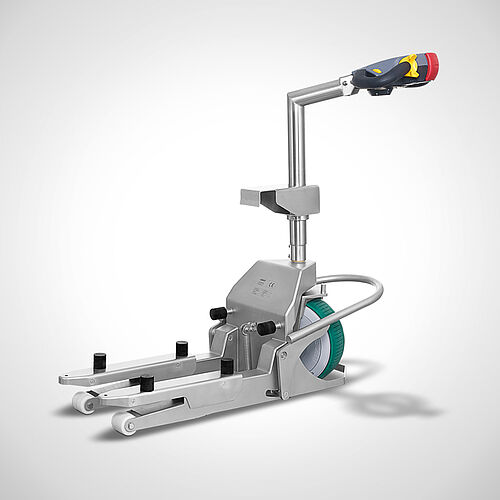

The electrically driven electric pallet truck made of high quality stainless steel 1.4404 (also known as V4A) was specially developed for the transport of DIN 9797 containers / loading trolleys (cutter trolleys). Ergonomic, practical and very agile, companies (mostly) from the food sector can relieve their employees by using them and at the same time increase productivity.
Situation
Musculoskeletal disorders are at the top of the occupational diseases with a share of over 50%. 35% of all absenteeism in workplaces can be attributed to illnesses caused by incorrect posture. The resulting absences cause employers not only the "costs for continued wage payments in the event of illness", but also considerable personnel and organizational problems. In many cases, qualified personnel cannot be replaced at short notice. Bottlenecks in the operational process are therefore often inevitable.
ERGONOMICS
Ergonomics and occupational medicine deal with this problem. Together with the employers' liability insurance association, you ensure that the technical work environment is adapted to people. An ergonomically designed workplace that can be optimally adapted to the height and personal way of working of the employee offers a number of advantages.
On the one hand, it is an effective means of reducing the increasing number of back and skeletal diseases, which often only appear as a long-term consequence of permanently incorrect posture and uncoordinated movement sequences.
On the other hand, the immediate effects can also be of great importance for occupational safety. Proper working conditions can reduce both physical fatigue and physical strain.
The longer-lasting concentration leads to a lasting reduction in the acute risk of accidents and injuries as well as to an increase in motivation and quality of work. Under optimal conditions, productivity can be increased by up to 15%.
Technical Data
| Protection class | IP65 |
|---|---|
| Noise level | 73 dB |
| Loading capacity | 400 kg |
| Speed | 3-5 km/h (individual adjustable) |
