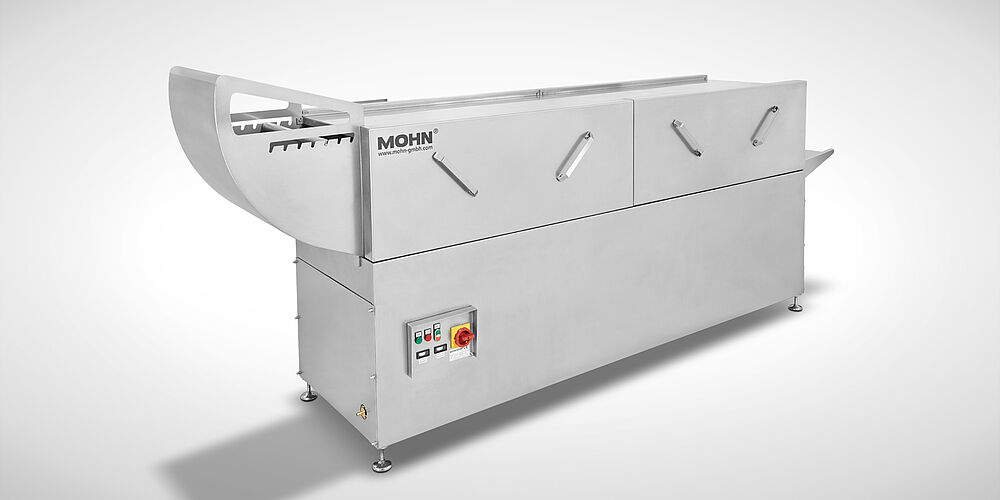

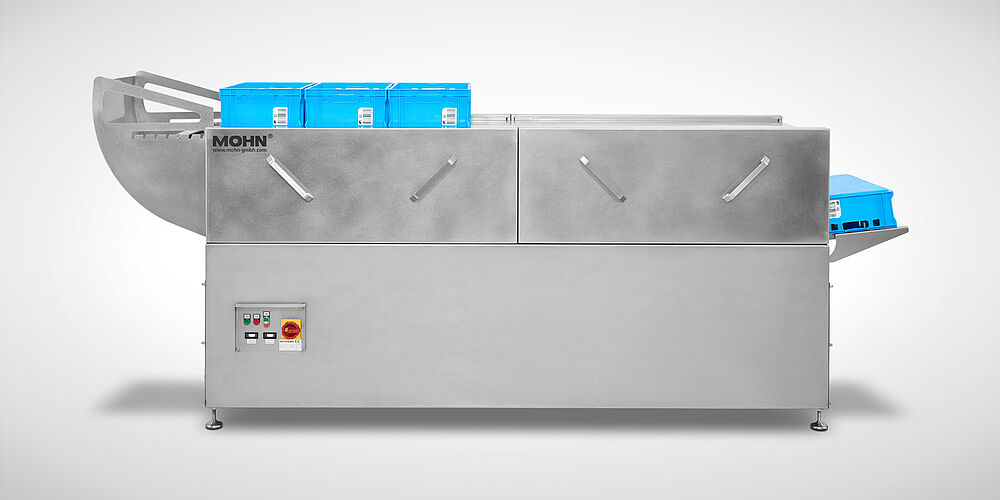

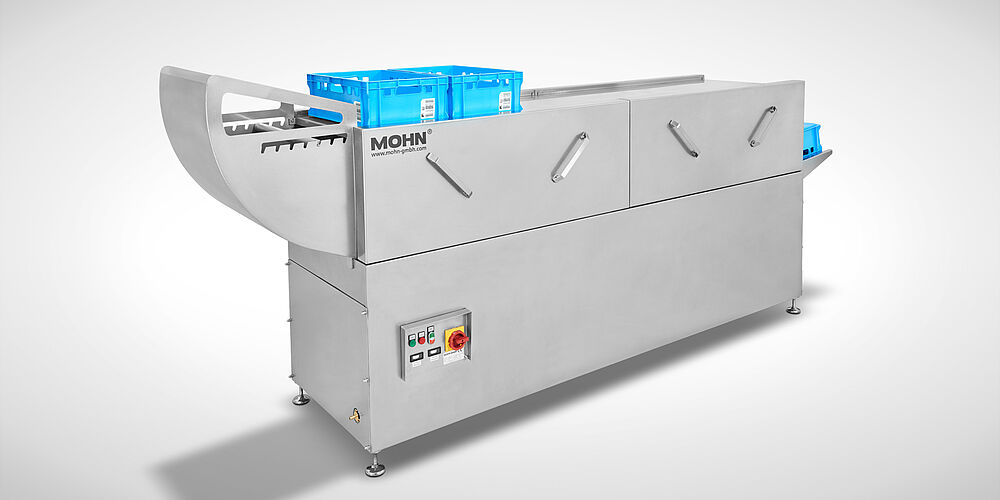

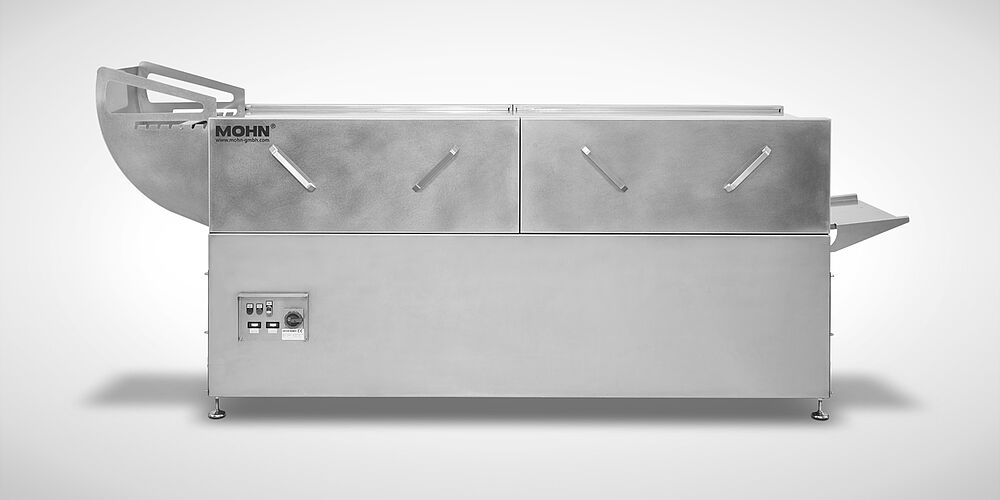

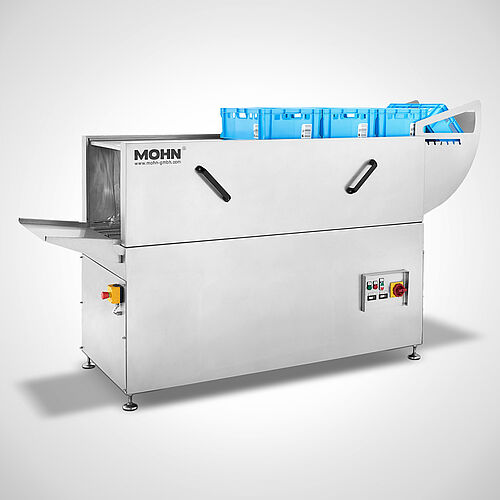

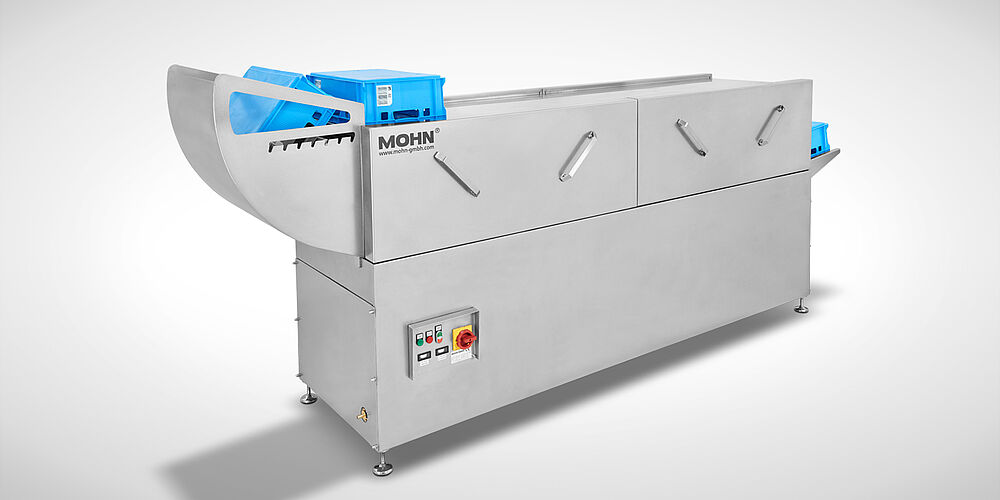

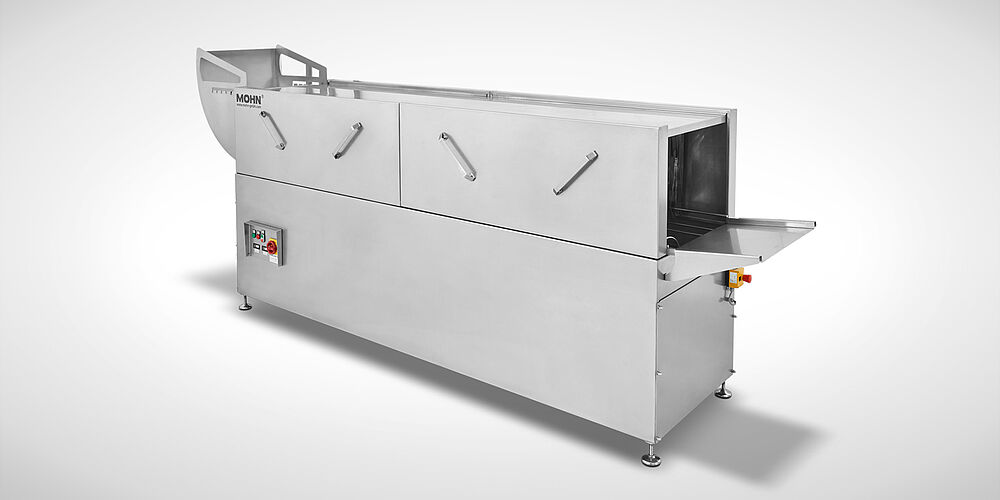

Box washing system Ecoline
Type DLWA 300-Bakery
for cleaning up to 300 euronorm containers (E1 - E3) per hour
- Completely welded housing, exclusively made of stainless steel
- To a large extent, lower structure manufactured of 3 mm sheet metal, therefore very durable
- Main washing zone with two strong centrifugal pumps, total power 4.5 kW,
water circulation 1,400 l/min at a wash pressure of 1 bar, distributed to 80 stainless steel nozzles - Plate filter for constant cleaning and continuous filtering of the sud
- Crate transport by means of a motorized stainless steel spiral (utility model)
- Stainless steel spiral ensures unhindered impact of the detergent solution from the bottom side
- Cross passage of the container with optimal separation for the necessary distance
- System on M16 machine feet or stainless steel rollers (optionally)

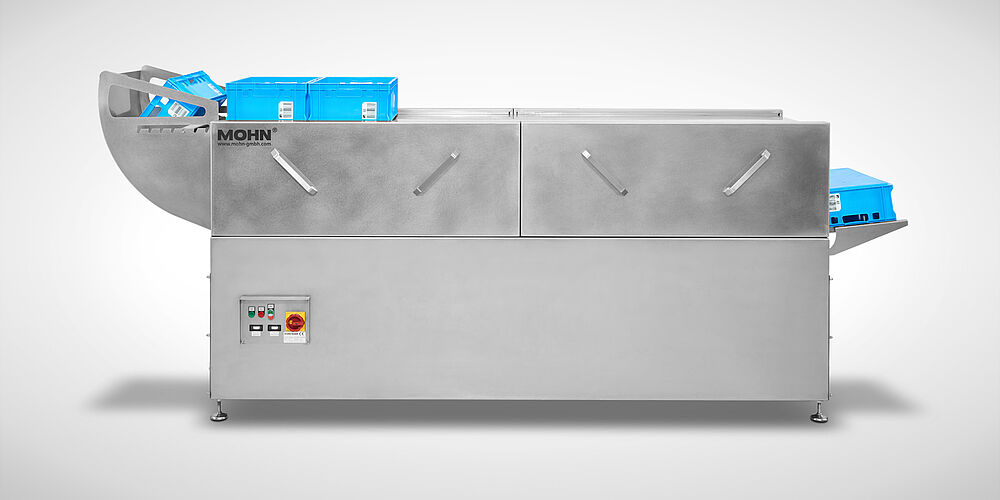

- Adjustable box turner for one-person operation

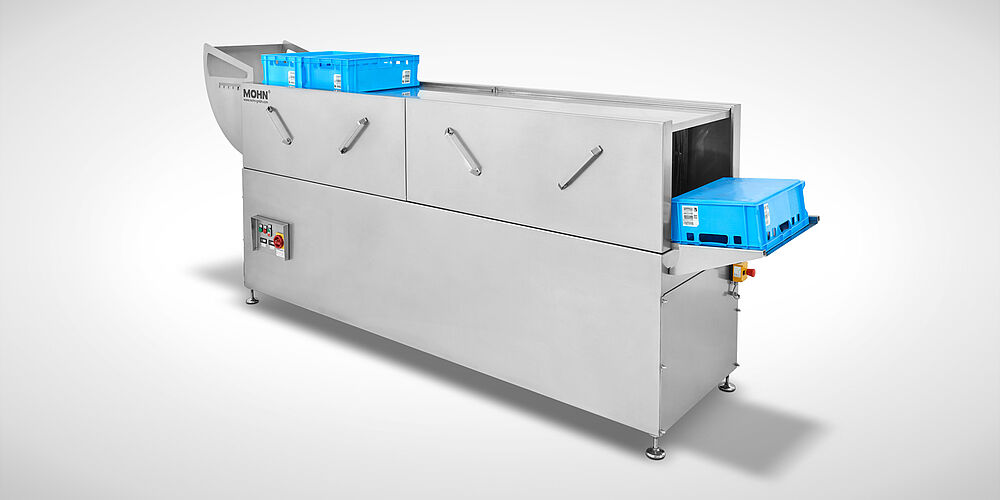

- Inclination on the outfeed side for returning water on the bottom of the crate
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Technical data depends on equipment. Errors and omissions excepted. Information provided without guarantee.
Material
Made of rustproof stainless steel 1.4301
INFORMATION
- Clear rinsing using fresh water, temperature depending on the water supply temperature to be provided by the customer, no heating
Description
The compact washing system consists of a main wash zone and a final rinse zone. It can be used to quickly and effectively clean lightly to moderately soiled Euro-standard containers (E1 to E3). This system is not designed for cleaning baking trays. The machine has a one-man operation (box turner) as standard.
The machine has a one-man operation (box turner) as standard, but can also be used without this. After switching on the machine via the main switch, the tank is filled automatically. After reaching the tank volume of approx. 350 liters, the water meter stops and the water is heated to a temperature of 55-60 ° C by means of the built-in 30 kW heater. As soon as the temperature is reached, the washing process can be started using the start button. The detergent is dosed via an on-site dosing unit or optionally via an already installed dosing pump (see accessories). The tank content is permanently monitored by a float switch.
The boxes are transported through the machine at a slight angle using a rotating stainless steel screw conveyor. This guarantees an optimal distance between the individual boxes and, thanks to its simple construction, easy handling and cleaning. In the main washing zone, two centrifugal pumps (total power 4.5 kW, water circulation 1400 l / min at 1 bar), optimally positioned stainless steel nozzles with a large passage and a long exposure time for the detergent solution ensure excellent cleaning results. The wash liquor is filtered through a plate filter and returned to the wash tank.
This is followed by a thorough rinsing of the containers with fresh water. The final rinse water is fed to the wash tank to freshen up the washing liquor.
Options
- Frequency converter to control the throughput speed Article no. 20.00.00.92
- Wire basket for cleaning small parts Article no. 20.00.00.91
- Outfeed roller conveyor, straight, 1,000 mm Article no. 20.00.00.93
- Outfeed roller conveyor, 90° curve Article no. 20.00.00.94
- Outfeed roller conveyor, 180° curve Article no. 20.00.00.95
Technical Data
| Power supply | 3x 400 V/ N/ PE; 50 Hz |
|---|---|
| Performance | approx. 300 E-containers per hour |
| Drain | DN 50 (tank overflow) |
| Water connection | 3/4“, min. 40°C, 2-5 bar |
| Water consumption | approx. 400 l/h (constant) |
| Tank capacity | approx. 350 l |
| Pump performance | 2 pumps with total power 4.5 kW, 1,400 l/min at 1 bar |
| Items to be washed | Euronorm containers (E1 to E3) |
| Washing tunnel length | 3000 mm |
| Heating power tank | 3x 10 kW tank heating (electrical) |
| Wash tunnel dimensions (w x h) | W 630 x H 430 mm (adjustable) |
| Power rating electric heating (20 kW) | 35 kW |
| Working height | 900 mm (ergonomic) |

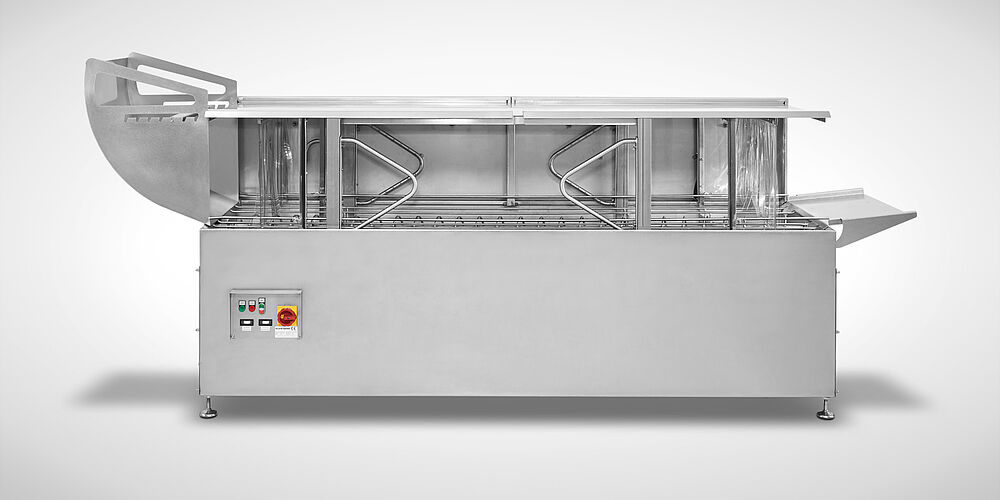

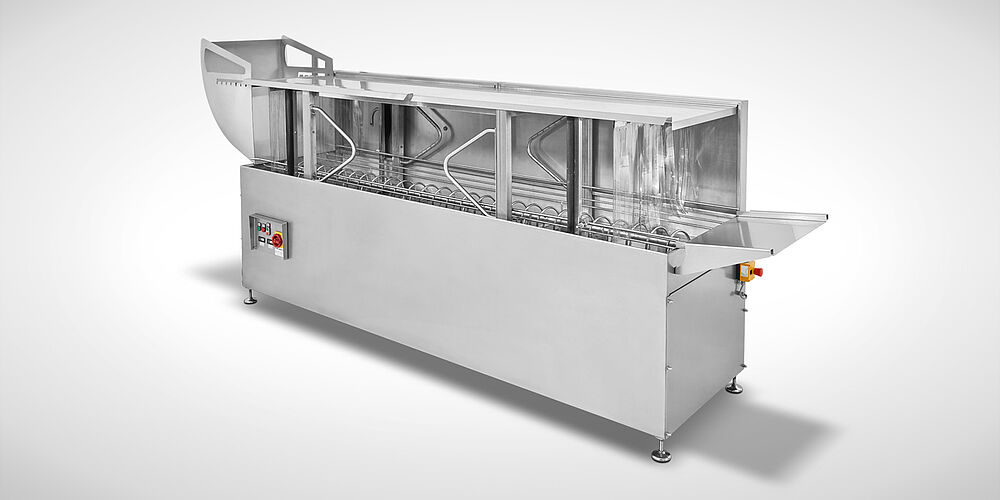

Main wash zone
Nozzle system of the main washing zone for cleaning and maintenance work can be easily removed by screwing.
Rinse zone
Rinse zone with separate nozzle arm and individually replaceable stainless steel nozzles for cleaning and maintenance purposes.
Crate transport
Crate transport by means of stable stainless steel spiral (utility model). Exact box separation and unobstructed impact of the sud from
the bottom side.
Filter system
The filter system for coarse dirt can be easily removed and cleaned above the washing zone.
Operating panel
Clear and easy to use operating panel.
Water tank
Easily accessible and easy to clean water tank.
