Sieve for meat trolleys
Sieve for meat trolleys
Quadratic sieve
Type SES-L
Suitable for HBW-S 200/ 300 meat trolleys
- Robust perforated metal plate design
- Material thickness # 2,0 mm
- Perforation Ø 4 mm; Hole spacing: 20/20 mm
- 4 welded floor spacers; H: 50 mm
- Floor spacer made of profile tube frame 40 x 40 x 1.5 mm
- Two retractable round steel handles, Ø 10 mm
to lift the sieve insert
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
Material
Made of rustproof stainless steel 1.4301
Information
With the standard trolley (meat trolley/ meat bin) Type HBW-S 200 or HBW-S 300, the locking bolt is welded in the middle of the container floor so that the sieve insert can be secured with the integrated swivel lock to prevent it from falling out when the container is emptied.

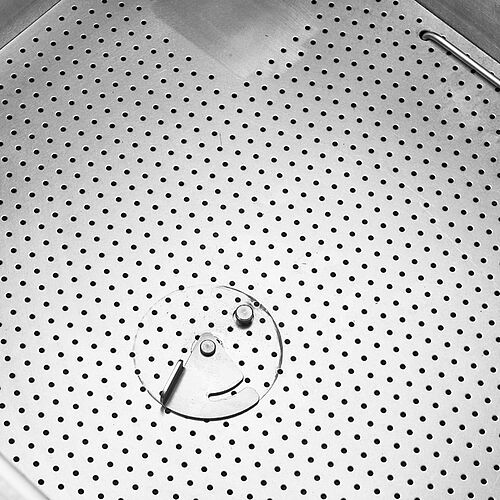

The quadratic sieve (perforated metal plate) insert has round perforations with Ø 4 mm and a hole spacing of 15 mm (center-center) and is also provided with 30 mm high floor spacers. Two retractable round steel handles for effortless lifting of the sieve insert are also integrated.
OPTION
To safe the sieve insert when tipping the trolley, we offer an optional integrated swivel lock on the sieve insert as well as the locking bolt welded to the container bottom.
