Hygiene wall with sole cleaning + disposable dispenser
Hygiene wall with sole cleaning + disposable dispenser

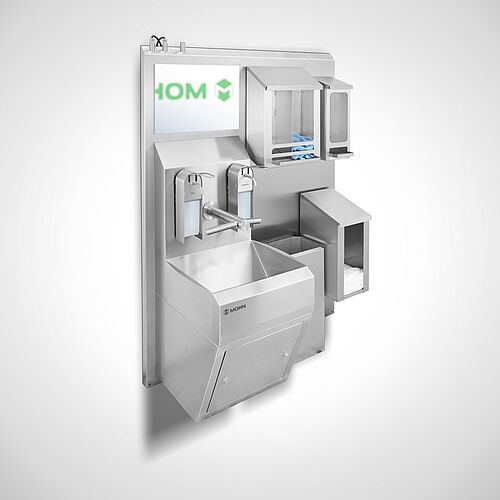

Hygiene wall
Type HW-HWB-S/Sole-Master SON
HAND HYGIENE SOLUTION WITH SOLE CLEANING + DISPOSABLE DISPENSER SYSTEMS

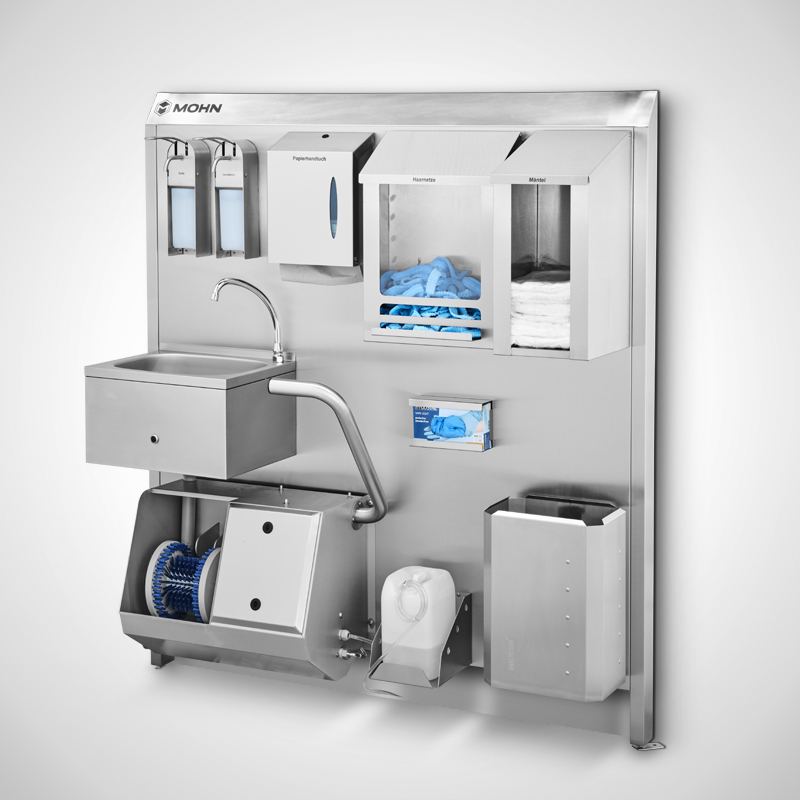

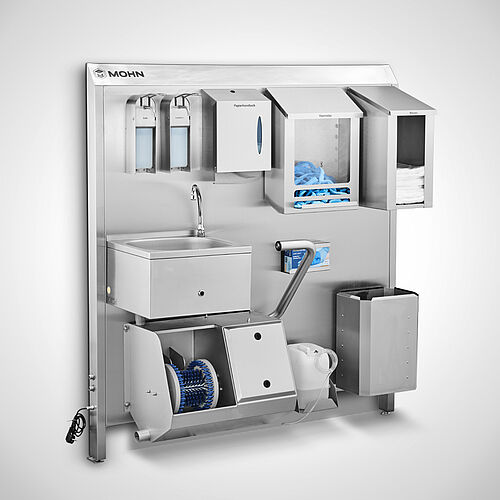

Hygiene wall type HW-HWB-S/Sole-Master SON as standard consisting of:
- Rear wall with sloping roof (hygienic design) as wall/standing frame, #1.5 mm
- 1 hand wash basin with sensor operation, type HWB-S 47/ 24V
- 1 soap dispenser, type USP-O
- 1 disinfectant dispenser, type USP-O
- 1 lockable folding paper towel dispenser, type HTSP-A
- 1 stainless steel waste basket, type PK-E 40 litres
- 1 Sole cleaning machine, type Sole-Master Highline
- 1 open canister holder type KH-II
- 1 gown/overalls dispenser type EKS
- 1 multi dispenser for e.g. hair nets or beard protection type EMS
- 1 glove dispenser for box sizes 222 x 125 x 74 mm type HSS-2
- 1 waste paper basket (60 ltr.) made of sturdy stainless steel sheet with holder
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
1716169420485491716121837
8820
4821
8
Show Lightbox Compare Comparedata
(Non-return or pressure relief valves, siphon, sealing and small parts are not included)
MATERIAL
Partly made of stainless steel 1.4301
Hand-washing basin: Solenoid valve made of plastic and add-on parts made of brass (partly chrome-plated)
Refillable containers for soap or disinfectant made of plastic
Brush roller of the Sole-Master Highline sole cleaning machine made of plastic
Technical Data
| Power supply | 1~ 230 V; 50/60 Hz |
|---|---|
| Performance | 0,2 kW (Sole cleaning machine) |
| Drain | DN 50 -centre |
| Water connection | 1/2" cold- + warm water (hand wash basin) / 3/4" (Sole cleaning machine) |
| Line pressure | min. 2,5 bar/ max. 6 bar |
| Water outflow height | 200 mm (Hand wash basin) |
| Control voltage | 24 V DC |
| Operating temperatur | 0° – 40° C |
Accessories
Sole cleaning
Type Sole-Master Highline
Disposable glove dispenser
Type EHS
Disposable workcoat / overall dispenser
Type EKS
Glove dispenser
Type HSD
Multi-mix dispenser for disposable clothing
Type MMS V2
Disposable protective goggle dispenser
Type EBS
Apron dispenser
Type ESS-1
Apron dispenser
Type ESS-2
Utensil dispenser
Type US
Disposable paper dispenser
Type EPA
