Hygiene wall with Dyson Airblade Wash + Dry

Hygiene wall
Type HW-HWB-SR-DT

Hand hygiene solution: washbasin with integrated dyson tap

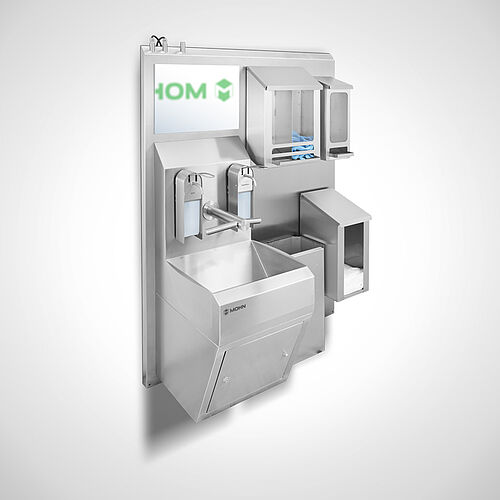

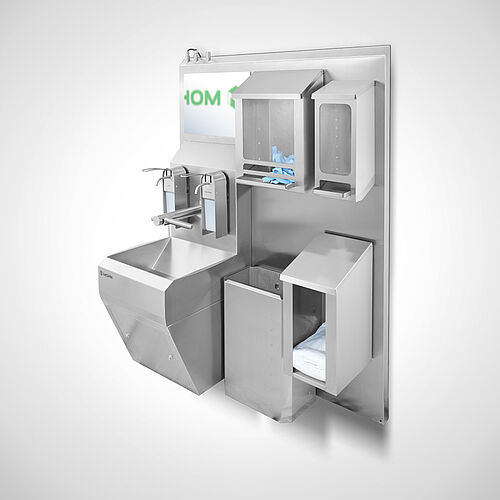

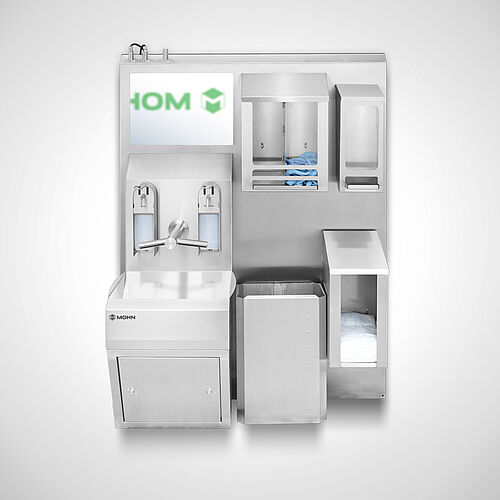

Hygienic wall type HW-HWB-SR-DT 1 standard consisting of:

  • Rear wall with sloping roof (hygienic design) with media supply from above
  • 1 hand-washing basin with Dyson Tap fitting type HWB-SR-DT 1/ 24V Ecoline
    with integrated Dyson Airblade Tap AB11 fitting
  • 1 small instantaneous water heater, type MBH-3, 186 x 135 mm
  • 1 soap dispenser, type USP-O
  • 1 disinfectant dispenser, type USP-O
  • 1 stainless steel mirror type ESP, 500 x 350 mm
  • 1 gown/overalls dispenser, type EKS
  • 1 multi-dispenser for e.g. face masks or overshoes, type EMS-Mini
  • 1 multi-dispenser with partition for e.g. hairnets or beard protectors type EMS-TW
  • 1 waste paper basket (60 ltr.) made of sturdy stainless steel sheet with holder

TypeVersionDimensions
W x D x H in mm
PDF
HW-HWB-SR-DT 1Sensor wash basin with Dyson Airblade WD061300 x 615 x 1700 mm22-62096
Special dimensions
Foot frame 18000179
Other executions on request
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

(Non-return or pressure relief valves, siphon, sealing and small parts are not included)



Material

Partly made of stainless steel 1.4301

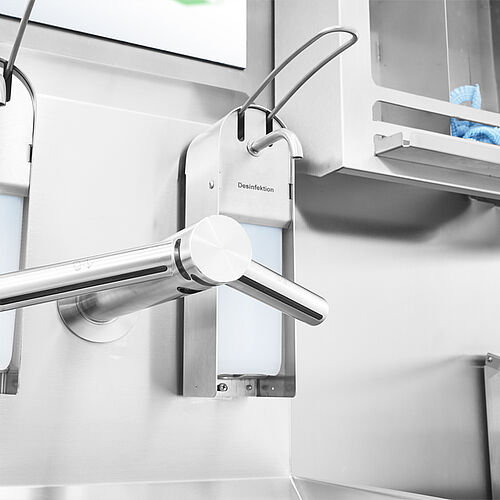

Dyson Tap fitting type AB11: brushed stainless steel

Hand-washing basin: Solenoid valve made of plastic and add-on parts made of brass (partly chrome-plated)

Refillable containers for soap or disinfectant made of plastic



Information

The custom-made hygiene wall features a stainless steel hand basin with integrated, water-saving Dyson Airblade Wash+Dry tap with hand dryer function. Without touching, the Dyson Tap fitting automatically switches from water to air. So you don't have to touch any dirty taps or knobs. The integrated hand dryer dries hands in just 14 seconds.

No water on the floor

When you go to a separate area to dry your hands with wet hands, water often drips onto the floor. This can cause problems in the hygiene area. With the Dyson Airblade Tap fitting integrated into the hygiene wall, water doesn't drip onto the floor because you don't even have to leave the sink with your wet hands. In addition, the Dyson Tap has a HEPA filter. 99.9% of bacteria and viruses are removed from the ambient air. This means that hands are dried with clean air and not, unlike conventional hand dryers, with unclean air.

Technical Data

Power supply1~ 230 V; 50/60 Hz
Performance1600 Watt (Dyson Tap)
DrainDN 50
Water connection1/2" (cold- + warm water)
Line pressuremin. 2,5 bar/ max. 6 bar
Control voltage24 V DC
Operating temperatur0° – 40° C
Air speed690 km/h
