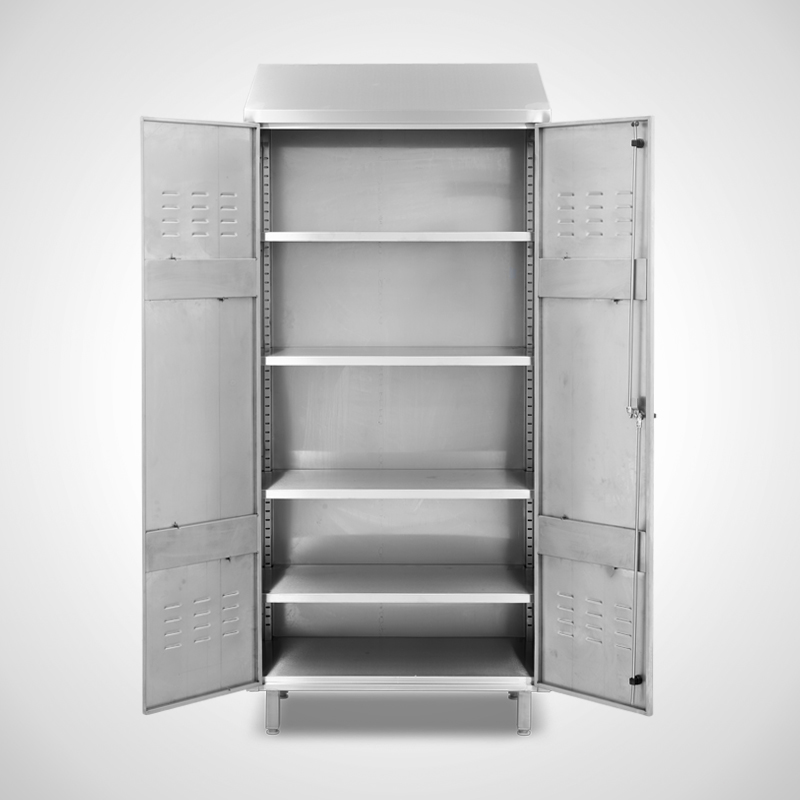

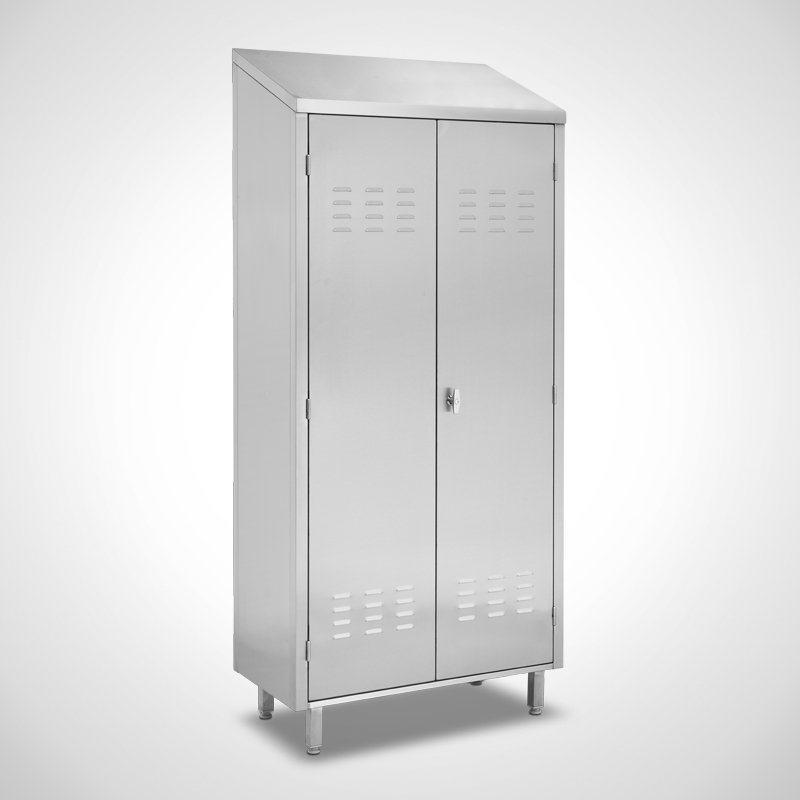

Storage cupboard made of stainless steel Type ASD "Standard" 95-50, art. no. 44.20.00.15 Storage cupboard made of stainless steel Type ASD "Standard" 95-50, art. no. 44.20.00.15
Storage cupboard made of stainless steel Type ASD "Standard" 95-50, art. no. 44.20.00.15Storage cupboard made of stainless steel Type ASD "Standard" 95-50, art. no. 44.20.00.15

Storage cupboards
Type ASD "Standard"

Universal usable - 4 storage shelves

  • Fixed welded stainless steel version
  • Cupboard body, closed on 3 sides
  • Design in 1.0 mm material strength
  • Sloping roof, 200 mm higher at the back, in “Hygienic design“
  • Interior with 4 height-adjustable storage shelves
  • 2 revolving  doors on the operator side
  • Doors lockable by means of T-handle including profile cylinder lock
  • 4 height-adjustable plastic screw feet (+/- 30 mm)
  • Standard ground clearance: 150 mm

TypeVersionDoorsDimensions
W x D x H in mm		PDF
depth: 500 mm
ASD-60-504 storage shelves2 revolving doors600 x 500 x 216044.20.00.30
ASD-70-504 storage shelves2 revolving doors700 x 500 x 216044.20.00.31
ASD-80-504 storage shelves2 revolving doors800 x 500 x 216044.20.00.32
ASD-95-504 storage shelves2 revolving doors950 x 500 x 216044.20.00.15
ASD-110-504 storage shelves2 revolving doors1100 x 500 x 216044.20.00.33
ASD-120-504 storage shelves2 revolving doors1200 x 500 x 216044.20.00.44
ASD-130-504 storage shelves2 revolving doors1300 x 500 x 216044.20.00.34
ASD-140-504 storage shelves2 revolving doors1400 x 500 x 216044.20.00.35
depth: 600 mm
ASD-60-604 storage shelves2 revolving doors600 x 600 x 216044.20.00.36
ASD-70-604 storage shelves2 revolving doors700 x 600 x 216044.20.00.37
ASD-80-604 storage shelves2 revolving doors800 x 600 x 216044.20.00.38
ASD-95-604 storage shelves2 revolving doors950 x 600 x 216044.20.00.39
ASD-110-604 storage shelves2 revolving doors1100 x 600 x 216044.20.00.40
ASD-120-604 storage shelves2 revolving doors1200 x 600 x 216044.20.00.41
ASD-130-604 storage shelves2 revolving doors1300 x 600 x 216044.20.00.42
ASD-140-604 storage shelves2 revolving doors1400 x 600 x 216044.20.00.43
Special dimensions
Revolving doors made of MACROLON 49001907
4 polyamide castors Ø 125 mm (2 mwith stop) 99900150
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Other executions on request.



Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish.



Options

  • 4 polyamide castors, Ø 125 mm (2 with stop), Art. No. 99.90.01.50
  • Revolving doors made of MACROLON, Art. No. 49.00.19.07

Reference Photos

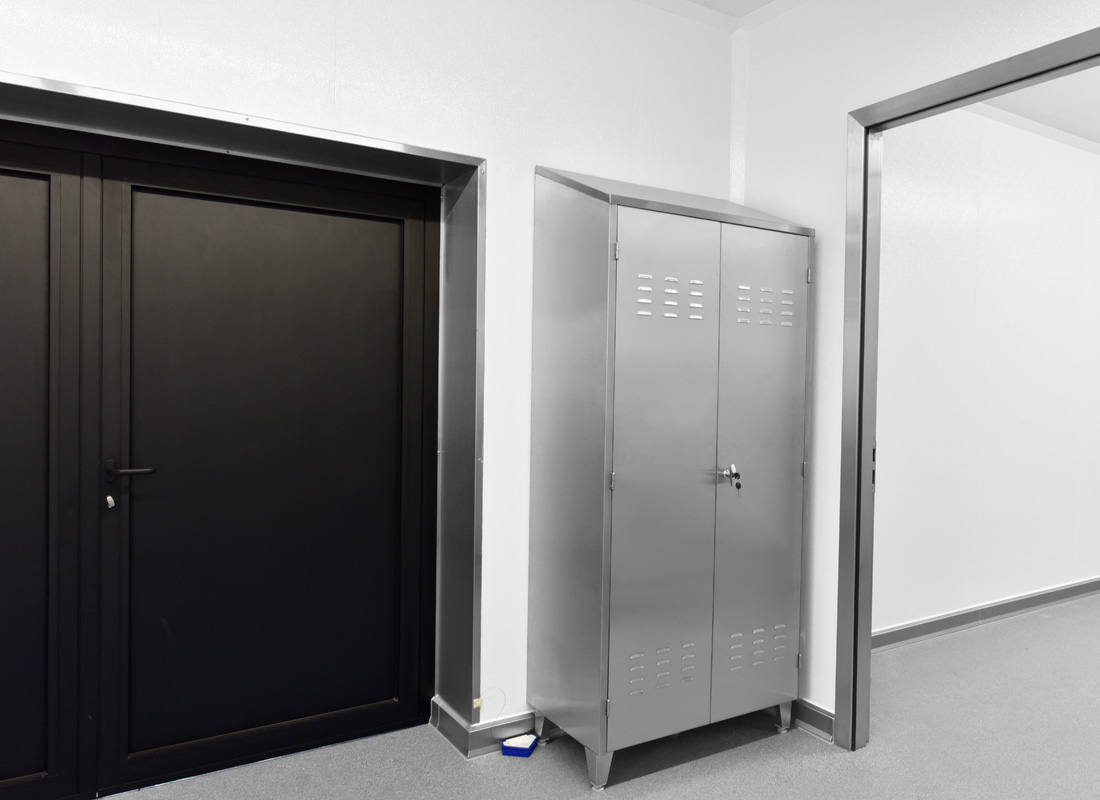

Storage cabinet Type ASD "Standard" in a fish smoke house
Storage cabinet Type ASD "Standard" in a fish smoke house
