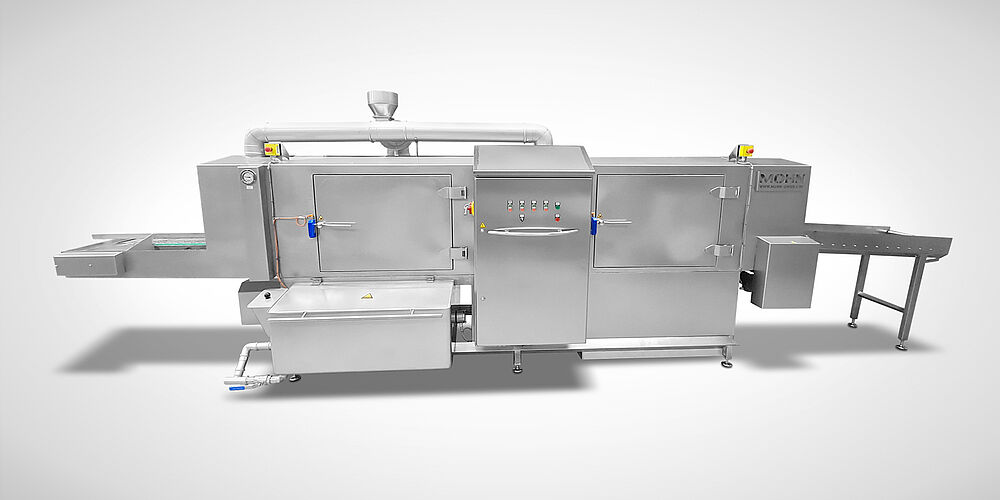

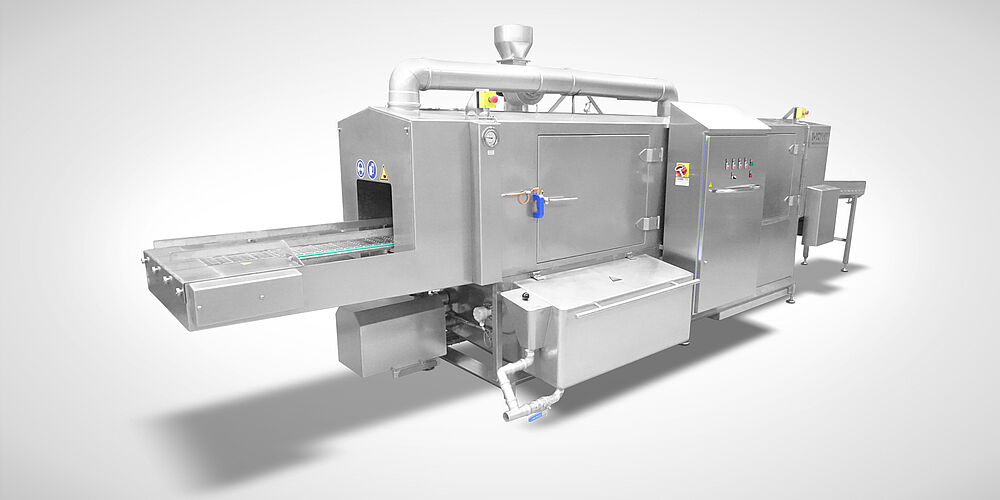

Industrial washing machine Highline
Type DLWA 250-CWS 201-1
ONE-Tank WASHING MACHINE FOR CLEANING CANS, BUCKETS and BAGGED PRODUCTS
- Industrial washing machine (can washing machine / bucket washing machine) - nominal capacity 150 - 200 units per hour (one lane)
- Completely double-walled, soundproof and heat insulated machine housing made of one piece and completely welded, low energy consumption
- Mainwash zone, length 1800 mm (incl. rinse zone) with pump capacity 3 kW - 900 ltr./m at 1,5 bar
- Tank volume 300 Liter, depends on filter type execution*
- Nozzle arms with stainless steel nozzles can be removed and cleaned without any tools (Nozzle arms with forced positioning)

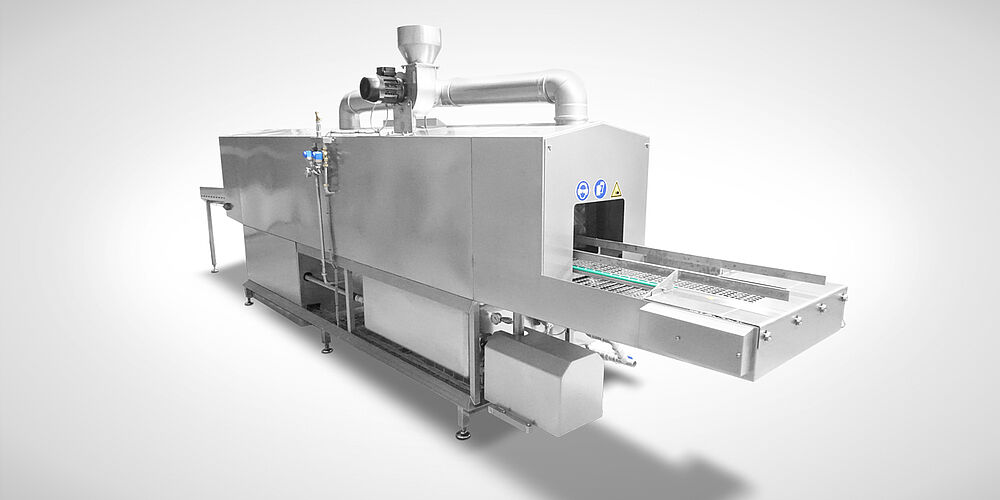

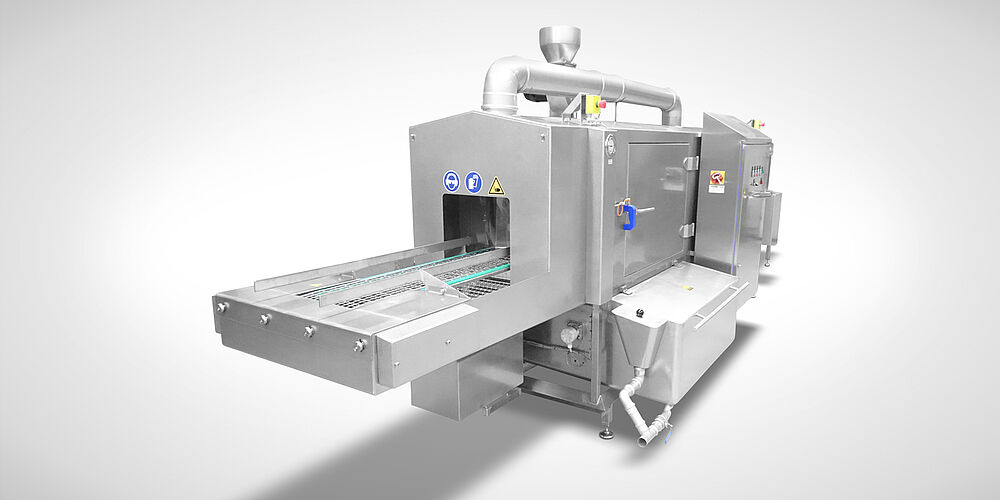

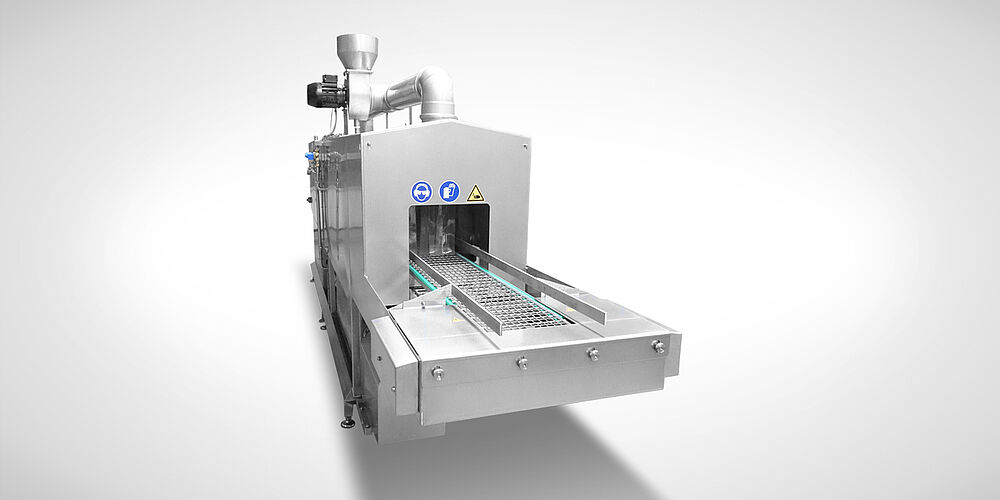

- Infeed table, electrically driven: length 1,500 mm, for easy manual feeding

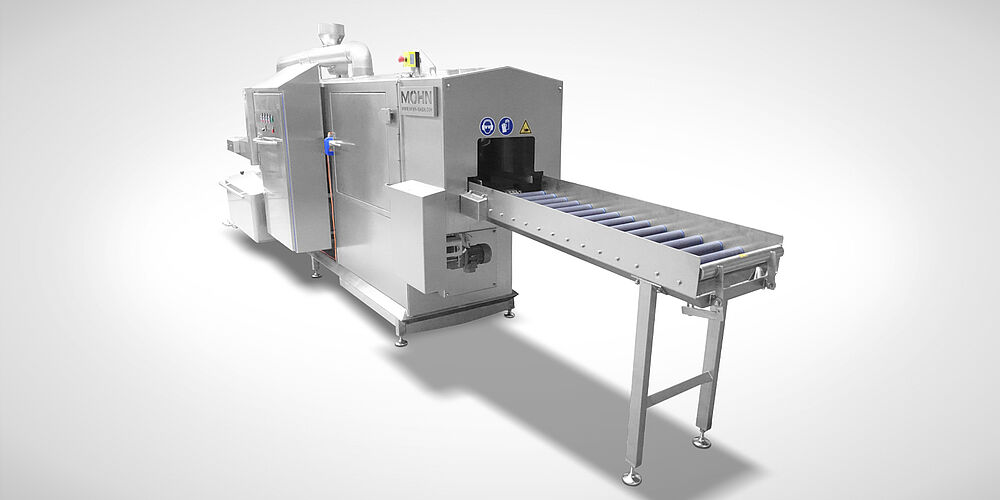

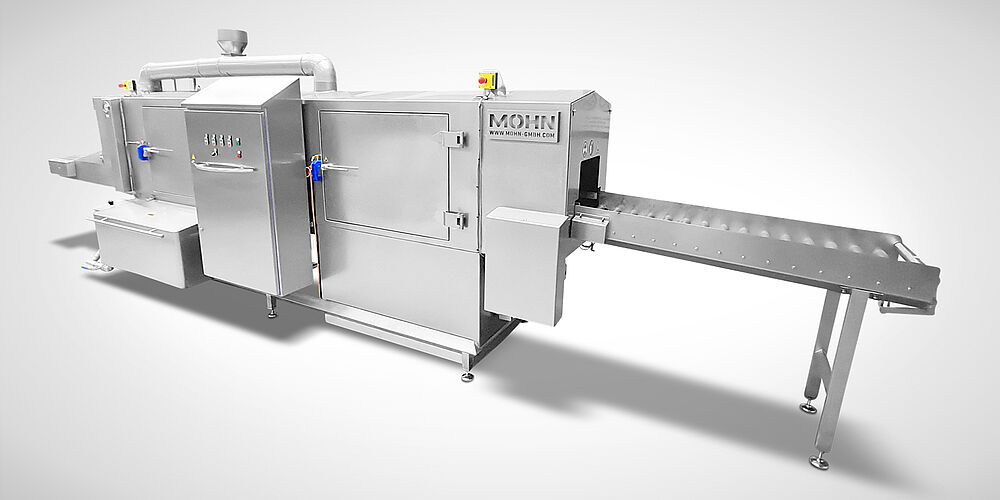

- Outlet table, electrically driven: length 500 mm additional with gravity roller conveyor (length: 1500 mm) with limit switch (Belt + stop with full outlet belt after final rinsing)
- Large and easily cleanable external filter box with funnel overflow
- Electric tank heater: 1x 10 kW; optional with steam directly or via heat exchanger
- Special filament heaters made of heat-resistant stainless steel, easy to clean, secure against burn-through
- Mainwash zone: Washing temperature 20-30° Celsius
- Rinse zone: Fresh water temperature approximate 20° Celsius
- Electrically driven conveyor belt/ washing goods conveyance via 300 mm wide stainless steel wire eye link belt
- Blower zone with electric air compressor with 5 kW power and aerodynamically optimised "air knife".
- Steam exhaust with stainless steel piping in the inlet area and the neutral zone (before the blower zone)
- Stainless steel exhaust system DN250 with exhaust motor, air temperature approx. 30°C, 1x 1500 m³/h at. 500 Pa
No product in the request list!
Please select the desired article on the gray field next to the article no. by clicking the mouse.
*Width depending on filter version
Material
Partially made of rustproof stainless steel 1.4301
DESCRIPTION AND SPECIFICATIONS
The industrial washer is designed for cleaning cans, buckets, bags and other packaged goods to remove dirt and dust residues in a continuous process. After cleaning, the residual water is gently blown off in the blower zone.
A volume-flow-dependent dosing device is installed in the rinse zone, which mixes a peracetic acid-based cleaning agent (OXY SAN ZS, Ecolab) with the rinse water in a concentration of approx. 0.25% (at 20°C) to disinfect the wash ware. The constant concentration of the chemical is ensured by a pressure monitor in the rinse zone.
WaSHing goods
- Can: Ø230mm, height 260mm
- Bucket: Ø270mm, v 260mm
- Bucket: Ø310mm, height 240mm
- Bagged products: ca. 250 x 200mm
- Sausage stick: Ø120mm, Länge 470mm
Technical Data
Power supply | 3x 400 V/ N/ PE; 50 Hz |
---|---|
Drain | DN 50 |
Water connection | 3/4“, 15-85°C, 2-6 bar, 2-8°dH |
Water consumption | ca. 200-300 l/h |
Tank capacity | 300 Liter |
Pump capacity | 3,0 kW 900 ltr./min. at 1,5 bar (main wash zone) |
Washing tunnel length | 1800 mm (main wash zone and rinsing zone) |
Fan engine power | 1x 5kW ELEKTROR air compressor with 1 x 1500m3/h at approx. 500Pa |
Heating power tank | 1x 10 KW (electrical) |
Wash tunnel dimensions (w x h) | B 310 x H 310 mm |
Power rating electric heating (10 kW) | 22 kW |
Exhaust ventilation | DN 250 (exhaust air connection) |
Working height | 1000 mm (ergonomic) |
Nozzles
Stainless steel nozzles with an optimal opening angle for a good cleaning effect. Insensitive to pollution.
Control cabinet
Large control cabinet with high-quality control components from well-known manufacturers.
Double-walled housing
30mm insulated, double-walled tunnel housing for low energy consumption. With large maintenance doors for easy internal cleaning.
Holddown height adjustment
Easy height adjustment of the holddown device to clean differently high items in the wash tunnel.
Stainless steel centrifugal pump
Powerful stainless steel centrifugal pump with high circulation and high wash pressure.
Outside box filter
Large outside box filter for taking up large amounts of dirt. Easy cleaning of the filter boxes also during running operation.
