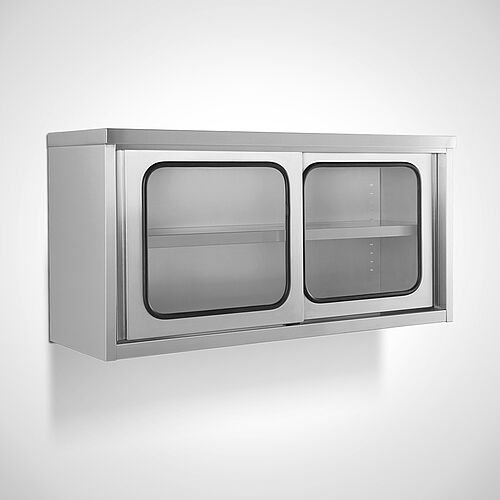

Wall-mounted cupboard Type WS-SZ/H 100-35 Highline, item no. 22.00.40.02Wall-mounted cupboard Type WS-SZ/H 100-35 Highline, item no. 22.00.40.02

Wall-mounted cupboard
Type WS-SZ/H

Particularly suitable for use in pharmacy, laboratories, medicine and clean rooms

  • HIGHLINE-execution
  • Cupboard body, closed on 3 sides
  • Doors with polycarbonate panel as well as rubber seal,
    Advantage: Visible compliance with rules
  • Version in 1.0 mm material thickness
  • On operator side with 2 double-walled hinged doors
  • Cupboard interior with 1 height-adjustable storage shelf
  • Overall height: 600 mm

TypeDepth
in mm		Dimensions
W x D x H in mm		PDF
Depth: 350 mm
WS-SZ/H 100-35350 mm1000 x 350 x 60022.00.40.02
WS-SZ/H 110-35350 mm1100 x 350 x 60022.00.40.03
WS-SZ/H 120-35350 mm1200 x 350 x 60022.00.40.04
WS-SZ/H 130-35350 mm1300 x 350 x 60022.00.40.05
WS-SZ/H 140-35350 mm1400 x 350 x 60022.00.40.06
WS-SZ/H 150-35350 mm1500 x 350 x 60022.00.40.07
WS-SZ/H 160-35350 mm1600 x 350 x 60022.00.40.08
WS-SZ/H 170-35350 mm1700 x 350 x 60022.00.40.09
WS-SZ/H 180-35350 mm1800 x 350 x 60022.00.40.10
WS-SZ/H 190-35350 mm1900 x 350 x 60022.00.40.11
WS-SZ/H 200-35350 mm2000 x 350 x 60022.00.40.12
Depth: 400 mm
WS-SZ/H 200-40400 mm1000 x 400 x 60022.00.40.15
WS-SZ/H 110-40400 mm1100 x 400 x 60022.00.40.16
WS-SZ/H 120-40400 mm1200 x 400 x 60022.00.40.17
WS-SZ/H 130-40400 mm1300 x 400 x 60022.00.40.18
WS-SZ/H 140-40400 mm1400 x 400 x 60022.00.40.19
WS-SZ/H 150-40400 mm1500 x 400 x 60022.00.40.20
WS-SZ/H 160-40400 mm1600 x 400 x 60022.00.40.21
WS-SZ/H 170-40400 mm1700 x 400 x 60022.00.40.22
WS-SZ/H 180-40400 mm1800 x 400 x 60022.00.40.23
WS-SZ/H 190-40400 mm1900 x 400 x 60022.00.40.24
WS-SZ/H 200-40400 mm2000 x 400 x 60022.00.40.25
Special dimensions
Sliding doors lockable by means of profile cylinder lock 99800004
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

We produce all cupboards also individually as desired by the customer.



Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.



Options

  • Doors, lockable by means of profile cylinder lock
  • Corner wall cupboards, with hinged door on the operator side on request
  • Sloping roof, 150 mm higher at the back on request
  • Built-in or integrated chutes on request
