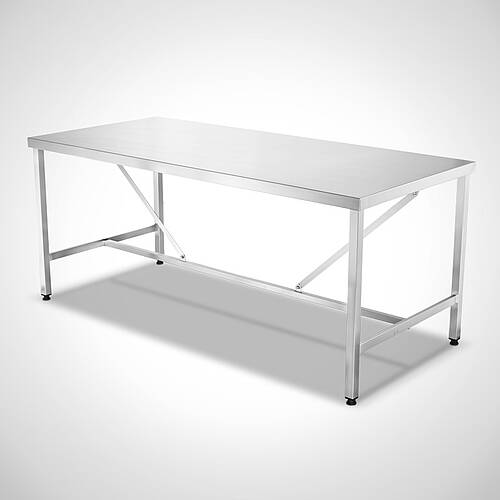

Work table for self-assembly type AT-H-Z 200-90, Art. No. 21.00.19.99, photo shows fully assembled table

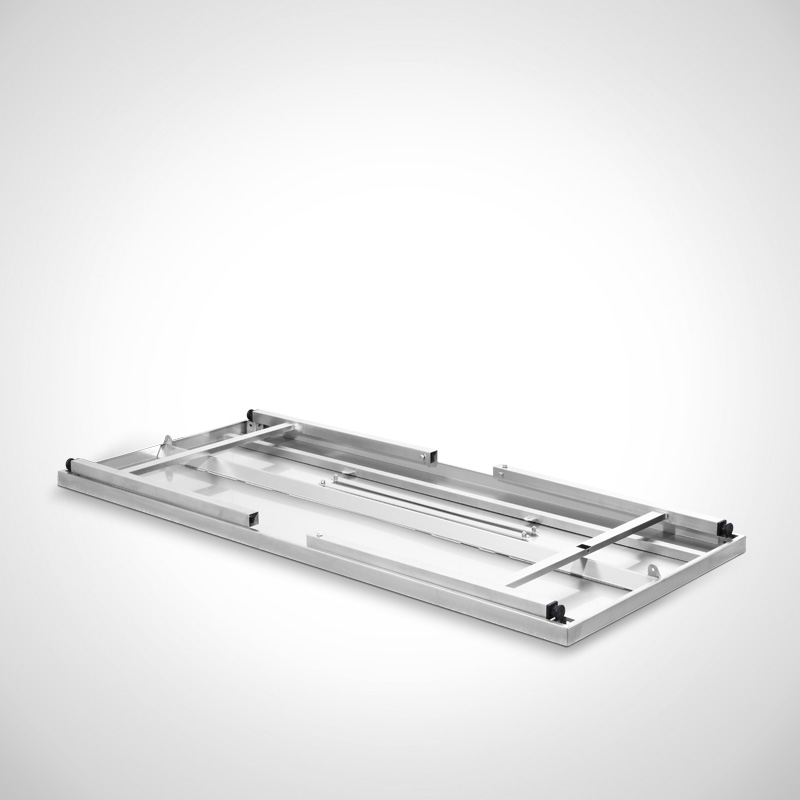

Work table for self-assembly type AT-H-Z 200-90, Art. No. 21.00.19.99, photo shows disassembled state

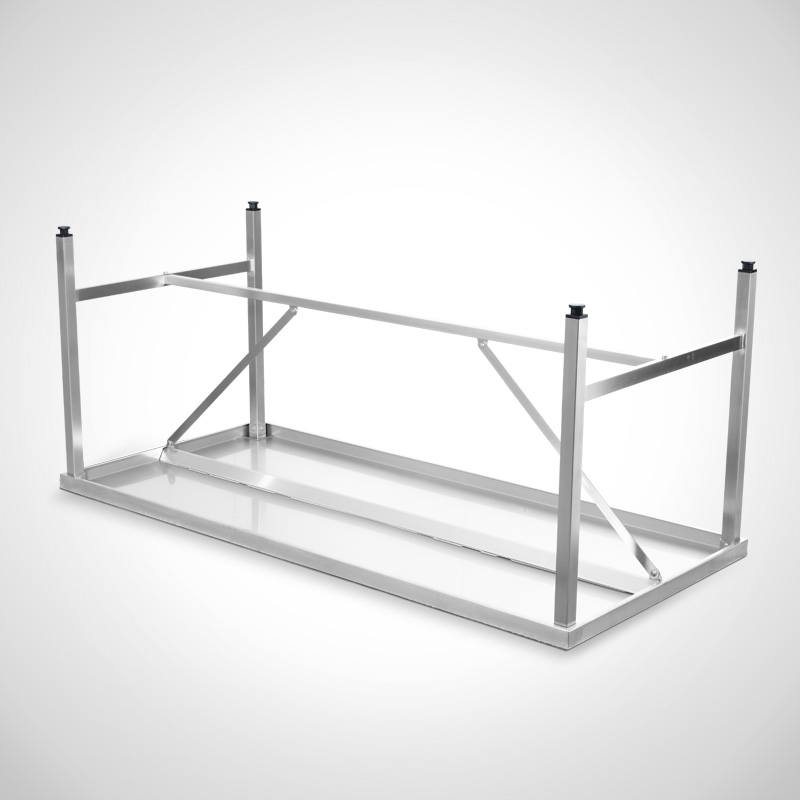

Work table for self-assembly type AT-H-Z 200-90, Art. No. 21.00.19.99, photo shows fully assembled table - underside of table top

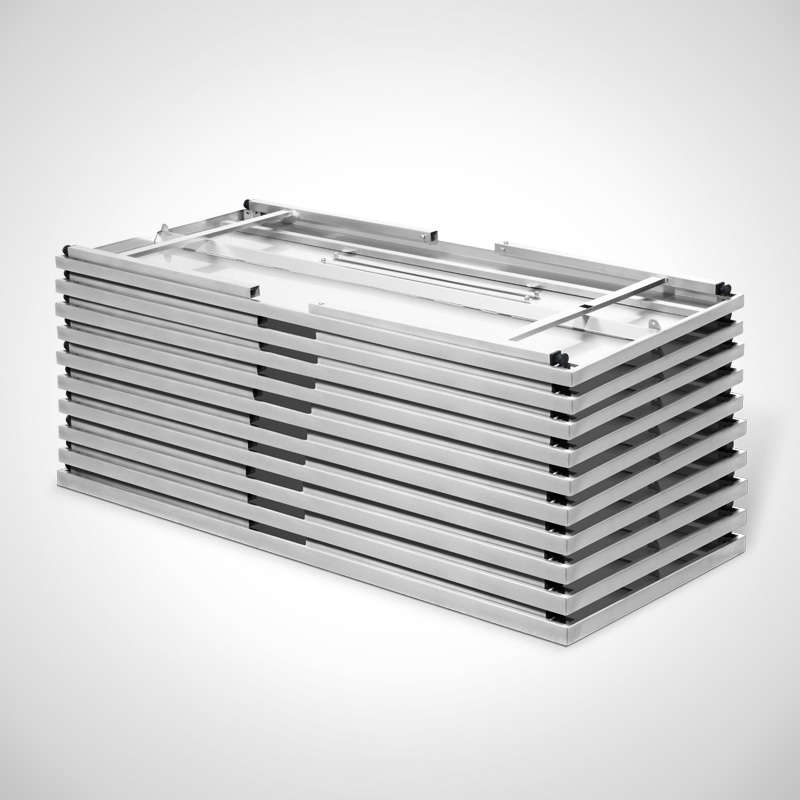

Work table for self-assembly type AT-H-Z 200-90 | One pallet can easily accommodate up to 10 disassembled tables

Work table for self-assembly | Robust substructure made of square profile strut with diagonal strut reinforcement | Mohn GmbH

Work table for self-assembly
type AT-H-Z

Table for self-assembly - delivery is disassembled

Made of stainless steel
Supplied in a disassembled version for self-assembly
Various lengths and widths available
Table top with 1.2 mm material thickness, smoothly bevelled on all sides
Table top reinforced with profile underneath on the long side

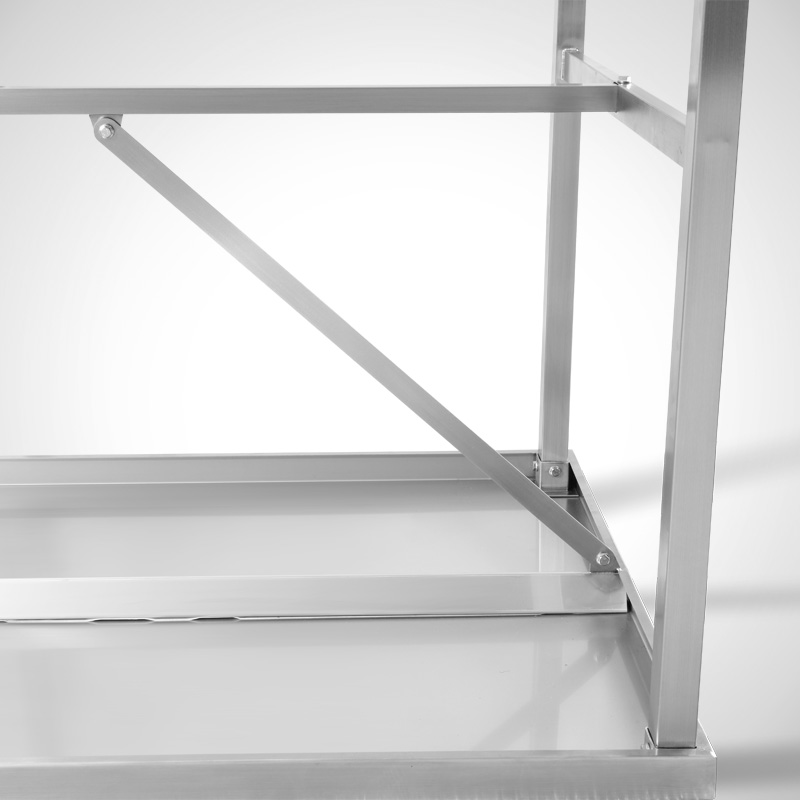

Substructure with H-bracing made of square profile with diagonal brace reinforcement
4 height-adjustable plastic feet for levelling
Standard floor clearance: 200 mm

Type	Dimensions W x D x H in mm	Art.-No. Please mark	PDF
AT-H-Z INDIVIDUELL	Tailored to the customer's specifications	20.00.07.5720000757	20.00.07.57
AT-H-Z 200/90	2000 x 900 x 850	21.00.19.9921001999	21.00.19.99
Special dimensions		00.00.00.1000000010

We manufacture individually according to customer requirements

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Example: 11.11.11.11

No product in the Quick inquiry list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

Example: 11.11.11.11

All dimensions in mm.

Material

Stainless steel 1.4301

Surface stainless steel sheet: Polished, grain 320
Surface stainless steel profiles: Brushed

Scope of delivery

Table top - 1 piece
Leg frame with 2 plastic feet, height-adjustable - 2 pieces
Longitudinal crossbar - 1 piece
Diagonal brace - 2 pieces
Stainless steel hexagon head screws - 14 pieces

Product description

The worktable is supplied in a disassembled, shipping-optimised version. This allows the individual parts to be transported in a space-saving manner, while the table can be assembled quickly and easily on site. All individual parts are securely connected to each other using sturdy screw connections. The result is a robust stainless steel work table for reliable use in a professional environment.

This design offers a clear advantage, especially for larger requirements: if several tables are needed, shipping and logistics costs can be significantly reduced. One pallet can easily accommodate up to 10 disassembled tables. In comparison, welded work tables require around ten times the pallet space on the lorry for delivery.

The self-assembly table therefore combines an economical transport solution with a stable and practical stainless steel construction for professional use.
