Cutting table

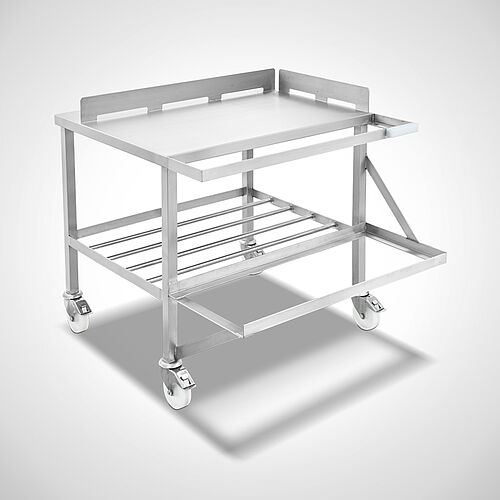

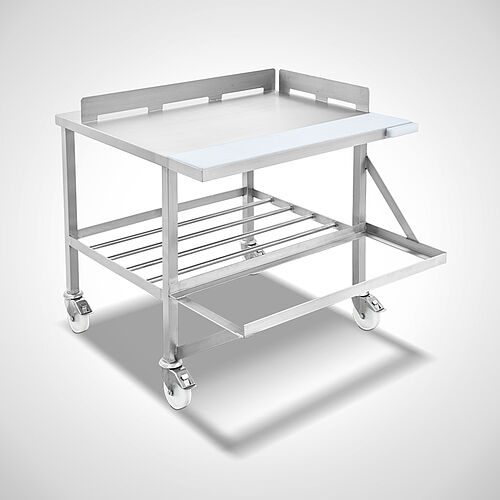

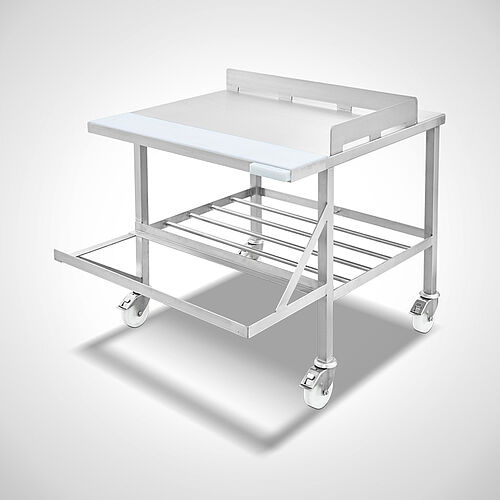

Mobile cutting table
Type SCH-T/F SON

multifunctional stainless steel cutting table
  • Permanently welded version with removable cutting plate
  • Stainless steel tabletop 800 x 1000 mm, smoothly bevelled on all sides,
  • Worktop left and back with 100 mm high welded-on stop
  • HDPE cutting plate (200 x 30 mm) inserted in the profile frame on the right side

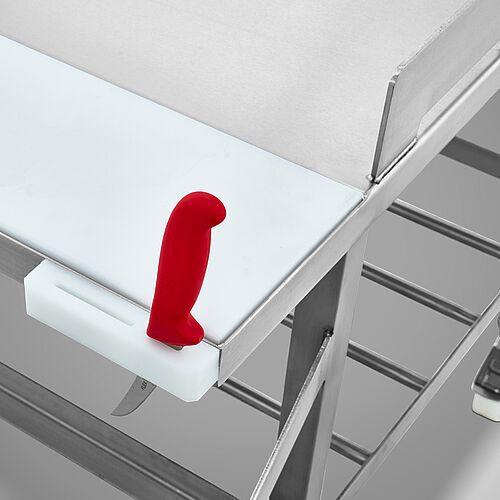

  • Knife holder block made of HDPE-500 on outside of profile frame
  • Substructure with square profile frame construction (40 x 40 x 1.5 mm)

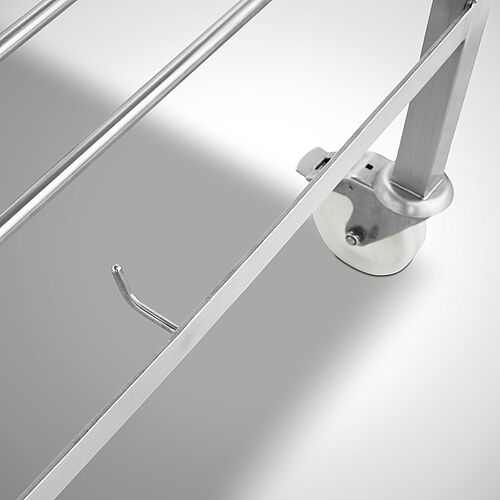

  • Substructure with hygienic storage grid made of round steel, transverse
  • Left-hand side in the centre of the storage grate with welded-on hook for dustpan etc.
  • Profile frame on the right-hand side next to the storage grid to accommodate 2 Euronorm containers
  • 4 polyamide swivel castors with brakes, Ø125 mm
  • High-quality stainless steel wheel housing

TypeVersionDimensions
W x D x H in mm
PDF
SCH-T/F 120x100 SONMobile with 4 castors1200 x 1000 x 90021-61610
Special dimensions
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

All Dimension in mm. Other designs on request.



Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as feet have a uniform brushed finish.

HDPE 500 cutting plate in color white
