hinged doors

Work cupboards

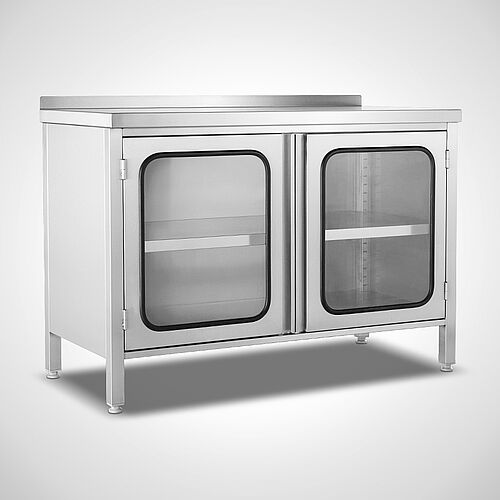

Type AS-FZ Highline

Particularly suitable for use in pharmacy, laboratories, medicine and clean rooms

  • Fully-welded execution made of stainless steel 1.4301
  • Cupboard body, closed on 3 sides, material thickness 1.0 mm
  • Worktop in 1.5 mm material thickness
  • Worktop, chamfered on 3 sides, rear 40 mm backsplash (gallery),
    alternatively: smoothly chamfered on all sides
  • Work top underneath reinforced with hat profile
  • Cupboard interior with 1 height-adjustable storage shelf (50 mm) in 1.0 mm material thickness
  • Frontside with double-walled hinged doors on the operator side (type AS-FZ/H), material thickness 1.0 mm
  • Doors with polycarbonate panel as well as rubber seal, Advantage:Visible compliance with rules
  • Lower structure with stable square pipe frame construction (40x40x1.5 mm)
  • 4 or 6 height-adjustable plastic screw feett (+/- 30 mm)
  • From 2,500 mm length with 6 supporting feet
  • Standard ground clearance: 150 mm

TypeDepth
in mm
Dimensions
W x D x H in mm
PDF
Table depth: 600 mm
AS-FZ/H 100-60600 mm1000 x 600 x 85022.00.06.77
AS-FZ/H 110-60600 mm1100 x 600 x 85022.00.06.78
AS-FZ/H 120-60600 mm1200 x 600 x 85022.00.06.79
AS-FZ/H 130-60600 mm1300 x 600 x 85022.00.06.80
AS-FZ/H 140-60600 mm1400 x 600 x 85022.00.06.81
AS-FZ/H 150-60600 mm1500 x 600 x 85022.00.06.82
AS-FZ/H 160-60600 mm1600 x 600 x 85022.00.06.83
AS-FZ/H 170-60600 mm1700 x 600 x 85022.00.06.84
AS-FZ/H 180-60600 mm1800 x 600 x 85022.00.06.85
AS-FZ/H 190-60600 mm1900 x 600 x 85022.00.06.86
AS-FZ/H 200-60600 mm2000 x 600 x 85022.00.06.87
AS-FZ/H 210-60600 mm2100 x 600 x 85022.00.06.88
AS-FZ/H 220-60600 mm2200 x 600 x 85022.00.06.89
Table depth: 700 mm
AS-FZ/H 100-70700 mm1000 x 700 x 85022.00.06.90
AS-FZ/H 110-70700 mm1100 x 700 x 85022.00.06.91
AS-FZ/H 120-70700 mm1200 x 700 x 85022.00.06.92
AS-FZ/H 130-70700 mm1300 x 700 x 85022.00.06.93
AS-FZ/H 10-70700 mm1400 x 700 x 85022.00.06.94
AS-FZ/H 150-70700 mm1500 x 700 x 85022.00.06.95
AS-FZ/H 160-70700 mm1600 x 700 x 85022.00.06.96
AS-FZ/H 170-70700 mm1700 x 700 x 85022.00.06.97
AS-FZ/H 180-70700 mm1800 x 700 x 85022.00.06.98
AS-FZ/H 190-70700 mm1900 x 700 x 85022.00.06.99
AS-FZ/H 200-70700 mm2000 x 700 x 85022.00.07.00
AS-FZ/H 2100-70700 mm2100 x 700 x 85022.00.07.01
AS-FZ/H 2200-70700 mm2200 x 700 x 85022.00.07.02
Table depth: 800 mm
AS-FZ/H 100-80800 mm1000 x 800 x 85022.00.07.03
AS-FZ/H 110-80800 mm1100 x 800 x 85022.00.07.04
AS-FZ/H 120-80800 mm1200 x 800 x 85022.00.07.05
AS-FZ/H 130-80800 mm1300 x 800 x 85022.00.07.06
AS-FZ/H 140-80800 mm1400 x 800 x 85022.00.07.07
AS-FZ/H 150-80800 mm1500 x 800 x 85022.00.07.08
AS-FZ/H 160-80800 mm1600 x 800 x 85022.00.07.09
AS-FZ/H 170-80800 mm1700 x 800 x 85022.00.07.10
AS-FZ/H 180-80800 mm1800 x 800 x 85022.00.07.11
AS-FZ/H 190-80800 mm1900 x 800 x 85022.00.07.12
AS-FZ/H 200-80800 mm2000 x 800 x 85022.00.07.13
AS-FZ/H 210-80800 mm2100 x 800 x 85022.00.07.14
AS-FZ/H 220-80800 mm2200 x 800 x 85022.00.07.15
Special dimensions
Mobil version with 2 fixed and 2 swivel castors with brakes, Ø125 mm 99900150
Retrofitting set “Expander” (2 fixed rollers and 2 castors with locking mechanism, for profile 40x40x1.5 mm 99900199
Hygienic Design castor set type HLR-SET  29100103
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

We produce all cupboards also individually as desired by the customer.



Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish.



Description

Work cupboards are applicable for all kinds of industry and product-ranges.
For cleanrooms we also deliver cupboard-interiors in very hygienic-executions H1-3 according to DIN 18865-9.



Options

  • Doors lockable by means of profile cylinder lock on request
  • Corner work cupboards, open on the operator side or with hinged door on request
  • Mobile version (2 fixed rollers and 2 castors with locking mechanism), Ø125 mm, Article no. 99.90.01.50
  • Retrofitting set “Expander” (2 fixed rollers and 2 castors with locking mechanism), for profile 40 x 40 x 1.5 mm, Article no. 99.90.01.99
