Hinged doors

Work cupboards

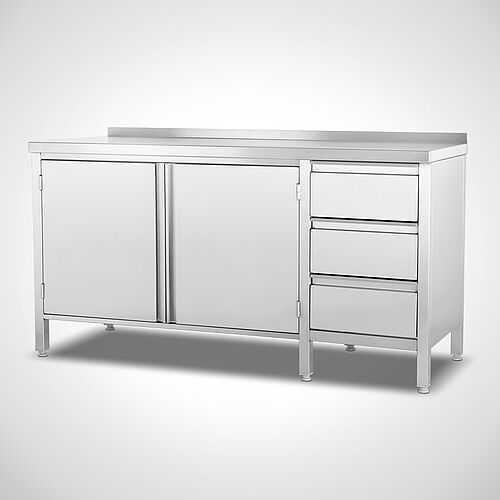

Type AS-FZ-SR

Work cupboards are applicable for all kinds of industry and product-ranges

  • Fully-welded execution made of stainless steel 1.4301
  • Cupboard body, closed on 3 sides, material thickness 1.0 mm
  • With double-walled hinged doors on the operator side, Material thickness 1.0 mm
  • Worktop in 1.5 mm material thickness
  • Worktop, chamfered on 3 sides, rear 40 mm backsplash (gallery),
    alternatively: smoothly chamfered on all sides
  • Work top underneath reinforced with hat profile
  • Cupboard interior with 1 height-adjustable storage shelf (50 mm) in 1.0 mm material thickness
  • Drawer block, with 3 drawers on the right side, each drawer W 400 x H 200 mm
  • Lower structure with stable square pipe frame construction (40x40x1.5 mm)
  • 6 height-adjustable plastic screw feet (+/- 30 mm)
  • Standard ground clearance: 150 mm

TypeDepth
in mm
Dimensions
W x D x H in mm
PDF
Depth: 600 mm
AS-FZ-SR 100-60600 mm1000 x 600 x 85022.00.13.45
AS-FZ-SR 110-60600 mm1100 x 600 x 85022.00.13.46
AS-FZ-SR 120-60600 mm1200 x 600 x 85022.00.13.47
AS-FZ-SR 130-60600 mm1300 x 600 x 85022.00.13.48
AS-FZ-SR 140-60600 mm1400 x 600 x 85022.00.13.49
AS-FZ-SR 150-60600 mm1500 x 600 x 85022.00.13.50
AS-FZ-SR 160-60600 mm1600 x 600 x 85022.00.13.51
AS-FZ-SR 170-60600 mm1700 x 600 x 85022.00.13.52
Depth: 700 mm
AS-FZ-SR 100-70700 mm1000 x 700 x 85022.00.13.58
AS-FZ-SR 110-70700 mm1100 x 700 x 85022.00.13.59
AS-FZ-SR 120-70700 mm1200 x 700 x 85022.00.13.60
AS-FZ-SR 130-70700 mm1300 x 700 x 85022.00.13.61
AS-FZ-SR 140-70700 mm1400 x 700 x 85022.00.13.62
AS-FZ-SR 150-70700 mm1500 x 700 x 85022.00.13.63
AS-FZ-SR 160-70700 mm1600 x 700 x 85022.00.13.64
AS-FZ-SR 170-70700 mm1700 x 700 x 85022.00.13.65
Depth: 800 mm
AS-FZ-SR 100-80800 mm1000 x 800 x 85022.00.13.71
AS-FZ-SR 110-80800 mm1100 x 800 x 85022.00.13.72
AS-FZ-SR 120-80800 mm1200 x 800 x 85022.00.13.73
AS-FZ-SR 130-80800 mm1300 x 800 x 85022.00.13.74
AS-FZ-SR 140-80800 mm1400 x 800 x 85022.00.13.75
AS-FZ-SR 150-80800 mm1500 x 800 x 85022.00.13.76
AS-FZ-SR 160-80800 mm1600 x 800 x 85022.00.13.77
AS-FZ-SR 170-80800 mm1700 x 800 x 85022.00.13.78
Special dimensions
Mobile version (6 castors, 2 castors with locking mechanism), Ø125 mm 99900152
Drawer(s) INDIVIDUALLY lockable with a profile cylinder lock 99800287
Drawer(s) CENTRALLY lockable with a central profile cylinder lock 99800376
Drawer with full extension 99800288
We manufacture individually according to customer requirements

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

All dimensions are in mm. Other designs on request!


Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish.



Information

For cleanrooms we also deliver cupboard-interiors in very hygienic-executions H1-3 according to DIN 18865-9



Options

  • Doors lockable by means of profile cylinder lock on request
  • Corner work cupboards, open on the operator side or with hinged door on request
  • Mobile version (6 castors, 2 castors with locking mechanism), Ø125 mm Article no. 99.90.01.52
