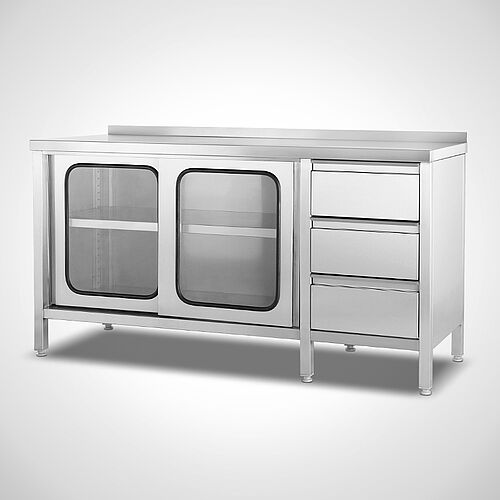

Highline work cabinet made of stainless steel with drawer unit on the right, type AS-SZ-SR 160-60/H, art. no. 22.00.14.68, with rear worktop upstand Highline work cabinet made of stainless steel with drawer unit on the right, type AS-SZ-SR 160-60/H, art. no. 22.00.14.68, with rear worktop upstand
Highline work cabinet made of stainless steel with drawer unit on the right, type AS-SZ-SR 160-60/H, art. no. 22.00.14.68, without rear worktop upstandHighline work cabinet made of stainless steel with drawer unit on the right, type AS-SZ-SR 160-60/H, art. no. 22.00.14.68, without rear worktop upstand

Work cupboards
Type AS-SZ-SR/Highline

Particularly suitable for use in pharmacy, laboratories, medicine and clean rooms

  • Fully-welded execution made of stainless steel 1.4301
  • Cupboard body, closed on 3 sides, material thickness 1.0 mm
  • Worktop in 1.5 mm material thickness
  • Worktop, chamfered on 3 sides, rear 40 mm backsplash (gallery),
    alternatively: smoothly chamfered on all sides
  • Work top underneath reinforced with hat profile
  • Cupboard interior with 1 height-adjustable storage shelf (50 mm) in 1.0 mm material thickness
  • With double-walled sliding doors on the operator side, material thickness 1.0 mm
  • Drawer block, with 3 drawers on the right side, W 400 x H 200 mm
  • Doors with polycarbonate panel as well as rubber seal, Advantage:Visible compliance with rules
  • Lower structure with stable square pipe frame construction (40x40x1.5 mm)
  • 6 height-adjustable plastic screw feett (+/- 30 mm)
  • Standard ground clearance: 150 mm

TypeDepth
in mm		Dimensions
W x D x H in mm		PDF
Depth: 600 mm
AS-SZ-SR/H 160-60600 mm1600 x 600 x 85022.00.14.68
AS-SZ-SR/H 170-60600 mm1700 x 600 x 85022.00.14.69
AS-SZ-SR/H 180-60600 mm1800 x 600 x 85022.00.14.70
AS-SZ-SR/H 190-60600 mm1900 x 600 x 85022.00.14.71
AS-SZ-SR/H 200-60600 mm2000 x 600 x 85022.00.14.72
AS-SZ-SR/H 210-60600 mm2100 x 600 x 85022.00.14.73
AS-SZ-SR/H 220-60600 mm2200 x 600 x 85022.00.14.74
Depth: 700 mm
AS-SZ-SR/H 160-70700 mm1600 x 700 x 85022.00.14.81
AS-SZ-SR/H 170-70700 mm1700 x 700 x 85022.00.14.82
AS-SZ-SR/H 180-70700 mm1800 x 700 x 85022.00.14.83
AS-SZ-SR/H 190-70700 mm1900 x 700 x 85022.00.14.84
AS-SZ-SR/H 200-70700 mm2000 x 700 x 85022.00.14.85
AS-SZ-SR/H 210-70700 mm2100 x 700 x 85022.00.14.86
AS-SZ-SR/H 220-70700 mm2200 x 700 x 85022.00.14.87
Depth: 800 mm
AS-SZ-SR/H 160-80800 mm1600 x 800 x 85022.00.14.94
AS-SZ-SR/H 170-806800 mm1700 x 800 x 85022.00.14.95
AS-SZ-SR/H 180-80800 mm1800 x 800 x 85022.00.14.96
AS-SZ-SR/H 190-80800 mm1900 x 800 x 85022.00.14.97
AS-SZ-SR/H 200-80800 mm2000 x 800 x 85022.00.14.98
AS-SZ-SR/H 210-80800 mm2100 x 800 x 85022.00.14.99
AS-SZ-SR/H 220-80800 mm2200 x 800 x 85022.00.15.00
Special dimensions
Drawer(s) INDIVIDUALLY lockable with a profile cylinder lock 99800287
Drawer(s) CENTRALLY lockable with a central profile cylinder lock 99800376
Drawer with full extension 99800288
Sliding doors lockable by means of profile cylinder lock 99800004
Mobil version with 6 swivel castors 2 of it with brakes, Ø125 mm 99900152
Foot type STF-Highline  99870148
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

We produce all cupboards also individually as desired by the customer.



Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.
The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish.



Description

Work cupboards are applicable for all kinds of industry and product-ranges.
For cleanrooms we also deliver cupboard-interiors in very hygienic-executions H1-3 according to DIN 18865-9.



Options

  • Drawers, lockable by means of profile cylinder lock on request
  • Box drawers with full pull-out on request
  • Doors lockable by means of profile cylinder lock on request
  • Corner work cupboards, open on the operator side or with hinged door on request
  • Mobile version (6 castors, 2 castors with locking mechanism), Ø125 mm Article no. 99.90.01.52
