Without doors

Without doors

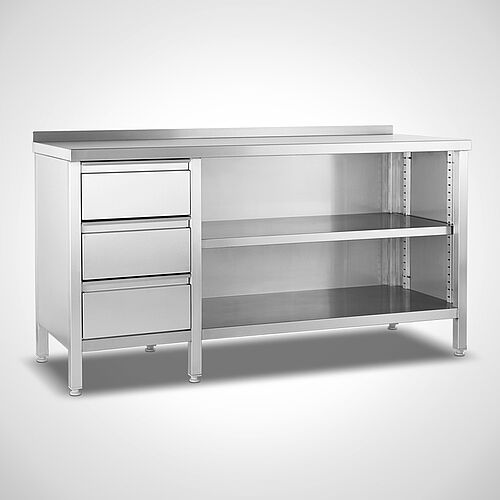

Stainless steel work cabinet with drawer unit on the left, type AS-OZ-SL 140-60, item no. 22.00.09.54, with rear worktop upstand Stainless steel work cabinet with drawer unit on the left, type AS-OZ-SL 140-60, item no. 22.00.09.54, with rear worktop upstand
Stainless steel work cabinet with drawer unit on the left, type AS-OZ-SL 140-60, item no. 22.00.09.54, without rear worktop upstandStainless steel work cabinet with drawer unit on the left, type AS-OZ-SL 140-60, item no. 22.00.09.54, without rear worktop upstand

Work cupboards
Type AS-OZ-SL

Work cupboards are applicable for all kinds of industry and product-ranges

  • Fully-welded execution made of stainless steel 1.4301
  • Cupboard body, closed on 3 sides, material thickness 1.0 mm
  • Open on the operator side, without doors
  • Worktop in 1.5 mm material thickness
  • Worktop, chamfered on 3 sides, rear 40 mm backsplash (gallery),
    alternatively: smoothly chamfered on all sides
  • Work top underneath reinforced with hat profile
  • Cupboard interior with 1 height-adjustable storage shelf (50 mm) in 1.0 mm material thickness
  • Drawer block, with 3 drawers on the left side, each drawer W 400 x H 200 mm
  • Lower structure with stable square pipe frame construction (40x40x1.5 mm)
  • 6 height-adjustable plastic screw feet (+/- 30 mm)
  • Standard ground clearance: 150 mm

TypeDepth
in mm		Dimensions
W x D x H in mm		PDF
Table depth: 600 mm
AS-OZ-SL 100-60600 mm1000 x 600 x 85022000950
AS-OZ-SL 110-60600 mm1100 x 600 x 85022000951
AS-OZ-SL 120-60600 mm1200 x 600 x 85022000952
AS-OZ-SL 130-60600 mm1300 x 600 x 85022000953
AS-OZ-SL 140-60600 mm1400 x 600 x 85022000954
AS-OZ-SL 150-60600 mm1500 x 600 x 85022000955
AS-OZ-SL 160-60600 mm1600 x 600 x 85022000956
AS-OZ-SL 170-60600 mm1700 x 600 x 85022000957
AS-OZ-SL 180-60600 mm1800 x 600 x 85022000958
AS-OZ-SL 190-60600 mm1900 x 600 x 85022000959
AS-OZ-SL 200-60600 mm2000 x 600 x 85022000960
AS-OZ-SL 210-60600 mm2100 x 600 x 85022000961
AS-OZ-SL 220-60600 mm2200 x 600 x 85022000962
Table depth: 700 mm
AS-OZ-SL 100-70700 mm1000 x 700 x 85022000963
AS-OZ-SL 110-70700 mm1100 x 700 x 85022000964
AS-OZ-SL 120-70700 mm1200 x 700 x 85022000965
AS-OZ-SL 130-70700 mm1300 x 700 x 85022000966
AS-OZ-SL 140-70700 mm1400 x 700 x 85022000967
AS-OZ-SL 150-70700 mm1500 x 700 x 85022000968
AS-OZ-SL 160-70700 mm1600 x 700 x 85022000969
AS-OZ-SL 170-70700 mm1700 x 700 x 85022000970
AS-OZ-SL 180-70700 mm1800 x 700 x 85022000971
AS-OZ-SL 190-70700 mm1900 x 700 x 85022000972
AS-OZ-SL 200-70700 mm2000 x 700 x 85022000973
AS-OZ-SL 210-70700 mm2100 x 700 x 85022000974
AS-OZ-SL 220-70700 mm2200 x 700 x 85022000975
Table depth: 800 mm
AS-OZ-SL 100-80800 mm1000 x 800 x 85022000976
AS-OZ-SL 110-80800 mm1100 x 800 x 85022000977
AS-OZ-SL 120-80800 mm1200 x 800 x 85022000978
AS-OZ-SL 130-80800 mm1300 x 800 x 85022000979
AS-OZ-SL 140-80800 mm1400 x 800 x 85022000980
AS-OZ-SL 150-80800 mm1500 x 800 x 85022000981
AS-OZ-SL 160-80800 mm1600 x 800 x 85022000982
AS-OZ-SL 170-80800 mm1700 x 800 x 85022000983
AS-OZ-SL 180-80800 mm1800 x 800 x 85022000984
AS-OZ-SL 190-80800 mm1900 x 800 x 85022000985
AS-OZ-SL 200-80800 mm2000 x 800 x 85022000986
AS-OZ-SL 210-80800 mm2100 x 800 x 85022000987
AS-OZ-SL 220-80800 mm2200 x 800 x 85022000988
Special dimensions
Drawer(s) INDIVIDUALLY lockable with a profile cylinder lock 99800287
Drawer(s) CENTRALLY lockable with a central profile cylinder lock 99800376
Drawer with full extension 99800288
We manufacture individually according to customer requirements
show options

Quick request

No product in the request list!

Please select the desired article on the gray field next to the article no. by clicking the mouse.

All dimensions are in mm. Other designs on request!



Information

For cleanrooms we also deliver cupboard-interiors in very hygienic-executions H1-3 according to DIN 18865-9


Material

Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.

The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish.



Options

  • Doors lockable by means of profile cylinder lock on request
  • Corner work cupboards, open on the operator side or with hinged door on request
  • Mobile version (6 castors, 2 castors with locking mechanism), Ø125 mm Article no. 99.90.01.52
