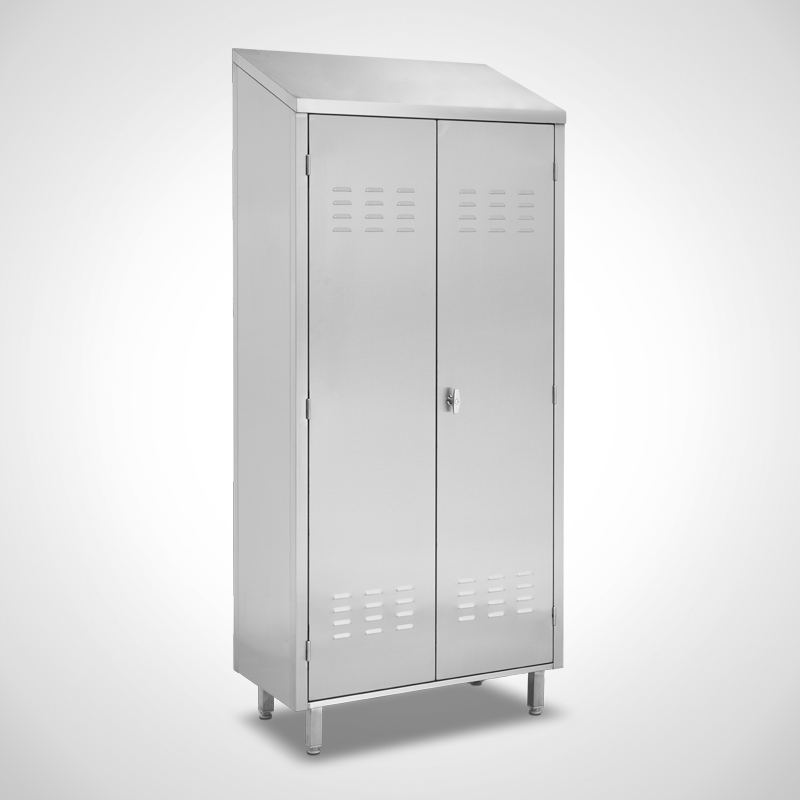

Storage cupboard made of stainless steel Type ASD-TD 95-50, art. no. 44.20.00.15 Storage cupboard made of stainless steel Type ASD-TD 95-50, art. no. 44.20.00.15
Storage cupboard made of stainless steel Type ASD-TD 95-50, art. no. 44.20.00.15Storage cupboard made of stainless steel Type ASD-TD 95-50, art. no. 44.20.00.15

Storage cupboard
Type ASD-TD

Universal usable - continuous partition wall

  • Fixed welded stainless steel version
  • Cupboard body, closed on 3 sides
  • Design in 1.0 mm material strength
  • Sloping roof, 200 mm higher at the back, in “Hygienic design“
  • 2 revolving  doors on the operator side
  • Doors lockable by means of T-handle including profile cylinder lock

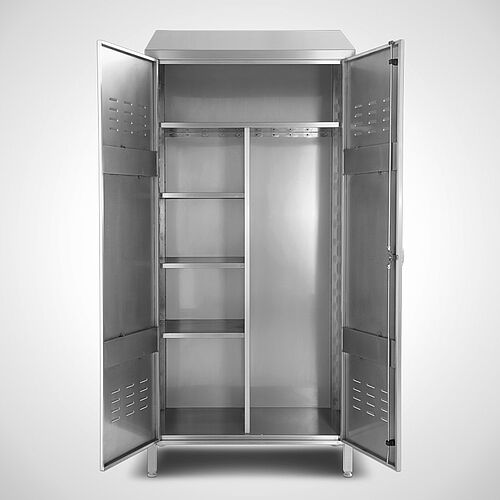

  • Cupboard Interior:
    • 1 solidly welded hat shelf
    • 3 height-adjustable storage shelves on the left side
    • continuous partition wall up to the bottom
  • 4 height-adjustable plastic screw feet (+/- 30 mm)
  • Standard ground clearance: 150 mm

    TypeVersionDoorsDimensions
    W x D x H in mm    		PDF
    depth: 500 mm
    ASD-TD 60-50Hat bottom and 3 height-adjustable storage shelves2 revolving doors600 x 500 x 216044.20.00.52
    ASD-TD 70-50Hat bottom and 3 height-adjustable storage shelves2 revolving doors700 x 500 x 216044.20.00.53
    ASD-TD 80-50Hat bottom and 3 height-adjustable storage shelves2 revolving doors800 x 500 x 216044.20.00.54
    ASD-TD 95-50Hat bottom and 3 height-adjustable storage shelves2 revolving doors950 x 500 x 216044.20.00.04
    ASD-TD 110-50Hat bottom and 3 height-adjustable storage shelves2 revolving doors1100 x 500 x 216044.20.00.55
    ASD-TD 120-50Hat bottom and 3 height-adjustable storage shelves2 revolving doors1200 x 500 x 216044.20.00.56
    ASD-TD 130-50Hat bottom and 3 height-adjustable storage shelves2 revolving doors1300 x 500 x 216044.20.00.57
    ASD-TD 140-50Hat bottom and 3 height-adjustable storage shelves2 revolving doors1400 x 500 x 216044.20.00.58
    depth: 600 mm
    ASD-TD 60-60Hat bottom and 3 height-adjustable storage shelves2 revolving doors600 x 600 x 216044.20.00.59
    ASD-TD 70-60Hat bottom and 3 height-adjustable storage shelves2 revolving doors700 x 600 x 216044.20.00.60
    ASD-TD 80-60Hat bottom and 3 height-adjustable storage shelves2 revolving doors800 x 600 x 216044.20.00.61
    ASD-TD 95-60Hat bottom and 3 height-adjustable storage shelves2 revolving doors950 x 600 x 216044.20.00.62
    ASD-TD 110-60Hat bottom and 3 height-adjustable storage shelves2 revolving doors1100 x 600 x 216044.20.00.63
    ASD-TD 120-60Hat bottom and 3 height-adjustable storage shelves2 revolving doors1200 x 600 x 216044.20.00.64
    ASD-TD 130-60Hat bottom and 3 height-adjustable storage shelves2 revolving doors1300 x 600 x 216044.20.00.65
    ASD-TD 140-60Hat bottom and 3 height-adjustable storage shelves2 revolving doors1400 x 600 x 216044.20.00.66
    Special dimensions
    Revolving door made of MACROLON 49001907
    4 polyamide castors, Ø 125 mm (2 with stop) 99900150
    We manufacture individually according to customer requirements
    show options

    Quick request

    No product in the request list!

    Please select the desired article on the gray field next to the article no. by clicking the mouse.

    Other executions on request. We manufacture individually according to customer requirements.



    Material

    Stainless steel furniture made of chrome-nickel steel 18/10 material No. 1.4301.

    The stainless steel sheet surfaces being visible from the outside are in polished finish with grain 320.
    The externally visible stainless steel profile surfaces, such as table legs have a uniform brushed finish.



    Options

    • 4 polyamide castors, Ø 125 mm (2 with stop), Art. No. 99.90.01.50
    • Revolving doors made of MACROLON, Art. No. 49.00.19.07
